Himmel Trial House

HIMMEL TRIAL HOUSE

Bauen

Himmel Trial House
© Federico Cairoli

ARCHITECTS
Bauen

PHOTOGRAPHS
Federico Cairoli

CATEGORY
Landscape Architecture, Houses

LEAD ARCHITECT
Aldo Cristaldo Kegler

AREA
292 m²

LOCATION
Paraguay

YEAR
2020

MANUFACTURERS
Duravit, Florense, Alpi Srl, Cerâmica Portinari, Docol, Eurocable, Metales Procesados S.r.l., Vidriocar

TEAM
Dina Agüero, Luz Serena Hiebl, Saúl Acosta, Fátima Estigarribia

STRUCTURAL ENGENIEER
Alfredo Espínola

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

Text description provided by architect.

With the purpose of conducting the project, a retirement home, the clients found the ideal spot in a remote region, in which the main character would not be the architecture but the landscape itself.

Keeping in mind these premises, 90% of the house was already solved; it only remained to propose the architecture of the house.

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

Having the advantage of a 360° view of the mountain range, designing the house was not an arduous task. One of the strongest criteria of the design was to not interfere in the site conditions, leaving the vegetation untouched and avoiding invasive earth movements.

Another crucial point kept in mind was that the house should not obstruct the view from higher spots of the sierra, which positions the house over an irregular topography, this implantation solution makes the volume almost imperceptible entering the field and one only becomes aware of its presence when reaching a few meters closer to it.

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

The various shades of green –consequence of the different schedules, stations and weather- allow the views to be ephemeral and grant new landscapes every day.

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

The choice of material derives from the logistic planning that was needed to get to the location; the solution was a prefabricated system of metallic structures. This system allows the transport to be made in distinct stages, something beneficial since the land was difficult to access.

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

Once all the pieces arrived, the structure montage process was of 7 days, adding the previous process of manufacturing that lasted 60 days in a workshop located 200 km away from the construction site.

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

The house rests on three concrete walls –the only segment of the construction made on-site– that elevate the composition and minimally interferes in the land's nature.

Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli

The structural resolution ends up designating the aesthetic of the house, the structural spans become the windows and are simply closed with glass, where every square meter of the project allows the striking surrounding view to passing through, making the desired harmony possible.


Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli
Himmel Trial House
© Federico Cairoli


Himmel Trial House
Section
Himmel Trial House

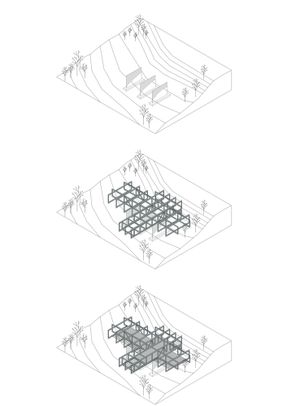

Diagrams 2


Himmel Trial House

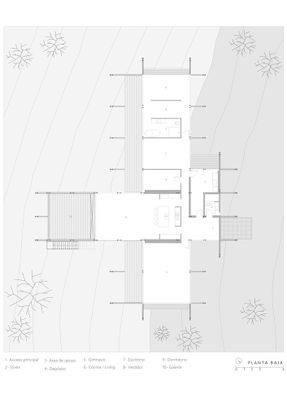

Plan
Himmel Trial House
Roof Plan
Himmel Trial House
Diagrams 1
