Emergency Stairs in Francisco Parras School

Emergency Stairs in Francisco Parras School
© RN Fotógrafos

EMERGENCY STAIRS IN FRANCISCO PARRAS SCHOOL

DUNAR arquitectos

AREA
200 m²

YEAR
2019

PHOTOGRAPHS
Rn Fotógrafos

MANUFACTURERS
Sika, Montó, Simon, Bigmat, La Paloma Cerámicas

COORDINATION ARCHITECT
Carlos Robustillo Yagüe

LEAD ARCHITECT
Javier Robustillo Yagüe.

RIGGER
Antonio Pardo Álvaro

LOCATION
Losar De La Vera, Spain

CONTRACTOR
Álvaro Hernández Martín

CATEGORY
Other Structures, Extension

Text description provided by architect.

The School Francisco Parras, inaugurated in the year 1929, was an important milestone to the Losar de la Vera´s population, which is located in the North of Caceres province.

Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos

Originally, the building had a separated education from sexes, and, because of that, the first and the second floor (males childs) has a different acces than the low floor (females childs).

90 years after of continued use, we proposed an intervention with the objective of adapt it to the Fire Normative and to make it accessible.

The Project will have two main areas of intervention: to reorganize the existing stairs, to connect the three floors without having to leave the building; and the construction of a new core of external communication to resolve the evacuation problems in case of fire and to make possible, on a second chance, the instalation of an accessible elevator.

Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos

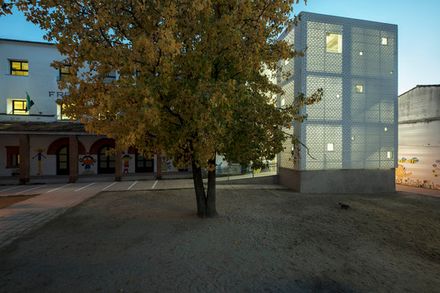

The new external volume, separated of the old building, will be formalized with an reinforced concrete structure with shielded pillars.

The concrete skeleton will be covered with a ceramic skin making a continuous enclosure.

Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos

This ceramic lattice will have some opened spaces making possibble to establish different visual connections with the exterior landscape during the tour through the staircases.

To build this ceramic skin we have used an auxiliar metallic substructure of vertical tubular profiles which they have welded some horizontal type “L” profiles to fix each five brick lines.

Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos

The brick, a STONEWARE/ARCTIC CLINKER from LA PALOMA, will be arranged with the frog seen, the brick perforations will form the final image of the new built volume.


Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos
Emergency Stairs in Francisco Parras School
© RN Fotógrafos


Emergency Stairs in Francisco Parras School
Plans
Emergency Stairs in Francisco Parras School
Plans
Emergency Stairs in Francisco Parras School
Elevations and plans


Emergency Stairs in Francisco Parras School
Detail
