HOUSE WITHIN

Arch.lab

ARCHITECTS
Arch.lab

AREA
3130 ft²

YEAR
2019

CATEGORY
Houses

LOCATION
Panchkula, India

PRINCIPAL ARCHITECT
Mohit Vij, Harsimran Singh

MANUFACTURERS
Lunawood, Alcoi, Kriglow Lighting, Luna Wood, Manmade

Text description provided by architect.

Located at the junction of two arterial roads, the house is constructed on a site located at the edge of a street of row houses. Hence the primary challenge was to balance the privacy of the residents and the intake of natural light through the street facing facades.

House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj

To achieve a quiet and peaceful living environment, the house therefore, is conceived with an inward-looking spatial arrangement.

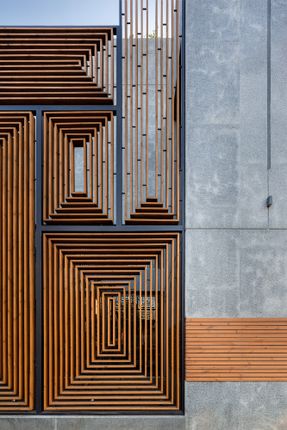

The exterior of the house is a composition of solid granite cuboids and wooden jaalis that not only create a perforated skin between the courtyard and the outdoor neighborhood but also create a warm contrast softening the blocking.

House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj

Planning of the house is done keeping in mind the needs of a small nuclear family that sought for a private and compact living. Spaces flow into each other, in a linear arrangement, free from visual obstruction on the ground floor.

Also, the ground floor and first floor are visually connected by the double height living room on the ground floor.

House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj

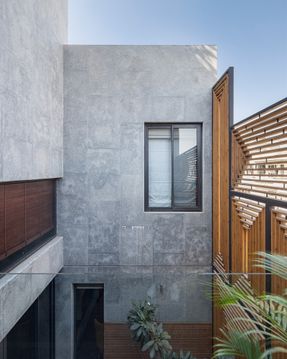

A courtyard, along the outer longer face of the house, and carefully planned skylights ensure a naturally lit interior environment and also ventilate all living spaces of the house.

The courtyard becomes the central space of the house as it is well connected with all the primary living spaces of the house. On the upper levels, terraces annexing the rooms open to the courtyard thereby establishing a humble connection between the upper levels and the courtyard.

House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj

To optimize daylight and heat gain, larger openings are directed towards the courtyard, and low height openings are located along the outer façade.

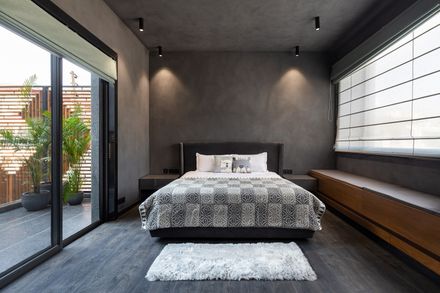

Which also regulate the visual connection with the outdoors.The interiors of the house have been kept minimal with a modest material palette of exposed concrete, teak wood and wall plaster.

House Within
© Purnesh Dev Nikhanj


House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj
House Within
© Purnesh Dev Nikhanj


House Within
Section 01
House Within
Section 02
House Within
Ground Floor Plan
House Within
First Floor Plan
House Within
Second Floor Plan


House Within
Exploded axonometric
