LAKE ANNEX

Studio AG Arquitetura

CATEGORY
Wellbeing, Other Structures

LOCATION
Brazil

AREA
180 m²

YEAR
2016

PHOTOGRAPHS
Ruy Teixeira

MANUFACTURERS
GRAPHISOFT, Artecor Homewear, Arthur Decor, Colormix, Palimanan, Plancus, Rewood

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira

Text description provided by architect.

This project, a kiosk annexed to a lake, is designed as a leisure and contemplation space integrated to its surrounding landscape, allowing nature to be the focus.

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira

As the space aims to highlight its surroundings, the structure is delicate and comprised of three simple components: a roof, a private living space, and brise-soleil panels.

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira

The challenge of bringing the project to fruition in under 2 months in a remote area led to the choice of dry and green construction materials, such as glued laminated timber (glulam) for the roof and metallic pillars, lessening the impact to the surrounding terrain.

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira

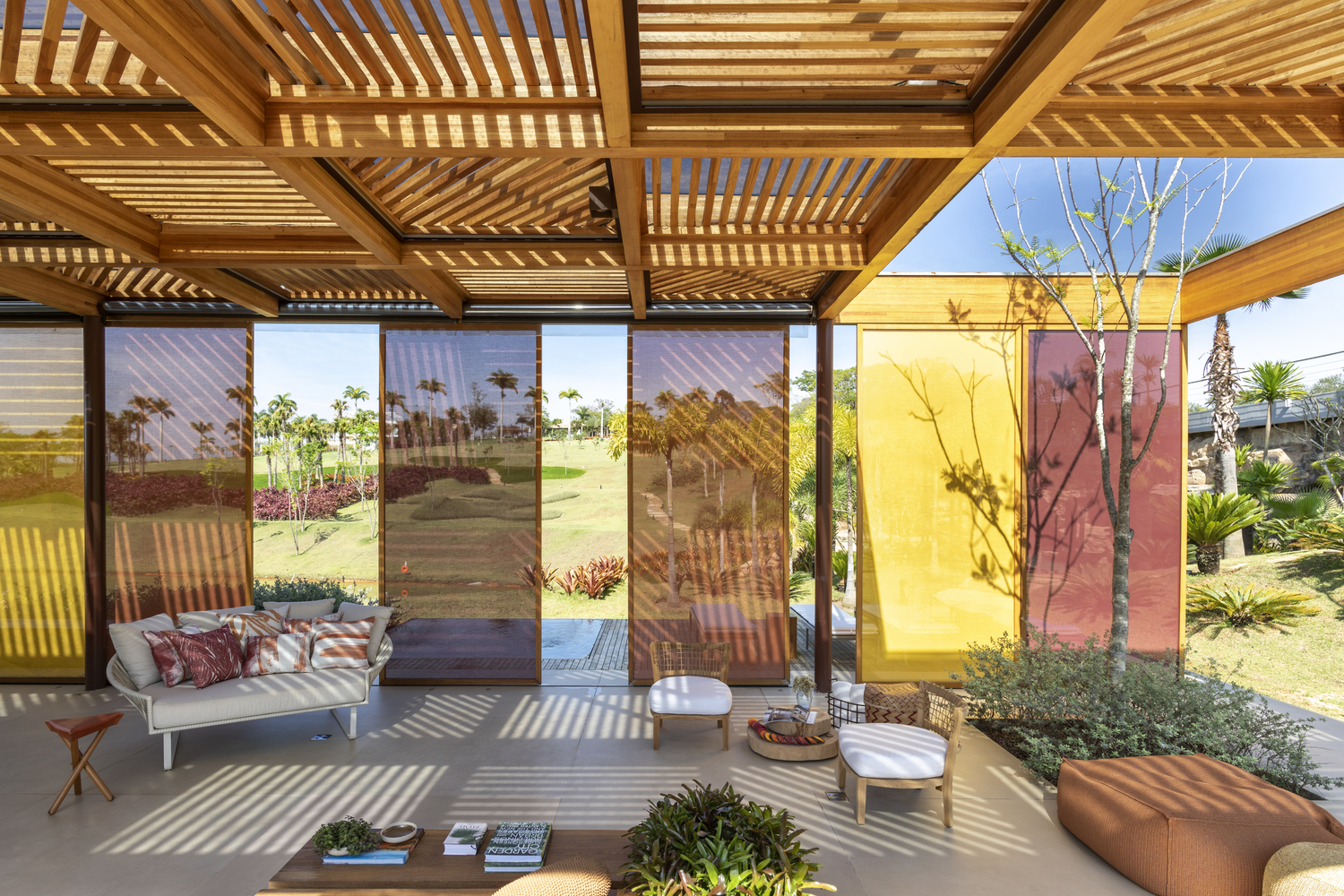

With the intention of integrating the landscape, the glued laminated timber roof functions as a pergola, with supportive beams and slats installed in different directions to allow the sun to filter in and create different scenes throughout the day.

The roof was installed as such to provide the illusion that the structure is floating on the plateau; the location was chosen precisely so that the structure does not jut out from the horizon line and is integrated within the context of the height of the access bridge and the naturally existing terrain curves.

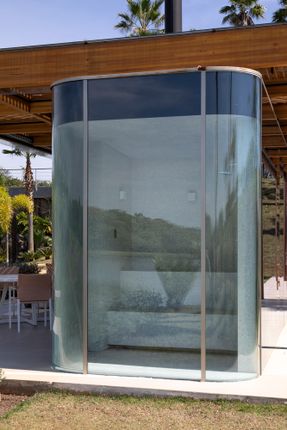

The private living space aims to serve its user’s basic needs. The structure has rounded edges, emulating the organic shape of the lake, and is coated with mirrors, providing continuity to the landscape by creating an illusion of invisibility.

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira

The fluid and open architecture puts nature at the center of the project and assimilates to and magnifies the existing environment.

The brise-soleil panels have colourful screens which emulate the surrounding landscape and can be adjusted to filter the sun at different times of day, thus creating various scenes while offering respite to its user.

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira

In addition to integrating and enhancing its surrounding environment, this project allows for its users to interact directly with both architecture and nature simultaneously.

Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira
Lake Annex
© Ruy Teixeira


Lake Annex
Floor Plan
Lake Annex
Roof Plan


Lake Annex
Section A
Lake Annex
Section B


Lake Annex
Diagram 01
Lake Annex
Gif
