A House

A House
© Kuo-Min Lee

A HOUSE

Clearspace Design & Research

PLANNING
Ryan Kuo

PHOTOGRAPHS
Kuo-Min Lee

LANDSCAPE CONSULTANT
Cn Flower, Hancs Landscape Architecture, Alfie Lin, Cn Flower

ARCHITECTURAL DESIGN
Ryan Kuo, Clearspace Design & Research

CONSTRUCTION
Heyi Construction Decoration

LIGHTING CONSULTANT
Viabizzuno

ART CONSULTANT
Ne-on, Margaux, Ne-on

MANUFACTURERS
Bolon, Honeywell, Laufen, Trane, Viabizzuno, Belega, Gainker, Velux

OWNER
Zenghua Chen

DESIGN PARTICIPANTS
Wenfeng Chen, Jianya Sun, Ryan Kuo, TAO&C, Margaux Lhermitte, Huang Yingjie, Wang Zhi, Mike Loh, Huang Shan

YEAR
2018

AREA
2000 m²

LOCATION
Shanghai, China

CATEGORY
Office Buildings, Sustainability

Text description provided by architect.

This building is an old factory that is more than 50 years old. Except for the structural columns, we demolished and retained some brick walls, and rebuilt the building and interior design.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

A House is a workspace. We hope to bring people home feeling - warm and safe. This allows building a close relationship between people and the environment.

The appearance of the sloping roof is like a home. This is a concept that extends from home to the workplace. Work can be like a home where people can generate close relations.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

This work combines green building, smart building, urban farmland, and energy-saving design to create a landscape that can share resources and design, creating a circular and sustainable ecology.

It restarted the community's co-creation activities and made the exterior a recognizable natural life landscape.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

The rice field is a memory of the south of the Yangtze River. The small farm that in front of the building makes a joyful and harmonious space for employees.

When the Chinese solar terms in autumn, all employees and community members will gather together to harvest, just like the memory of hometown.

It’s a home feel to the workplace. Then we will never far from home.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

New bricks must be made like old bricks in order to be fused, and they will not be placed here like a new thing.

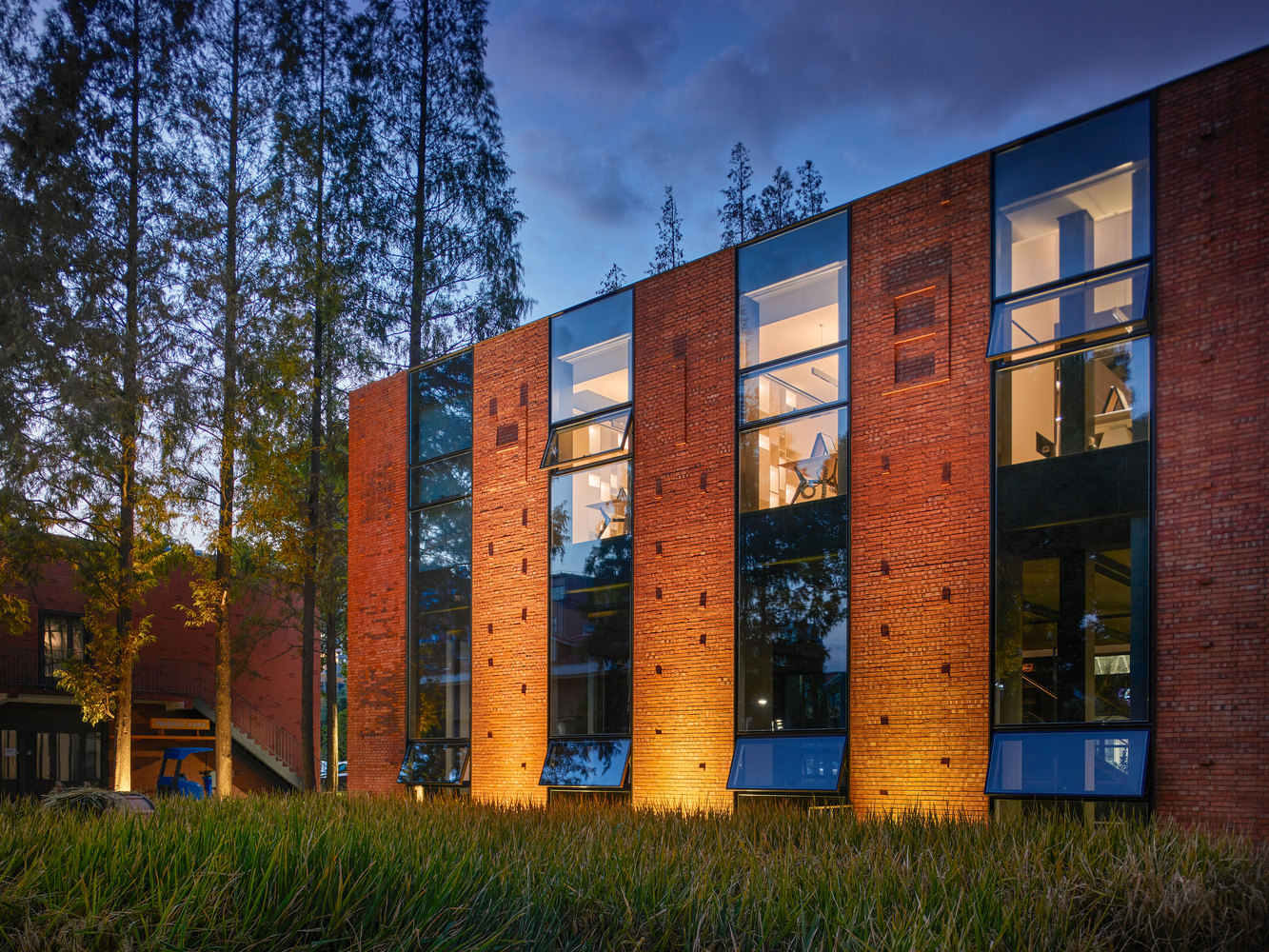

The red brick walls demonstrate a quaint, traditional Chinese atmosphere. Outside the old red brick wall, the architect decided to build a new layer of the red brick wall.

The middle of the two red brick walls remains hollow. The air in the middle isolates the outdoor heat conduction and forms effective isolation with benefit for the building.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

COMFORT

Using German GANEKER technology, the west side wall was kept to preserve the interaction between the outdoor and the indoor.

It not only blocks the conduction of air and radiant heat but also adds a clever spin to a traditional design.

Windows are from VELUX from Denmark. They combined with the window blinds to separate the glaring daylight. Fresh air and scenery are the focus of the surrounding design.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

The windows help us meet this goal. Daylight is the main design feature of this building.

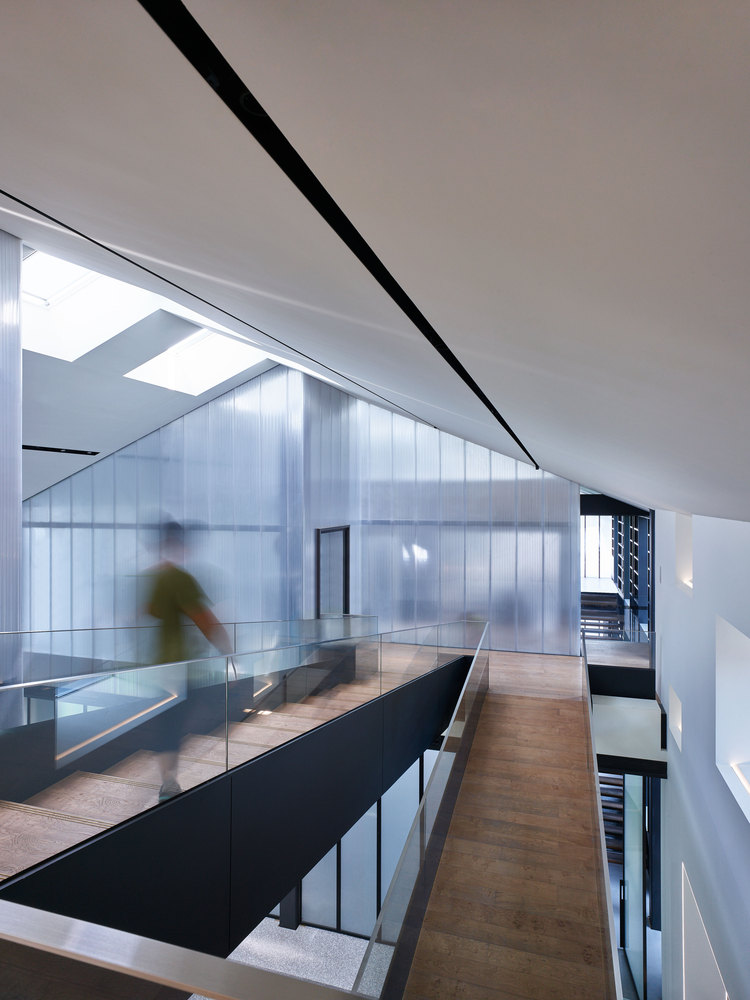

It employs not only façade windows, but also skylights in the atriums, which improve the daylight environment in the inner area.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

The curtain wall towards the east maximized the daylight level of the office area. The average daylight factor is above 4.2%.

ENERGY

As calculated, the energy consumption of the building is expected to reach 43kWh/m2a for cooling, heating, ventilation, plumbing, and lighting annually.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

ENVIRONMENT

This building is refurbished following the 3R (Reduce, Reuse, and Recycle) principle. Use environmentally friendly materials.

The recycled materials, such as bearing steel frame structures, metal roof, glazing curtain walls are used in the project.

A House
© Kuo-Min Lee
A House
© Kuo-Min Lee

The friendly materials, for instance, includes FSC wood, the GAINKER building resins, low VOC paint, and so on.


A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee
A House
© Kuo-Min Lee


A House
Elevations
A House
Elevations and details


A House
Concept 01
A House
Concept 02


A House
Plan - Basement floor
A House
Plan - 1st floor
A House
Plan - 2nd floor
A House
Plan - 3rd floor
A House
Plan - Roof
A House
Axonometric
