K HOUSE

OSO Architecture

ARCHITECTS
Oso

PHOTOGRAPHS
Atelier Vincent Hecht

CATAGORY
Houses

LOCATION
Japan

AREA
96 m²

YEAR
2020

Text description provided by architect.

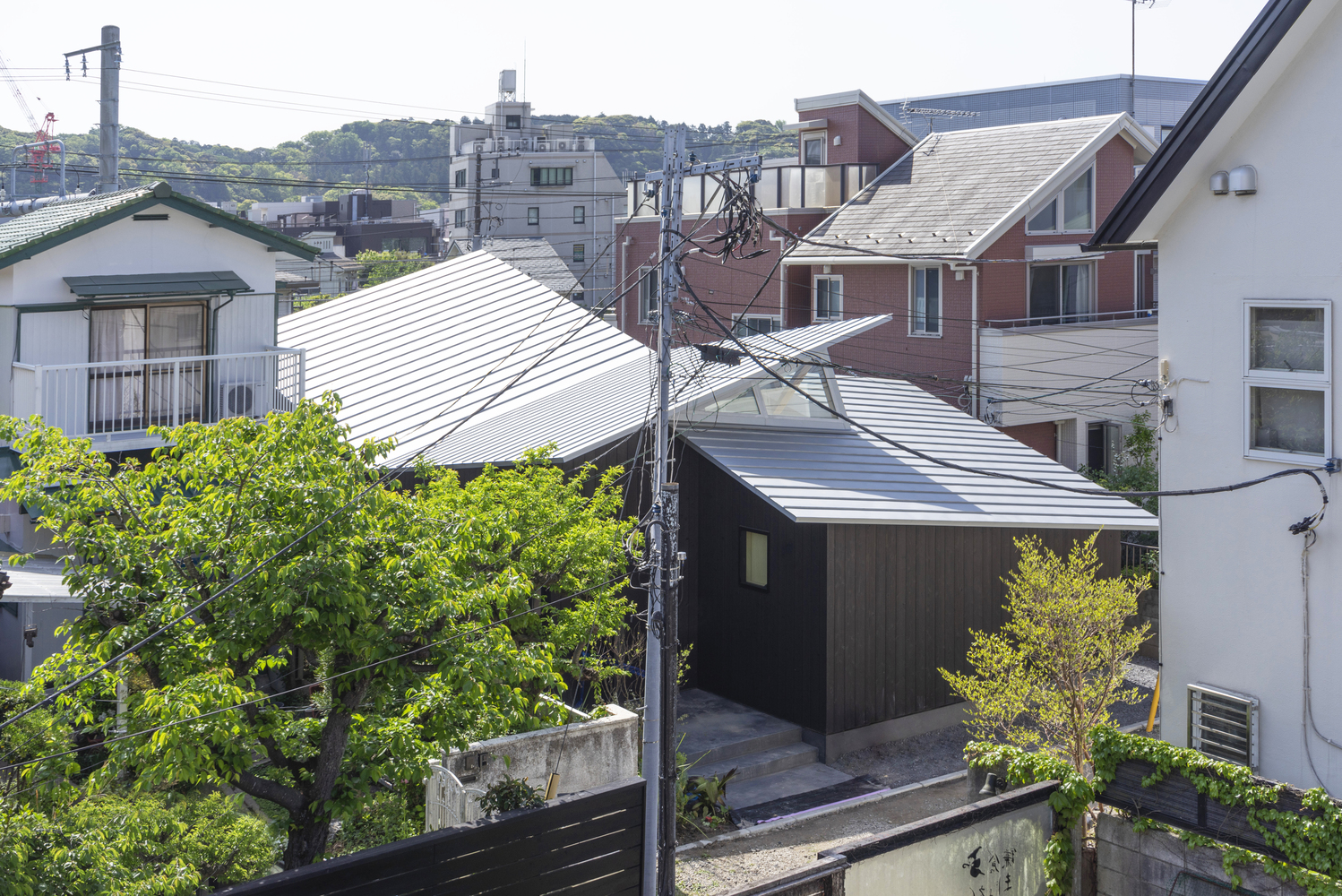

K House is situated in a dense urban neighborhood and faces a busy railway.

K House
© Atelier Vincent Hecht
K House
Courtesy of OSO
K House
© Atelier Vincent Hecht

The client’s family, who had lived on the site for several generations, saw the town grow from a quiet coastal suburb to a popular tourist destination.

Now retired, the client wanted a spacious, single-story home without the extra rooms and stairways that were once needed to accommodate the extended family.

K House
© Atelier Vincent Hecht
K House
Courtesy of OSO

Normally the basic need for privacy and sound insulation would lead to a closed building.

Here the design tries to do the opposite by opening up to the surroundings as much as possible.

K House
Courtesy of OSO
K House
Courtesy of OSO

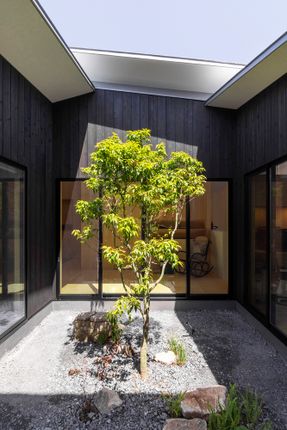

Windows of various shapes and sizes are carefully placed to frame pockets of nature that elude the city: the sky over the railway, the semi-enclosed garden, the patches of greenery outside low windows, and deep eaves.

The roof is clad in steel and the exterior walls are finished with burnt wood.

K House
© Atelier Vincent Hecht
K House
© Atelier Vincent Hecht

Their contrasting appearance – reflective metal over shaded black – highlights the thin profiles of the roof while de-emphasizing the dark walls.

Visually the building is more legible as a series of surfaces than a volume with a clear shape.

K House
© Atelier Vincent Hecht
K House
© Atelier Vincent Hecht
K House
Courtesy of OSO

The trusses in the skylights are the only visible structural elements of the building.

They help span across the building in two directions, eliminating the need for columns inside the open plan.

Because the trusses do not appear to connect with an obvious load diagram, they add an element of surprise amidst the otherwise delicate expression of the building.

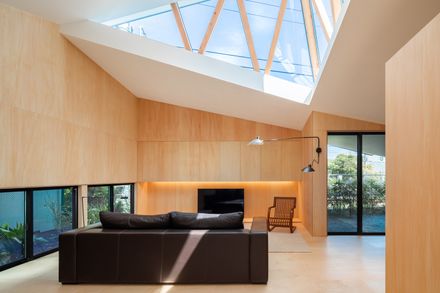

From the inside, the skylights create another kind of experience.

K House
Courtesy of OSO
K House
© Atelier Vincent Hecht

Oriented above the railway, they capture an abundance of light over the thick walls designed for acoustic insulation.

Perceptually, the wide presence of the sky expands the limits of space.

The roof planes – each one tilted at a different angle – play an important role in stiffening the structure.

They also give shape and character to the different spaces within the open plan.

K House
Courtesy of OSO
K House
Courtesy of OSO

Aesthetically, the informal mix of oblique surfaces reverberates with the clashing rooflines of the neighborhood.


K House
Roof PLan
K House

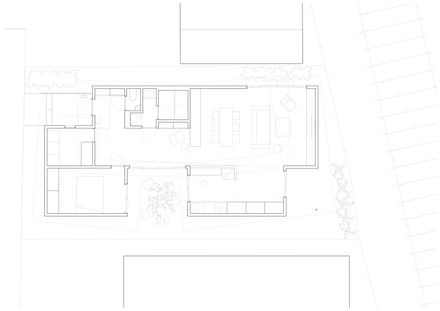

Plan


K House
Section 01
K House
Section 02


K House

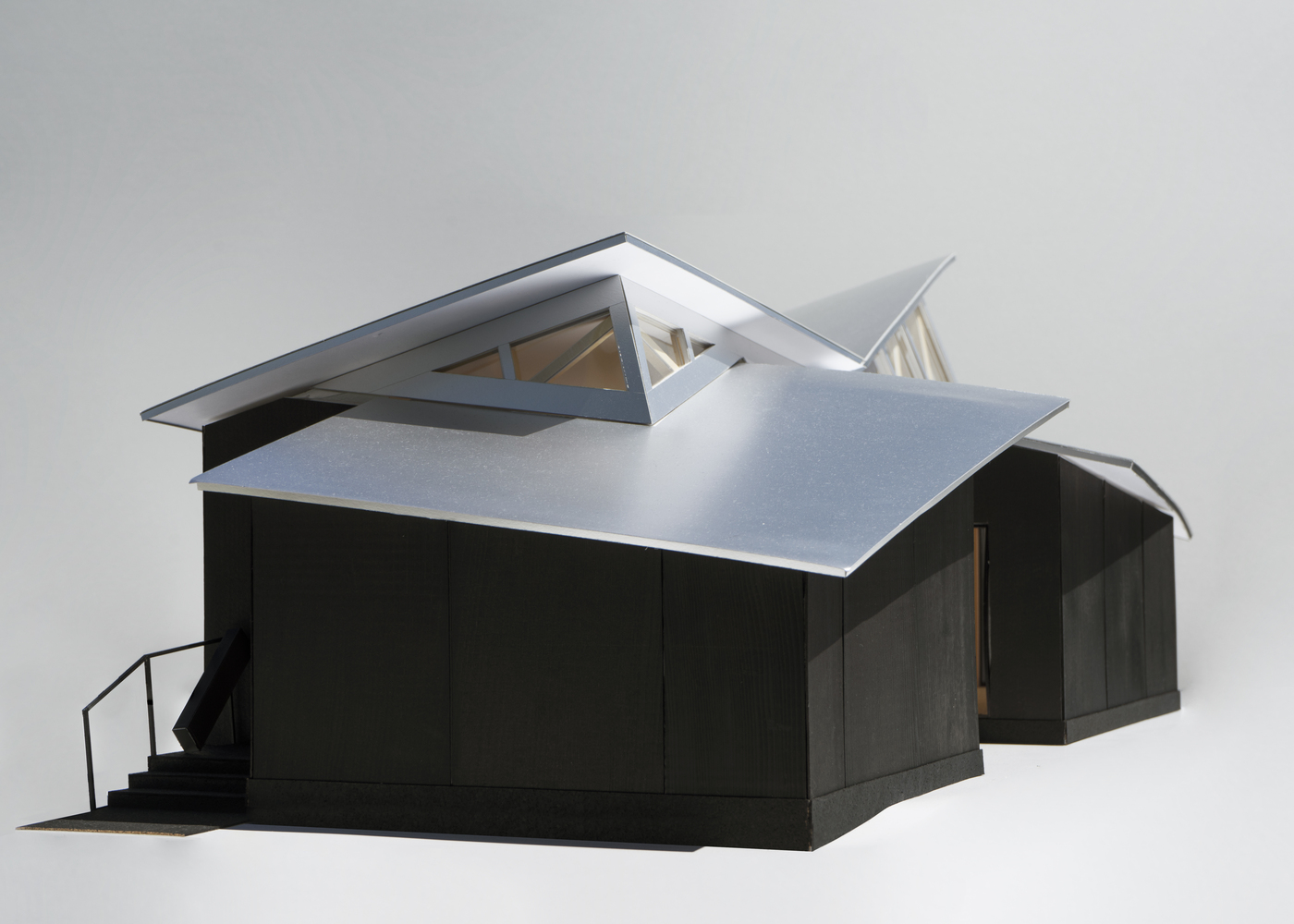

Model. Image Courtesy of OSO

K House
Model. Image Courtesy of OSO
K House
Model. Image Courtesy of OSO
