NAZAR MANSION

Mian Office Architectural Design & Research

YEAR
2019

MANUFACTURERS
Thermory, Agt, Alunice, Arg Brick

ARCHITECTS IN CHARGE
Abouzar Salehi, Mahshid Karimi

DESIGN ASSOCIATES
Nader Maleki, Nafiseh Naderi

LOCATION
Isfahan, Iran

CONSTRUCTION
Eng. Labbaf

CATEGORIES
Houses

ELECTRICAL ENGINEER
Mohammad Reza Kolukhi

MECHANICAL ENGINEER
Eng. Rezaei

GRAPHIC
Morteza Mahdavi, Maryam Pirasteh

AREA
1150 m²

Text description provided by architect.

Nazar Mansion is a residential apartment, located on Kamal Esmaeil Street, near the Zayandeh-Rud river in Isfahan.One of the most important features of this project site is having the view of the river.

Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi

A factor that had an effective role in its design. This four-floor building includes a basement (-2.10m), ground floor (+0.80m) and the first and second floors with a total infrastructure area of 1200 square meters.

Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi

The project structure is of concrete structure and the cooling-heating system is of central engine room, chiller and fan-coil.

Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi

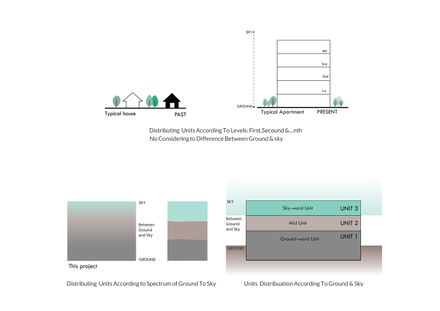

In proportion to the position of the floors in relation to the earth and the sky, open courtyards and semi-open spaces, are located at different levels, which formed spaces for living (behavior-place) and also are related to the location and conditions of the project site.

For example, in this project, despite the very good view of the Zayandeh-Rud River and the green spaces around it, there is considerable noise pollution during the day. Therefore, the terraces and windows, due to its noise pollution, are not used properly at all hours.

Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi

In response to this issue, in this project, while providing various spaces and possibilities for enjoying the view of the river, yards in the heart of the building have been created that can allow lighting and fresh air without noise pollution (inward yards).

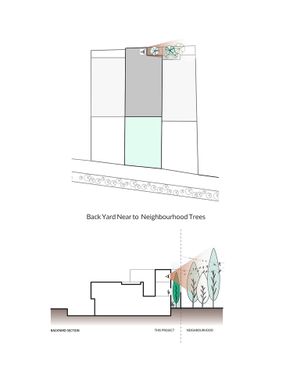

During the day, the “backyard”, which has the view of the neighbor’s tall pine trees, and the “central courtyard”, which provides a living connection between the family living room, room and kitchen, and a controllable link between the middle unit (2nd unit) and the upper unit (3rd unit) is a good alternative for open and semi-open spaces facing the river.

one of the important ideas is to create "various vision qualities" from different spaces and floors to beautiful views of the environment;Such as the spectacular views of the “south porch” and the “Mahtabi” by the pool on the green roof,the quiet view of the western part of the green roof which is in lower level,the decent view of the balcony of the first floor main room,the magnificent view of the first floor reception window and finally the magnificent and Pleasant view of high hall overlooking the garden pit, which has a view of tall trees along the Zayandeh-Rud from a low height and in a special way.

Another important and noticeable idea in this project is that "Joint Space" have been used instead of separating walls for the purpose of fluidity and extensive vision of interior spaces.

These border spaces, in addition to improving the quality of the connection between indoor spaces, add to the richness and behavioral capabilities that can be chosen by the residents.

Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi
Nazar Mansion
© Farshid Nasrabadi

All of these has led to the fact that this apartment, all spaces and levels have links with each other. Generally it can be called a single "mansion". "Nazar Mansion" has been an attempt to recreate the quality of life in Iranian homes in today's apartments.


Nazar Mansion
Movement Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram
Nazar Mansion
Diagram


Nazar Mansion
Basement Plan
Nazar Mansion
Ground Floor Plan
Nazar Mansion

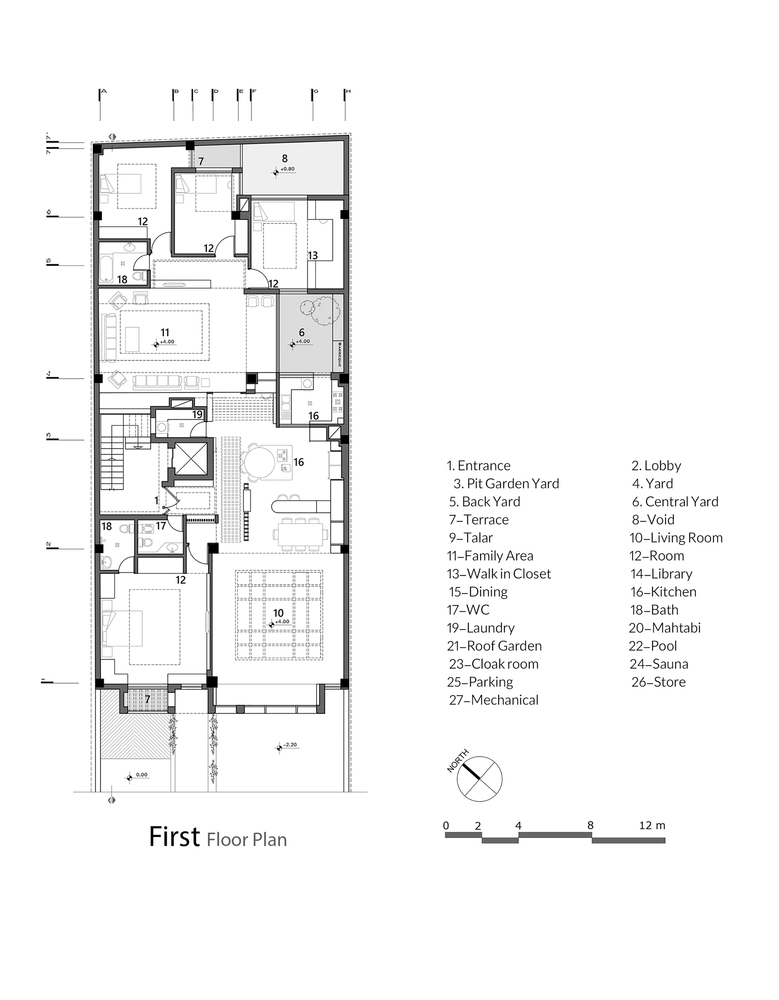

First Floor Plan
Nazar Mansion
Second Floor Plan

Nazar Mansion
South Elevation


Nazar Mansion
Section A
Nazar Mansion
Longitudinal Section
Nazar Mansion
Transversal Section
Nazar Mansion
South Elevation Diagram
Nazar Mansion
Site Plan
