Luxembourg National Library
LUXEMBOURG NATIONAL LIBRARy
Bolles + Wilson, Ww+ Architektur + Management
STRUCTURAL ENGINEERING
Schroeder & Associés
ACOUSTIC
Akustik Ingenieurbüro Moll Gmbh
PHOTOGRAPHS
Christian Richters
MANUFACTURERS
Sto, Beton Feidt, Güstrower Klinkerbau, L2m3
SPECIFICATION, SITE SUPERVISION
Jean Luc Wagner, Jörg Weber, Alexander Frank
BUILDING SERVICES
Felgen & Associés Engineering Sa
FIRE PROTECTION
hhpberlin
SIGNAGE
L2M3 Communication Design
HEAD OF DESIGN
Peter Wilson, Julia B. Bolles-wilson
PROJECT MANAGEMENT
Axel Kempers, Manfred Kieler
LOCATION
Luxembourg
CATEGORIES
Library
BUILDING SERVICES
Felgen & Associés Engineering Sa
Text description provided by architect.
The task of the Patrimonial and Universal Library is the housing and protection of Cultural and Intellectual Texts - a foundation stone of the intellectual community.

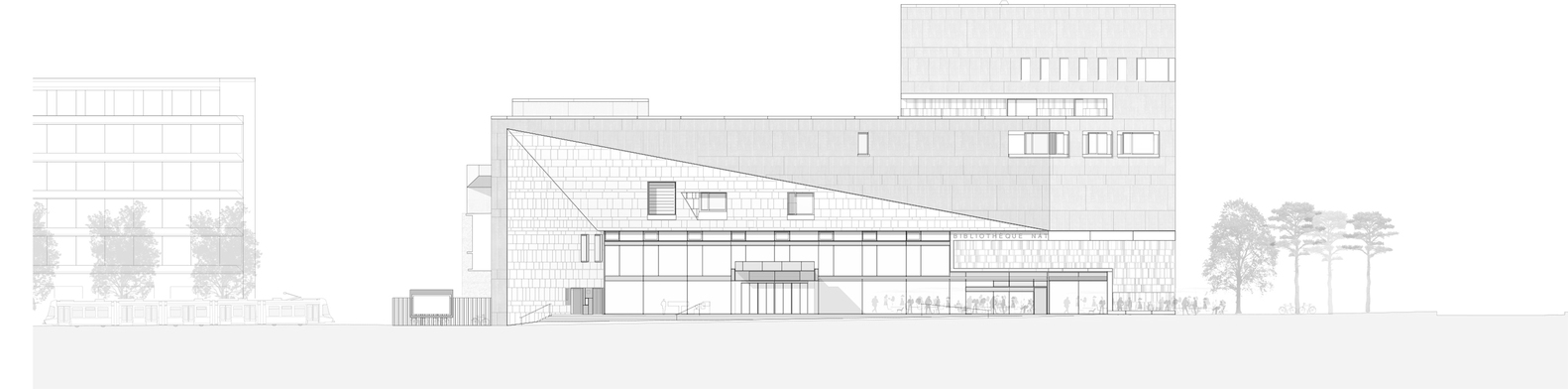

For the BnL a compact, energy-efficient building volume houses a wide range of functional entities. A transparent imposing, but at the same time inviting, facade fronts onto the Avenue John F.
Kennedy. Internal functions unfold sequentially from this entrance gesture; Foyer +, Café (with upper-level Conference + seminar rooms), next to the Reading Room – a landscape of terraced workstations and bookshelves.
The principal building block is located deep within the building, a central and compact archive over five levels.
This secure core is encased by public spaces and forms a plateau on top of which the largest bookshelf area and reading-deck are found.

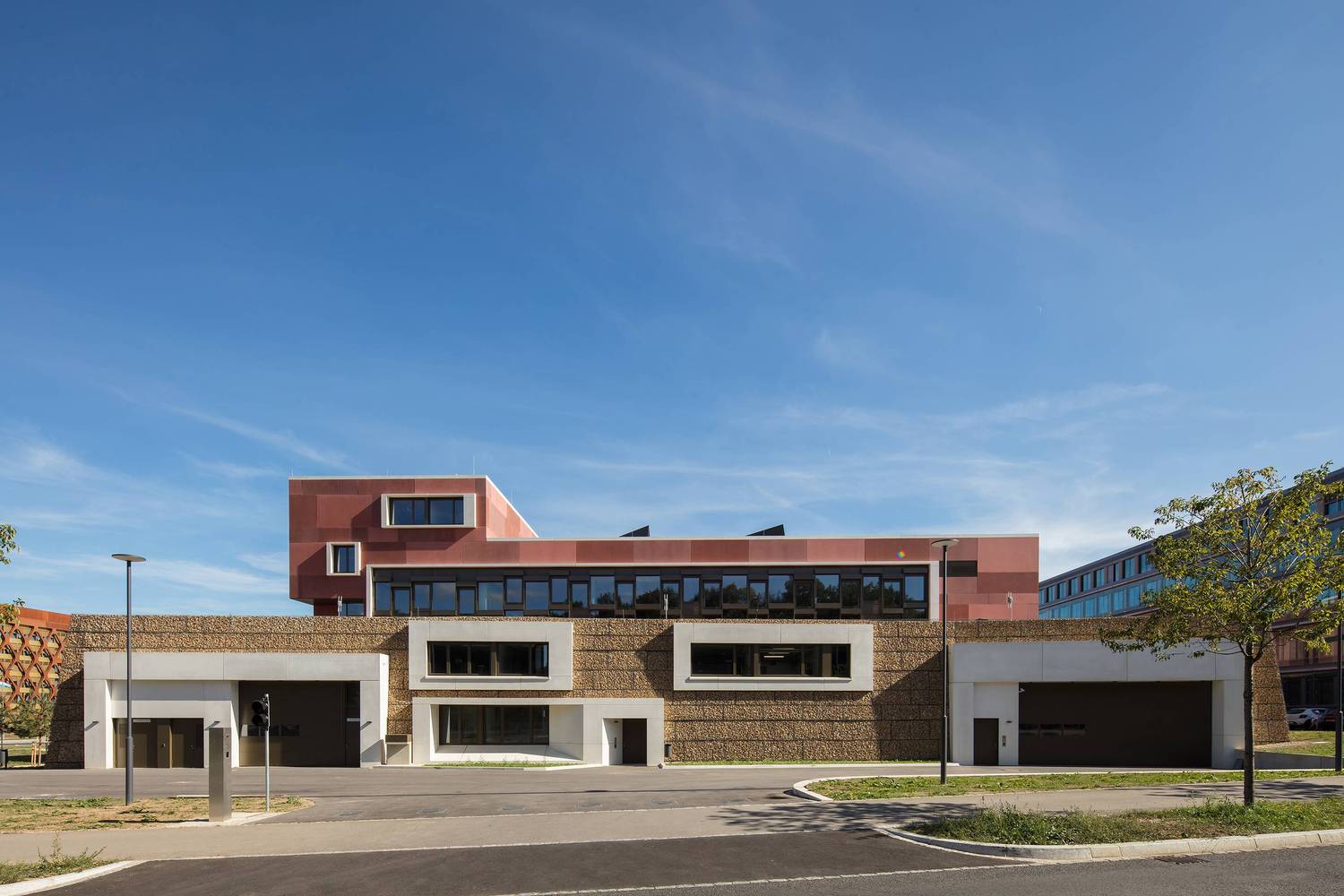

The principle facade material is large format red pre-cast concrete panels - a patchwork due to a variety of surface treatments (water/sand-jetting, acid washing).
The architectural intention is homogeneity, a material unity of the overall building volume, with an undercurrent of surface articulation. The archive plateau is encased in a bastion-like wrapping of stone-filled Gabion cages.
Planning prioritized energy efficiency; technical installations take second place in favour of an activating of the building's thermal mass to engender a sustainable interior climate.
Geothermal heat pumps are installed below the foundation plate and on the roof photovoltaic panels. Interior materials were chosen for their thermally absorbing capacity to allow night-purging, an activating of the building mass to dampen temperature extremes.
The cradle-to-cradle principle was wherever possible the referent in choosing materials. The wide-span roof structure in laminated timber is, via air circulation within the roof layer, also thermally activated.
