HOUSE H

Plasma studio

CATEGORY
Houses

LOCATION
Toblach, Italy

ARCHITECTS
Plasma studio

MANUFACTURERS
Investwood, Admonter, Georg Bechter Licht

OTHER PARTICIPANTS
Micol Fronza, Noel Plieger

AREA
429 m²

YEAR
2016

PHOTOGRAPHS
Holger Kehne

ARCHITECT IN CHARGE
Ulla Hell, Eva Castro, Holger Kehne, Peter Karl Pichler

House H
© Holger Kehne
House H
© Holger Kehne

Text description provided by architect.

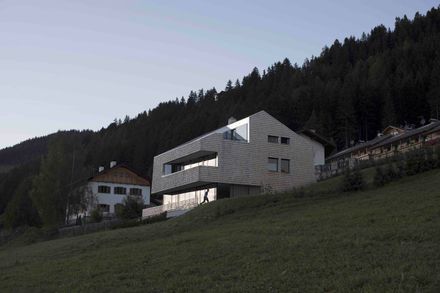

The building stands in the borough of Santa Maria, place of pilgrimage near Dobbiaco. At the edge of the village, the site consists of a slope towards South, facing the sun and the Dolomites.

House H
© Holger Kehne
House H
© Holger Kehne

The idea of the project was developed starting from the restrictions imposed by legislation, such as minimized building surface and the requirement of a pitched roof parallel to the slope.

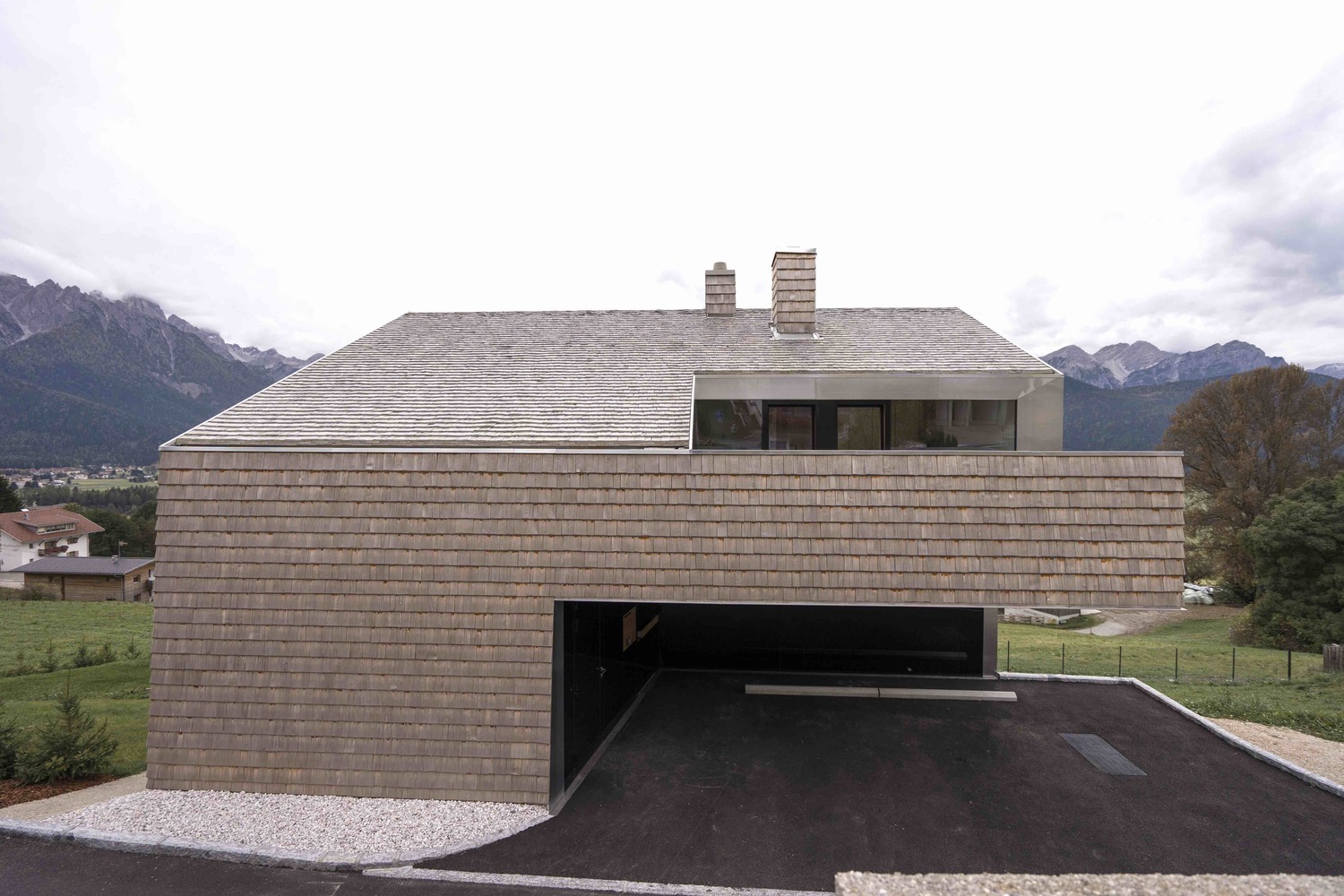

The final volume and the concept of the whole project is the result of a subtraction process. Starting with the maximum volume (as derived from given height and surface) certain parts of the volume were substracted to create specific functions; a covered space for parking, balconies protected from the weather, and the terraces in the attic level which introduce light into the house.

House H
© Holger Kehne
House H
© Holger Kehne

While achieving the maximum volume permitted by law, the size of the building is reduced and resulted in a very compact internal circulation.

The house is divided into two dwellings. The main house, used by the family of the client, is set over 3 floors.

House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne

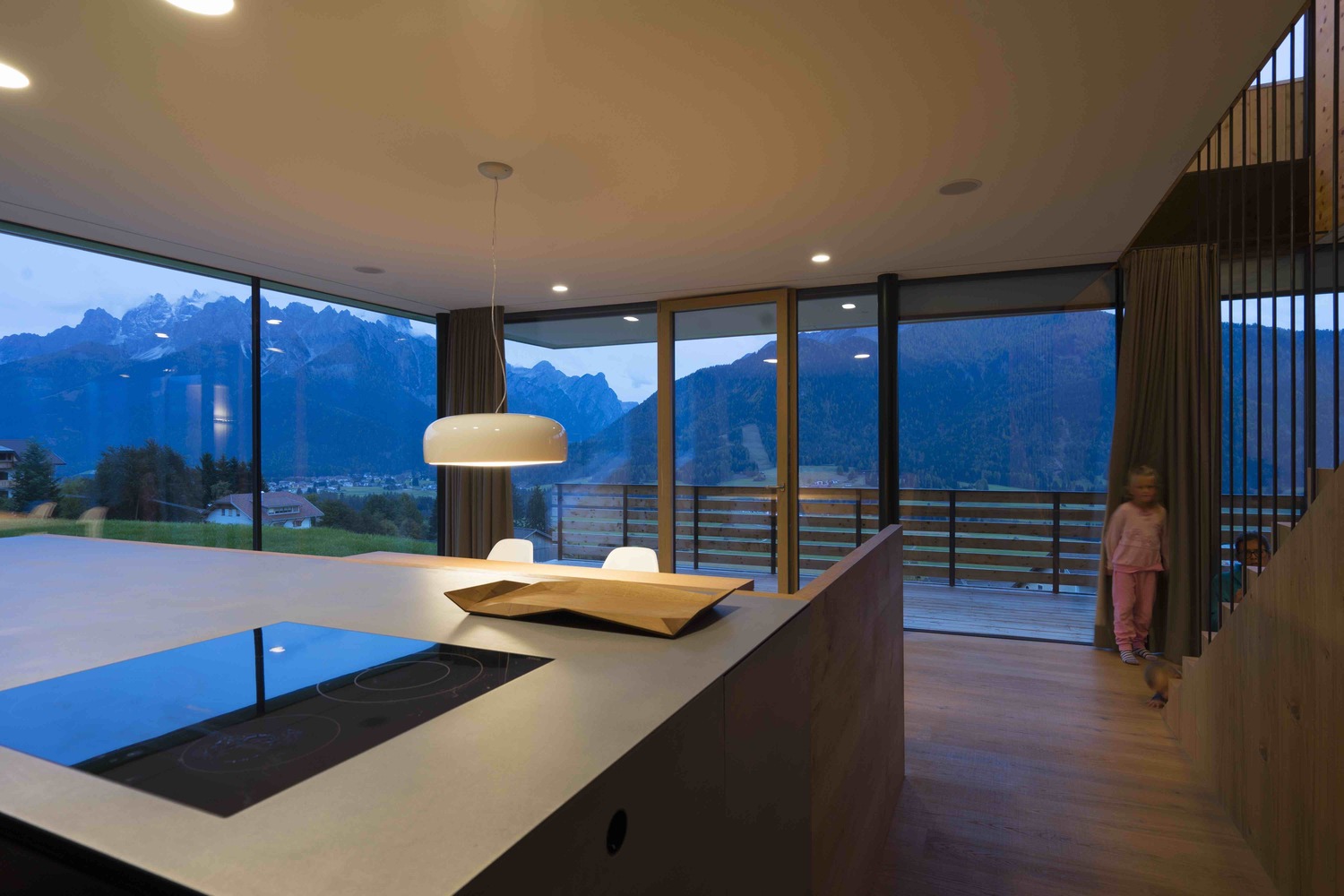

At the entry level there are the bedrooms, at the lower level the living area and kitchen with access to the garden and in the basement the secondary rooms.

In the small attic there is a second apartment, which enjoys spacious terraces obtained from the volumetric removal.

The choice of materials follows the philosophy of reduce, which is proper the entire building.

House H
© Holger Kehne
House H
© Holger Kehne

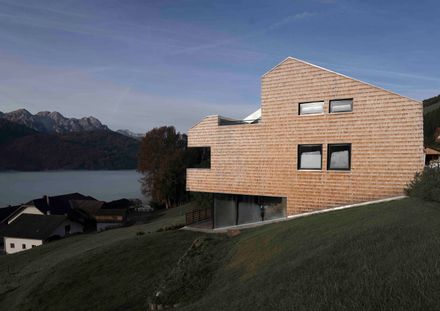

Exterior walls and roof are made with one single material, white cedar shingles, a traditional local material system with exceptional resistance to weathering.

Initially pearl-colored, it will over time change into a uniform light grey. The only other material are the glazing, used for the entire height of the openings, and the metal frames and stainless steel edge details.

House H
© Holger Kehne
House H
© Holger Kehne

Particular attention was paid to reducing the carbon footprint of the building by employing windows with triple glazing, controlled ventilation, a heating system with pellet stove and extended insulation with wooden fibers.

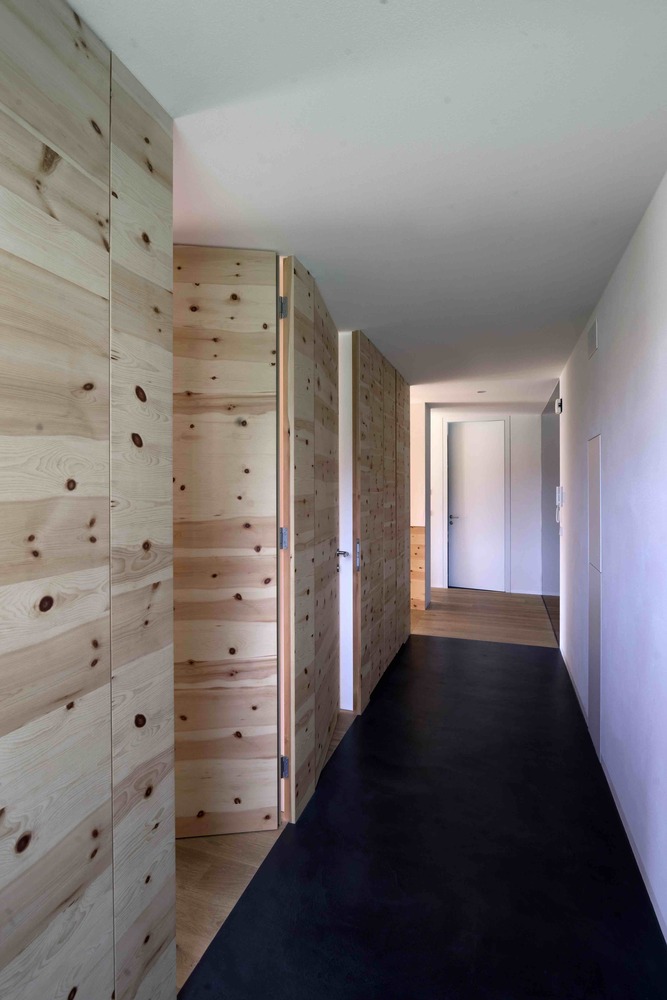

In the interior lime-based plaster throughout guarantees excellent acoustic performance and moisture control

House H
© Holger Kehne
House H
© Holger Kehne

Valchromat is an innovative product that combines the natural features of wood to the brightness of colours and, because of its unique flexibility, allows exploring the third dimension, the beauty of textures and the best of engineering.

The added value of Valchromat comes not only from colour but also from its distinctive composition and manufacturing process.

House H
© Holger Kehne
House H
© Holger Kehne

It is a wood fibre panel coloured throughout, where fibres are coloured individually, impregnated with organic dyes and bonded together by a special resin which gives Valchromat unique physic and mechanical features.

1. It is moisture resistant

2. It has greater internal cohesion and, therefore, higher mechanical strength

3. It allows working in three dimensions - mechanization

House H
© Holger Kehne
House H
© Holger Kehne

4. It has greater resistance to bending

5. It requires less effort of finish

6. It ensures a lower abrasion of tool


House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne
House H
© Holger Kehne


House H
Site Plan
House H
Site Plan
House H
Floor Plan 1
House H
Floor Plan 2
House H
Floor Plan 3
House H
Floor Plan 4


House H

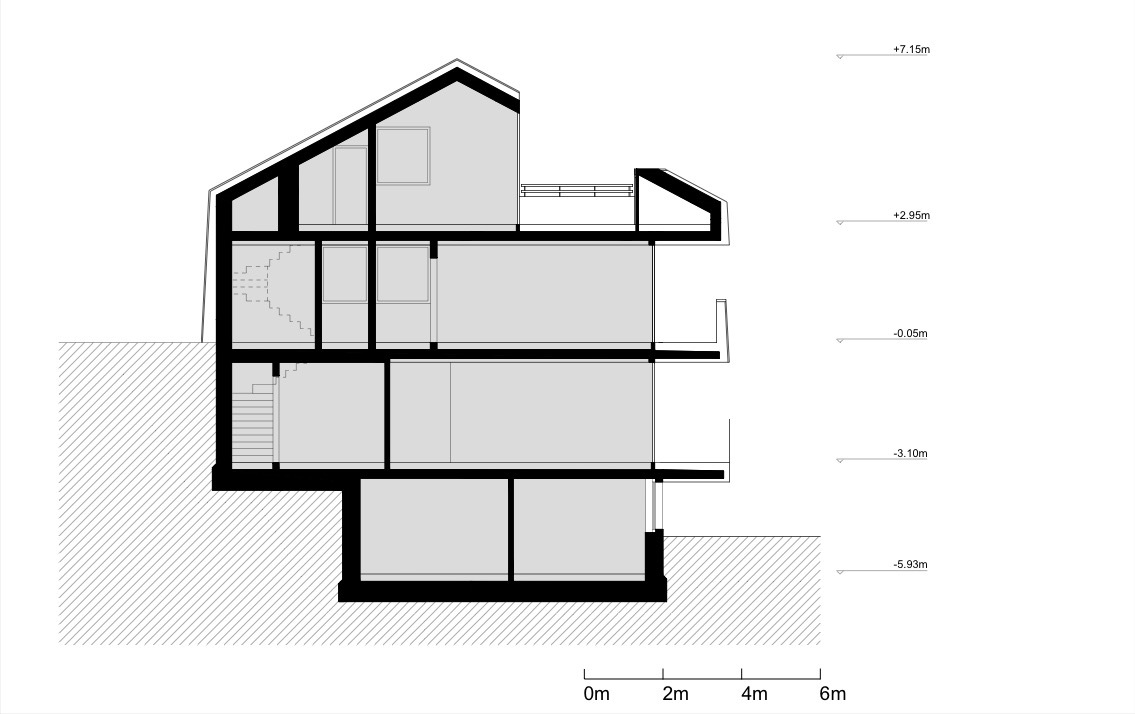

Section
House H
Section


House H

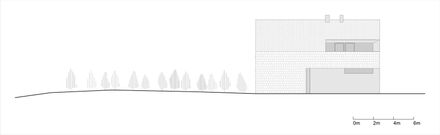

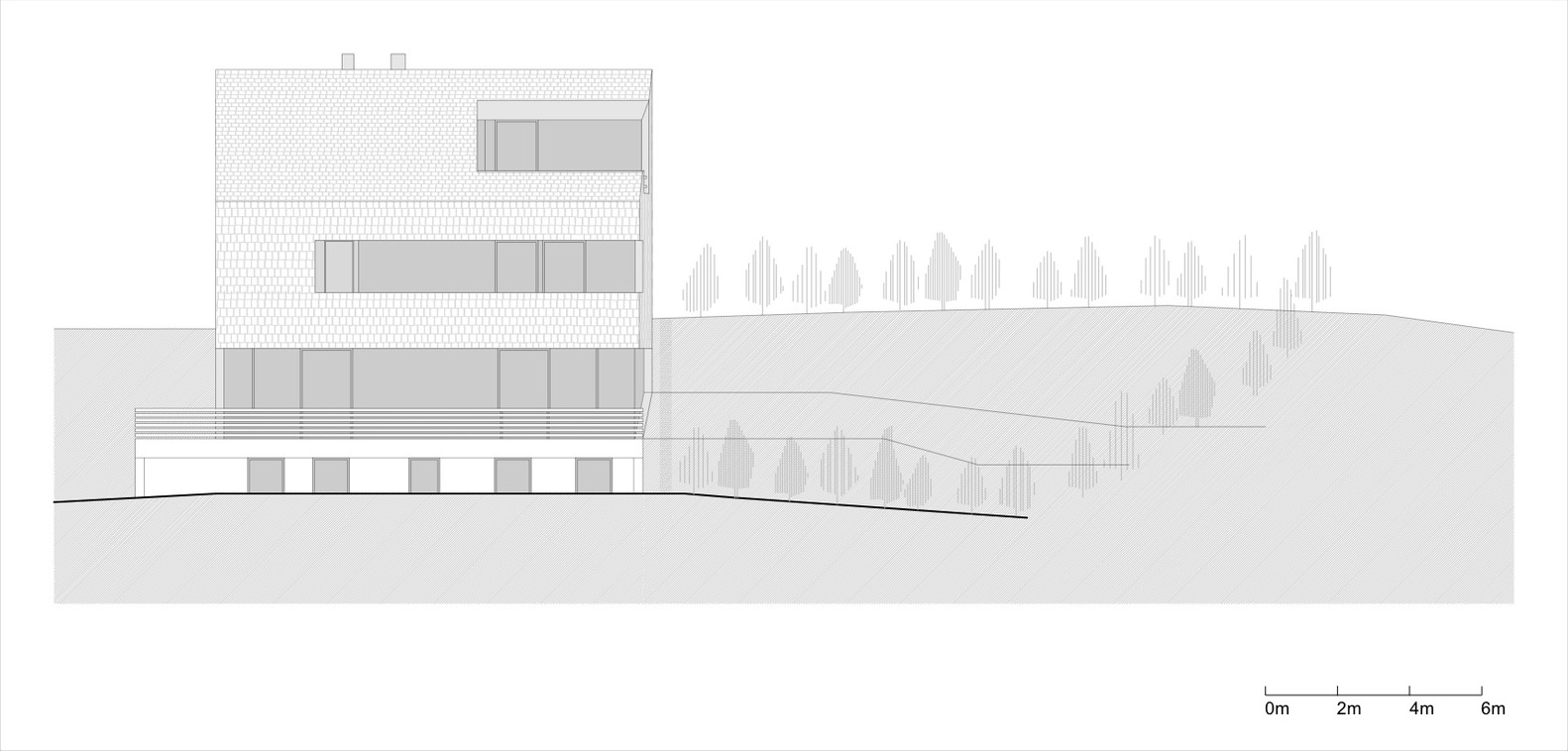

Elevation
House H
Elevation
House H
Elevation
House H
Elevation


House H
Diagram
