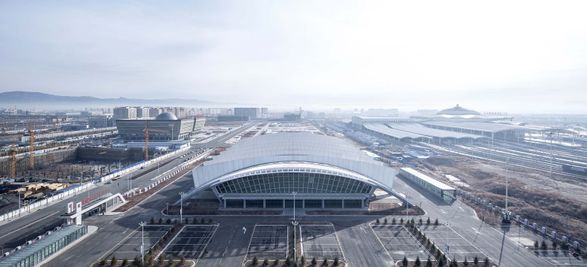

aerial view. Image © Yong Zhang

HOHOHOT EAST COACH HUB TERMINAL

CSADI A2 Studio

ARCHITECTS
CSADI A2 Studio

YEAR
2016

PHOTOGRAPHS
Yong Zhang

HVAC ENGINEER
Yin'an Zhang, Junjie Wang

LOCATION
Hohhot, China

AREA
46471 m²

MANUFACTURERS
Alfa Laval, BAC冷却塔, KBR, McQuay, York, 亿利达, 北大青鸟环宇, 大华 Dahua Technology, 太行, 威派格, 施耐德Schneider, 爱瑟菲 IISFREE, 科大利安, 霍尼韦尔Webs

LEAD ARCHITECT
Wensheng Tang

CONSULTANTS
China railway 16th bureau group co.LTD

DESIGN TEAM
Wensheng Tang, Xin Wang, Wei Xiong, Li Huang, Ying Zhang

ELECTRICAL ENGINEER
Jiang Xiong, Yong Chen

WATER SUPPLY AND DRAINAGE ENGINEER
Fang Luo, Tao Wang

CLIENT
Hohohot city development & investment group co., LTD

LIGHTING ENGINEER
Jiang Xiong, Bin Li

CATEGORY
Transportation Hub

ECONOMIST
Shubing Luo

ENGINEERING
Ting Li, Han Ji, Zhaomin Sun, Zidong Hu

LANDSCAPE
Wensheng Tang, Kuidong Lv

Hohohot East Coach Hub Terminal
exterior. Image © Yong Zhang
Hohohot East Coach Hub Terminal
exterior. Image © Yong Zhang

In order to meet the development demand of the long-distance and rapid passenger transport on the trans-provincial highway, the Hohhot government decided to build the Hohohot East Coach Hub Terminal, which is the center of national level coach hub and the important node among the highway, railway, aviation, urban bus and other intermodal transport hubs.

Hohohot East Coach Hub Terminal

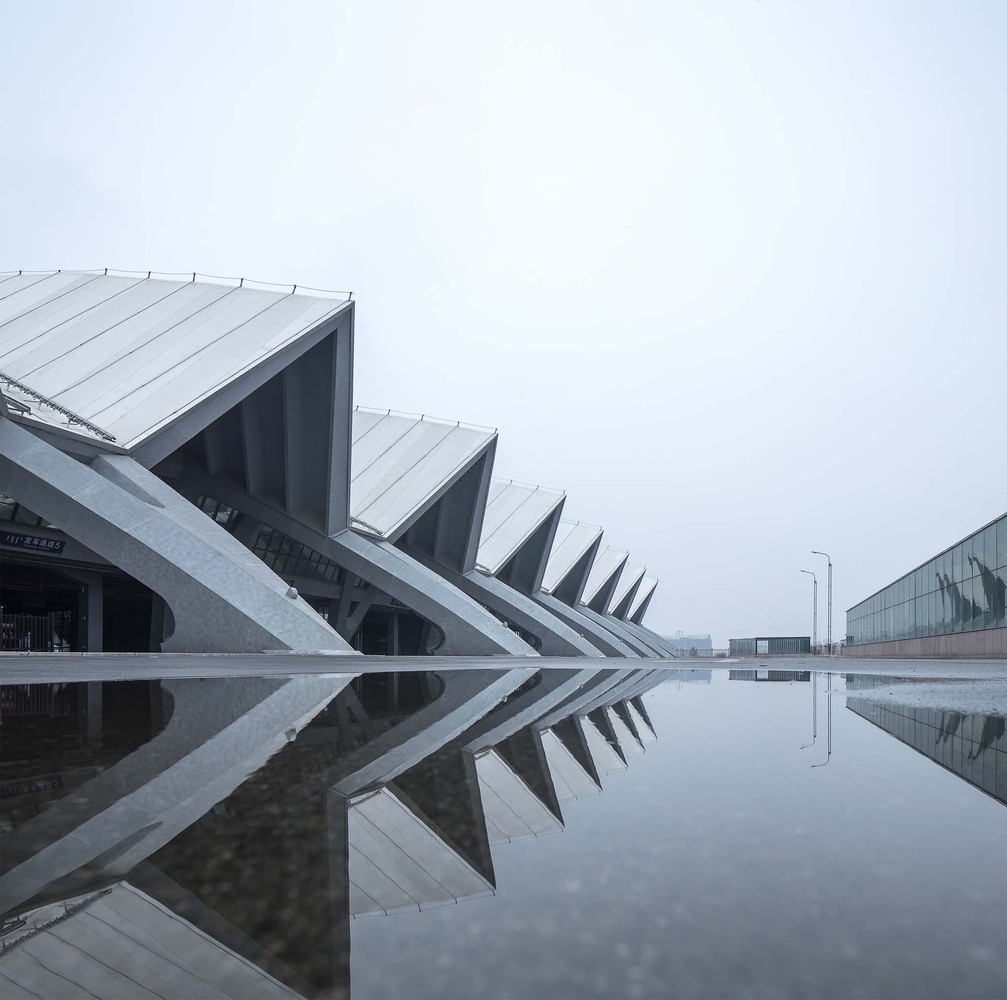

reflection in the water. Image © Yong Zhang
Hohohot East Coach Hub Terminal
concrete basement. Image © Yong Zhang


URBAN SPACE OVERLAPPING BASED ON THE CONCEPT OF STATION-CITY INTEGRATION

Adjacent to Hohhot East Railway Station to the south, the project makes use of the space of the bus terminal station and the railway station to form a north square on the ground to improve the transfer accessibility of the two stations, and connects the two stations and the north & south squares under the ground, links the urban space separated by the track through the underground non-motorized traffic and commercial systems, and guarantees the accessibility and continuity of the “aboveground and underground public spatial system”.


FUNCTIONAL LAYOUT UNDER THE PRINCIPLE OF NON-INTERFERENCE

Under the principle of non-interference, the project divides different areas for different functions. Instead of the traditional mode, the station building innovatively adopts the layout of “elevated waiting hall”, and provides safe, friendly, efficient and convenient travelling environment for passengers through the three-dimensional streamline mode of “entry at the top and exit at the bottom”.

Hohohot East Coach Hub Terminal
structure ryhthm. Image © Yong Zhang

ATION OF LARGE-SPAN SPACE BY USING ETHNIC ELEMENTS AS SYMBOLS

Taking regional culture as a metaphor, this project extracts "yurts" and "eagles" elements from grassland culture. The eagle is analyzed based on the structural morphology.

Through echoing the eagle's shape by adjusting the Angle of the folding plate and repeating the folding plate unit, transforming the spine and ribs of the eagle into the structural language of "arch + rib", the building is endowed with natural order and the soul of the building is activated , which reflects the harmonious unity of the building and nature.

Hohohot East Coach Hub Terminal
interior. Image © Yong Zhang

SPATIAL FORM GENERATION GUIDED BY STRUCTURAL LOGIC

Inspired by nomadic tent structure unit, the combination of folded plate units and arches forms the main structure system of the building, reducing the huge scale of large-span buildings, realizing the freedom and flexibility of column-free space, and achieving the high unity of architectural shape, structural system and spatial form.

SPACE CONSTRUCTION WITH GRCSPECIAL-SHAPED HYPERBOLIC PERMANENT FORMWORK AS UNITS

The project adopts GRC special-shaped hyperbolic permanent formwork units to build the space. Polyurethane foam material is sprayed inside the formwork for thermal insulation, ensuring the insulation and texture of the wall and saving labor and decoration costs.

Hohohot East Coach Hub Terminal
interior. Image © Yong Zhang

The fair-faced concrete texture of the formwork conveys the rough and massive body of grassland buildings, fits the bold and robust national personality of the grassland people.

ECOLOGICAL DESIGN STRATEGY BASED ON REGIONAL CLIMATE CHARACTERISTICS

The folded plate arched roof with steep slope can adapt to the need of quickly removing snow on the roof in winter.

Hohohot East Coach Hub Terminal
night view. Image © Yong Zhang

The north-south overhanging and rising wind hood can capture the natural wind, and the projecting cornice can block the sunlight with strong radiation in summer.

The opening of power skylight and side window can make use of wind pressure and thermal pressure effect for natural ventilation, delays the use of air conditioning facilities in the transition season, achieves energy conservation and environmental protection, and provides comfortable and friendly public communication places for citizens in different seasons.

Hohohot East Coach Hub Terminal

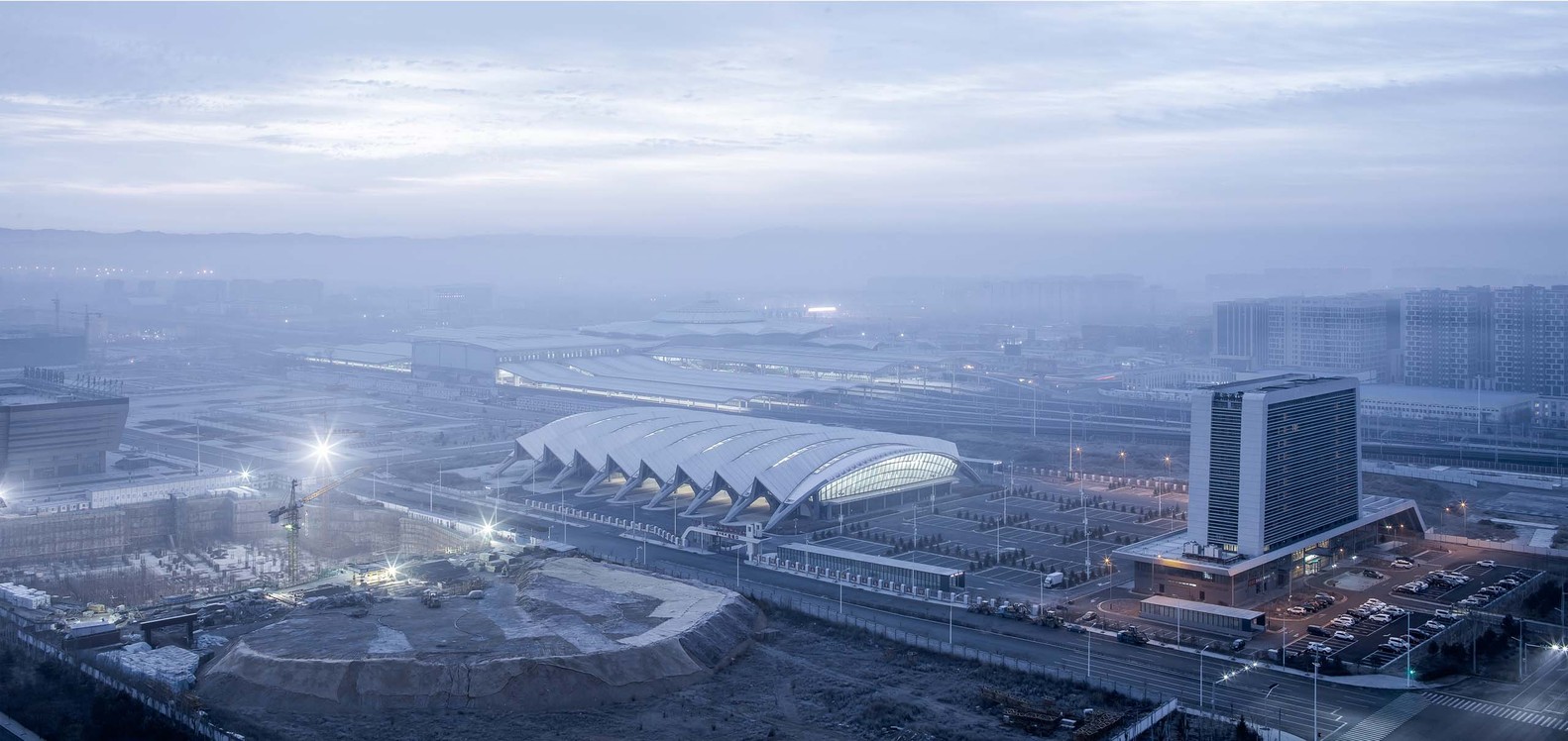

aerial view. Image © Yong Zhang


Hohohot East Coach Hub Terminal

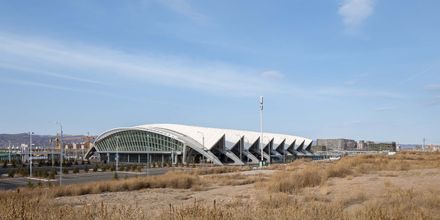

exterior. Image © Yong Zhang
Hohohot East Coach Hub Terminal
facade. Image © Yong Zhang
Hohohot East Coach Hub Terminal
exterior. Image © Yong Zhang
Hohohot East Coach Hub Terminal
interior. Image © Yong Zhang
Hohohot East Coach Hub Terminal
lobby curtain wall. Image © Yong Zhang
Hohohot East Coach Hub Terminal
night view. Image © Yong Zhang
Hohohot East Coach Hub Terminal
pathway. Image © Yong Zhang
Hohohot East Coach Hub Terminal
night view. Image © Yong Zhang
Hohohot East Coach Hub Terminal
night view. Image © Yong Zhang


Hohohot East Coach Hub Terminal
space structure
Hohohot East Coach Hub Terminal

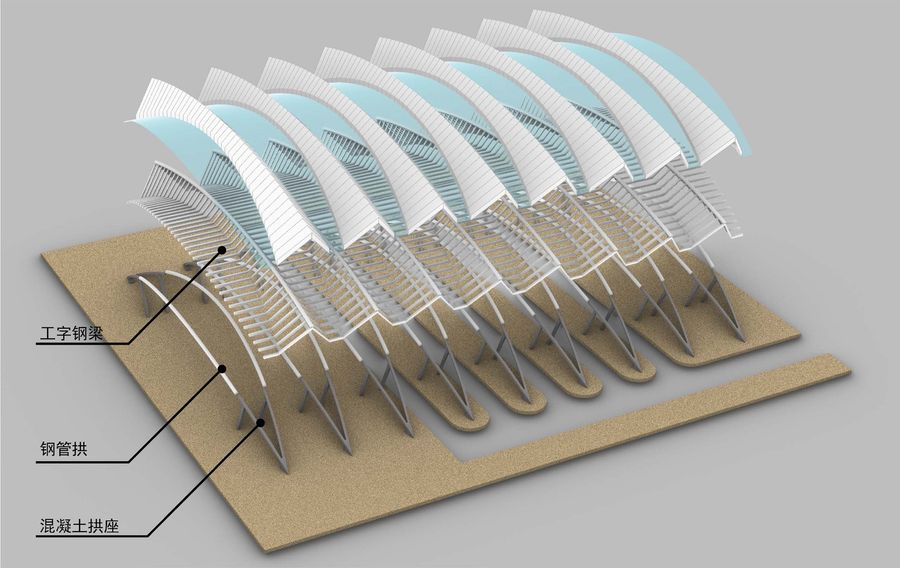

structure system


Hohohot East Coach Hub Terminal
space translation
Hohohot East Coach Hub Terminal
binding city space


Hohohot East Coach Hub Terminal
site plan
Hohohot East Coach Hub Terminal
GF plan
Hohohot East Coach Hub Terminal

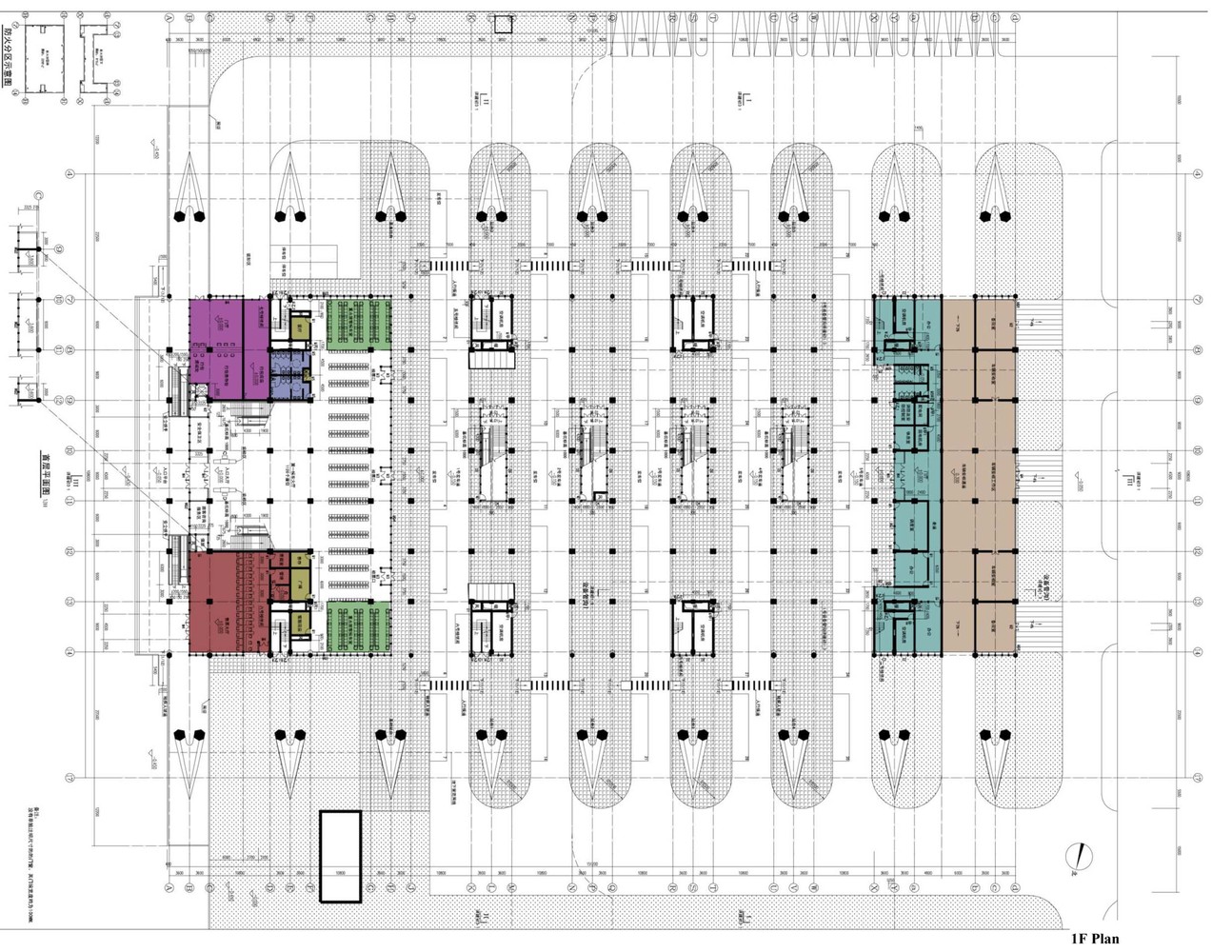

1F plan
Hohohot East Coach Hub Terminal
2F plan


Hohohot East Coach Hub Terminal
elevations
Hohohot East Coach Hub Terminal
sections
Hohohot East Coach Hub Terminal
elevations
Hohohot East Coach Hub Terminal
circulation
Hohohot East Coach Hub Terminal
bio-strategy


Hohohot East Coach Hub Terminal
structure generation GIF
Hohohot East Coach Hub Terminal
space generation GIF
Hohohot East Coach Hub Terminal
form generation GIF
