Zhubo Design Co., Ltd 筑博设计股份有限公司

Guangming Public Service Platform

Guangming Public Service Platform
front facade aerial view. Image © Zhi Xia

GUANGMING PUBLIC SERVICE PLATFORM

ZHUBO DESIGN

CATEGORY
Other Public Administration Buildings

LOCATION
Shenzhen, China

ARCHITECTS
ZHUBO DESIGN

AREA
81200 m²

YEAR
2018

PHOTOGRAPHS
Zhi Xia

CLIENT
Shenzhen Guangming New Town Property Development Co., Ltd

DESIGN TEAM
Yu Qu, Biqin Zhang, Guilin Xiong, Longjie Xu, Hua Deng, Meisong Zhang, Lianjian Hou, Shaobin Bao, Zhenhua Qu, Fuji Liang, Bo Xie, Fang Lv, Hongju Huang, Minghui Fang

STRUCTURE AND LANDSCAPE DESIGN
ZHUBO Design Co.Ltd

MANUFACTURERS
AVIC Special Glass, Fangda Aluminum Plate

Guangming Public Service Platform

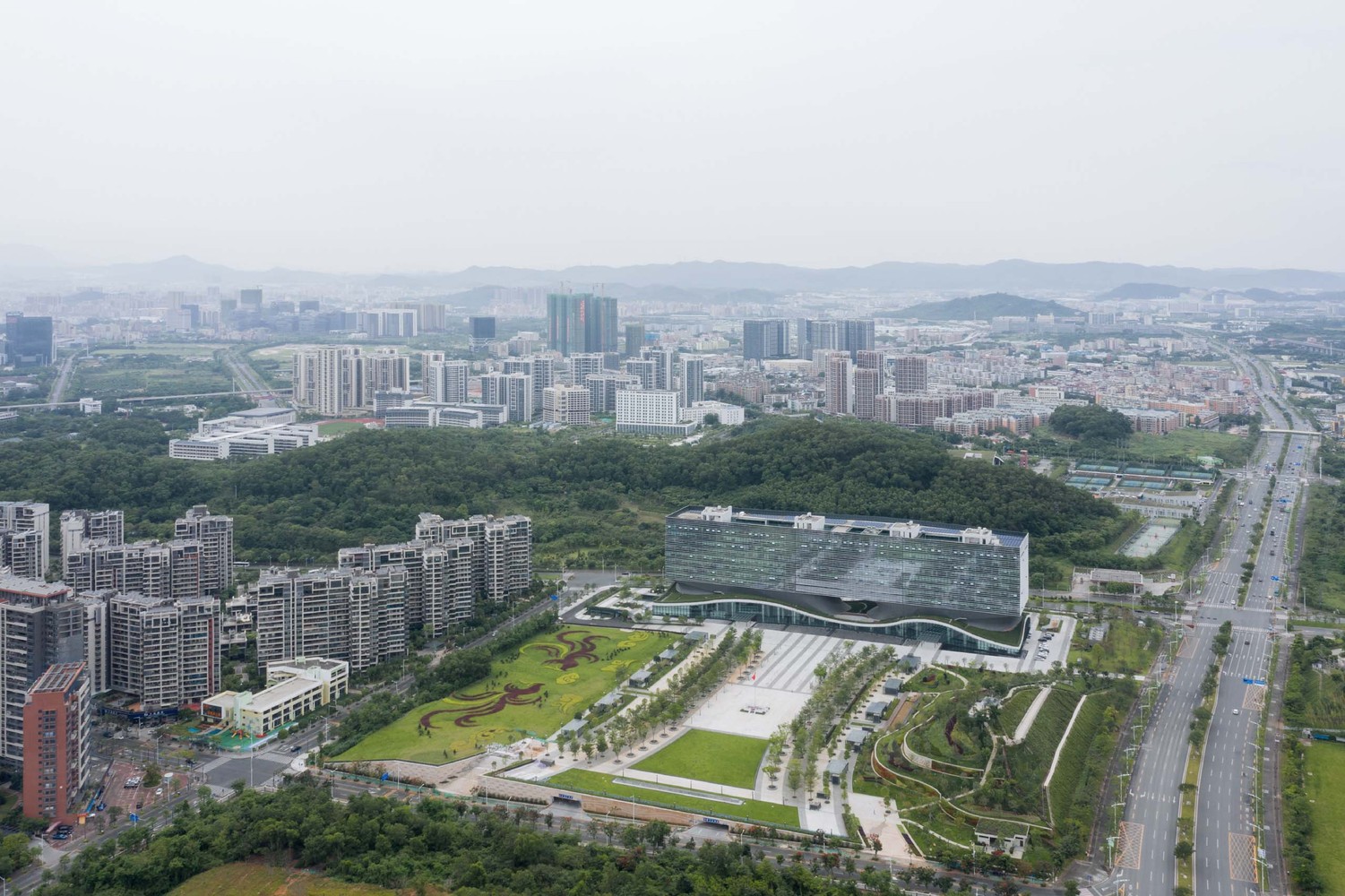

northeast side aerial view. Image © Zhi Xia
Guangming Public Service Platform
south aerial view. Image © Zhi Xia

Text description provided by architect.

The project is located at the junction of Guangming High-Tech Park and Guangmingcheng Railway Station gateway.

It is mainly accessible to the public for administrative services and to government workers for routine office tasks. The project covers 81,200 square meters construction area, with a height of 50 meters.

Guangming Public Service Platform
north side perspective. Image © Zhi Xia
Guangming Public Service Platform
front facade aerial view. Image © Zhi Xia

There are two small hills about 30 meters high standing at the center and south side of the site respectively.

In addition, the plot was full of piles of earth dumped from surrounding construction sites, leaving little space for dumped earth for the projectwhich indicates the difficulty and high cost of earth dumping around this area.

Guangming Public Service Platform
view from the hillside. Image © Zhi Xia
Guangming Public Service Platform
north side aerial view. Image © Zhi Xia

Based on those site conditions, we proposed to preserve the two hills, which can reduce the excavation work while also helping form a group of green hills that extend to the Niu Mountain on the north side of the plot, thereby blending with the ecological protection area of the District.

The solution not only solved practical problems, but also responded to the low-impact development mode advocated by Guangming District.

Guangming Public Service Platform
south side perspective. Image © Zhi Xia
Guangming Public Service Platform
view from the hillside. Image © Zhi Xia

The project mainly consists of two functional divisions: office spaces and public service spaces. According to different functions, we divided the building into two blocks with distinct forms at vertical level.

The upper rectangular volume is office space, while the lower block functions as the public service hall and the conference hall, whose rooftop of the lower volume is shaped like an undulating surface.

Guangming Public Service Platform
front facade. Image © Zhi Xia
Guangming Public Service Platform
front facade. Image © Zhi Xia

Combined with large areas of transparent French windows, the flexible curved plane creates a relaxing and friendly atmosphere.

The two separate architectural volumes are non-consecutively linked by curtain walls made of curved perforated aluminum panels.

Guangming Public Service Platform
south side perspective. Image © Zhi Xia
Guangming Public Service Platform
south side perspective. Image © Zhi Xia
Guangming Public Service Platform

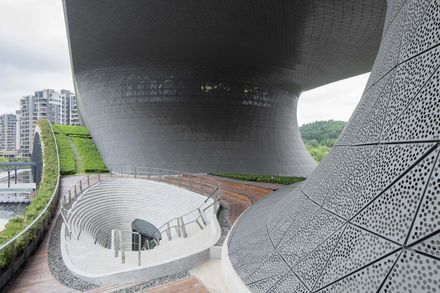

roof garden entrance. Image © Zhi Xia
Guangming Public Service Platform
roof garden entrance. Image © Zhi Xia

The “broken” section of the curtain walls leaves a 50-meter-wide hole, from which people can see the Niu Mountain behind the project.

The holistic building resembles a vessel floating on the mountain. Moreover, the perforated aluminum curtain walls allow natural wind into the three atriums on the upper volume, forming a breathable section structure.

Guangming Public Service Platform
perforated plate details. Image © Zhi Xia
Guangming Public Service Platform
2F roof garden. Image © Zhi Xia

The office spaces on the upper part are well lighted by the atriums. Giant air vents turn into modern sculptures in the atriums.

Guangming Public Service Platform
perforated plate details. Image © Zhi Xia
Guangming Public Service Platform
perforated plate details. Image © Zhi Xia

Staggered volumes above the atriums are used as conference room and corridors, producing a dynamic ambience as well.

Guangming Public Service Platform
atrium. Image © Zhi Xia
Guangming Public Service Platform
atrium. Image © Zhi Xia

In the public service hall on the bottom, the undulating roof descends to the interior center of the hall. People can walk, from the central area of hall, along the outdoor stairs into the garden on the second floor.

In order to respond to the undulating rooftop, the ground features some sunken spaces, which lead people to the lecture hall on the underground floor.

Guangming Public Service Platform
atrium. Image © Zhi Xia
Guangming Public Service Platform
roof garden entrance. Image © Zhi Xia

The design approaches above were used to weaken the sense of ritual commonly seen among government buildings.

We hoped to draw on such a unique spatial form to make the citizens experience the different image and service attitude of Guangming District.

Guangming Public Service Platform
hall. Image © Zhi Xia
Guangming Public Service Platform
sunken garden stairs. Image © Zhi Xia


Guangming Public Service Platform
1F Plan
Guangming Public Service Platform
2F Plan
Guangming Public Service Platform
3F Plan
Guangming Public Service Platform
10F Plan


Guangming Public Service Platform
Master plan
Guangming Public Service Platform
Section
