Green House

Green House
© Mehdi Panahi

GREEN HOUSE

KARABON

CATEGORY
Apartments

LOCATION
Tehran, Iran

ARCHITECTS
KARABON

LEAD ARCHITECT
Mehdi Panahi

STRUCTURAL DESIGN
Sabzi, M.A Panahi

AREA
3150 m²

YEAR
2016

PHOTOGRAPHS
Mehdi Panahi

DESIGN TEAM
Rasool Bakhshi

GRAPHIC DESIGN
Zohreh Bakhtiari

MANUFACTURERS
Azarakhsh Brick, Kohler, Miele, Nobilia, Bms, Galletti, Namikaran, SET, Sang Saphir Sepahan, VALVO

Text description provided by architect.

In the past, the living of human beings has been beside nature, but nowadays due to the definition of architectural space for living in floors above the ground, this relationship has been almost gone.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi
Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

Also In the past 40 years, the greenery of the urban landscape in north Tehran gradually has been missed under continuous constructions.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

The main idea of this project was formed through an attempt to find an approach in making the relationship with nature stronger both physically and visually.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

In the project design process, wherever it was possible to create a green area, an appropriate detail was designed according to the limitations and criteria.

Generally, except for living spaces and circulation paths, all other surfaces designed to maximize green spaces in the form of large and small flower boxes.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi
Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

The most important of these areas are courtyard, roof garden, and split-level yard above ground floor parking.

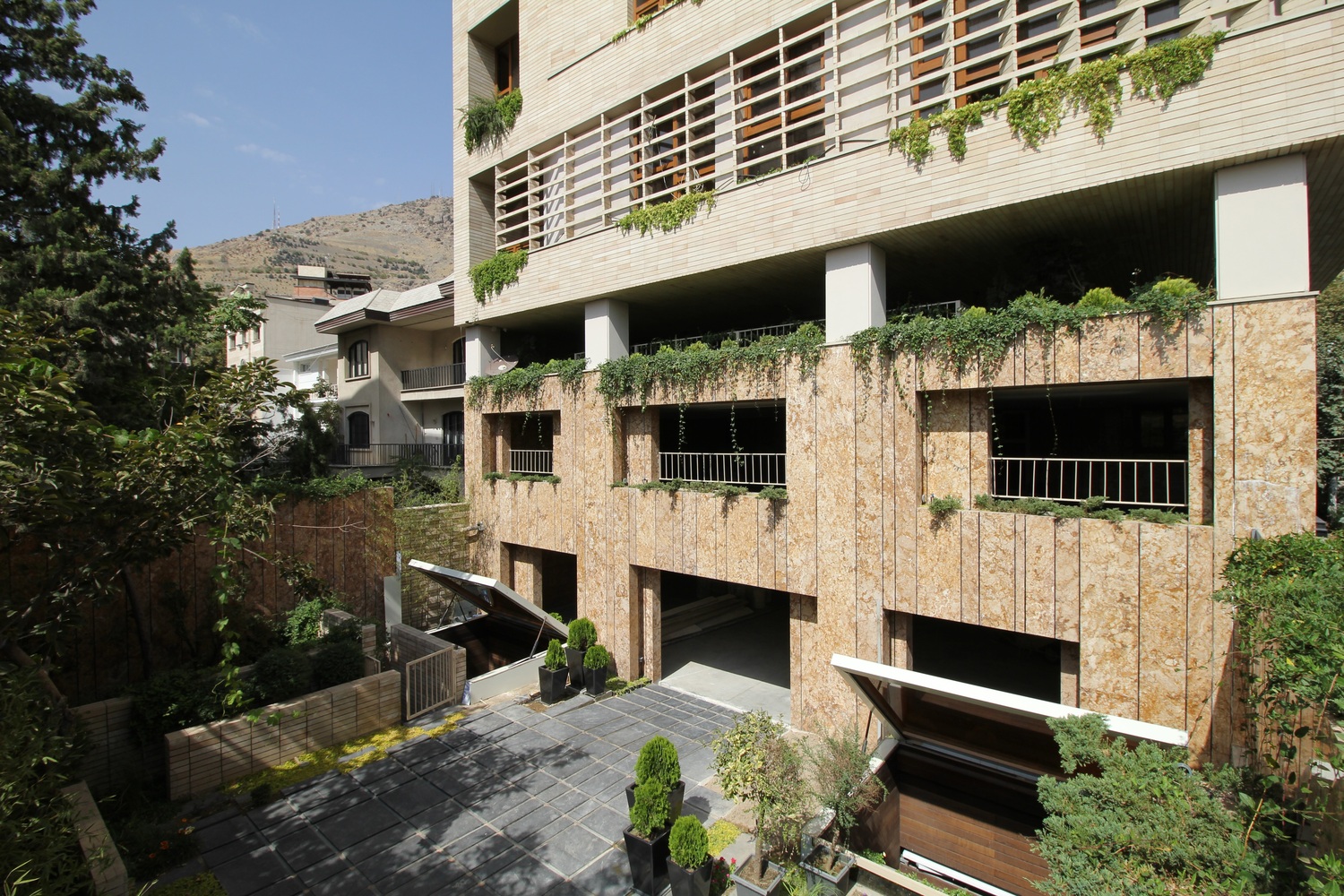

Along with the main concept of the project, the Facade design idea was formed to outspreads the facade surfaces opened following two important issues: one view and landscape, and the other creating a suitable area for greenery growth.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

This opened-facade designed to provide greenery growth gradually toward the widest grid of facade, on the one hand by distancing finishing shell from main body of the building and on the other hand by making the grids of finishing shell of the facade, wider and wider and like was gradually rotating the elements of facade to minimize coverage.

At the end of this opened-shell of bricks, the maximum gap was created between the bricks to allow more visibility and create more space for greenery.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi
Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

The facade details and its combination with the plants make a similar sense on both sides of the shell. These details are an attempt to make closer the sense of inside and outside.

In order to execute these details, we choose brick as the main material because of its modularity and possibility of alignment likewise having a powerful and familiar sense.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

SPLIT-LEVEL COURTYARD – THE EFFECT OF THE MAIN IDEA.

Due to the steep slope of the street, there was 5 meter height between ground-floor parking level and first floor level, while the height required for parking was 2.4 meter, along with the main concept of the project, we designed Split-level to make a green floor, aiming to increase green spaces of the project.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

Access to this space is provided exclusively by a bridge from the lobby. Finally, in all over the project, wherever planting was possible, flower boxes designed to increase green space and plant diversity.

Green House
© Mehdi Panahi
Green House
© Mehdi Panahi

We used the smart watering system to keep the plants always fresh and green even in the absence of residents.


Green House
Site plan
Green House
Typical floor plan
Green House
Roof plan
Green House
Split-level courtyard plan
Green House
Basement floor plan
Green House
Yard floor plan


Green House

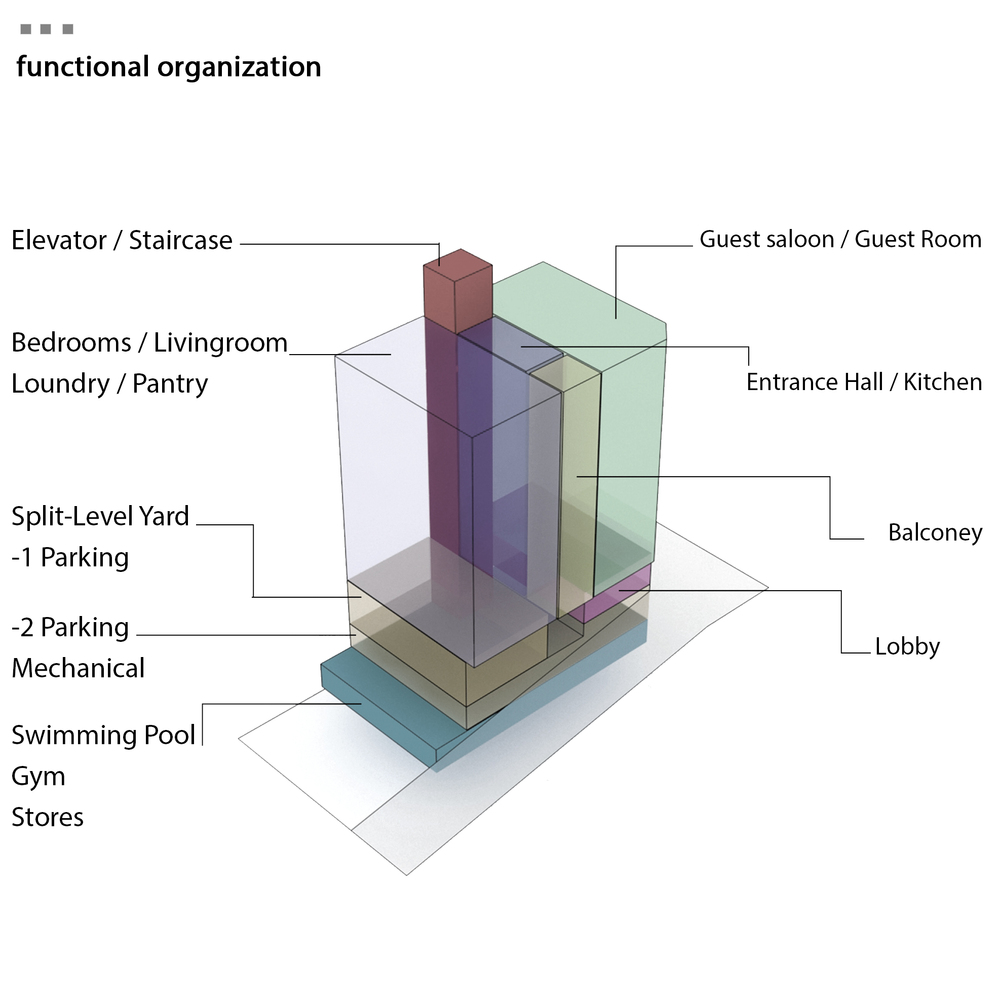

Diagram
Green House
Diagram
Green House
Diagram
Green House
Diagram


Green House
Diagram
Green House

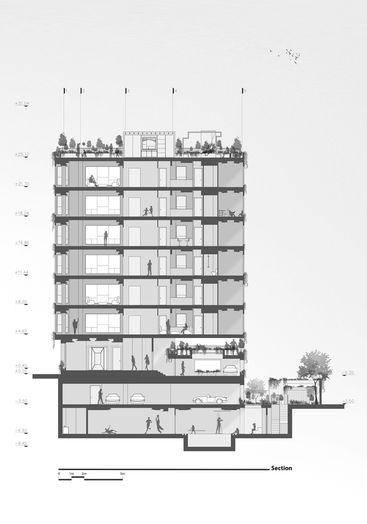

Section


Green House

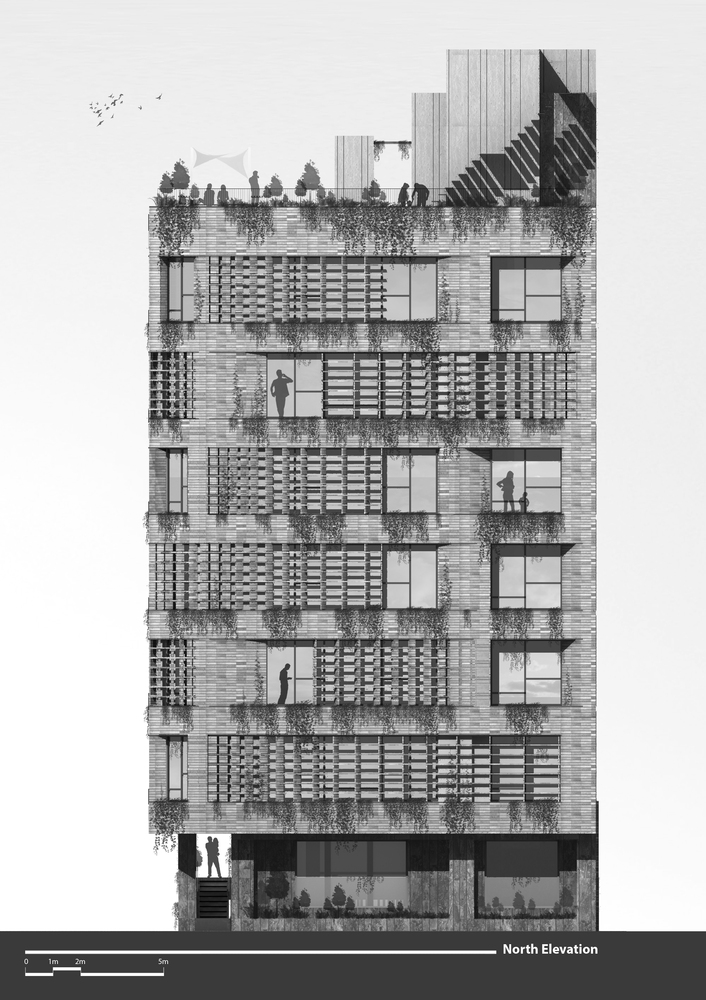

North elevation
Green House
South elevation
Green House
East elevation
Green House
Elevation diagram
