TREE HOUSES IN ACRE

FabrikG

ARCHITECTS
fabriKG

LANDSCAPING
fabriKG

STRUCTURE
Sai Proyectos

 LOCATION
San José Del Cabo, Mexico

CATEGORY
Hotels

INTERIOR DESIGN
Mar Studio

DESIGN TEAM
Gonzalo Elizarraras, Carlos Espino, Eduardo Manriquez, Marco Antonio Rico

MANUFACTURERS
AutoDesk, Fierro y Lamina, Passion4woods, SAYER, Trimble, cimento

CONSTRUCTION
Excabo

AREA
195 m²

YEAR
2016

CLIENTS
Cameron Watt, Stuart McPherson

Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography

Located in Las Animas Bajas, an area of San José del Cabo privileged for its natural landscape, the “Tree Houses” project grows inside the Acre Restaurant-Bar, a property with 10 hectares of cultivation area, mango trees and a centenary palm grove that impacts the visitor from the road.

Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography

The "Tree Houses" respond to the desire to create a boutique hotel that provides a rural experience of tranquillity and a direct connection with the nature of Los Cabos, a space that combines cultural sensitivity and respect for the protected natural environment.

The project is materialized in thirteen individual compact units, each formed by a lightweight steel structure that rises 4-5m from the ground level on elegant metal columns.

Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography

This system simultaneously allows security (it is an area that can be flooded) and user privacy, creating a surprise effect when crossing the gardens to the restaurant, surrounded by plants and palm trees that hide these suspended volumes.

Each unit is formed by a compact box in a complex set of layers formed by the base structure, the mosquito net panels and the "arch pole" fabric (local cane) creating comfort conditions in a minimum space.

Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography

Each of the spaces is equipped with a private bathroom, a closet and a deck with outdoor showers where visitors can enjoy the privileged views of the Estero (West) and the Sea of Cortez (South) over the dense foliage of palm trees.

Other materials such as polycarbonate and polished cement are used to form spaces of different natures such as the bathrooms, the closets and the showers, creating a transient and aesthetic contrast with the arch poles, a traditional material common to the region.

The used materials evoke the local construction tradition and dignify its use today in a harmonious composition between traditional and modern techniques while maintaining the same concept throughout the entire project.

Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography

The climatic comfort of the spaces is achieved by locating them at a higher level where cross ventilation passes between the palm grove and the units. Their elevation and openness make it possible to keep the large doors open to the landscape.

The metal structure allows a less aggressive intervention in the natural environment (minimum footings) while allowing the necessary safety in an area of easy flooding and risk of hurricane occurrence in the bioregion.

Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography
Tree Houses in Acre
© Gina & Ryan Photography


Tree Houses in Acre
Tree Houses in Acre
Axo


Tree Houses in Acre

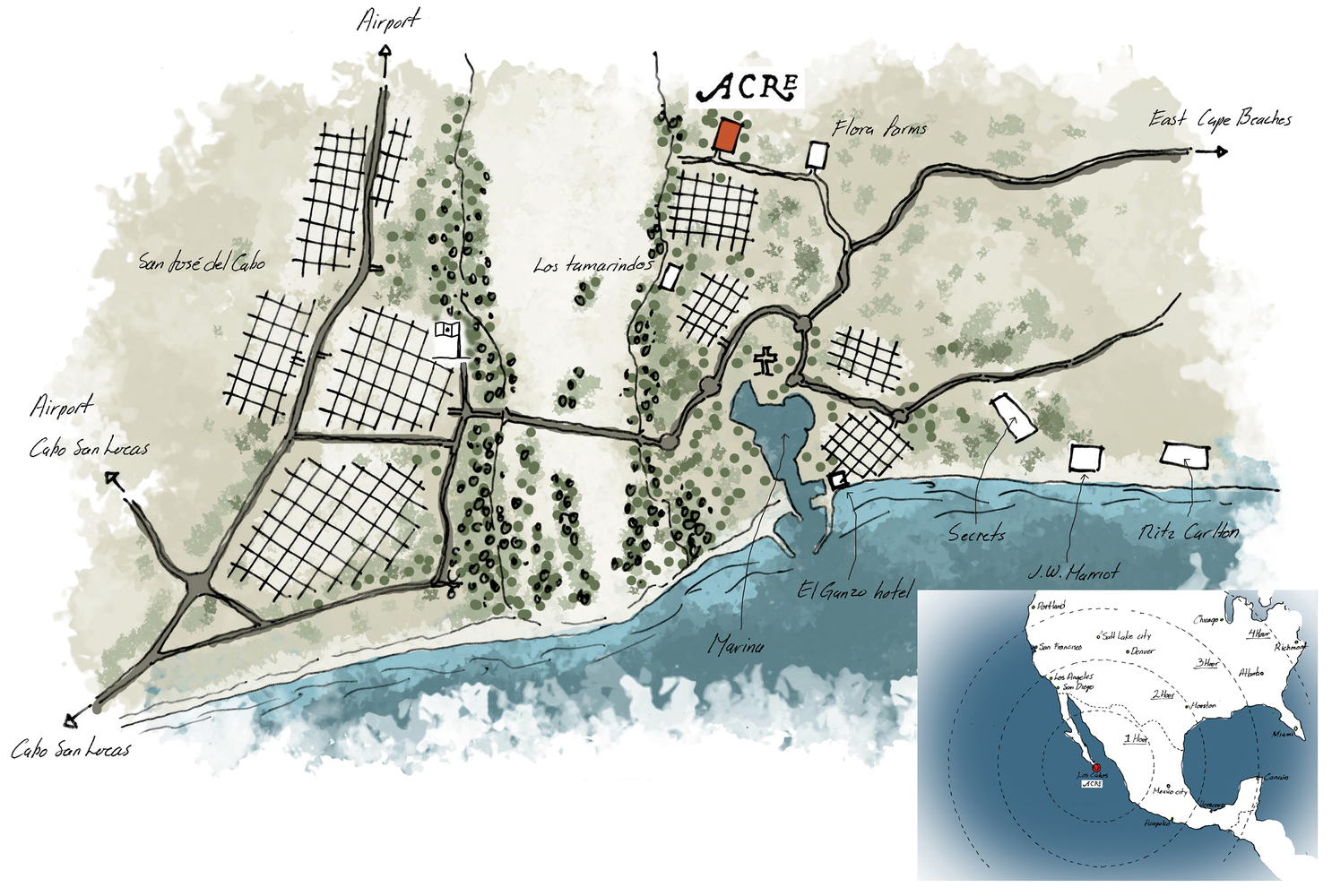

Site
Tree Houses in Acre

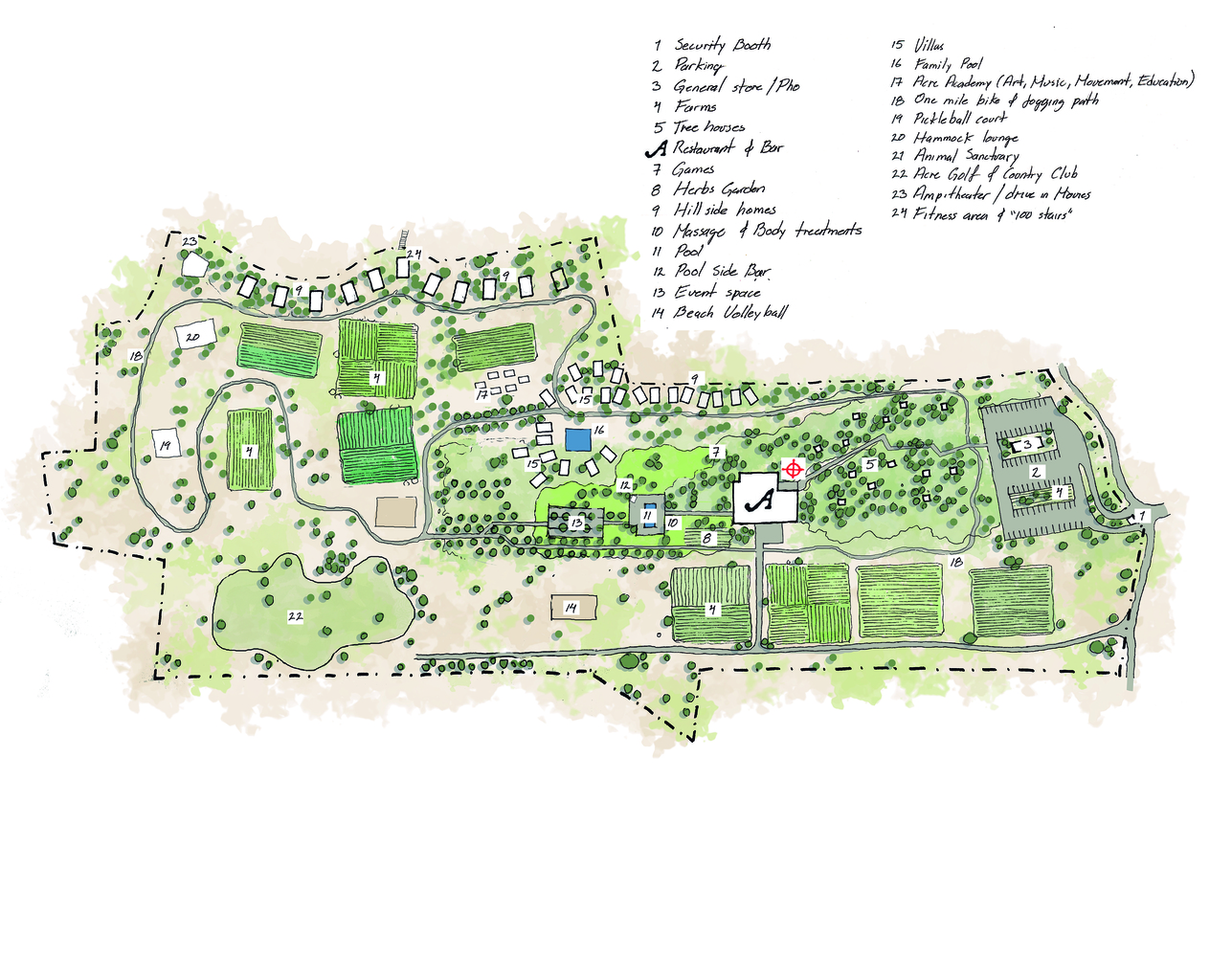

Master Plan
Tree Houses in Acre
General Plan
Tree Houses in Acre
Facade Section


Tree Houses in Acre
Section AA
Tree Houses in Acre
Section BB


Tree Houses in Acre
West Elevation
Tree Houses in Acre
North Elevation
Tree Houses in Acre
South Elevation
Tree Houses in Acre
East Elevation
