THE KENDEDA BUILDING FOR INNOVATIVE SUSTAINABLE DESIGN

Miller Hull Partnership + Lord Aeck Sargent

YEAR
2019

MAIN CONTRACTOR
Skanska Usa

MANUFACTURERS
Accoya, American Hydrotech, Columbia Forest Products, Kawneer, Knauf, Sunpower, Usg, Assa Abloy, Bristolite, Clivus Multrum, Fluxwerx, Gaf, Green Leaf Brick Company, Lg, Mecoshade, Milliken, Morin | Kingspan, Oregon, Prosoco, Viracon

LOCATION
Atlanta, United States

MEP ENGINEERING
Pae, Newcomb & Boyd

CATEGORY
Research Center

DESIGN ARCHITECT AND LBC LEAD
The Miller Hull Partnership, Llp

COLLABORATING ARCHITECT & PRIME ARCHITECT
Lord Aeck Sargent

LANDSCAPE ARCHITECT
Andropogon

STRUCTURAL ENGINEER
Uzun & Case

CIVIL ENGINEERING
Long Engineering

MILLER HULL TEAM
Brian Court, Margaret Sprug, Chris Hellstern, Matt Kikosicki

GREY WATER SYSTEMS
Biohahbitats

LORD AECK SARGENT TEAM
Joe Greco, Aia, Leed Ap; Joshua Gassman, Ra, Leed Ap Bd+c; Alissa Kingsley, Ra, Leed Ap; Ramana Koti, Bemp, Leed Fellow

Text description provided by architect.

The Kendeda Building for Innovative Sustainable Design was created to foster environmental education, research, and a public forum for community outreach.

The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer

The project is the first of its kind in the Southeast United States to achieve full Living Building Certification and sets a new standard for sustainability–demonstrating that Living Buildings are possible in even the most challenging climates.

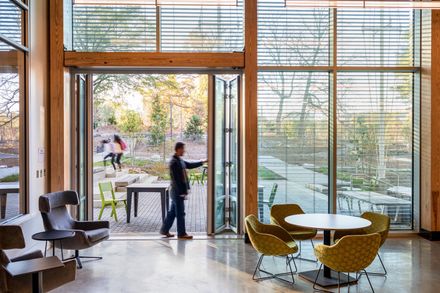

The design is inspired by the vernacular southern porch. The project reimagines this regionally ubiquitous architectural device for the civic scale of the campus. The Regenerative Porch performs the traditional tasks of creating a cool microclimate around the building and blurring interior and exterior conditions.

The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer

Additionally, the Porch is leveraged to satisfy the rigorous requirements of the Living Building Challenge.

The PV canopy generates more than 100% of the building’s energy demand and captures enough rainwater to meet 100% of the water used in the building.

The Kendeda Building is the university’s first timber building since its earliest load-bearing masonry and timber structures from the 1880s. Mass timber was selected for its significantly smaller embodied carbon footprint, compared to concrete and steel systems.

The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett

Glue laminated queen-post trusses with steel bottom chords are used to achieve the spans required by the larger spaces in the building where timber alone would be challenging.

This hybrid approach reduces the quantity of wood required while making the routing of building services more efficient.

The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett

The gravity and lateral elements are fully exposed, allowing the building to be a teaching tool and defining the character of the interior environment. The nail laminated wood decking was panelized off-site and craned into place.

The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer

Twenty-five thousand linear feet of 2-by-4 material was salvaged from Atlanta’s Lifecycle Building Center, which sourced the lumber from discarded film sets.

The decking was assembled by apprentices hired through local nonprofit Georgia Works!, providing valuable trade skills.

The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett

Off-cuts from the new lumber were assembled into the seat steps that descend the three tiers of the atrium.

In addition to the structural timber, wood salvaged from storm-felled trees on campus and in southern Georgia was used for countertops and furniture. All of the water used in The Kendeda Building comes from rainwater captured by the PV canopy.

The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer

Treated rainwater is used for drinking fountains, sinks, and showers. The greywater generated from these fixtures is pumped to a constructed wetland at the building’s main entrance.

This water then descends via gravity through a series of rain gardens and detention structures aligned with the tiered exterior terraces before infiltrating to the site.

The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer

The university currently incurs a significant expense to discharge stormwater to Atlanta’s overextended sewer system.

The Kendeda Building demonstrates available strategies that could be deployed throughout the campus to manage stormwater more intelligently.

The Kendeda Building for Innovative Sustainable Design
© Jonathan Hillyer
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett

The Kendeda Building’s true measure of its success will be the change it inspires in Atlanta and beyond.

State-of-the-shelf technologies and products represent strategies that can be easily replicated by other institutions and even everyday homeowners.

The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett
The Kendeda Building for Innovative Sustainable Design
© Gregg Willett

The building continues a decade of work by the Kendeda Fund to advance sustainability in Atlanta’s built environment.


The Kendeda Building for Innovative Sustainable Design
Floor Plan
The Kendeda Building for Innovative Sustainable Design

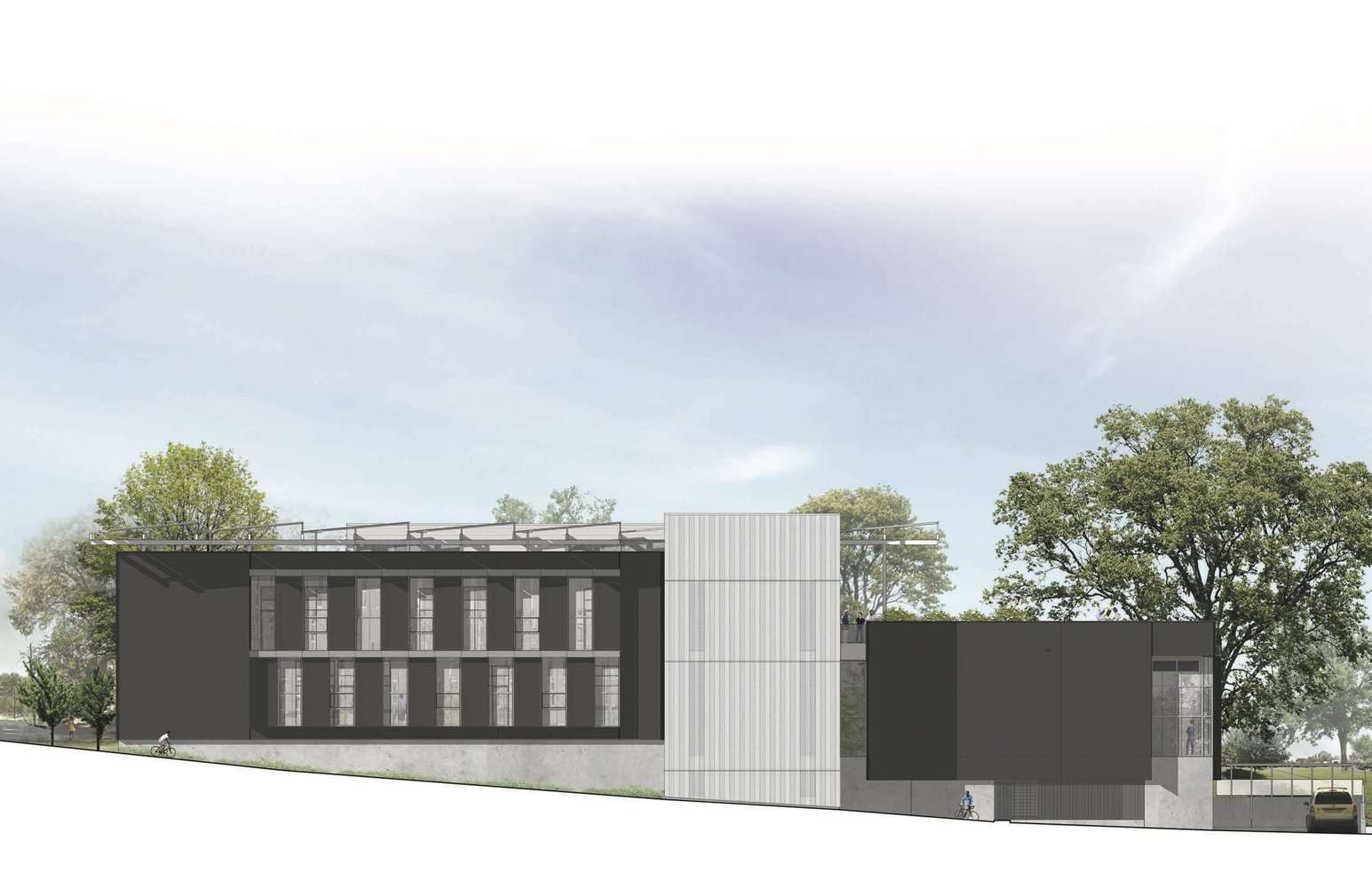

Elevation
The Kendeda Building for Innovative Sustainable Design
Elevation
The Kendeda Building for Innovative Sustainable Design
Elevation


The Kendeda Building for Innovative Sustainable Design

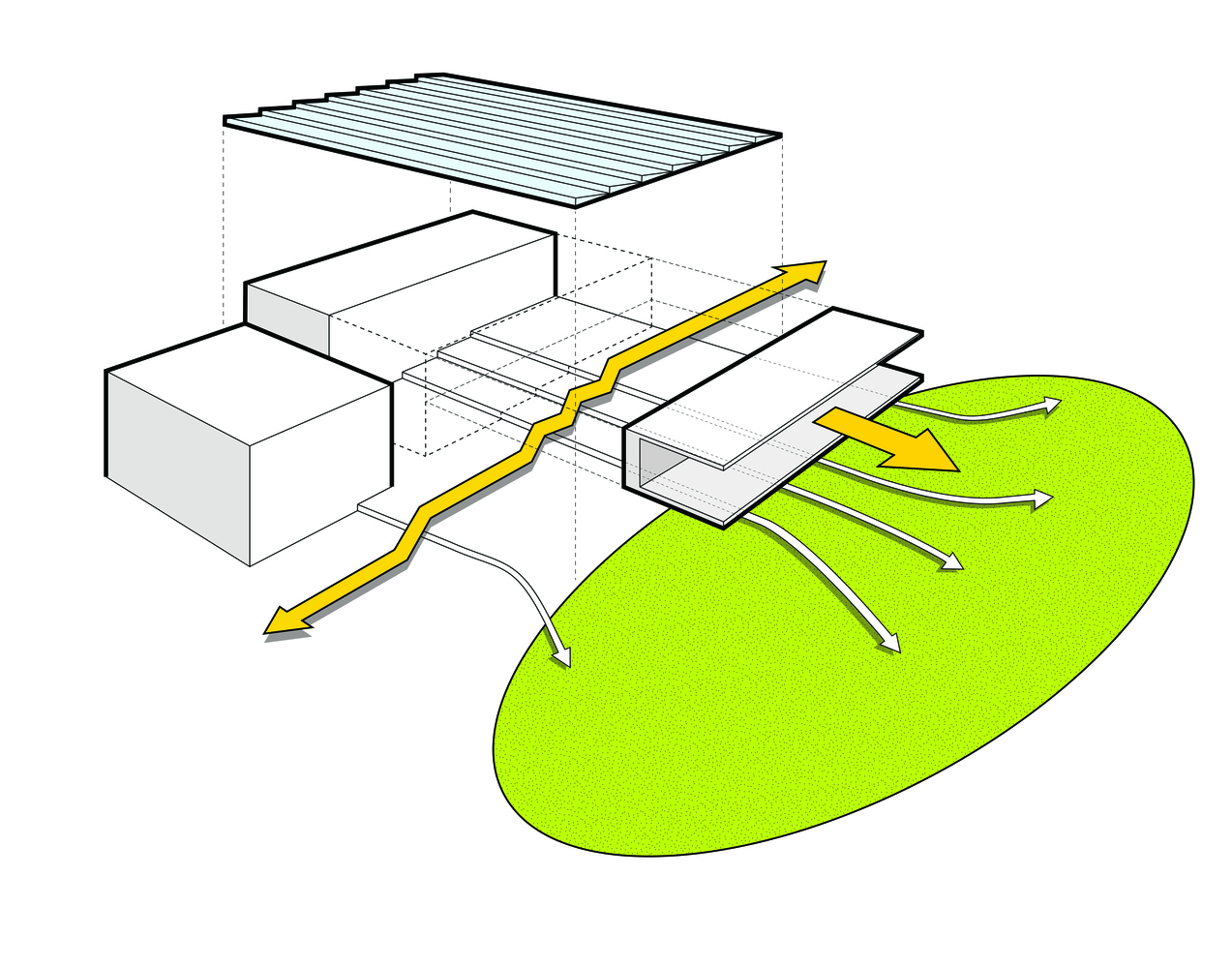

Diagram
The Kendeda Building for Innovative Sustainable Design

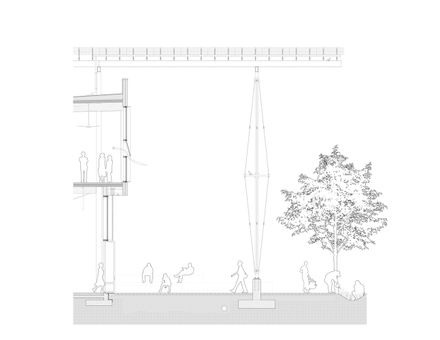

Detail Wall Section
The Kendeda Building for Innovative Sustainable Design
Section Sketch

The Kendeda Building for Innovative Sustainable Design

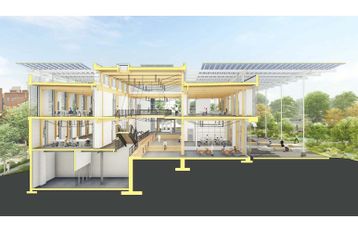

Section


The Kendeda Building for Innovative Sustainable Design
Floor Plan
The Kendeda Building for Innovative Sustainable Design
Floor Plan
