BLOCO Arquitetos

Grid House

Grid House
via BLOCO Arquitetos

GRID HOUSE

BLOCO Arquitetos

STRUCTURE
André Torres

CONSTRUCTOR
Vítor Odísio Engenharia

TEAM
Victor Machado, Guilhemre Mahana, Tatiana Lopes

MANUFACTURERS
Alemdaluz, Marmoraria Alvorada, artline

 AUTHORS
Daniel Mangabeira, Henrique Coutinho, Matheus Seco

AREA
400 m²

YEAR
2016

LOCATION
Brasília, Brazil

CATEGORY
Houses

Text description provided by the architects

The house is located close to Brasília´s city centre. The previous owner of the house had planned to build a bigger one with 350sqm and two stories high.

Grid House
© Haruo Mikami
Grid House
© Haruo Mikami

Instead, due to funding problems, he decided to build all the foundations of the house and only use it partially in a 150sqm, one story construction.

He built the extra floor plan and covered it with a ceramic tile roof. Moreover, he sold the house without never going ahead with the expansion plan.

Grid House
© Haruo Mikami
Grid House
© Haruo Mikami

The value of the land often surpasses the price of the existing constructions, making it very common for people to buy old houses only to demolish them in order to make space for building new ones.

The intention here was to build a bigger house in the same lot with a budget that was 35% lower than what was expected for a brand new construction.

Grid House
© Haruo Mikami
Grid House
© Haruo Mikami

The idea to lower the final cost of the construction was to take advantage of the existing structure and re-use part of the existing walls.

The area occupied by the previous construction was not enough to fit the new program. Therefore, a new concrete grid created to expand its structure, create extra space and defined the outside casing.

Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami

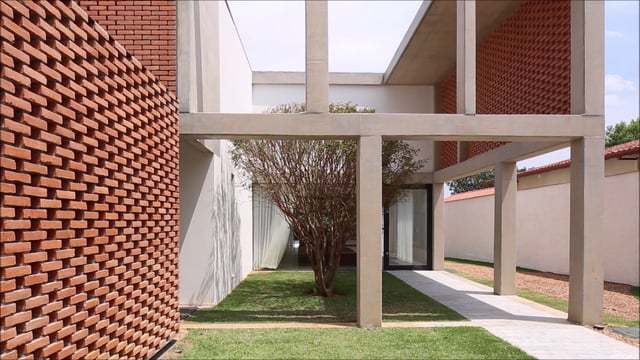

Due to the lack of regularity in the existing foundations, columns and beams, the new grid follows an “imaginary” pattern of growth inspired by the irregularity of the existing structure.

The new grid works as a graft, connecting old walls and new ones and supporting the additional program of the extension.

It sits on both existing and new foundations and uses columns with two different sections: 40x40cm and 40x15cm.

Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami

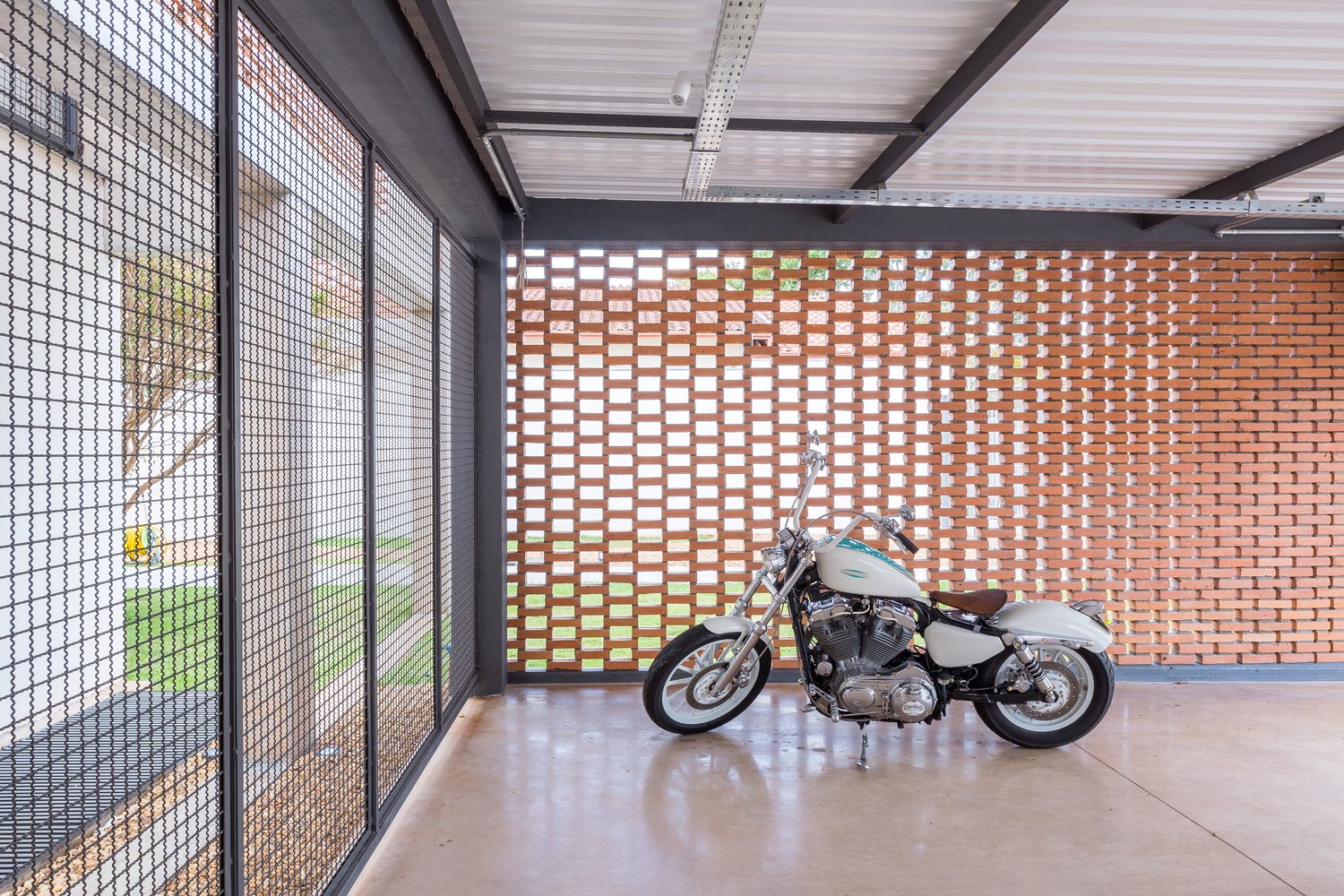

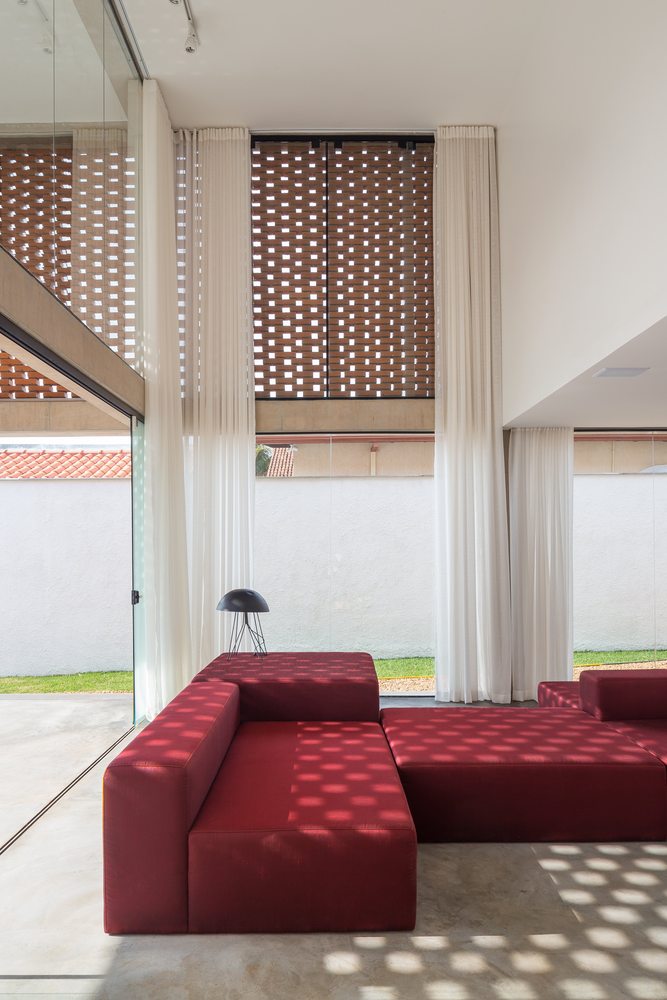

Porous brick walls intentionally arranged in the grid respond to different necessities of solar protection and privacy. Two steel structure pavilions added additional services to the house such as a garage, an outdoor kitchen and a sauna.



Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
via BLOCO Arquitetos
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami


Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami
Grid House
Grid House
© Haruo Mikami
Grid House
© Haruo Mikami


Grid House
Plan
Grid House
Sections
Grid House
Plan
Grid House
Sections
Grid House
Sections


Grid House
Isometric
Grid House
gif
