512GW Townhouse

512GW Townhouse
© Evan Joseph

512GW Townhouse

Archi-Tectonics

ARCHITECTS
Archi-tectonics

AREA
4500 Ft²

YEAR
2019

 CATEGORY
Apartments

DESIGN TEAM
Boden Davies, Avra Tomara, Hsiang Wei

GENERAL CONTRACTOR
Galcon Construction

STRUCTURAL ENGINEER
Cantor & Seinuk

MECHANICAL ENGINEERING
2ls Consulting

PRINCIPAL IN CHARGE
Winka Dubbeldam, Assoc. Aia

PROJECT LEADERS
Justin Korhammer, Hanxing Zu

LOCATION
New York, United States

Text description provided by architect.

Archi-Tectonics converted a long and narrow industrial structure in SoHo into a spacious and flexible 8-story family home.

The size of the space was doubled by adding a 4-story structure to the original townhouse, and by unifying the two volumes with a 3d envelope: the Climate Skin.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

CLIMATE SKIN

The townhouse is inscribed within the Climate Skin, a spacious lattice envelope made of lightweight steel and folding panels clad with Trespa™ slats.

When closed, they appear as one smooth surface, but when opened, they fold out like feathers of a birdwing.

Like an intricate lacework dress, the sheathing changes character and appearance at different times of the day and view angles and serves as both filter and amplifier between the privacy of the house and the public streetscape.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

The Climate skin does not stop at the facade, it wraps up and over the multi-level roofs, creating a private outdoor ‘room’ with green roofs and outdoor dining.

Extensive prototyping assisted in optimizing the movement of the trellis panels. This way, the façade can fold and slide open depending on the residents’ changing needs, as well as simultaneously connect to and enclose from the outdoors.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

This unique facade also poses interesting solutions for sustainability. By making the Climate Skin operable, residents can adjust ventilation, light, shade, and temperature so that the building naturally adapts to environmental conditions.

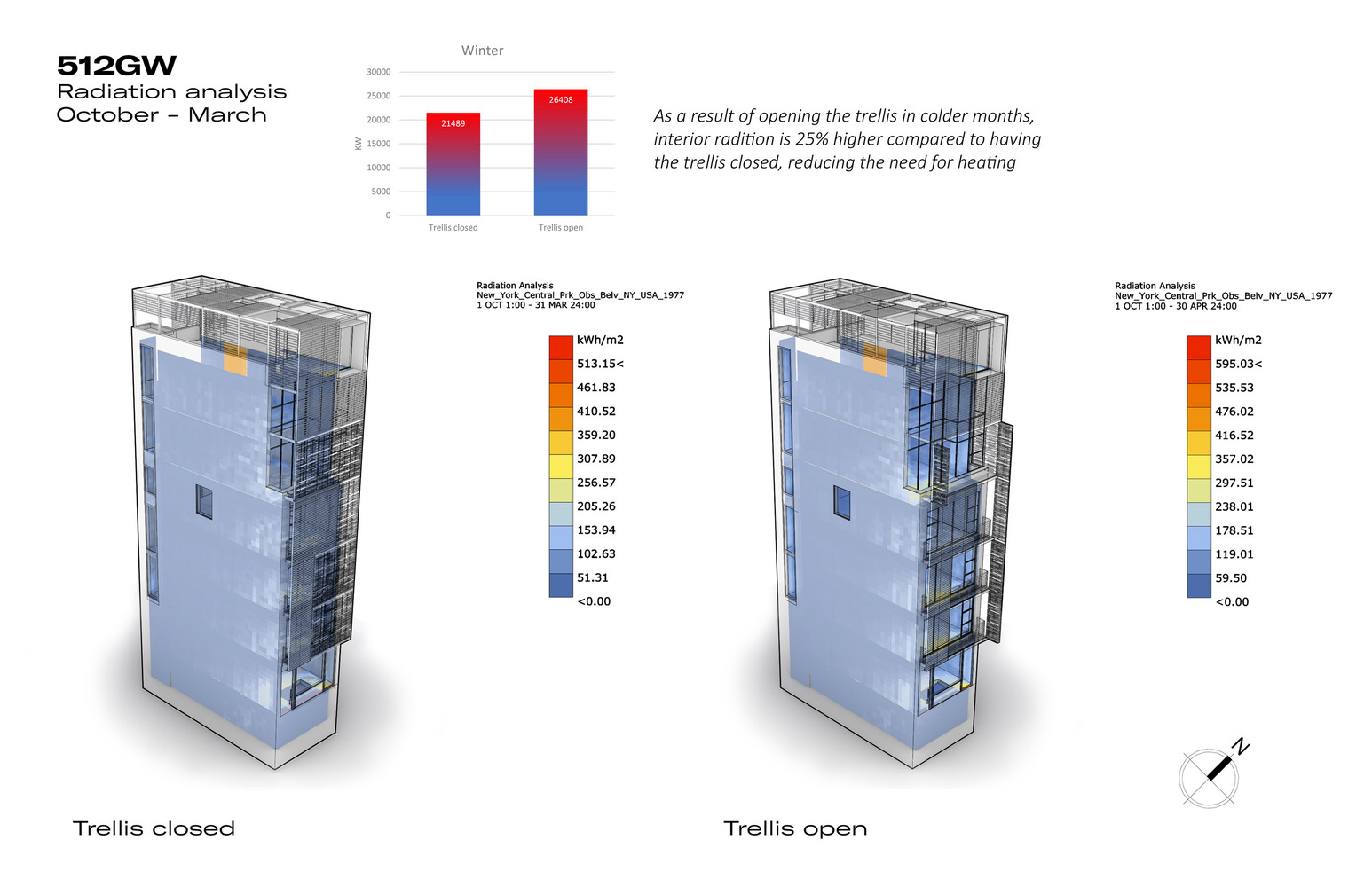

In warmer months, the Climate Skin reduces interior radiation and lowers the need for air-conditioning. In colder months, opening the Climate Skin increases interior radiation and reduces the need for heating.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

INTERIORS

Inside, the project pays respect to the building’s history by restoring the existing brick and up-cycling materials.

The black steel in the original building is used throughout the house, such as in the staircase that runs through all eight stories of the house lit from above by a glass roof.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

At the top the stairs turn 90 degrees and move up to the bulkhead where we find a perfect meditation spot, with its window box penetrating the Climate Skin, overlooking SoHo.

To enhance the building’s small floorplates spatially, each floor contains a program connected through double-height voids, such as between the kitchen and dining area, and between the study and master bedroom. These allow for spatial interlacing and long views throughout.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

Double-height windows, a skylight, and a dramatic south-facing continuous window slot bring ample light into what could otherwise be a dark and narrow living space.

Altogether, these highlight the sensation of extreme verticality and transform mundane everyday tasks into a dynamic spatial experience.

IMPACT

This Urban townhouse represents an innovative approach to densification in a city challenged by housing shortages and skyrocketing prices.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

The conversion not only provides residents with a diversity of elegant living, working spaces, and generous outdoor areas but also respects the existing characteristics of the city and poses a potential future for urban living.

The Climate Skin’s adaptability to environmental conditions represents a rethinking of the residence’s footprint on the environment and reduces energy costs.

512GW Townhouse
© Evan Joseph
512GW Townhouse
© Evan Joseph

It anticipates future, more sustainable design approaches to urban living.


512GW Townhouse
Diagram
512GW Townhouse
Diagram


512GW Townhouse
Structure detail
512GW Townhouse
Structure detail


512GW Townhouse
Section
512GW Townhouse
Section
512GW Townhouse
Section


512GW Townhouse
Facade detail
512GW Townhouse
Exploded isometric
512GW Townhouse
Front perspective diagram


512GW Townhouse
Exterior diagram
512GW Townhouse
Rear perspective diagram
