National Biathlon Center
© Xiaobin Lv

NATIONAL BIATHLON CENTER

THAD

ARCHITECTS
Thad

AREA
8795 m²

YEAR
2020

PHOTOGRAPHS
Xiaobin Lv

LEAD ARCHITECTS
Zhuang Weimin, Zhang Wei, Zhang Hong

STRUCTURE DESIGN
Li Qingxiang, Liu Peixiang, Wang Shiyu, Tian Meng

CATEGORY
Sports Architecture

LOCATION
Zhangjiakou, China

HVAC DESIGN
Jia Zhaokai, Han Jiabao

DESIGN TEAM
Zhuang Weimin, Zhang Wei, Zhang Hong, Gong Jiazhen, Zhao Jingxian, Li Xiangyi, Huang Haiyang, Jia Yuan, Lei Siyu,

DESIGN TEAM
Gong Zhongli

ELECTRICAL DESIGN TEAM
Cui Xiaogang, Wang Lei, Guo Hongyan

WATER SUPPLY AND DRAINAGE DESIGN TEAM
Xu Qing

CONSULTANTS
Max Saeger, Len Apedaile (Track Design Consultants

CLIENTS
Zhangjiakou Olympic Sports Construction and Development Co., Ltd.

National Biathlon Center
© Xiaobin Lv
National Biathlon Center
© Xiaobin Lv

National Biathlon Center (hereinafter referred to as the "Biathlon Center") is one of the main competition venues in Zhangjiakou Zone of the Beijing 2022 Winter Olympic Games.

National Biathlon Center
© Xiaobin Lv
National Biathlon Center
© Xiaobin Lv

During the games, it will undertake all competitions of the biathlon of the Winter Olympic Games and the biathlon and cross-country ski of the Winter Paralympic Games, setting a total of 11 gold medals of the Winter Olympic Games and 38 gold medals of the Winter Paralympic Games, and is the venue with the largest number of gold medals in the Beijing 2022 Winter Olympic and Paralympic Games.

The venue covers an area of 132hm2, the construction area of the technical building of the track venue is 7,644m2, the total area of the track is 113,000 m2, the total length is 13km, the highest altitude is 1,766m and the lowest altitude is 1,657m.

The project will be used as the training base of the national team after the Winter Olympic Games (Figure 1).

National Biathlon Center
© Xiaobin Lv
National Biathlon Center
© Xiaobin Lv

Biathlon is a combination of cross-country ski and shooting, was listed as a performance event at the first Winter Olympic Games held in Chamonix of France in 1924, and became an official event at the 1960 Squaw Valley Winter Olympic Games in the United States.

The project skillfully combines the speed of skiing and the passion for shooting, which is very challenging and ornamental. From the perspective of space, the National Biathlon Center is composed of the venue, the yard area and the technical building.

The venue can be divided into two parts: the surrounding tracks and the core area, and the core area includes the shooting range, the departure and finish areas, and the penalty area; the yard area is divided into the venue operation area, athlete area, security area, news media area, and broadcast service area according to the users; the technical building is close to the core area of the venue and combines with the spectator stand to accommodate the functions of the Olympic family, event management, technical officials' office, etc.

National Biathlon Center
© Xiaobin Lv
National Biathlon Center
© Xiaobin Lv

The tracks of the Biathlon Center consist of the Winter Olympic tracks and the Winter Paralympic tracks, and the Winter Olympic tracks have different lengths of 1.5km, 2.0KM, 2.5km, 3.0km, 3.3km, and 4.0km, while the Winter Paralympic tracks are divided into different lengths of 0.9km, 2.0km, 2.5km, 3.0km, and 5.0km.

In the design of the National Biathlon Center, we fully consider the technical characteristics of the biathlon combining skiing and shooting, as well as the need to hold biathlon and cross-country ski competitions in the Winter Paralympic Games in addition to the Winter Olympic Games, and construct the matrix response strategy of sustainable "3E" including environment, equity, and economy and long-scale, medium-scale, near-scale and micro-scale and full-scale spatial intervention, and are committed to improving the sustainability of Winter Olympic venues.

National Biathlon Center
© Xiaobin Lv


National Biathlon Center
Master Plan
National Biathlon Center
2F Plan
National Biathlon Center
3F Plan
National Biathlon Center
1F Plan


National Biathlon Center
Analysis
National Biathlon Center
Analysis

National Biathlon Center
Analysis
National Biathlon Center
Analysis


National Biathlon Center
Details
National Biathlon Center

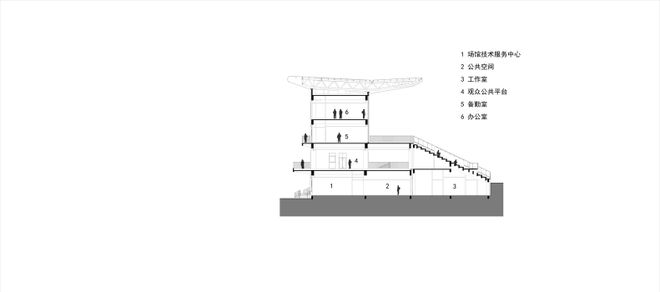

Section
