YUANJUE SI VILLAGES CENTER

Zaixing Architectural Design

ARCHITECTS
Zaixing Architectural Design

AREA
420 m²

YEAR
2019

PHOTOGRAPHS
Arch-exist

MANUFACTURES
丁知竹成都文化创意有限公司

CHEIF ARCHITECT
Qinhao Wen

DESIGN TEAM
Xinbo Li, Siyuan Deng, Zheng Liu, Junwei Zhang, Shiyong Xu, Ting Huang, Chengang Li, Bolin Song, Yaxian Zhao

FIELD ENGINEER
Wang Wang

CLIENT
Village Committee From Jintang County

COOPERATION
Shanghai Yuangui Structural Design Firm

LOCATION
Chengdu, China

CATEGORIES
Community Center

Text description provided by architect.

Yuan Jue Si Village,Jintang is located in the northeast of Chengdu, the head of the Tuojiang River, and the county seat at Zhaozhen, which is one of the famous towns in ancient Sichuan.

YuanJue Si Villages Center
© Arch-Exist
YuanJue Si Villages Center
© Arch-Exist

The project of transforming the old courtyard of Hejiayuanzi into a village center is located here. With an understanding of typical rural architecture in Sichuan and the imagination of having courtyard houses in nature, the connection between the two original buildings is completed.

In terms of strategy, it is reshaped according to the methods of dismantling, raising the house, mending, changing, breaking, and bringing in.

YuanJue Si Villages Center
© Arch-Exist
YuanJue Si Villages Center
© Arch-Exist

Dismantling is to remove the damaged and additional remnant courtyard. Raising the house means raising the roof by 1.2 meters to improve the lighting inside the building and create a comfortable space.

Mending, i.e. the two broken houses have the same courtyard, but they are relatively independent. To make the houses closer, consider deriving the technique of ‘porcelain repair’ into the building so that the two independent roofs and the two disabled buildings are connected, redefining the spatial relationship between them.

YuanJue Si Villages Center
© Arch-Exist
YuanJue Si Villages Center
© Arch-Exist

Changing means combining the plane shape, extracting the twin roofs, and pressing down some ridges in the front to form a continuous spatial curved surface that is strewn randomly in front and back.

Therefore, the traditional folding roof is integrated with the streamlined roof drawn from the side. Breaking, that is to make the courtyard space more pleasant, exploring the southern space of the south side of the damaged courtyard with the application of artistic techniques.

YuanJue Si Villages Center
© Arch-Exist
YuanJue Si Villages Center
© Arch-Exist

Bringing in is to incorporate the manual-created landscape space into its half-open virtual space under the eaves.

With respect to space design, the relatively enclosed space of the original building was reorganized and extended in combination with the existing functions.

YuanJue Si Villages Center
© Arch-Exist
YuanJue Si Villages Center
© Arch-Exist

The former purely inward-looking courtyard has become a courtyard with inside and outside, while the new building maintains the original relationship in appearance.

Looking at this building from a distance, passing through the plant landscape, you could see its winding and leaping roof, and the natural circulation.

YuanJue Si Villages Center
© Arch-Exist

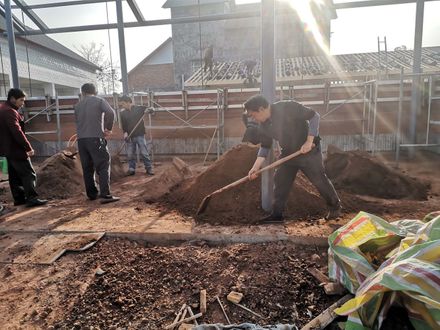

Rammed earth is a material with the flavor of the times and localization. In the current era when concrete is the conventional choice, the designer is trying to redefine rammed soil- no longer a stressed structure, but let it become a maintenance structure

In terms of the choice of materials, the simple exterior wall facade is constructed by using rammed earth walls comprised of mud, sand, and gravel. The combination of transparent glass tiles and blue tiles form an intriguing conflict between modern and traditional elements.

YuanJue Si Villages Center
© Arch-Exist

Although it is a maintenance structure, ‘ramming’ is ‘real ramming’, not fake. It must ensure that modern residents' needs for the use of functional space in buildings, including the requirements for thermal insulation structures.

Because of these requirements, we have done some research and practice on new technologies with rammed earth.

YuanJue Si Villages Center
© Arch-Exist

In the entire structural system, in addition to the steel structure, the indoor roof and facade mainly rely on bamboo for decoration and structural assistance. This use of bamboo is special to some extent, saying that it is not only a simple decoration but a decoration that is reflected by the structural system.

The pliability and gentleness of bamboo can coincidentally neutralize the hardness and coldness of the steel structure. At the same time, this application of the new craft ‘bamboo’ is also a new attempt and exploration in practice.


YuanJue Si Villages Center
site plan
YuanJue Si Villages Center
plan


YuanJue Si Villages Center
location

YuanJue Si Villages Center
exploded diagram
YuanJue Si Villages Center
concept diagram
YuanJue Si Villages Center
material diagram


YuanJue Si Villages Center

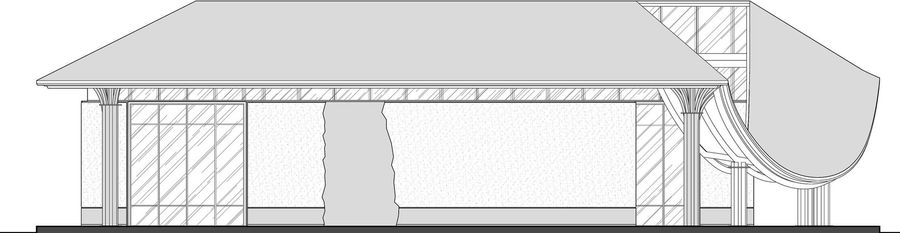

elevation
YuanJue Si Villages Center
north elevation
YuanJue Si Villages Center
west elevation
