Text description provided by architect.

The Effluent Treatment Plant (ETP) is a part of a Ready-Made garments (RMG) complex in a brownfield site banked by the river Shitalakhya.

ETP for Reefat Garments
© Noufel Sharif Sojol
ETP for Reefat Garments
© Noufel Sharif Sojol

Muslin Cotton Mills was a state-owned industry established during the 1950s which was auctioned off to a private industrialist in 2013, to be redeveloped. The previous industrial presence had led to extreme groundwater depletion in the area as well as river pollution due to direct effluent discharge.

An ETP is conventionally considered to be unappealing due to the visual and olfactory discomfort caused by the effluent treatment process. Hence the client’s initial intention was to place it near the river and hide it away.

ETP for Reefat Garments
© Noufel Sharif Sojol
ETP for Reefat Garments
© Noufel Sharif Sojol

The primary constraint was working against this predisposition of an ETP being purely function-driven and in turn, treating it as necessary but undesirable.

After considerable negotiation with the client, the architects were able to establish the significance of the ETP as an integral part of the complex. The architects insisted on reversing the water cycle to decrease the dependency on groundwater.

An integrated hydrologic system was thus proposed by collaborating with plumbing and hydrology experts, where water collected from the river and harvested rainwater will be stored and filtered naturally in water bodies, to be used in the production process.

ETP for Reefat Garments
© Noufel Sharif Sojol
ETP for Reefat Garments
© Noufel Sharif Sojol

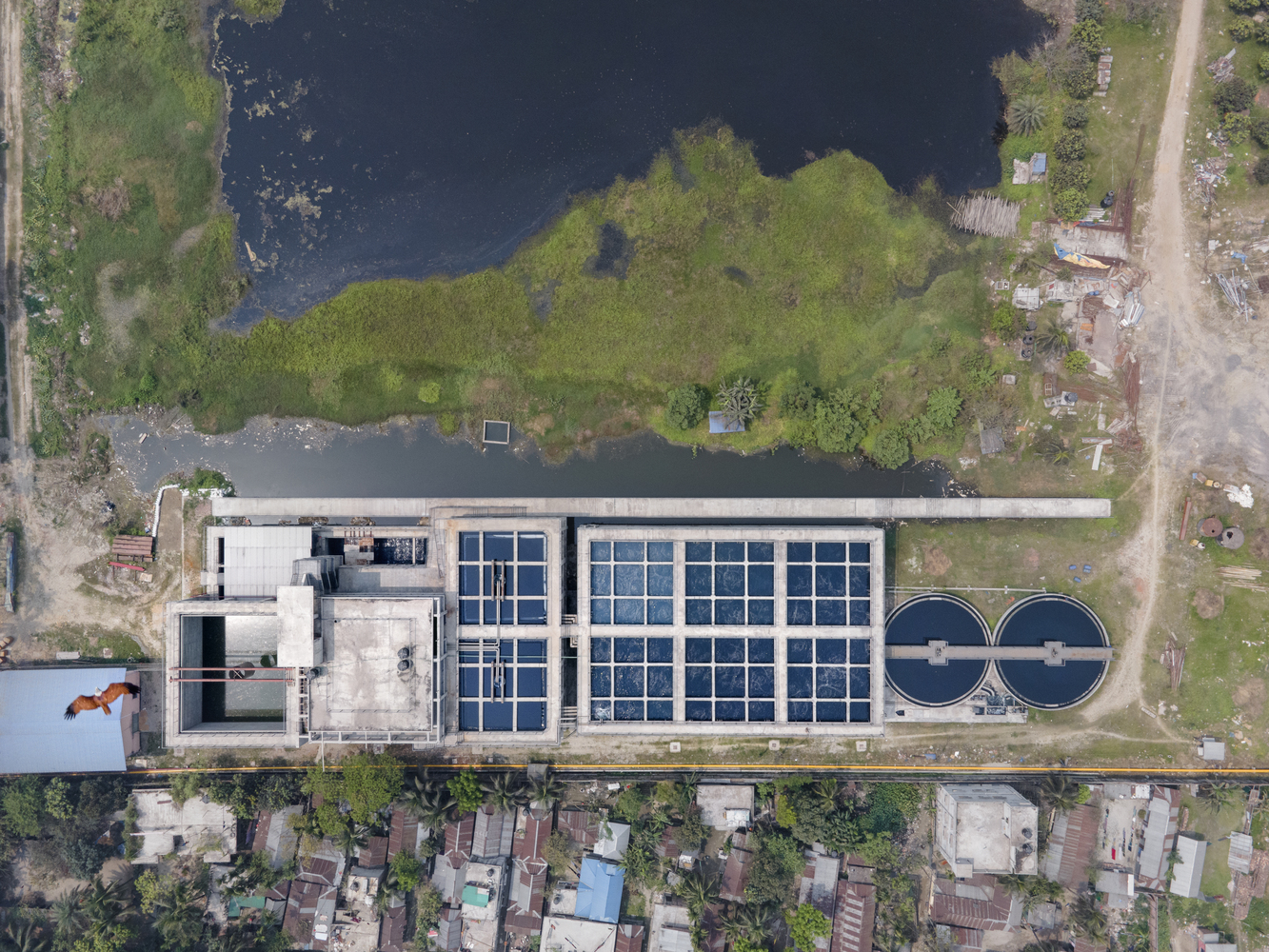

Revival of an extinct dead canal within the site and introduction of an inaccessible forests strip aides in the natural filtration process while helping to restore the lost ecological balance. The effluent water from the production is then treated in the ETP.

To guarantee the safety of the treated water it is further stored and filtered naturally in a retention pond and subsequently released to the river via a metered and monitored connection.

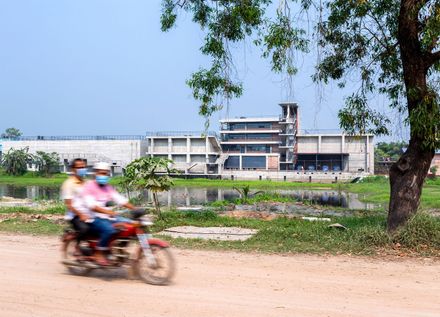

The 400m3 capacity ETP was made clearly visible and accessible from the site’s entry to demarcate its importance within both the industrial and ecological processes.

The architects worked closely with the technical consultants to optimize the geometric configuration of the four-storied structure, resulting in a compact and efficient footprint.

ETP for Reefat Garments
© Noufel Sharif Sojol
ETP for Reefat Garments
© Noufel Sharif Sojol

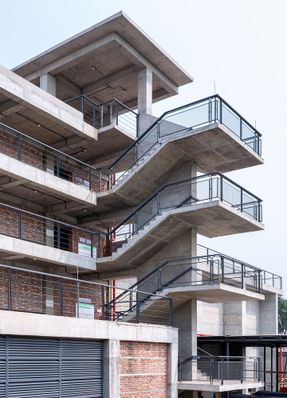

The formal expression further exemplifies the ETP’s significance by translating references from its mechanical elements into a sculptural form. The water retention pond in front of the ETP not only filters and stores water but also adds to the visual impact of the form.

The utilization of repurposed and found materials was prioritized in the construction process. Rubble salvaged from the dismantled defunct buildings used as aggregate for the concrete portions of the ETP.

Metal elements such as railings and window framings were designed to ensure the highest use of MS bars reclaimed from the old structures. Surplus need of metal was met by using recycled steel from local rerolling mills.

ETP for Reefat Garments
© Noufel Sharif Sojol
ETP for Reefat Garments
© Noufel Sharif Sojol

From placement to formal expression, the ETP has been celebrated and optimized to ensure water quality in every layer of design, while acting as a sculptural entry feature to the whole complex. Together with landscape interventions, the ETP serves as a key component in restoring ecological balance, instead of being a standalone treatment plant.


ETP for Reefat Garments

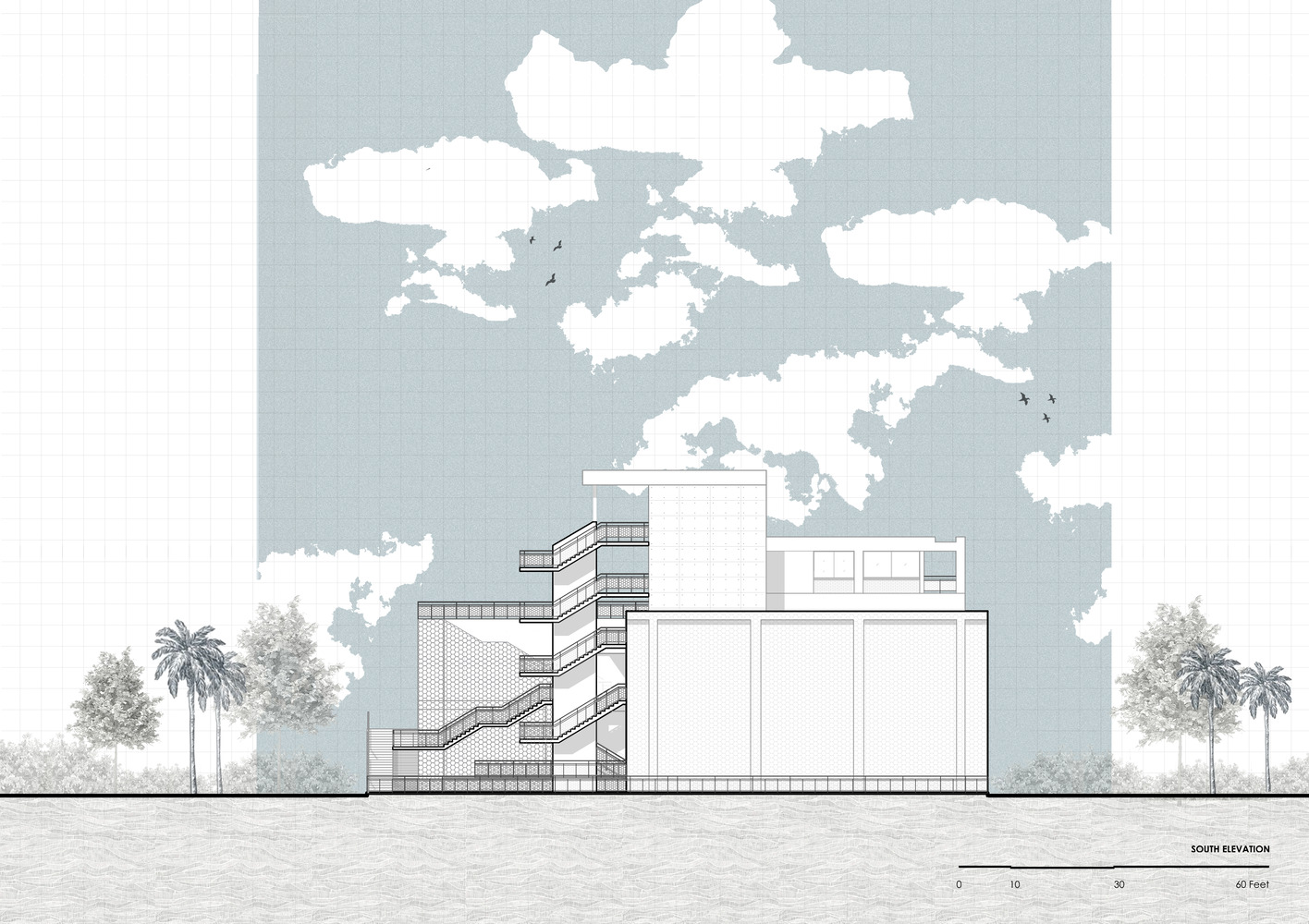

South Elevation
ETP for Reefat Garments
North Elevation
ETP for Reefat Garments

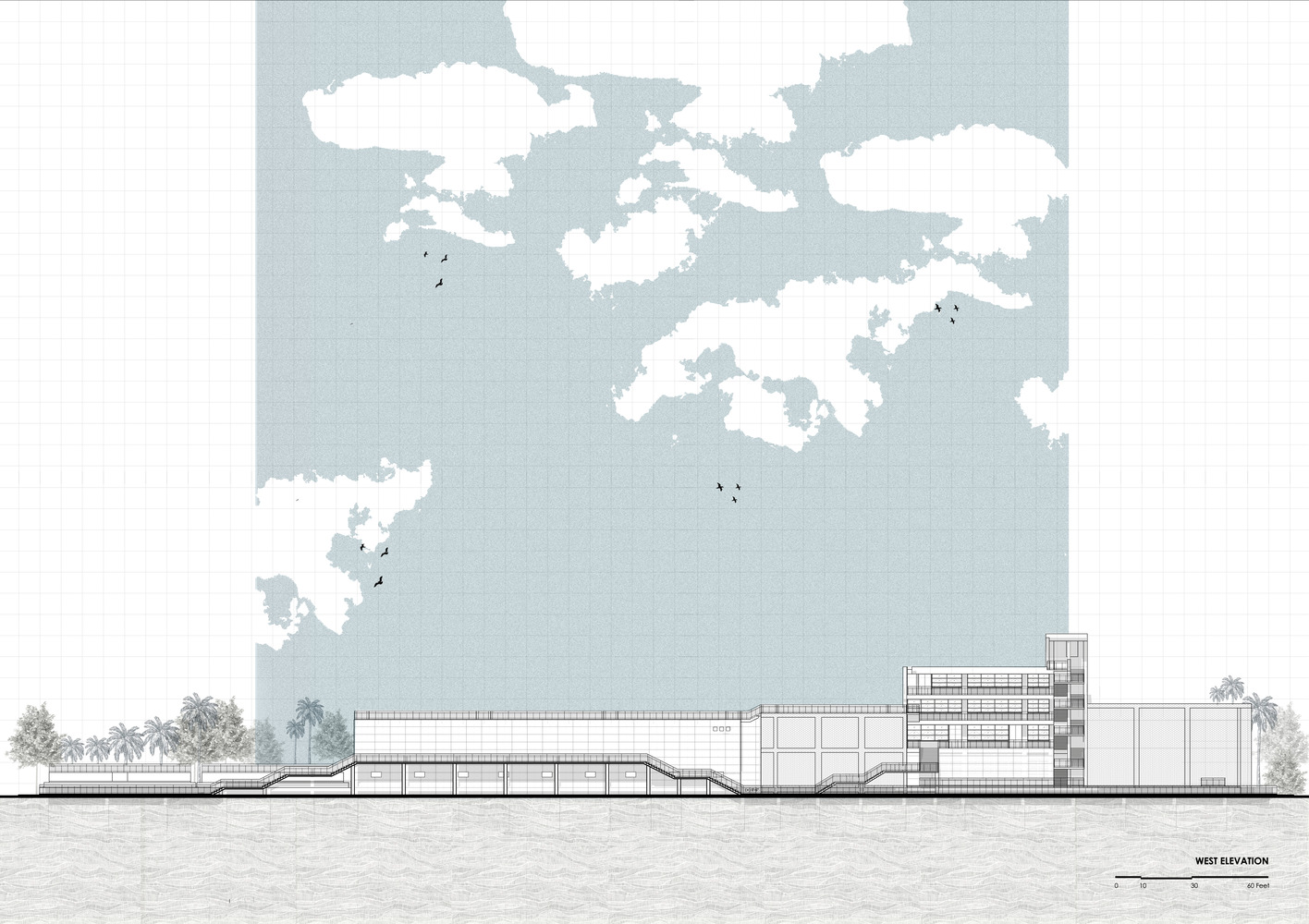

West Elevation
ETP for Reefat Garments
East Elevation


ETP for Reefat Garments
Diagram 01
ETP for Reefat Garments
Diagram 02
ETP for Reefat Garments
Diagram 03
ETP for Reefat Garments
Site Layout


ETP for Reefat Garments
Site Plan
ETP for Reefat Garments

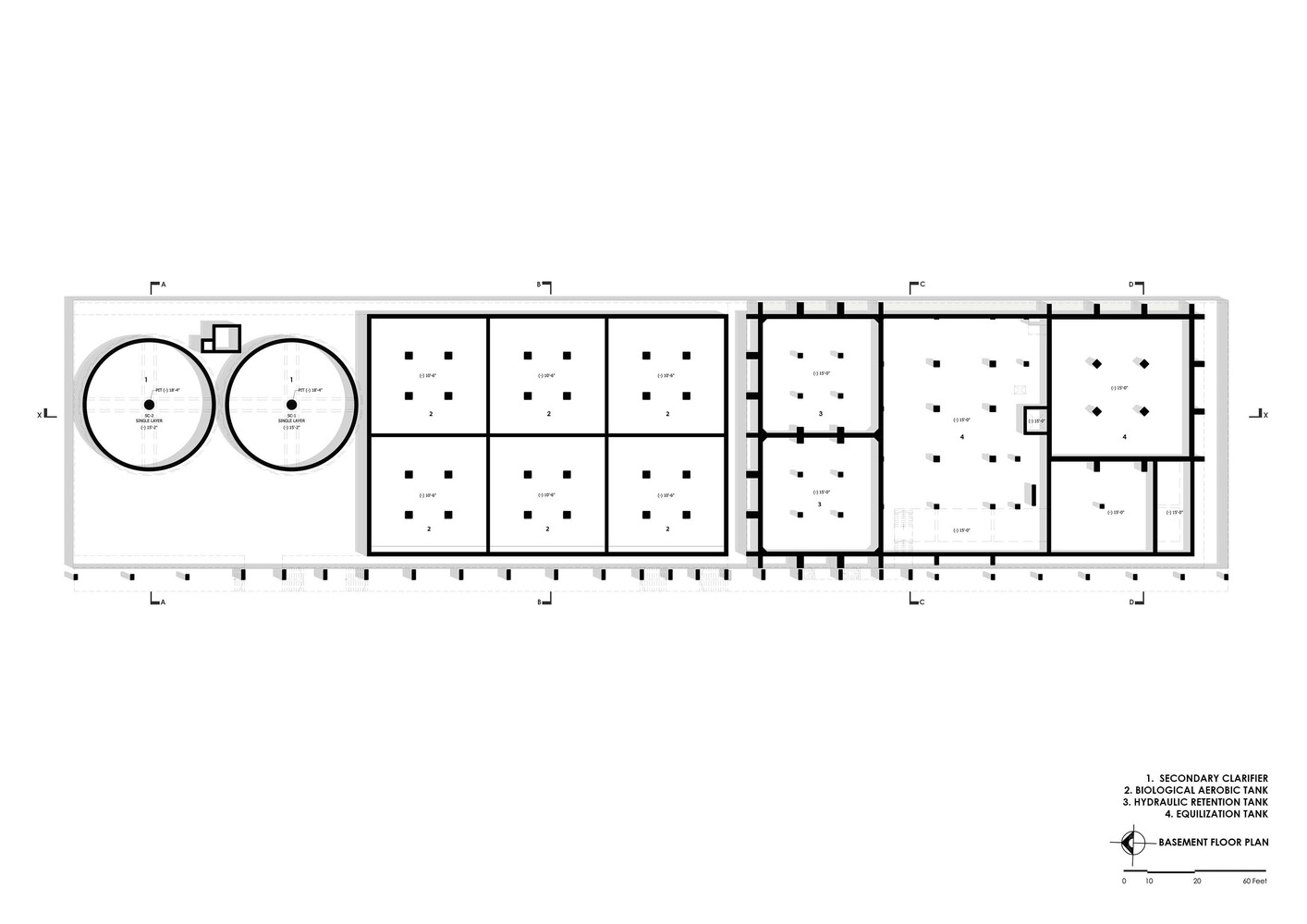

Basement Floor Plan
ETP for Reefat Garments
Mass Plan
ETP for Reefat Garments
Ground Floor Plan
ETP for Reefat Garments

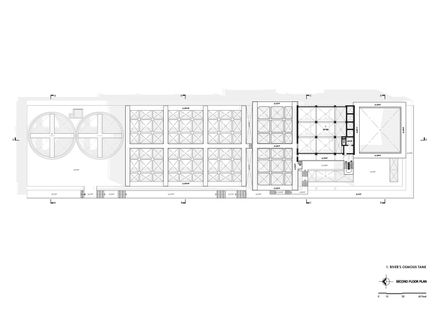

Second Floor Plan
ETP for Reefat Garments
Second Floor Plan
ETP for Reefat Garments
Third Floor Plan
ETP for Reefat Garments
Roof Plan


ETP for Reefat Garments
Section AA
ETP for Reefat Garments
Section BB
ETP for Reefat Garments
Section CC
ETP for Reefat Garments

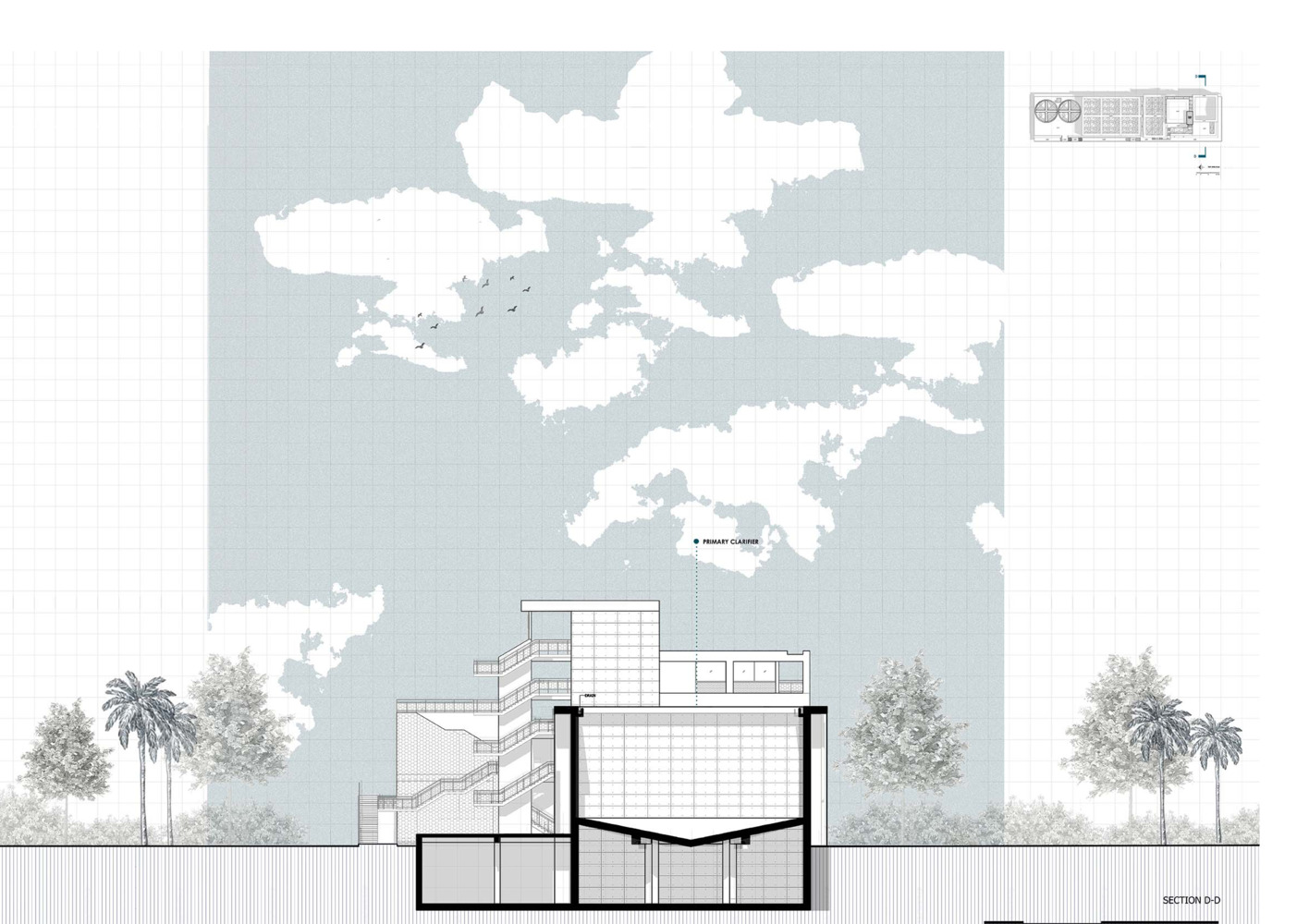

Section DD
