PARTICIPATORY STUDENT BUILDING PROJECT SPINELLI MANNHEIM

Atelier U20

ARCHITECTS
Atelier U20

CLIENT
Manfred Beuchert

DIRECTION
Stefan Krötsch, Jürgen Graf, Andreas Kretzer

MANUFACTURERS
Baumschule Huben, Famag-Werkzeugfabrik, Festool, Handwerkscenter Holz, Hornbach Baumarkt, SPAX International

LOCAL CONSTRUCTION FIRMS
Bauunternehmung Streib GmbH, Kempten, Mannheim; Handwerkscenter Holz GmbH, Mannheim; Edgar Körber GmbH, Mannheim; SAM Truck GmbH

PROJECT MANAGEMENT
Baukompetenzzentrum Mannheim, Tatjana Dürr

ARCHITECTURE
TU Kaiserslautern

RESEARCH ASSISTANTS
Sebastian Rauch, Christian Weisgerber

PHOTOGRAPHS
Yannick Wegner

STUDENTS
Johannes Ackermann, Soheyl Aslani, Sandra Gressung, Sonja Hiegle, Annika Koch, Alina Kohl, Tobias Kohlstruck, Bei Liu, Konrad Peter, Viktor Poteschkin, Sascha Ritschel, Arved Sartorius, Manuel Scheib, Nicolas Treitz, Tobias Vogel, Lukas Weber, Lu Yuan, Ying Zhang

VOLUNTEERS
Manneh Alassan, Barry Alieu, Momodou Bah, Lamin Bakare, Alhagie Darboe, Ousman Dema, Abubacarr Gagigo, Yankuba Gitteh, Amanuel Habtom, Fatti Ismael, Lucky Iyare, Adama Jallow, Dawda Jallow, Demba Jawo, Hamadi Runda Jawo, Haruna Jawo, Kebiru Danlad Momoh, Luke Okoeguale, Ifeanyi Okolie, Stanley Okoro, Emmanuel Onyemarin, Sanna Sacka, Sanyang Seiney, Dembo Tunkara, Bright Uwubuedere

CATEGORY
Community

LOCATION
Mannheim, Germany

AREA
550 m²

YEAR
2016

Text description provided by the architects

Due to bureaucratic procedures, refugees arriving in Germany are condemned to sustain a long period of passiveness.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

In the refugee camp on the location of the former American Spinelli Barracks in Mannheim, they are well provided with the bare essentials, but the immediate surroundings are quite desolate and lack quality of common spaces.

In this situation, the project „Building Together – Learning Together“ came into being. 18 students of the Faculty of Architecture at TU Kaiserslautern built a community centre together with 25 refugees.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

The refugees were given the opportunity to actively shape their environment and acquire new skills, which will be useful, even if they cannot stay in Germany on a permanent basis. The students were able to make an active and positive contribution to the refugee crisis.

As future architects they contribute expertise that may appear luxurious in a refugee camp at first glance, but is even more important upon closer inspection: the creation of pleasant places and high-quality architecture.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

After pinning down the outlines together with the refugees, the students developed design, permission and execution drawings as well as visualizations and cost planning in the course of a very intensive summer semester.

From mid-August until the end of October they worked, ate and lived together with the refugees in the Spinelli Barracks. This resulted in an intensive working atmosphere and very positive group dynamics.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

The interior and exterior spaces of the building are either linked or separated in a carefully designed sequence.

Two walls of the main building extend to the North, revealing two areas – each with its own specific character.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

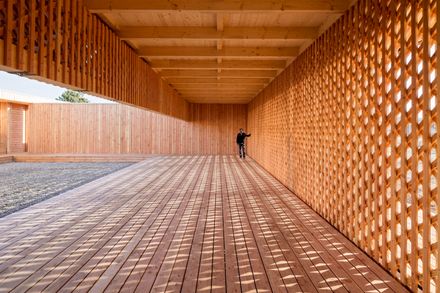

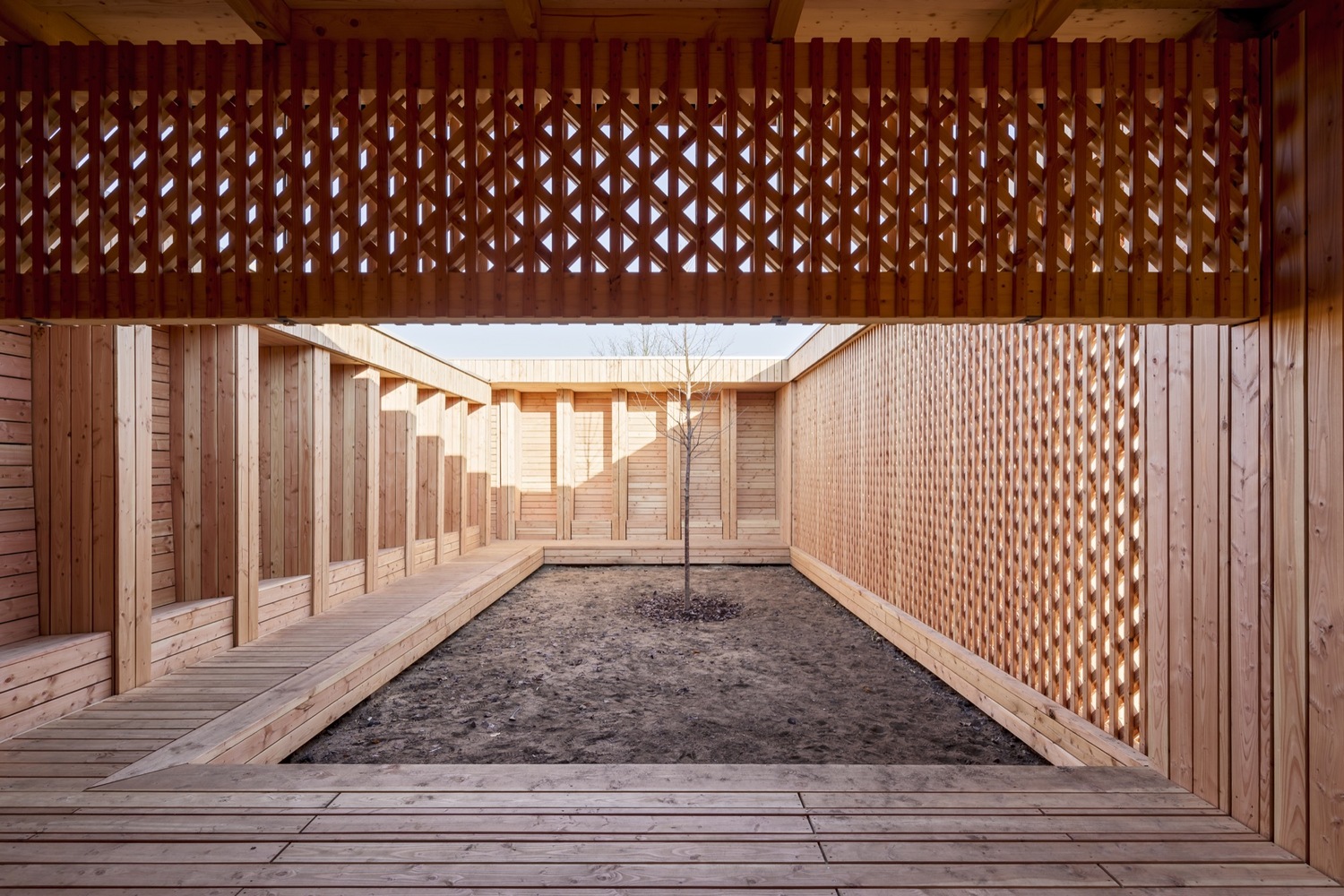

A smaller enclosed space with covered niches may be used as an introverted garden and silent resort, whereas the larger yard accommodates a common room for events – confined by seating booths facing South and West.

All structural elements and surfaces are made of untreated timber. For protection from moisture during the construction process and in order to manufacture these parts in only six weeks, large-format components were prefabricated in a hangar of the former military facility and assembled on site with high speed and precision.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

The light weight of timber allowed for the transport of large elements by simple means and simultaneously reduced foundations to few singular footing foundations by incorporating the walls as trusses. In this way, both the costs for foundations and the negative ecological impact of concrete were reduced to a minimum.

In order to make the best use of many helping hands and to reduce building costs, no large machinery was employed. Instead, simple and material-saving but labour-intensive constructions were used.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner

Walls and trusses made of simple battens 3 by 5 cm are symbolic representants of this method: Screwed together to a grid of five vertically and diagonally arranged layers, they build a highly efficient supporting structure for walls and trusses.

The ornamental structure results in the building‘s unique architectural expression. Multiplied by the interplay with light, it is recognized by the refugees as a reminder of oriental ornaments and as an inviting gesture of identification in a foreign place.

Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner


Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner


Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner
Participatory Student Building Project Spinelli Mannheim
© Yannick Wegner


Participatory Student Building Project Spinelli Mannheim
Isometric
Participatory Student Building Project Spinelli Mannheim
Isometric Detail
Participatory Student Building Project Spinelli Mannheim
Isometric Detail
Participatory Student Building Project Spinelli Mannheim
Site Plan


Participatory Student Building Project Spinelli Mannheim
Participatory Student Building Project Spinelli Mannheim
Participatory Student Building Project Spinelli Mannheim


Participatory Student Building Project Spinelli Mannheim
Floor Plan
Participatory Student Building Project Spinelli Mannheim
Floor Plan
Participatory Student Building Project Spinelli Mannheim
Floor Plan


Participatory Student Building Project Spinelli Mannheim
Participatory Student Building Project Spinelli Mannheim
Participatory Student Building Project Spinelli Mannheim


Participatory Student Building Project Spinelli Mannheim
Longitudinal Section
Participatory Student Building Project Spinelli Mannheim
Cross Section
Participatory Student Building Project Spinelli Mannheim
Cross Section
Participatory Student Building Project Spinelli Mannheim

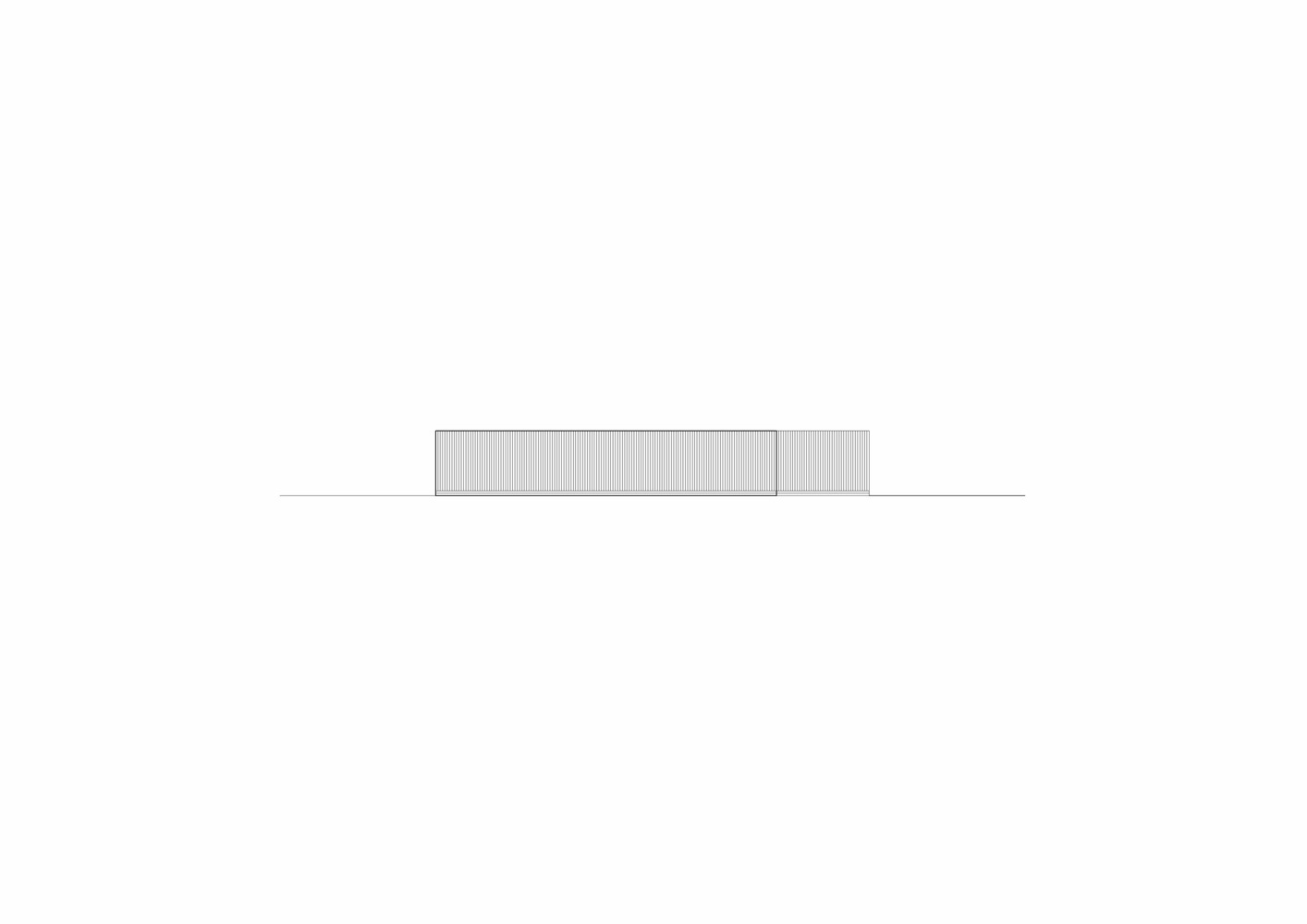

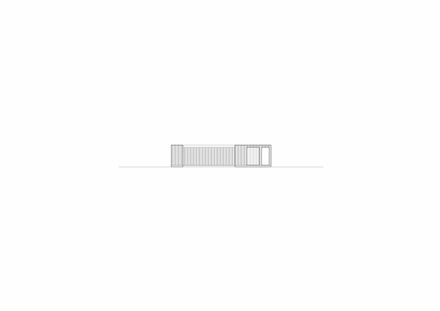

North Elevation
Participatory Student Building Project Spinelli Mannheim
West Elevation
Participatory Student Building Project Spinelli Mannheim
East Elevation
Participatory Student Building Project Spinelli Mannheim
South Elevation
