Red House

Red House
© Fernando Guerra | FG+SG

RED HOUSE

extrastudio

ARCHITECTS
extrastudio

ARCHITECT IN CHARGE
extrastudio

LANDSCAPING
Oficina dos Jardins

TEAM
João Caldeira Ferrão, João Costa Ribeiro, Madalena Atouguia, Daniela Freire, Maria João Oliveira, Sónia Oliveira, Tiago Pinhal, Rita Rodrigues

CONTRACTOR
Sequeira e Serra lda

AREA
360 m²

CONSULTANTS
PRPC Engenheiros lda (fundações e estruturas, águas e esgotos, gás, térmica e acústica), Mário Andrade (instalações eléctricas e telecomunicações), Gonçalo de Meirelles (Gás)

CATEGORY
Houses

LOCATION
Setúbal, Portugal

YEAR
2016

Text description provided by architect.

Protected by hills from the Atlantic Ocean, the area has a mild Mediterranean microclimate, creating the ideal conditions for growing grapes, producing some of the country’s finest wines.

Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG

The project consists of the conversion of a former winery, built by the client’s grandparents at the beginning of the 20th century.

Set back from the main road and surrounded by neighbours, accessible along a narrow alley, the plot has a small orchard of orange trees, an oasis in the middle of the village.

Preservation of this orchard determined the whole project.

Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG

In order to retain the trees, it was necessary to keep the existing building and accept that the two sides of the house, which border adjacent properties, would have no windows.

Only two incisions were made into the existing volume.

Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG

A 14-meter long window was cut into the west façade facing the orchard, turning the interior and exterior into a single space.

A courtyard was inserted into the corner abutting the adjacent properties, allowing light to enter the darkest areas of the house.

The public areas of the house are arranged on the ground floor, occupying the entire footprint.

Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG

The private areas unfold on the upper level, flanking the facades, generating a sequence of strategically placed voids, which create double and triple height spaces on the ground floor below.

The generous scale recalls the building’s former use.

Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG


Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG


Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG
Red House
© Fernando Guerra | FG+SG


Red House
Site Plan
Red House
Ground Floor Plan
Red House

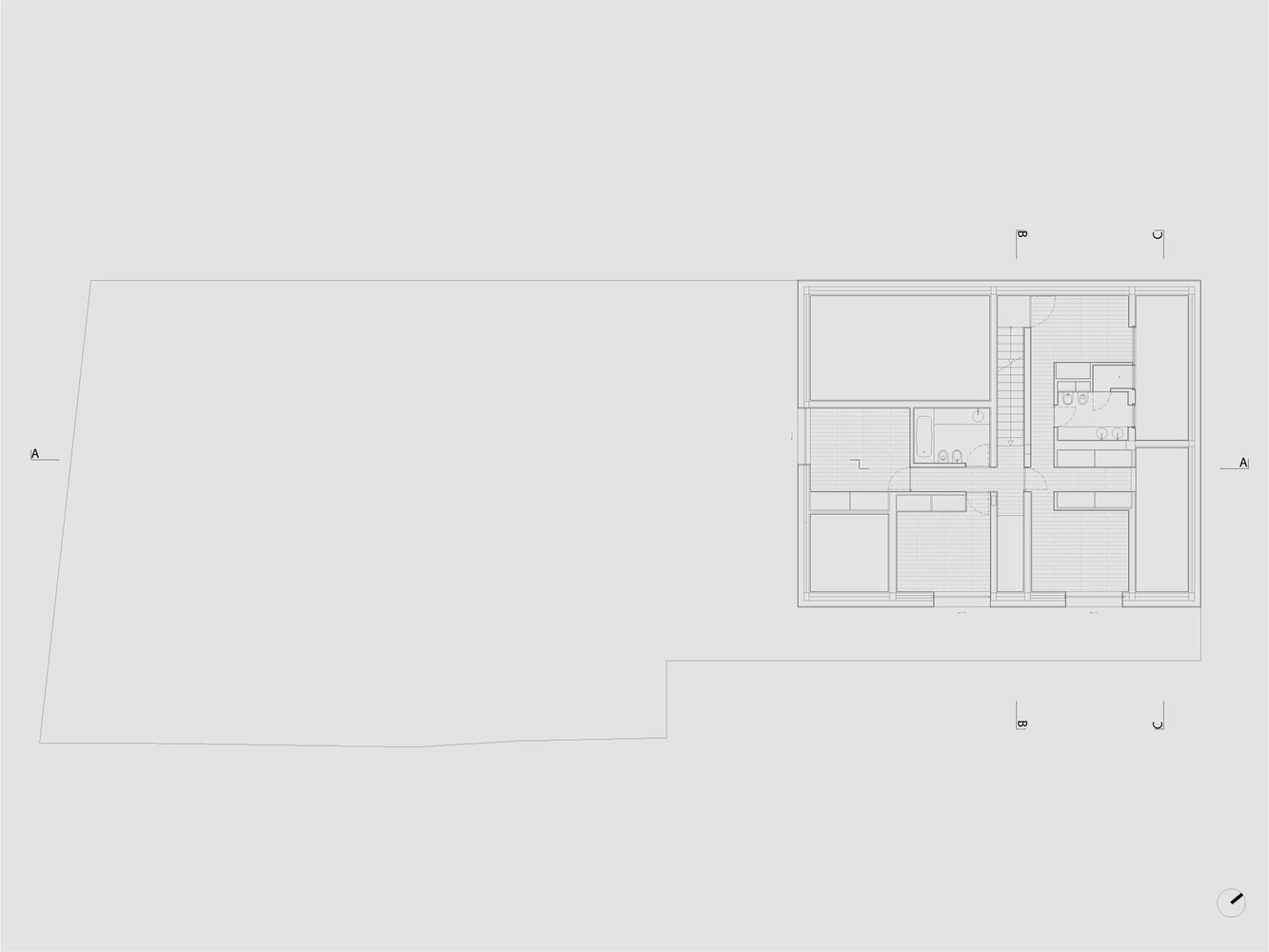

First Floor Plan
Red House
Second Floor Plan


Red House

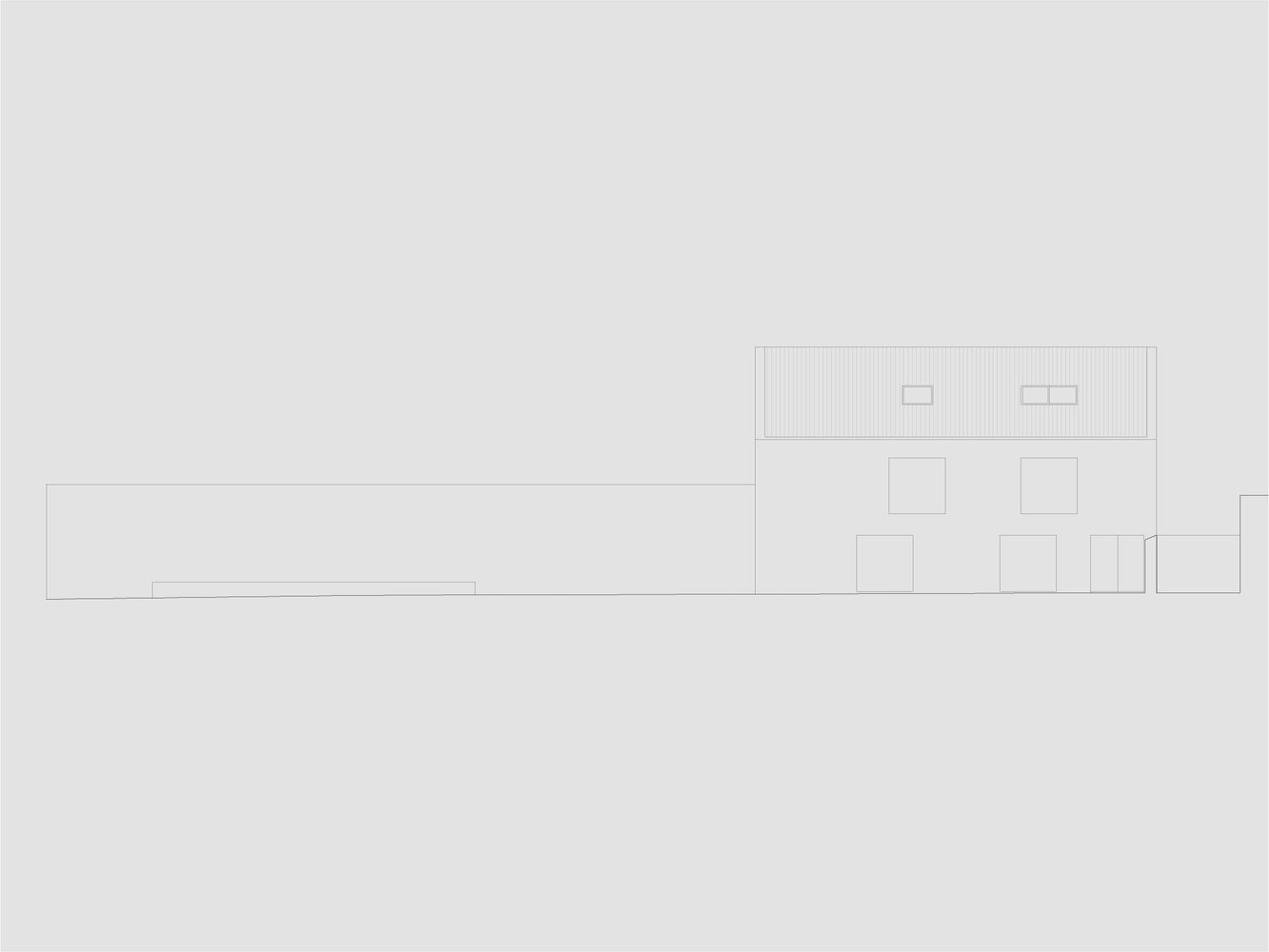

Elevation
Red House
Elevation


Red House
Section
Red House
Section
Red House
Section
Red House
Axonometric
