TURNOVA TOWER

B-architect

ARCHITECTS
B-architect

CLIENT
Heeren Group

AREA
21400 m²

DESIGN TEAM
Christophe Combes, Evert Crols, Amadé de Moyer, Mira De Winne, Dirk Engelen, Bernard Forier, Marta Galiana, Sven Grooten, Nuria Júdez Gonzalo, Hans-Christian Karlberg, Louise Lauwers, Inês Lourenço, Johannes Müntinga, Valentin Piret, Steven Stessens, Brecht Van Duppen, Toon Van Mieghem, Evelien van de Riet

PHOTOGRAPHS
Stefaan van der Veken, Lucid

LOCATION
Turnhout, Belgium

CATEGORY
Mixed Use Architecture, Apartments, Office Buildings

YEAR
2018

Text description provided by the architects.

The Turnova tower is the central structure of Turnova, an urban renewal project in the heart of Turnhout, situated directly on the city’s main square: the “Grote Markt”.

Turnova Tower
© Lucid
Turnova Tower
© Stefaan van der Veken

On a site of almost four hectares, formerly the home of the Brepols printing company, the new neighbourhood of Turnova is taking shape.

The Turnova tower is the beating heart of this new district. The 75m high tower contains twelve residential floors, two floors of offices and three floors with restaurants and catering.

Turnova Tower
© Lucid
Turnova Tower
© Lucid

All apartments have spacious indoor terraces that offer adequate protection against the wind. A balcony and a gastronomic restaurant, accessible to the public, are located on the top floor.

In the centre of the base of the tower is a monumental point of ascent that connects the two underground levels of the paid car park to the new square and to the shopping centre. There are various escalators and an immense staircase under a large circular dome.

Turnova Tower
© Lucid
Turnova Tower
© Lucid

The functions that are present in the tower – residential, office and restaurant – are visible in the façade: a dense raster of columns and beams was used for the apartments; the bay size being determined by the size of the bedrooms.

This grid widens at the height of the offices. A very open raster was used for the upper restaurant floors, to accommodate an open plan and to maximise the view.

Along with the core, they form the only load-bearing structures, so that the layout of each floor can be arranged in a flexible manner.

Turnova Tower
© Lucid
Turnova Tower
© Lucid
Turnova Tower
© Stefaan van der Veken

Despite this staggering of the columns in the façade, which greatly determines the view from the tower, the walls are load-bearing.


Turnova Tower
© Stefaan van der Veken
Turnova Tower
© Stefaan van der Veken
Turnova Tower
© Lucid
Turnova Tower
© Lucid


Turnova Tower
© Lucid
Turnova Tower
© Lucid
Turnova Tower
© Lucid
Turnova Tower
© Lucid
Turnova Tower
© Lucid
Turnova Tower
© Lucid


Turnova Tower
Site plan
Turnova Tower
Ground floor plan
Turnova Tower
Floor plan level 1
Turnova Tower
Floor plan level 2
Turnova Tower

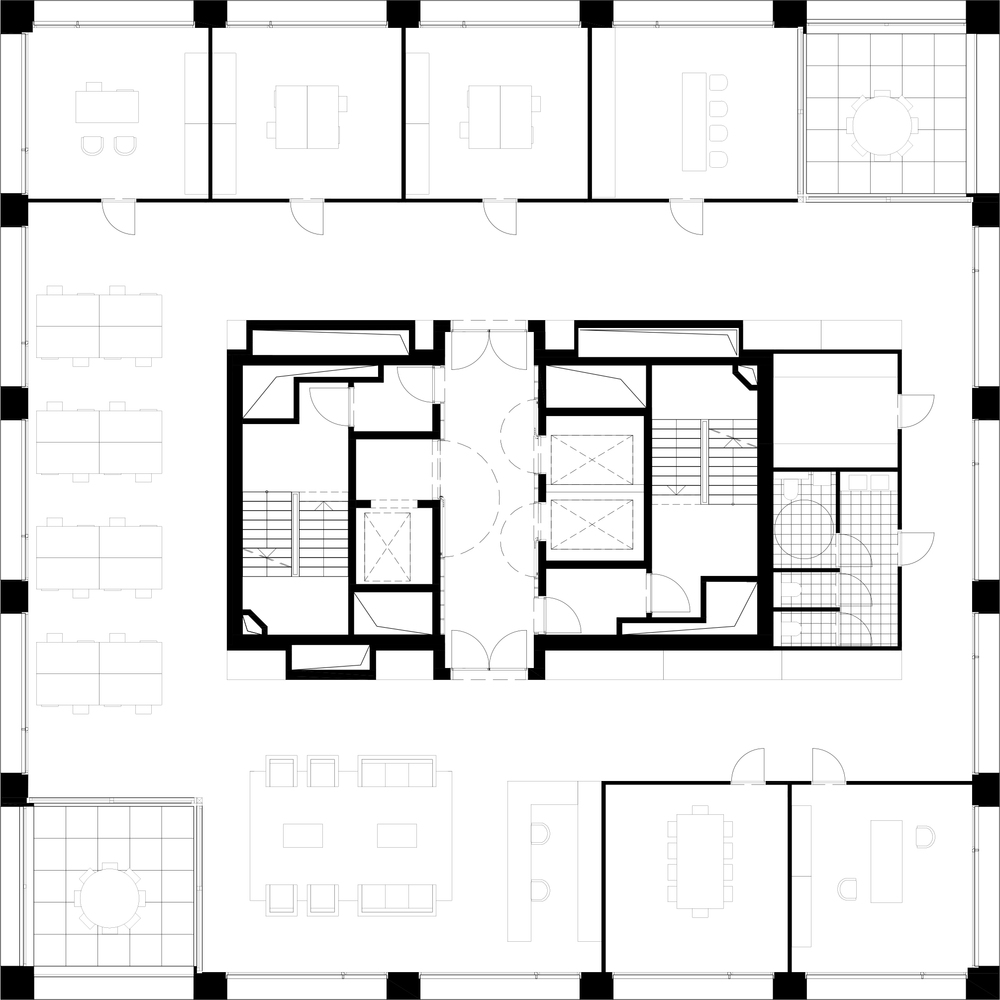

Floor plan level 5
Turnova Tower
Floor plan level 11
Turnova Tower
Floor plan level 14
Turnova Tower
Floor plan level 16
Turnova Tower
Floor plan level 17
Turnova Tower
Floor plan level 18


Turnova Tower
Section
