Service Center for the Wuxiang Nature School in Guoxing Village

SERVICE CENTER FOR THE WUXIANG NATURE SCHOOL IN GUOXING VILLAGE

Han Xiaofeng Design Studio, Seu-arch

Service Center for the Wuxiang Nature School in Guoxing Village
© Wenhan Shen

YEAR
2019

PHOTOGRAPHS
Wenhan Shen, Qing Zhang, Yuxi Lin, Xiaofeng Han

MANUFACTURERS
Powerwood, Xuanyi, Zhengda

LEAD ARCHITECT
Xiaofeng Han

LANDSCAPE
Han Xiaofeng Design Studio

DESIGN TEAM
Diego Puja, Haifei Zhou

CONSULTANT
Nanjing Buyunxuan Building Technology Company

ENGINEERING
Haifei Zhou

CLIENT
Lishui Business Travel Group

LOCATION
Nanjing, China

CATEGORY
Other Facilities

Service Center for the Wuxiang Nature School in Guoxing Village
© Qing Zhang

Text description provided by architect.

Wuxiang Nature School is located at the west-southern corner of the Wuxiang Mountain. This project is just at the entrance of this natural school. This building provides all the services to the people who want to enter the school.

Beyond the very fundamental function, the design focus on the more complex design problem such as the landscape, material, construction technology, etc. We designed three small units which have one particular function.

Service Center for the Wuxiang Nature School in Guoxing Village
© Qing Zhang
Service Center for the Wuxiang Nature School in Guoxing Village
© Qing Zhang

The space between the three small units becomes a very free public space for the local people and tourists.

The leaf shape roof is the identical form for the building. This soft and elegant shape works very harmony with the context. The time for the construction is very limited.

Service Center for the Wuxiang Nature School in Guoxing Village
© Qing Zhang
Service Center for the Wuxiang Nature School in Guoxing Village
© Xiaofeng Han

We choose the steel and wood structure system which can be prefabricated in the factory. Wood is the major material.

We design the wood with some traditional Chinese wooden technology, at the same time we also design with innovative modern wood technology.

Service Center for the Wuxiang Nature School in Guoxing Village
© Xiaofeng Han
Service Center for the Wuxiang Nature School in Guoxing Village
© Xiaofeng Han

The structure of the circle ticket unit is a wooden post-beam system.

The section size of the 6 main wooden columns is 20X20cm. The section size of the circular beam is 20X30cm.

Service Center for the Wuxiang Nature School in Guoxing Village
© Xiaofeng Han
Service Center for the Wuxiang Nature School in Guoxing Village
© Xiaofeng Han

The 24-hours guardian’s house is made of 6 pieces of glued laminated wood panels.

The product exhibition pavilion is made of two pieces of big curved wood walls which have two curve furniture. The skeleton of the leaf shape roof is made of steel truss which transformed from the local village building.

Service Center for the Wuxiang Nature School in Guoxing Village
© Xiaofeng Han


Service Center for the Wuxiang Nature School in Guoxing Village

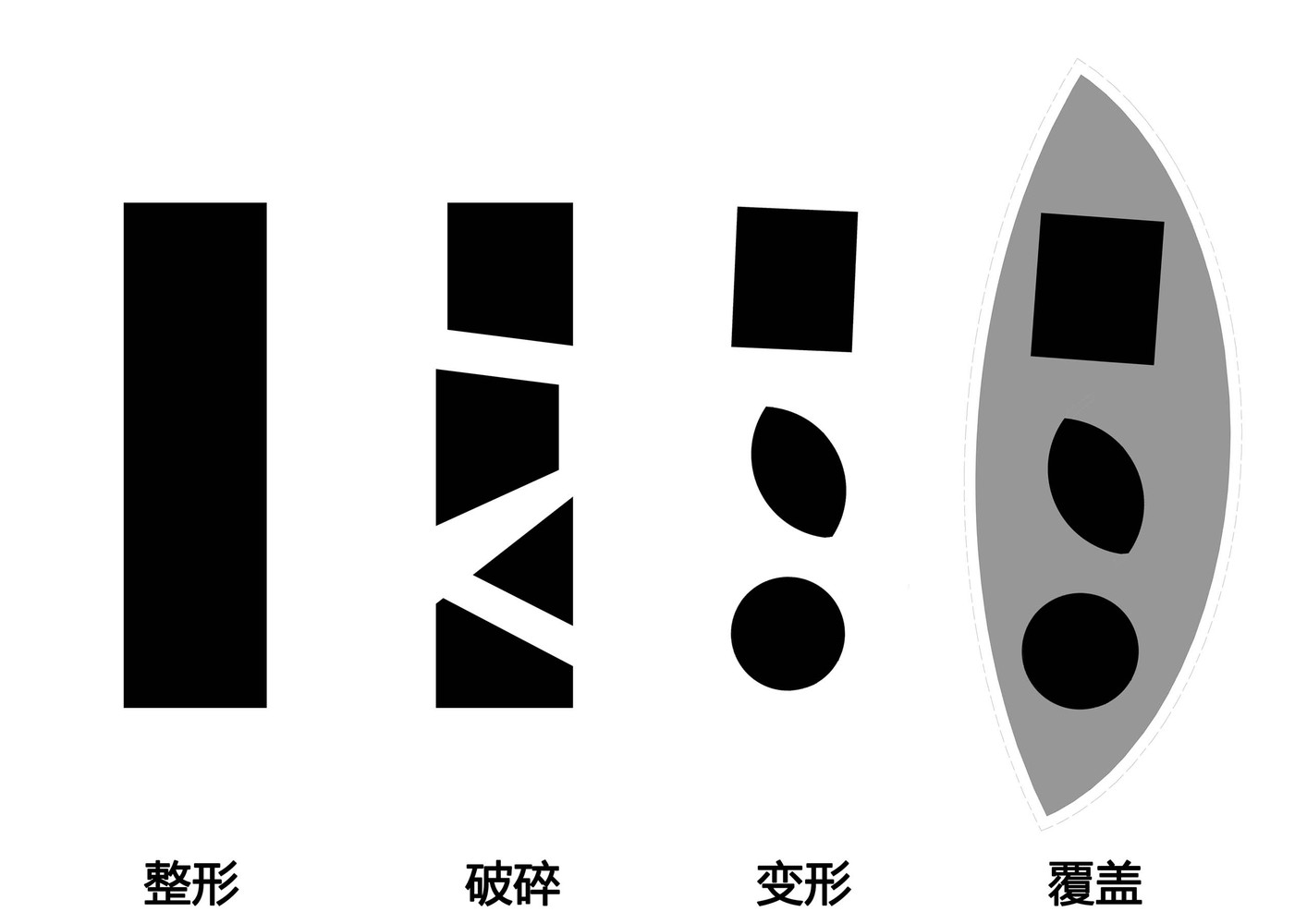

Form Generation
Service Center for the Wuxiang Nature School in Guoxing Village

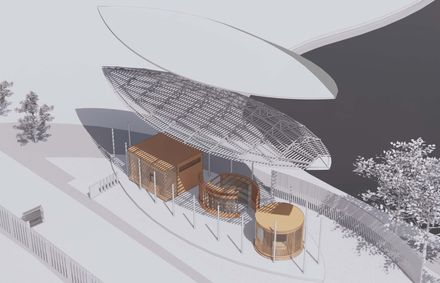

Installation
Service Center for the Wuxiang Nature School in Guoxing Village
Installation
Service Center for the Wuxiang Nature School in Guoxing Village
Installation


Service Center for the Wuxiang Nature School in Guoxing Village
Structure Analysis
Service Center for the Wuxiang Nature School in Guoxing Village
Structure Analysis


Service Center for the Wuxiang Nature School in Guoxing Village
Structure Analysis
Service Center for the Wuxiang Nature School in Guoxing Village
Structure Analysis


Service Center for the Wuxiang Nature School in Guoxing Village
original site
Service Center for the Wuxiang Nature School in Guoxing Village
renderings


Service Center for the Wuxiang Nature School in Guoxing Village
Diagram
Service Center for the Wuxiang Nature School in Guoxing Village
Diagram
Service Center for the Wuxiang Nature School in Guoxing Village

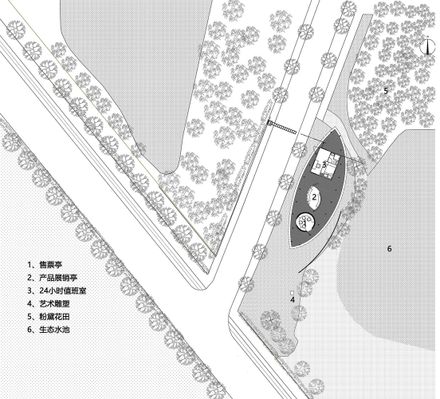

Site Plan
Service Center for the Wuxiang Nature School in Guoxing Village
Site Plan
Service Center for the Wuxiang Nature School in Guoxing Village
Site Plan
