Sameep Padora & Associates

Sienna Apartments

SIENNA APARTMENTS

Sameep Padora & Associates

Sienna Apartments
© Vivek Eadara

LEAD ARCHITECTS
Vami Sheth, Aparna Dhareshwar, Diane Athiade

DESIGN & CONSTRUCTION COORDINATION
Mythili Shetty, Diane Athiade, Vami Sheth, Aparna Dhareshwar

PHOTOGRAPHS
Vivek Eadara

MANUFACTURERS
Sadar Ali Granite, Technal Windows, Uma Brick Mangalore

AREA
20000 ft²

LOCATION
Hyderabad, India

YEAR
2019

CATEGORY
Residential

Sienna Apartments
© Vivek Eadara

The site for a small apartment building located in the Jubilee Hills check post area of Hyderabad city offered vantage views of the city and of the adjoining park.

Hyderabad is one of the early movers amongst cities in India that used form-based coding to structure the construction of new buildings.

Sienna Apartments
© Vivek Eadara

The client approached us to work on the building post obtaining municipal approvals for the extent of the building envelope.

Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara

While working with approved building envelope extents we re-planned the floor layout so that the two apartment units on each floor were cross-ventilated through terraces and balconies on adjoining faces of each unit.

The second point of intervention was the building skin comprising of walls and horizontal sun protection.

Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara

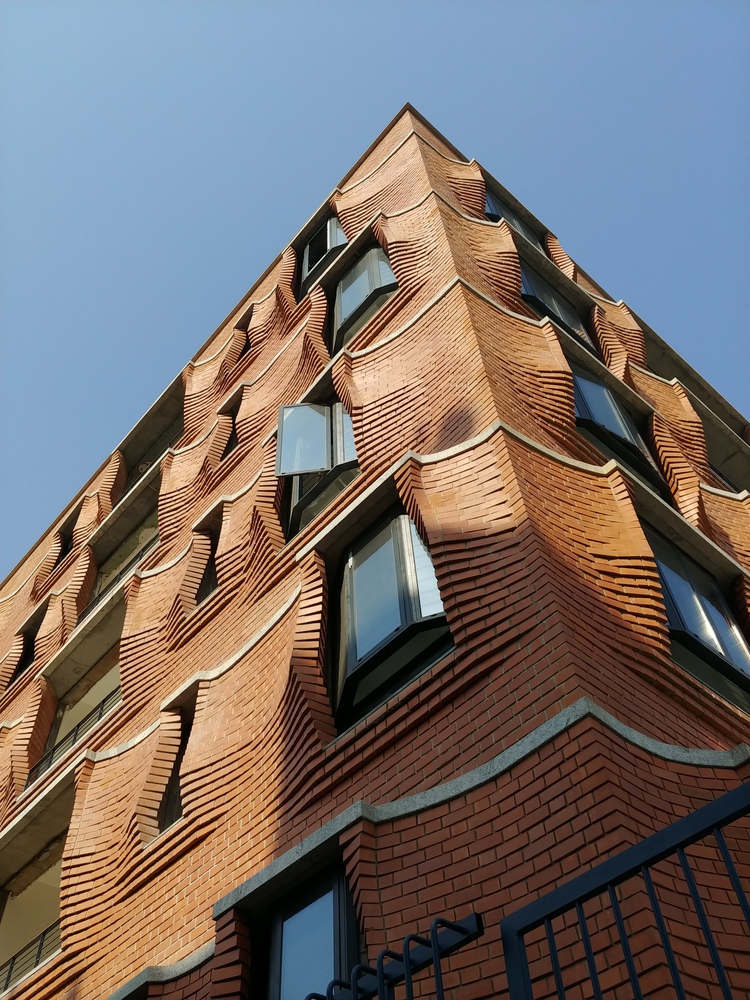

Working with master brick masons from Pondicherry, in southern India we designed a wall system made from 9-inch-thick brick walls that corbelled to carry the load of stone-faced lintels/chajjas.

Glass bay windows are recessed, set into the openings formed by the corbelled brickwork and the cantilevered stone-faced lintels.

To ensure the structural integrity of the wall corbelling, wooden templates were designed for the masons to work with.

So, while the project is visually defined by these corbelled walls, the systemic potential of the project is from the design of these simple low-tech wooden templates that allow for the corbelling to happen with accuracy.

Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara

The project through its development of tools and construction processes looks to further the expertise of the craftsman and help in evolving the extent of their craft.


Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara
Sienna Apartments
© Vivek Eadara


Sienna Apartments
Floor plan
Sienna Apartments
Plan Logic
Sienna Apartments
Gif


Sienna Apartments
Window Development Exploded
Sienna Apartments
Façade Diagram
