HOUSE IN CARTAGENA

Plan:b arquitectos

AREA
395 m²

YEAR
2020

LOCATION
Cartagena De Indias, Colombia

CATEGORY
Houses

STRUCTURAL DESIGN
Análisis y diseños estructurales Ltda

MANUFACTURERS
Calados Neca

LEAD ARCHITECT
Felipe Mesa, Federico Mesa, Cristian Camacho

BUILDERS
José Sierra, Martha Scoth

DESIGN TEAM
Sebastián González, Laura Kate Correa, Verónica Mesa, Leyre Vicente, Natasha Álvarez.

House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango

Text description provided by architect.

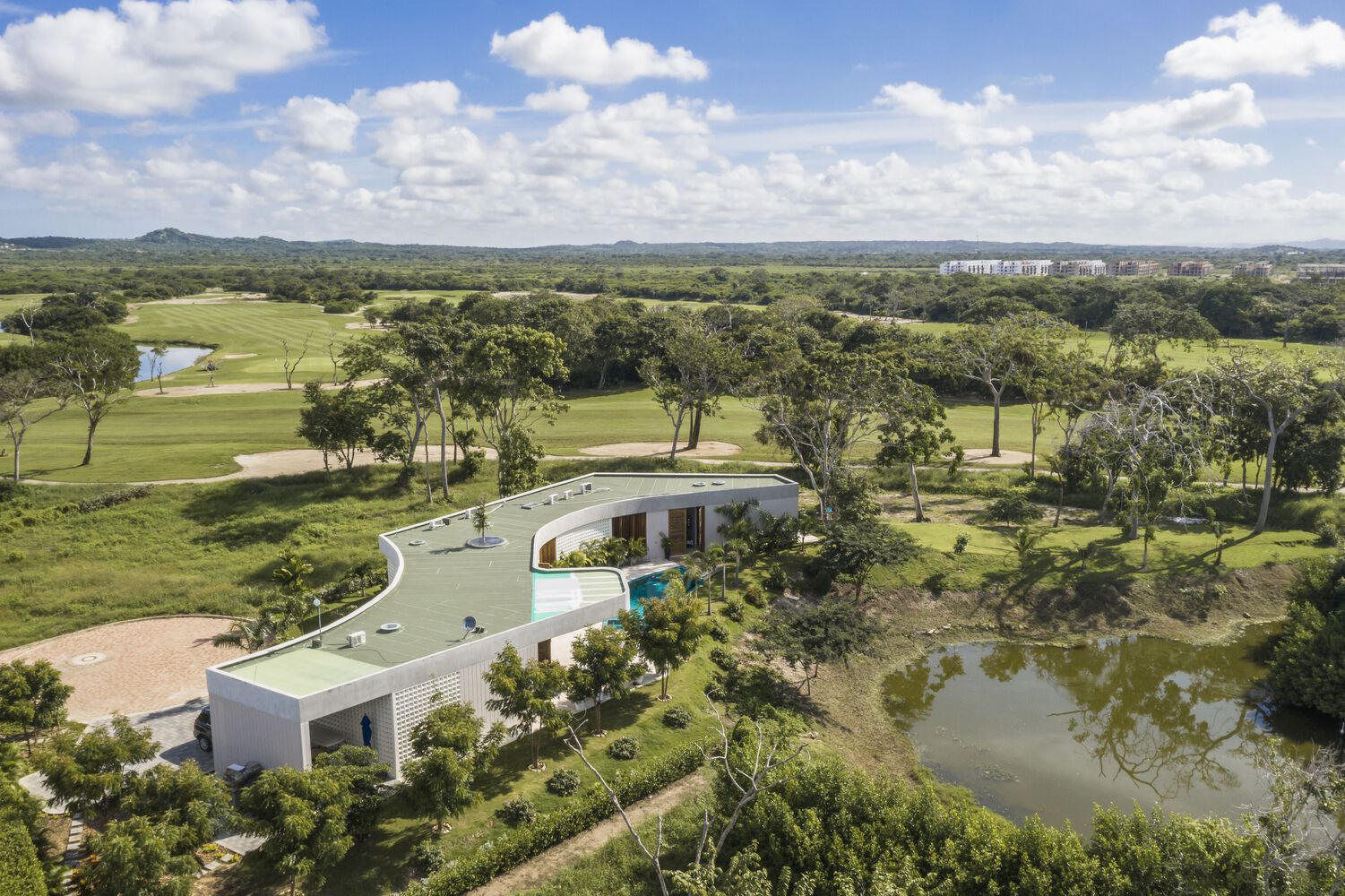

We designed this house based on the dynamic shape of the lot, complying with strict urban regulation of setbacks, use of materials, and flat roofs. We proposed an elongated house in the east-west direction on a single level.

House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango

A volume adapted to the sinuous configuration of the existing lake on the south side and the warm and tropical weather of Cartagena.

The long facades receive the mild sun from the south and the north, the short and more closed faces receive the intense sun in the morning and afternoon, and the air currents prevailing north-south flow through the house efficiently.

House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango

We located the parking lot and services on the west side, the social areas and corridor in the middle, and the rooms on the north and east sides.

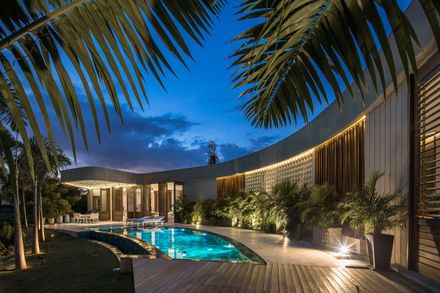

The house is a concave border around the terrace, the pool, and the lake.

House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango

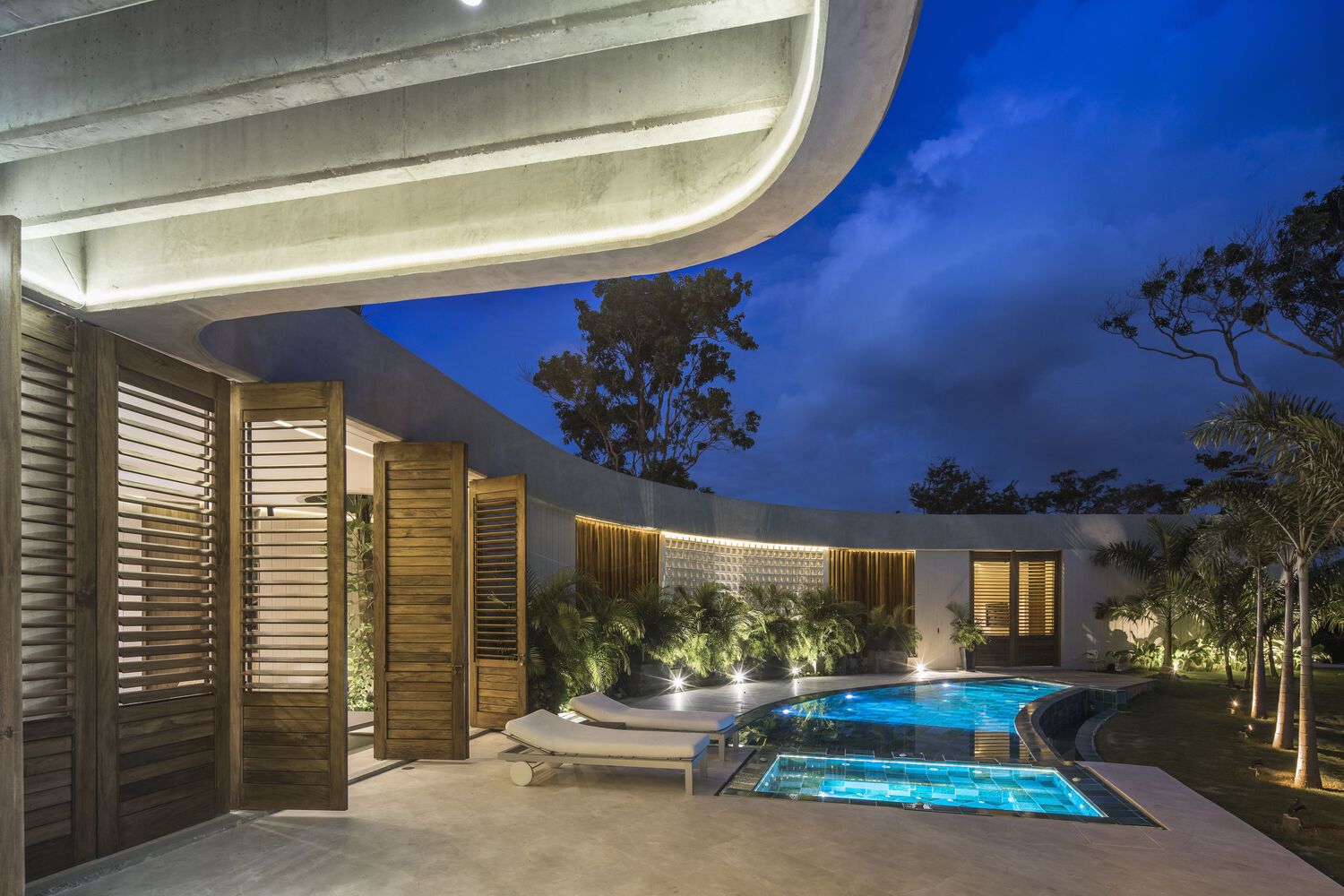

We expanded the social area to the outside using a cantilevered concrete pergola, and we used light materials to reflect the sun's rays and minimize the house's heating.

We proposed using air conditioning only in the rooms, opening the social areas.

House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango


House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango
House In Cartagena
© Alejandro Arango


House In Cartagena
Roof Plan
House In Cartagena
Planta baja


House In Cartagena
Sección A-A
House In Cartagena
Sección B-B


House In Cartagena
Elevación norte
House In Cartagena
Elevación sur
