Zhongheng Design Group Co., Ltd. 中衡设计集团股份有限公司

No. 4 Middle School in Suzhou New& Hi-Tech District

No. 4 Middle School in Suzhou New& Hi-Tech District

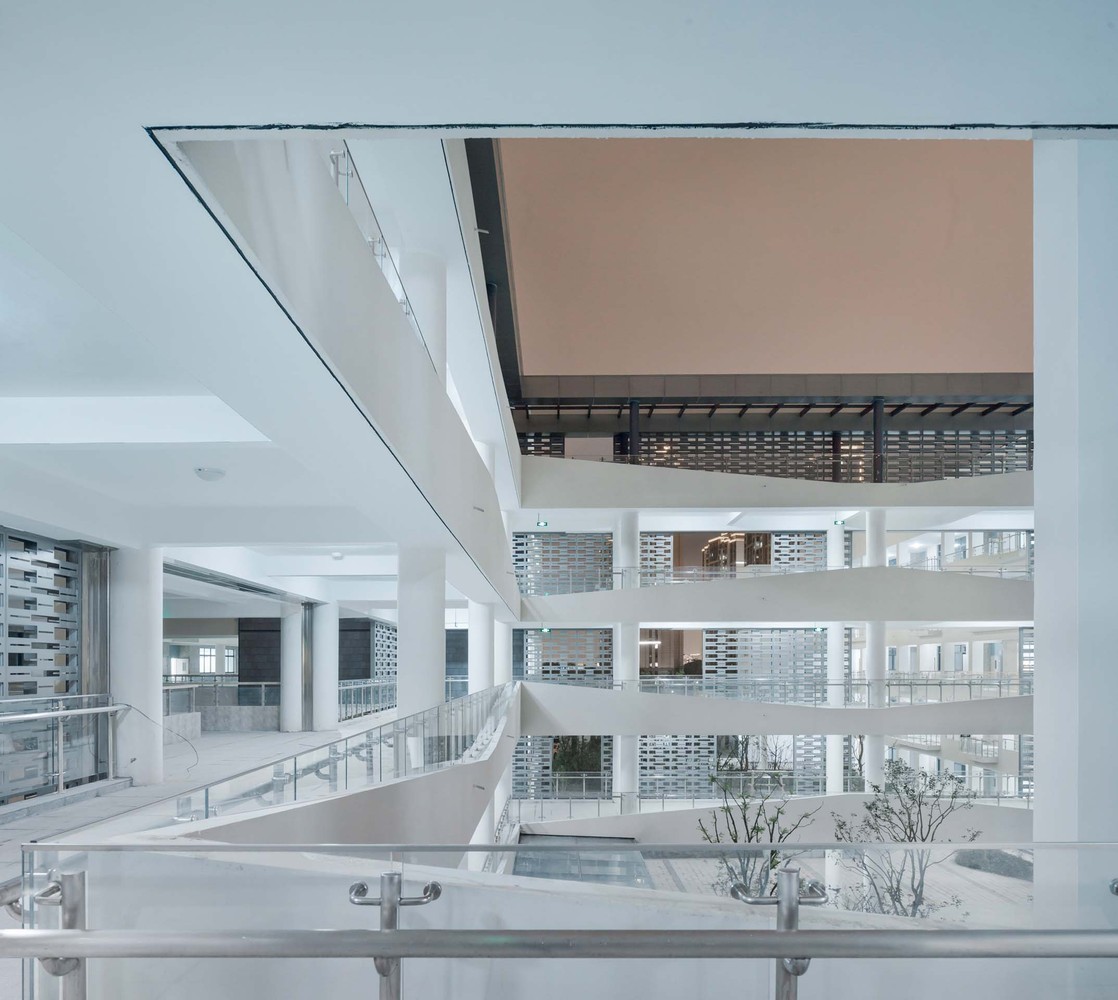

varied corridors. Image © Wei Qin

NO. 4 MIDDLE SCHOOL IN SUZHOU NEW& HI-TECH DISTRICT

ARTS Group

CATEGORY
Elementary & Middle School

LOCATION
Suzhou, China

YEAR
2016

DESIGN TEAM
Shengpeng Gu, Danchen Gu, Qian Liu

AREA
48368 m²

ARCHITECTS
ARTS Group

PHOTOGRAPHS
Wei Qin

STRUCTURE DESIGN
Jing Liu, Qiang Wang, Baoli Zhao

LANDSCAPE DESIGN
Yan Hu, Mingwen Zhang, Xiaole Li, Xia Gao

LEAD ARCHITECT
Jiahua Ping

CONSTRUCTION
Kunshan Shengxin Construction Engineering Co. Ltd

CLIENT
No. 4 Middle School in Suzhou New& Hi-Tech District

INTERIOR DECORATION
Suzhou Huali Meideng Decoration Co. Ltd

Text description provided by architect.

SND No. 4 Middle School is located in Suzhou Fengqiao District, which was described as an ideal resting place for scholars in Chinese poetry called "Night Park at Fengqiao".

No. 4 Middle School in Suzhou New& Hi-Tech District

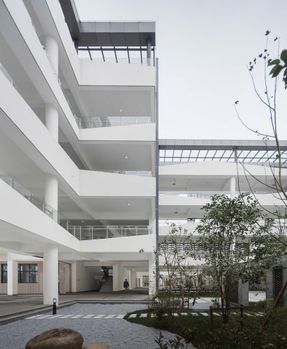

center courtyard. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
varied corridors. Image © Wei Qin

Jiangfeng Bridge's historic spots, the Ancient Canal, Hanshan Temple, and Jiangfeng Cottage have a lasting and profound influence on the Fengqiao area.

The urban movement swept Fengqiao in the 1990s. Just like most southern cities at that time, a large number of demolished communities and new buildings quickly covered the original urban texture. The quiet cultural normality of the region is fading into memory.

No. 4 Middle School in Suzhou New& Hi-Tech District
interlaced space. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
narrow street between buildings. Image © Wei Qin

The new layout of the ancient courtyard. The folk houses in the south of the Yangtze River, especially the courtyard space in Suzhou Garden, reveal the philosophy of the craftsmen in the south of the Yangtze River to create the relationship between man, nature, and space.

In the face of such rich and diversified urban texture, complex and heavy district environment, our architects not only need to meet the functional requirements of campus buildings for large space and large span but also want to continue the regionality of Jiangnan architectural texture and convey the historical charm of Fengqiao cultural ancient town.

"Courtyard" carries too many initial understanding of architecture and space enlightenment of people in the south of the Yangtze River, also as the city's irreplaceable symbol and memory.

No. 4 Middle School in Suzhou New& Hi-Tech District
center courtyard. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
curtain wall with white wall. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
a corner of the teaching building. Image © Wei Qin

This makes it logical that the "courtyard" becomes the prototype of SND No. 4 Middle School.

According to different functions, SND No. 4 Middle School building complex is divided into five cohesive courtyards, including teaching courtyards, experimental courtyard, library courtyard, and sports courtyard.

A core courtyard is located in the center of all functions and then connected with the corridor to other functional courtyards. From south to north, through the square in front of the school, the front yard, the central courtyard, and the backyard, the school has established the sense of ritual of campus culture.

No. 4 Middle School in Suzhou New& Hi-Tech District
center courtyard. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
space under bridges. Image © Wei Qin

Multiple courtyards also form more abundant courtyard forms such as the outer courtyard and side courtyard through group relationships, which further increases the level of connection between functions.

Multiple courtyards not only increase the sense of spatial experience but also make the functional division more reasonable. Inside and outside, dynamic and static, primary and secondary, campus life can also be compared with the Garden experience.

No. 4 Middle School in Suzhou New& Hi-Tech District
social space. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
tranditional Chinese building elements. Image © Wei Qin

Streets texture. The community structure of folk dwellings in the south of the Yangtze River is a process of "top-down". The complex regional cultural environment has shaped the courtyard-style folk dwellings with lane clusters such as fishbone lanes and checkerboard lanes.

During the design process, our architects adopted the "bottom-up" space structure, with a corridor, side yard, outer yard, roadway, and other traffic space to connect a number of courtyard spaces, inheriting the traditional folk dwellings in the south of the Yangtze River.

No. 4 Middle School in Suzhou New& Hi-Tech District
campus street. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
surround environment. Image © Wei Qin

Corridor traffic. The traditional elements we translated include not only courtyards but also corridors of Suzhou Garden. The corridors in the design of SND No. 4 Middle School has various forms and rich experience.

Being in it can arouse the association of "water corridor", "curved corridor" and "complex corridor" of Humble Administrator's Garden, which is not only the inheritance of the regional characteristics of Jiangnan residential courtyard space but also the inheritance of the regional climate characteristics of Jiangnan.

No. 4 Middle School in Suzhou New& Hi-Tech District
aerial view. Image © Wei Qin


No. 4 Middle School in Suzhou New& Hi-Tech District

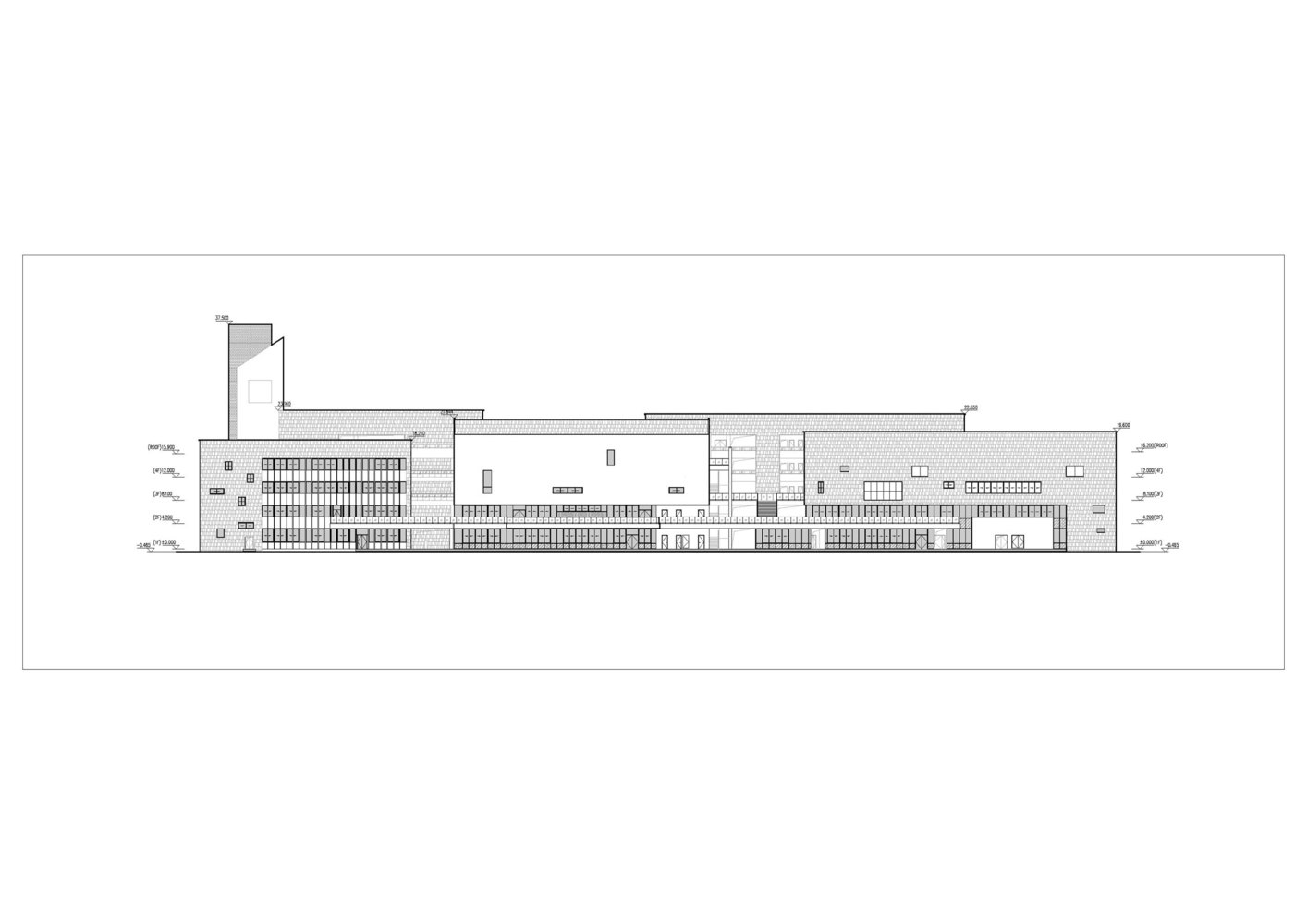

east elevation
No. 4 Middle School in Suzhou New& Hi-Tech District
south elevation


No. 4 Middle School in Suzhou New& Hi-Tech District

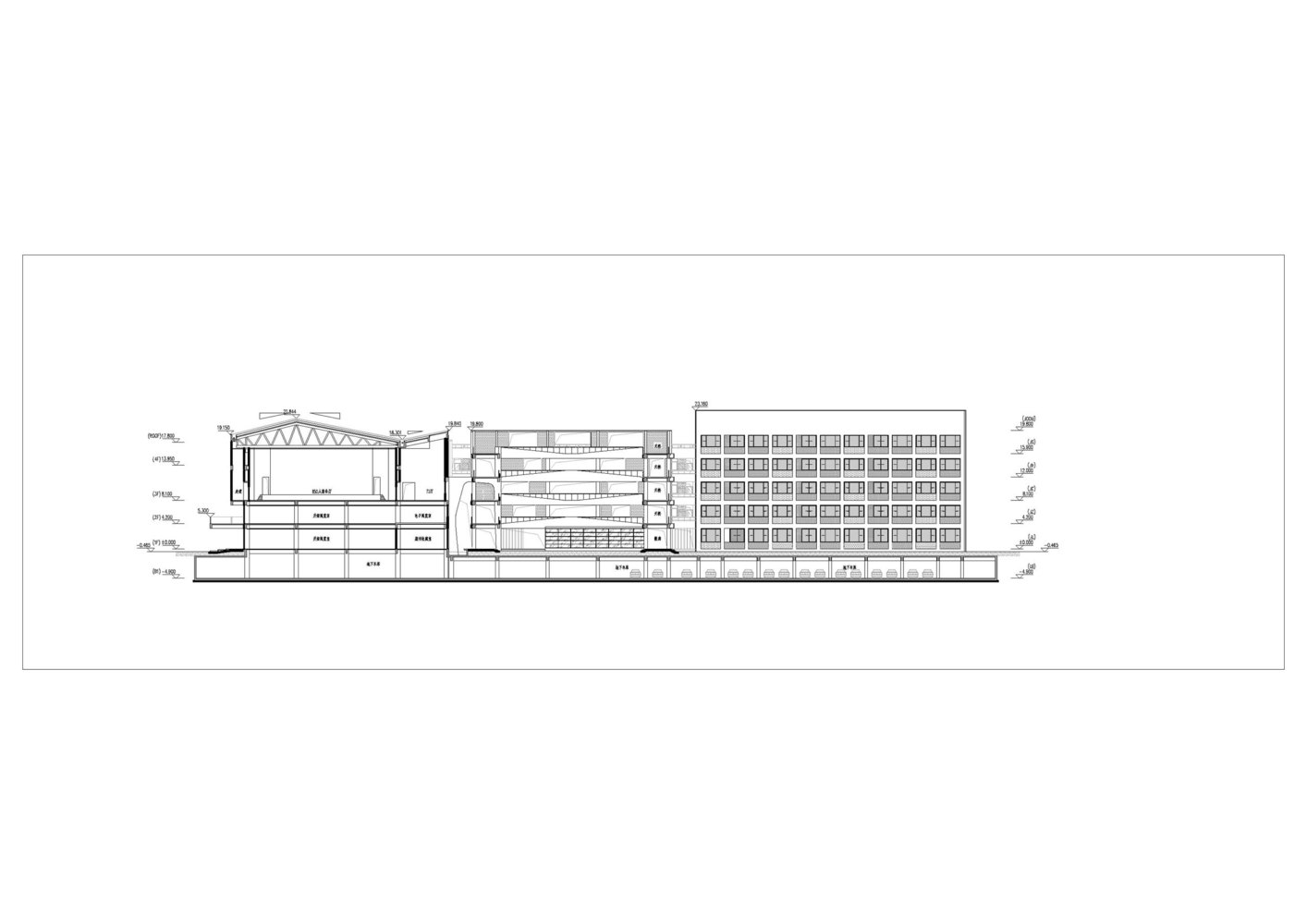

section
No. 4 Middle School in Suzhou New& Hi-Tech District
section


No. 4 Middle School in Suzhou New& Hi-Tech District
courtyards relationship
No. 4 Middle School in Suzhou New& Hi-Tech District
pathway space
No. 4 Middle School in Suzhou New& Hi-Tech District

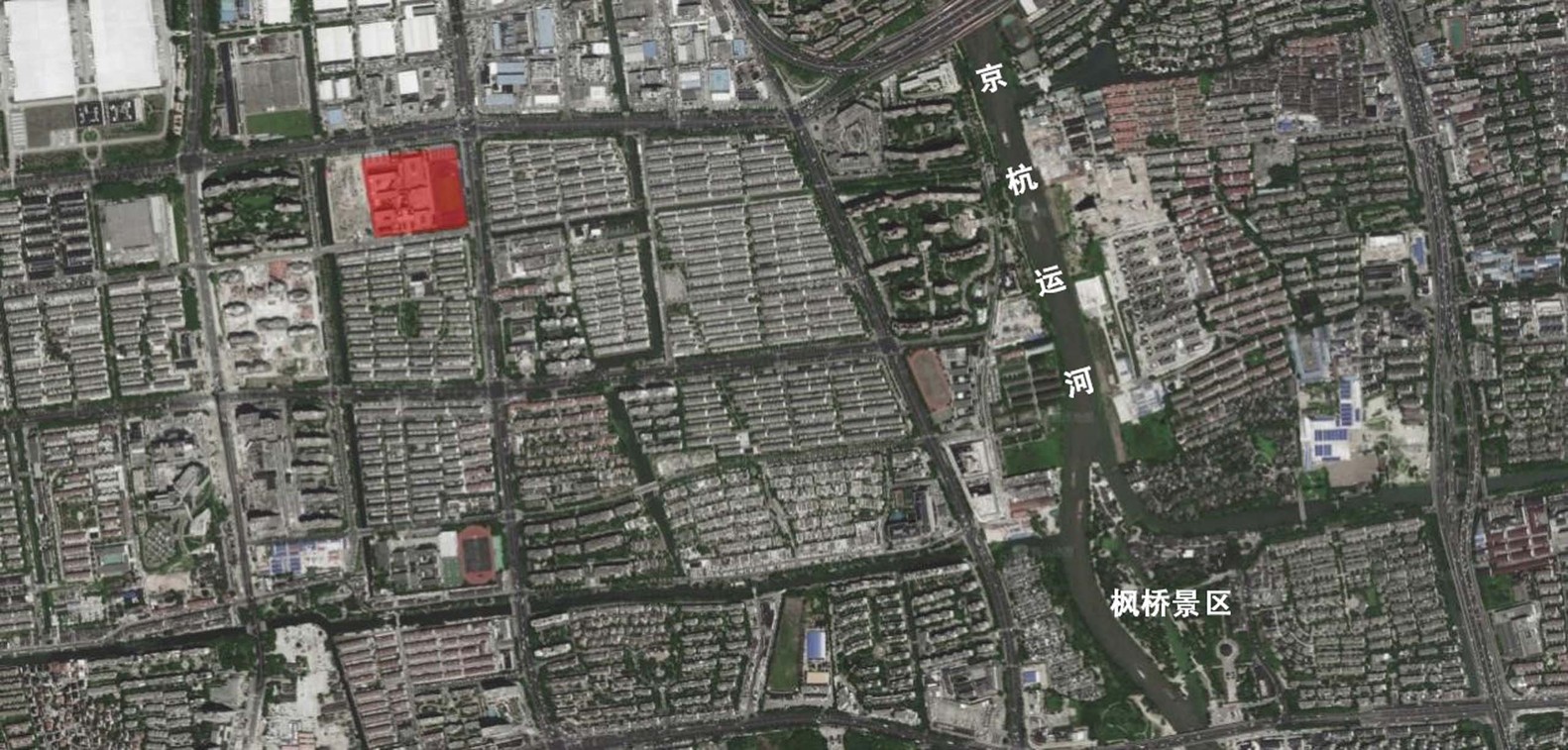

location. Image © Wei Qin
No. 4 Middle School in Suzhou New& Hi-Tech District
site plan
No. 4 Middle School in Suzhou New& Hi-Tech District
sketch
No. 4 Middle School in Suzhou New& Hi-Tech District
1F plan
No. 4 Middle School in Suzhou New& Hi-Tech District
2F plan
No. 4 Middle School in Suzhou New& Hi-Tech District
3F plan
No. 4 Middle School in Suzhou New& Hi-Tech District
4F plan
No. 4 Middle School in Suzhou New& Hi-Tech District
5F plan
