Weekend Retreat

Weekend Retreat
© Noufel Sharif Sojol

WEEKEND RETREAT

Lightscape Architects

ARCHITECTS
Lightscape Architects

LOCATION
Bangladesh

CATEGORY
Houses

DESIGN TEAM
Mohammad Abdul Kader, Mohammad Ridwan Tanvir

YEAR
2018

STRUCTURAL ENGINEER
Rakibur Rahman

CONTRACTOR
Humaiun Kabir

MANUFACTURERS
AutoDesk, Adobe, RAK, Trimble

ELECTRICAL ENGINEER
Niloy Das, Humaiun Kabir

SITE MANAGER
Arman Rahman Rana

WOOD CONTRACTOR
Komol

ARCHITECTS
Lightscape Architects

Text description provided by architect.

The project symbolizes a fusion between urban-rural environments. It has been designed for a small family living in the midst of urban chaos, who are deprived of fresh air and a sense of freedom but very much willing to reconnect with the bucolic life.

Weekend Retreat
© Noufel Sharif Sojol
Weekend Retreat
© Noufel Sharif Sojol

The core idea of this built environment is to preserve the essence of the simplicity our ancestors once had back in their times and transcend some of that to the next generations through contemporary design approaches that recognize regional context, culture, and vernacular strategies.

This weekend retreat accommodates three bedrooms, two family living spaces, one on the ground level and the other on the mezzanine level, dining space, kitchen, study room, and a caretaker room.

Weekend Retreat
© Noufel Sharif Sojol
Weekend Retreat
© Noufel Sharif Sojol

The zoning of the master plan has been delineated, keeping all existing planted trees in place. Moreover, the building footprint has been reduced through compact design to leave the entire site as green and natural as possible.

The building is placed in east-west orientation, which allows maximum breeze to get in from the South and reduces the solar heat gain.However, this orientation exposes the building to the south sun and driving monsoon rain.

Weekend Retreat
© Noufel Sharif Sojol
Weekend Retreat
© Noufel Sharif Sojol

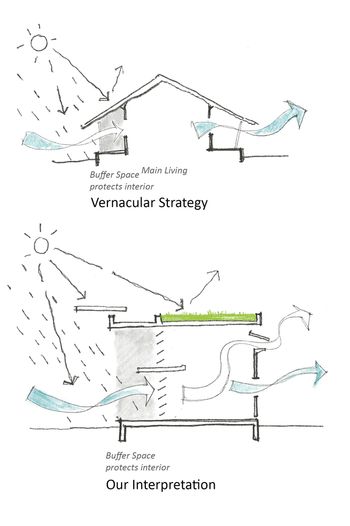

Balconies and verandas play a pivotal role here to create the buffer from outdoor to indoor.They protect the indoor living space from direct sun and rain.

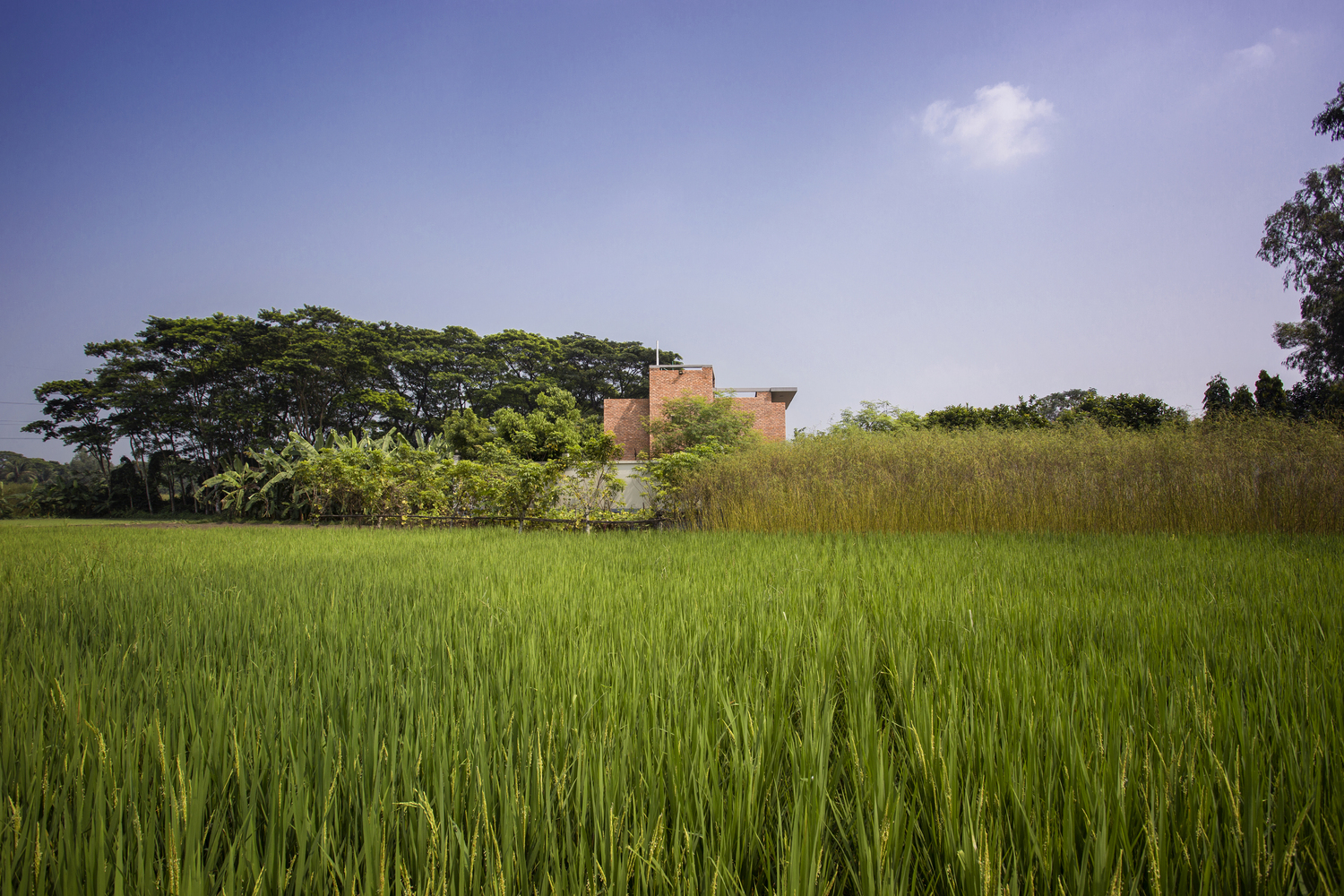

Such semi-outdoor spaces of different forms are fundamental in warm, humid regions in terms of comfort and creating a dialogue between the indoor and outdoor environment. Balconies and verandas at different levels provide different spatial experiences by connecting to the surrounding rustic environment within and beyond the surrounding paddy field.

The central living and dining space is the kernel of the building, which due to its double-height volumetric nature, always stays cool naturally. Operable high windows on the north side of the building allow rising heated air to go out and induce a pressure variation inside, creating constant cross-ventilation across the space, critical in such a humid climate.

Traditionally, the “Kachari Ghar” concept was a widespread practice in the rural architecture of Bangladesh. This project carries that idea in the form of a library.This single room which serves as a study room with book storage, seemingly floats over the designed water body, creating a sense of tranquility in and around the place.

Weekend Retreat
© Noufel Sharif Sojol
Weekend Retreat
© Noufel Sharif Sojol

The landscape has been recreated with locally-sourced common trees and plants, which has been selected as a subtle blend of the local environment.

The prime building material is gas-burnt brick which is sourced locally. Exposed brick has been used to evoke a robust tactile feeling.

Weekend Retreat
© Noufel Sharif Sojol
Weekend Retreat
© Noufel Sharif Sojol

Local woods are used for the furniture and door windows. In order to minimize material waste, leftover broken bricks have been used as brick chips in casting work for landscape pavement blocks in the site.The main structural system is a column-beam frame with supporting load-bearing walls.

To preserve the true expression of brick throughout, a composite column has been designed with RCC surrounded by one layer of bricks.Inverted beams support the roof, and its benefit is twofold. Firstly, it gives a beam-free clean ceiling, especially in the interior double-height space. Secondly, the inverted beam on the roof helps to retain filled earth for rooftop green and planting.

To preserve the true expression of brick throughout, a composite column has been designed with RCC surrounded by one layer of bricks.Inverted beams support the roof, and its benefit is twofold. Firstly, it gives a beam-free clean ceiling, especially in the interior double-height space. Secondly, the inverted beam on the roof helps to retain filled earth for rooftop green and planting.

The design of this weekend house intends to respond to nature by embracing it, becoming part of the landscape through its expression, and evoking a sense of belonging to its occupants.

Weekend Retreat
© Noufel Sharif Sojol
Weekend Retreat
© Noufel Sharif Sojol

The architectural abstraction, formal expression, and spatial experiences are strongly driven by the regional context, culture, and vernacular strategies.


Weekend Retreat
Front Elevation
Weekend Retreat
Back Elevation


Weekend Retreat
Exploded Axo
Weekend Retreat
Master Plan


Weekend Retreat
Section AA
Weekend Retreat
Section CC
Weekend Retreat
Section BB
Weekend Retreat
Plan - Library


Weekend Retreat
Plan - Ground Floor
Weekend Retreat
Plan - 1st Floor


Weekend Retreat

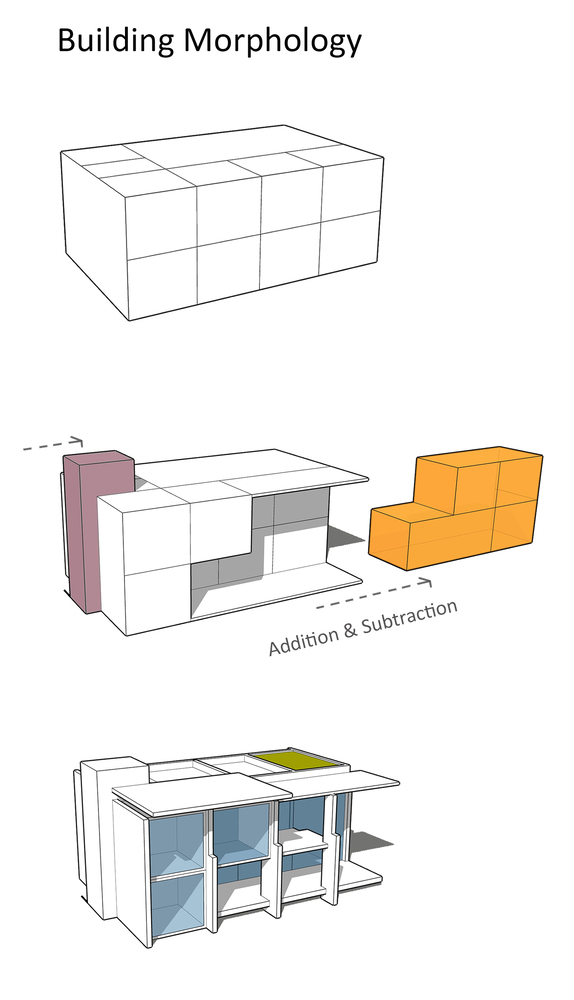

Diagram 01
Weekend Retreat
Diagram 02

Weekend Retreat
Diagram 03
Weekend Retreat
Diagram 04
Weekend Retreat
Diagram 05
