Central Park

Central Park
Courtesy of Philippe Rahm architectes

CENTRAL PARK

Philippe Rahm architects + Mosbach landscape architects + Ricky Liu & Associates

LANDSCAPE
Mosbach paysagistes, Atelier LD

CATEGORY
Park

AREA
670000 m²

LOCATION
Taiwan (ROC)

ARCHITECTS
Mosbach landscape architects, Philippe Rahm architects, Ricky Liu & Associates

YEAR
2020

STRUCTURE
Böllinger & Grohmann

LOCAL ARCHITECTS
Ricky Liu & Associates

CLIMATE DESIGN
Transsolar

The Central Park is a new 67-hectare public park built on the abandoned site of a former airport northwest of the center of Taichung, a city of 3 million people in central Taiwan.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

The park is at the heart of a new 256-hectare real estate development. It is a core of nature, planted with nearly 12,000 trees.

Due to its topography, its valleys acting as retention basins, it also acts as a sponge for all the rainwater in the new district, preventing flooding and overloading the network. Taichung has a hot, humid, and polluted tropical climate. The ambition of the park is to offer cooler, drier, and less polluted places.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

The formal strategy of the composition of the masterplan is based on climate, cartography, and design of the variations of heat, humidity, and air pollution, like three independent layers which, by superimposing themselves, invent a multitude of microclimates as so many variations of characters, ambiances, giving the aesthetic richness and the diversity of use of the park.

The choice of the location of the trees and their species, the nature of the soils, the program, are guided by the climate.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

Thus, in the coolest places naturally, because they are the most exposed to the cold north wind, we amplify the forest cover to create shade, thus doubling their freshness.

The soils are rich in evaporating grasses or high albedo to amplify the coolness. In locations farthest from humidity sources, we amplify trees with floating roots to reduce their moisture content and the soils are chosen to be particularly draining.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

In areas far from roads, we increase the number of trees with hairy leaves to reduce air pollution. The program follows the climate: the less polluted areas are used for children's games, the drier areas for sports activities, and the cooler areas for various leisure programs. The identity of the places comes from the microclimates created.

Thus the coolest places are called Coolias, the driest Dryias, and the least polluted Clearias, which are distinguished by the predominance of a tree species.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

Tree planting follows a graded order of composition, from open field to dense forest, gradually amplifying the cooling, drying, and de-pollution effects.

Paths follow the climate like isothermal lines.

The Cool Path connects all the cooler parts of the park, the Dry Path the drier parts, and the Clear Path the least polluted parts.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

Sensors measuring heat, humidity, and air pollution are placed every 50 meters.

The data is then transcribed in the form of a map in real-time, accessible on a smartphone, showing the variations in climatic values throughout the park, making it possible to guide walkers.

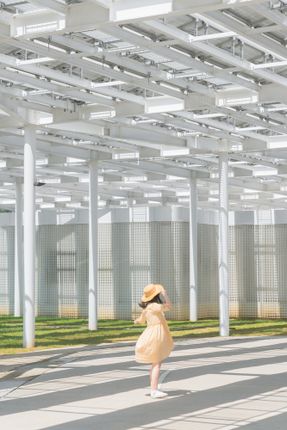

10,000 m2 of photovoltaic panels placed like canopies above the park to the north and south, produce all the energy used in the park, which is thus totally carbon neutral.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

Night lighting is dimmed as one moves further away from the roads and gradually shifts from white to orange to preserve the circadian biological cycles of the animals.

Central Park
Courtesy of Philippe Rahm architectes
Central Park
Courtesy of Philippe Rahm architectes

Our intention is to offer the inhabitants of Taichung a comfortable natural place, encouraging outdoor activities, and the diversity of microclimates allows for use during the 12 months of the year and at any time of the day, between very hot and colder parts, open to everyone's free will.

Central Park
Courtesy of Philippe Rahm architectes


Central Park
Plan - Climate masterplan
Central Park
Heat map plan


Central Park
Section
Central Park

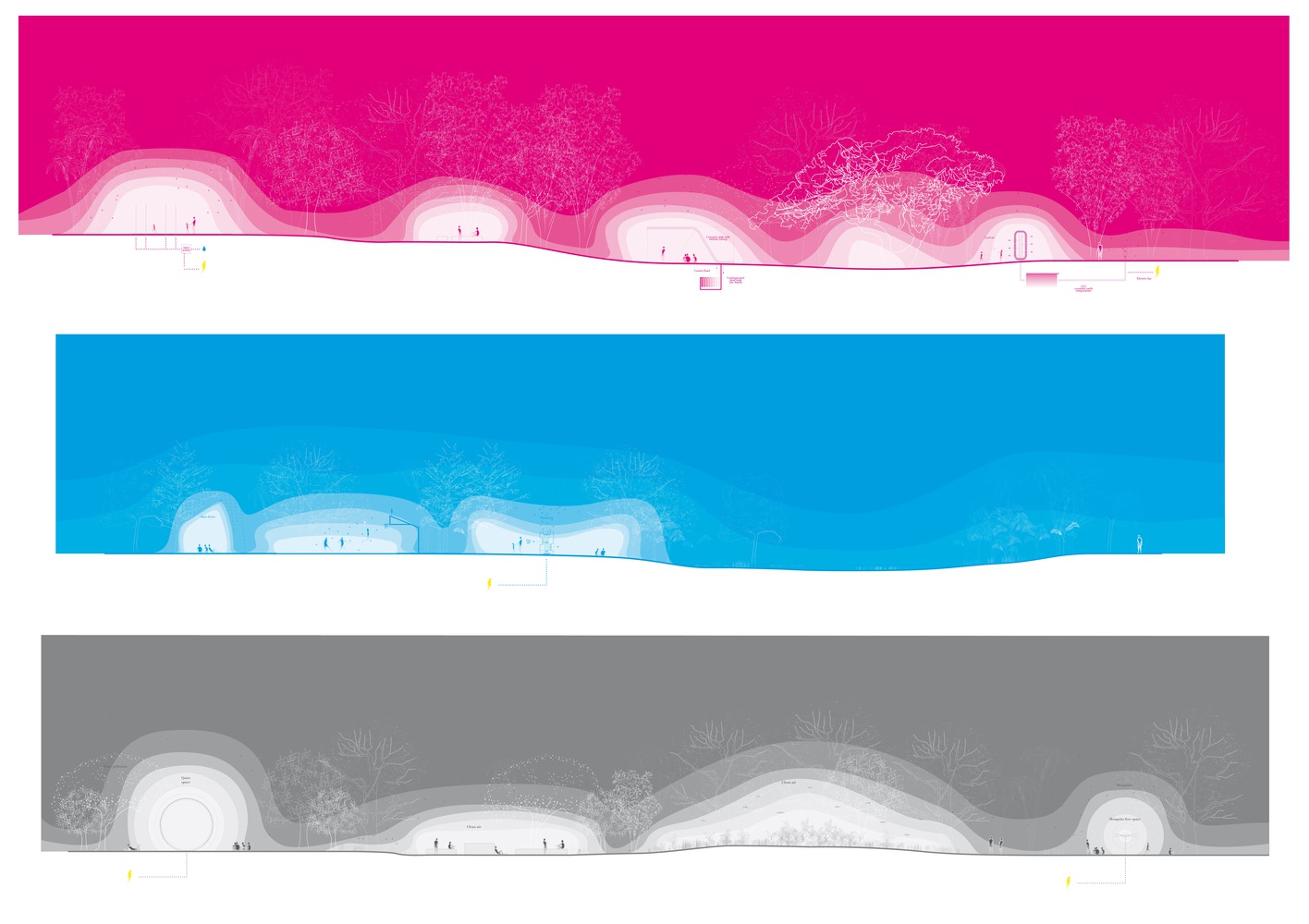

Sections


Central Park
Diagram
Central Park
Diagram
Central Park
Diagram
Central Park
Diagram


Central Park
Details
Central Park
Details
Central Park
Details
Central Park
Detail
Central Park
Detail
Central Park
Detail
