DEMOUNTABLE STUDIO

Jorge Andrade Benítez + Jorge Guillermo Andrade

ARCHITECTS
Jorge Andrade Benítez + Jorge Guillermo Andrade

YEAR
2018

LOCATION
Ecuador

CATEGORY
Small Scale

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

Text description provided by architect.

In order to create a temporary workspace and use reclaimed elements such as wood, steel and glass; the idea of a demountable studio is conceived.

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

A place thought for architecture design and urbanism that also represents its users.

It is conceived as a project that is materialized with existing elements that are in their second use but still have adequate structural, functional and formal characteristics to be included in a new project.

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

The site where the studio is built is land on the loan that was in disuse and that is revitalized and enhanced by the presence of this structure.

For this reason, the study was thought to be eventually disassembled and moved to another location.

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

If this is the case, the components can be disassembled in a simple manner and then reconfigured as an architectural element located elsewhere.

The design process was based on the search for the optimum use of each available material to be reclaimed.

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

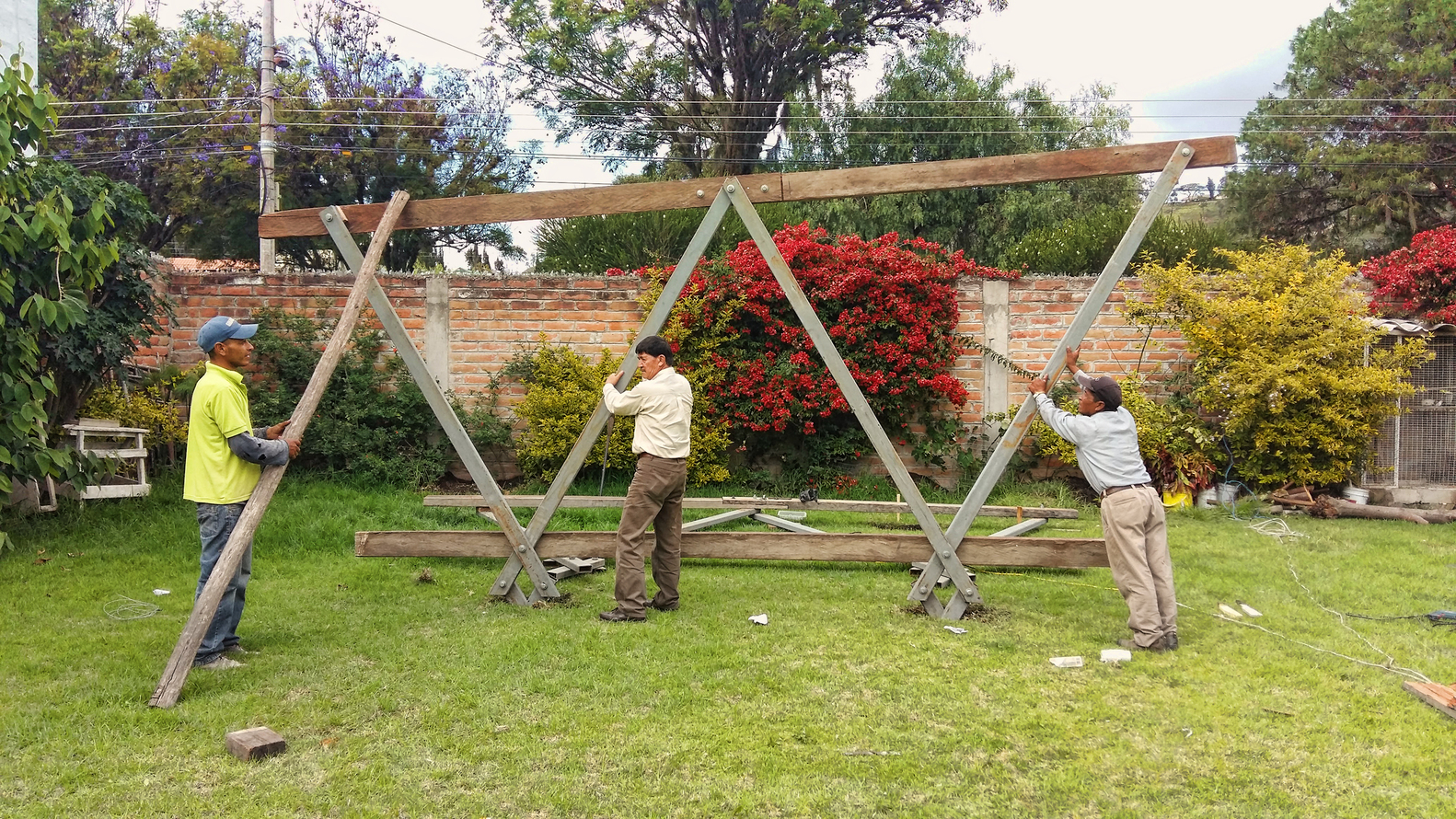

It was planned in such a way that the studio could be self-constructed, employing unskilled labour and being completed very quickly. The final construction time was less than one month.

The structure is composed of a combination of steel columns (vertical structure) and wood beams (horizontal structure), which were recovered from old buildings that were remodelled.

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

OSB modules become the outer covering of wooden panels that were previously used as retail shelves, thus forming the lower walls and the work tables.

Planks used in building scaffolding are now shelves for books, folders and implements.

Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade

The final result is an ecologically conscious construction that takes advantage of existing resources, providing comfort and spatial quality to its users. Cargo pallets form the shape of the upper walls, with different shades that create contrast with the lower ones.


Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade
Demountable Studio
Courtesy of Jorge Andrade


Demountable Studio
Axonometric
Demountable Studio
Book 1
Demountable Studio
Book 2
Demountable Studio
Book 3


Demountable Studio
Section A
Demountable Studio
Section B


Demountable Studio

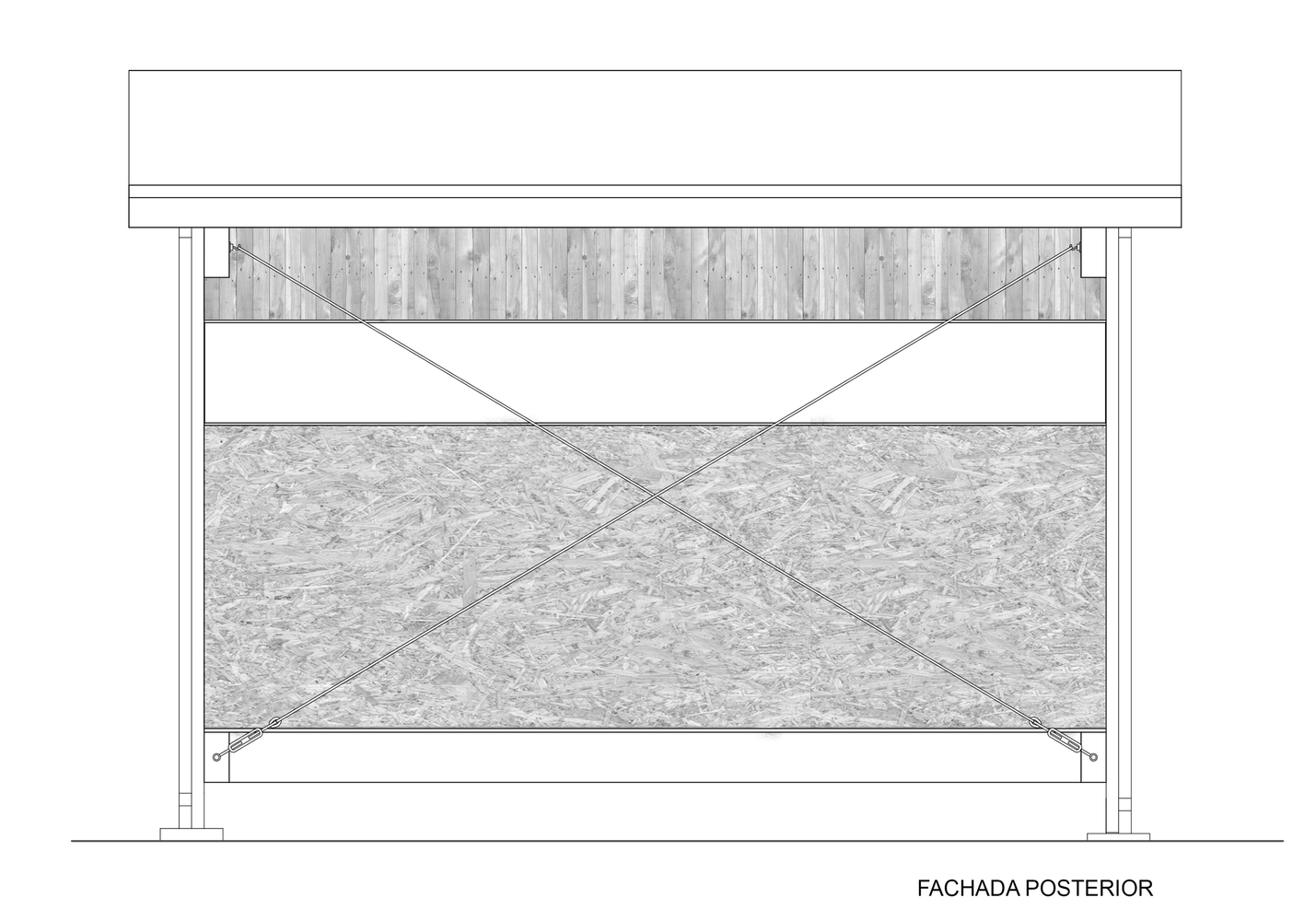

Rear Elevation
Demountable Studio
Front Elevation
Demountable Studio
Left Side Elevation
Demountable Studio
Right Side Elevation


Demountable Studio
Ground Floor Plan
Demountable Studio
