TAPIAL EXPERIMENTAL HOUSE

Estudio de Arquitectura y Planificación Kaiser

YEAR
2020

AREA
121 m²

DESIGN TEAM
Mauricio Méndez

LEAD ARCHITECT
Mechthild Kaiser

COLABORATORS
Mauricio Méndez, Abran Rodriguez

CATEGORY
House

ARCHITECTS
Estudio de Arquitectura y Planificación Kaiser

Text description provided by architect.

The plot of the house is square-shaped and was cut from a cornfield. An access road separates it from the eucalyptus forest. The main dynamics of the volume is north-south, while the main windows are to the east and west.

Tapial Experimental House
Tapial Experimental House

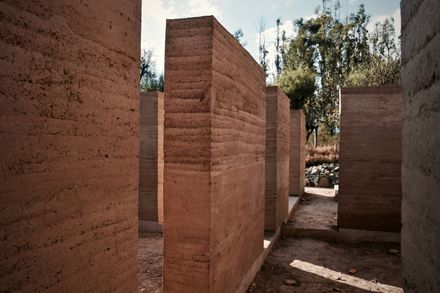

The housing structure coincides with the supporting structure. The 36cm thick rammed earth walls constructed in a U-shape with two corners guarantee a strong and rigid structure. Each corner was boarded up in a single phase of work, without joints.

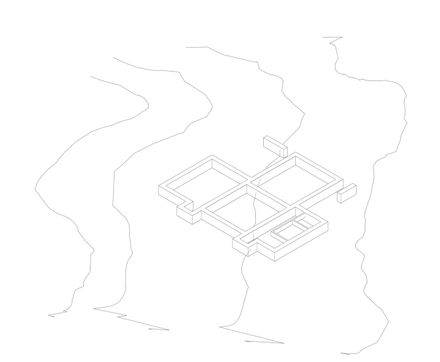

For the formation of the floor plan, five of these U's were erected, leaving gaps between them, which allow spatial transition, cross ventilation and natural lighting.

Tapial Experimental House
Tapial Experimental House

Four free walls of rammed earth articulate and extend this compact volume, nailing it to the ground at its extreme points and defining the intermediate zones between interior and exterior.

Running foundations and overhangs of H ° C ° and an annular beam of H ° A ° connect everything in the horizontal direction. The former elevates the earth wall above the humidity zone and the latter also serves as a lintel for windows and doors. The main nave was built to have double height and the required shape in order to support the traditional roofs.

Tapial Experimental House
Tapial Experimental House

A clear geometry also requires a study of how to concentrate the services and determine the position of each of the installational elements. Breaking the integrity of the rammed earth walls was avoided, and the electrical installations were placed on the wall.

The central solid body refers to traditional houses, the extensions to the exterior spaces are interpretations of the patio and gallery as distinctive of rural housing.

All of this is in striking contrast to the rammed earth walls. It has a perfect geometric shape while at the same time it shows a surface full of life, caused by irregularities and surprises.

Tapial Experimental House
Tapial Experimental House

The horizontal structure of the wall results from the very particular process of tamping the soil in layers of 5-8cm. The colour and texture of the surface result directly from the particular mix of coarse and fine soil and sand.

The technology of rammed earth is laborious. Preparation, formwork assembly, plumbing and aligning all the geometry takes longer than the ramming of the prepared earth itself.

Between three workers one cubic meter of rammed earth can be built per day. The low cost of raw materials compensates for the high cost of labour and produces a very low ecological burden.

Much discipline and precision in the working process are also compensated when executing the fine work. With the conditions in the humid rooms as an exception, neither plasters nor paints are required.
