PRANSA COMMERCIAL AND OFFICE COMPLEX

Dot Architects

ARCHITECTS
Dot Architects

LOCATION
Tehran, Iran

AREA
40000 m²

ENVIRONMENTAL CONSULTANT
Ali Sarpoolaki

PROJECT MANAGER
Mehdi Abdi, Hossein Mohammadnejad

YEAR
2020

PHOTOGRAPHS
Mohammad Hassan Etefagh, Deed Studio

INTERIOR DESIGNERS
Dot Architects

LIGHTING CONSULTANT
Fad Company, Mehdi Yousefnia

CONSTRUCTION
Hetra Sazeh Group, Hesam Sharahi

MECHANICAL ENGINEER
Hadi Minaei

STRUCTURAL ENGINEER
Jalaleddin Sajadian

ELECTRICAL ENGINEER
Hamed Nik Khou

ARCHITECTS
Dot Architects, Arash Pirayesh, Mehran Haghbin

PRESENTATION TEAM
Majid Heidari – Ehsan Oghlidos

PHYSICAL MODEL
Reza Habibi

GREEN SPACE CONSULTANT
Omran Sanat Elahieh Company

SUPERVISION
Dot Architects

DESIGN TEAM
Mona Eqtesad, Sam Dashti, Amir Saman Delrooz, Behnaz Rafei, Alireza Rouhi, Faezeh Zahiroddin, Arian Karimzadeh, Touka Mahmoudian, Miro Nazarian, Fatemeh Nagahi, Mansour Naghdi, Naser Naghdi, Zahra Yousefi

CATEGORY
Mixed Use Architecture, Office Buildings, Commercial Architecture

MANUFACTURERS
FAD, Imeni Shargh Glass, Nazari Group, PMA Ceramic, Peyman Aluminum

Brief - After the fire in Tehran Grand Bazaar crystal sellers relocated to Sabounian Street, adjacent to Shoush Square.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

Due to the poor state of the historical fabric of this area, there was an urgent need for local regeneration.

An initiative was for formed by local trade’s union to create a commercial centre.

It aimed to concentrate local crystal sector under one umbrella and facilitate an organic long-term regeneration in the local vicinity.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

Challenge - Currently supplies are distributed via docks and stations, chaotically spread across the streets or via small shopping malls without any form of amenity or services.

On the other hand, relocation of the crystal sector to Shoush Square, brings more women and families to the local vicinity which currently suffers from lack of safety and security.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

Drastic safety improvements are vital in order in order to create a more inclusive neighbourhood in which local businesses can flourish.

Project - Pransa Complex has been created as a response to this challenge.It aims to accommodate the local traders under a unified umbrella and to provide a safe environment for the visitors.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

It is the first seed of a long-term regeneration programme to help improve local economy and urban quality.

Pransa is a mixed use commercial-office complex, located on a 3600 square meter land, with an approximate gross area of 40,000 sqm. Architectural organisation of the project is inspired by that of the historical Iranian Bazzars.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

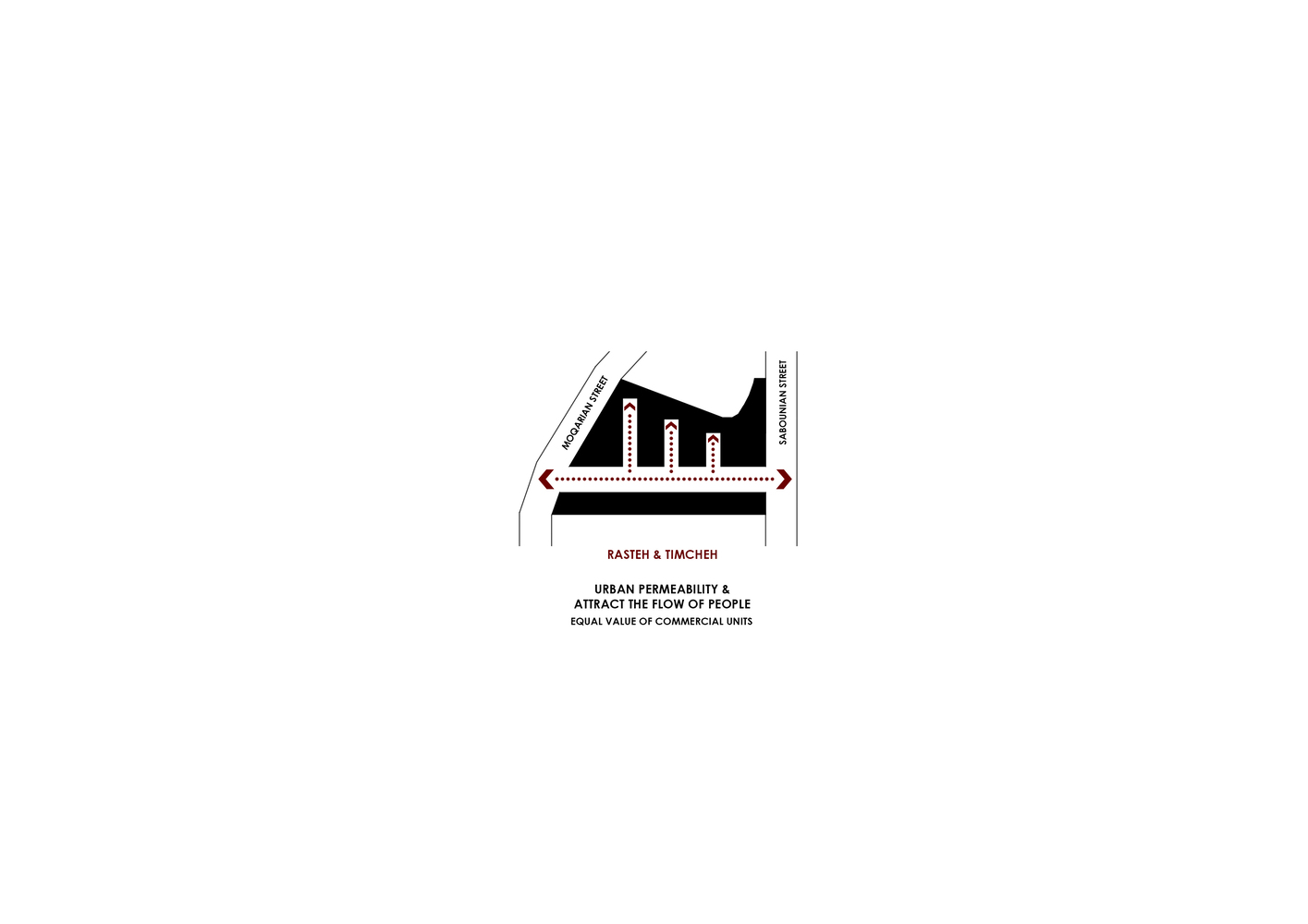

Iranian Bazzars are typically comprised of two main elements, “Raste” and “Timche”. “Raste” is the main axial route connecting one end of the market to the other. “Timche” is a smaller, dead-end, alley that branches off from the main route. Utilising this organisation enables urban permeability and maximises flow of people into the complex.

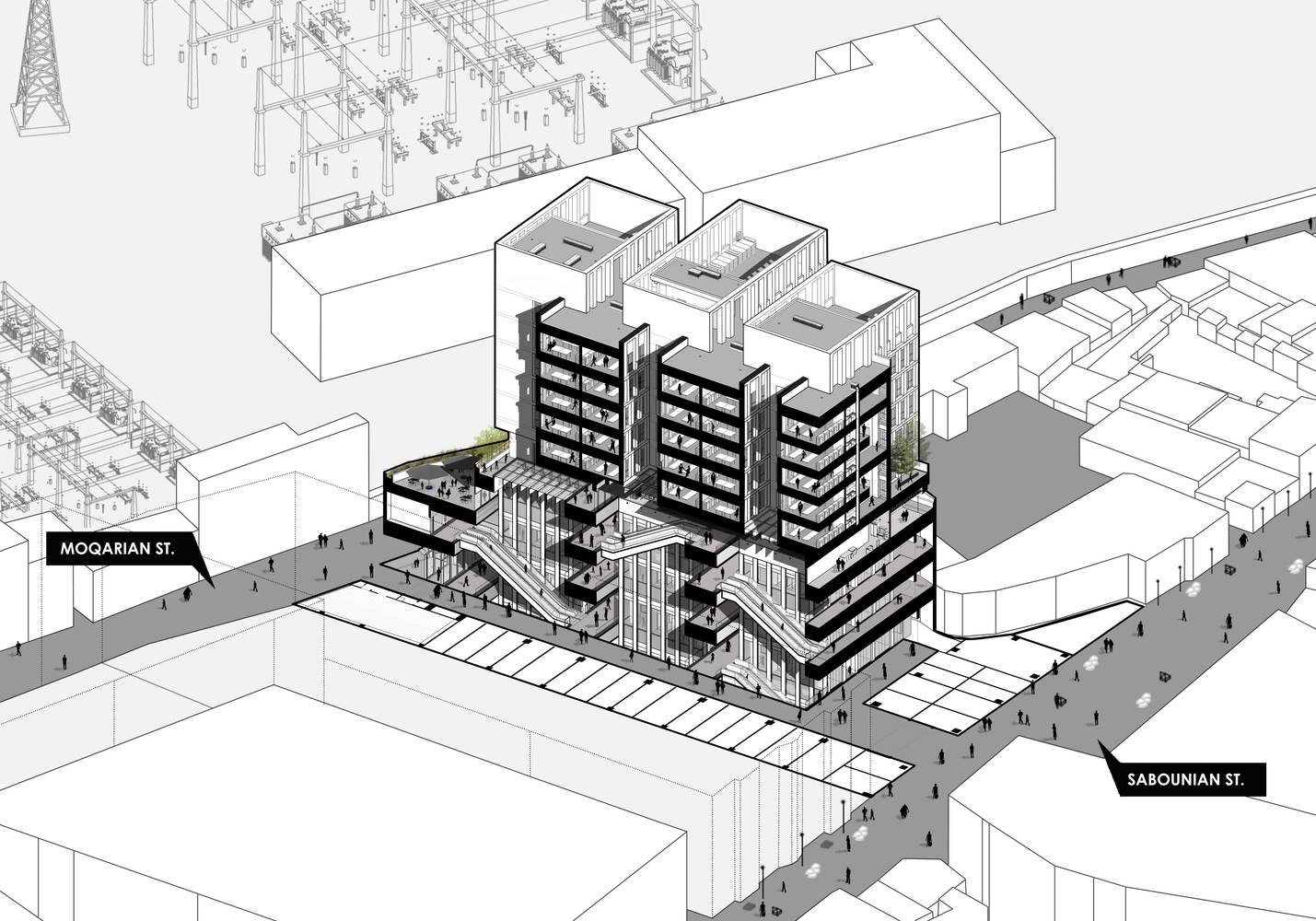

The building connects Moghariyan and Sabounian streets as the two main arteries on the east and west sides of the complex. Commercial units are located on the primary root (Raste) and the secondary branches (Timche). This layout enables inherent street-like organisation within the shopping mall

It allows for specialist sub-sector commercial units to be concentrated in smaller alleys and easy navigated by their address.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

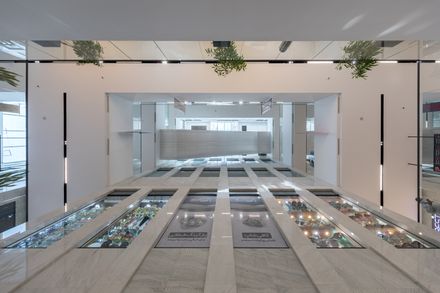

The central atrium, establishes visual connection between various levels while and directs natural light into the building. Escalators and panoramic lifts, located in the central atrium, are used to connect different levels of the shopping mall while maintaining a maximum level of transparency and visual connection.

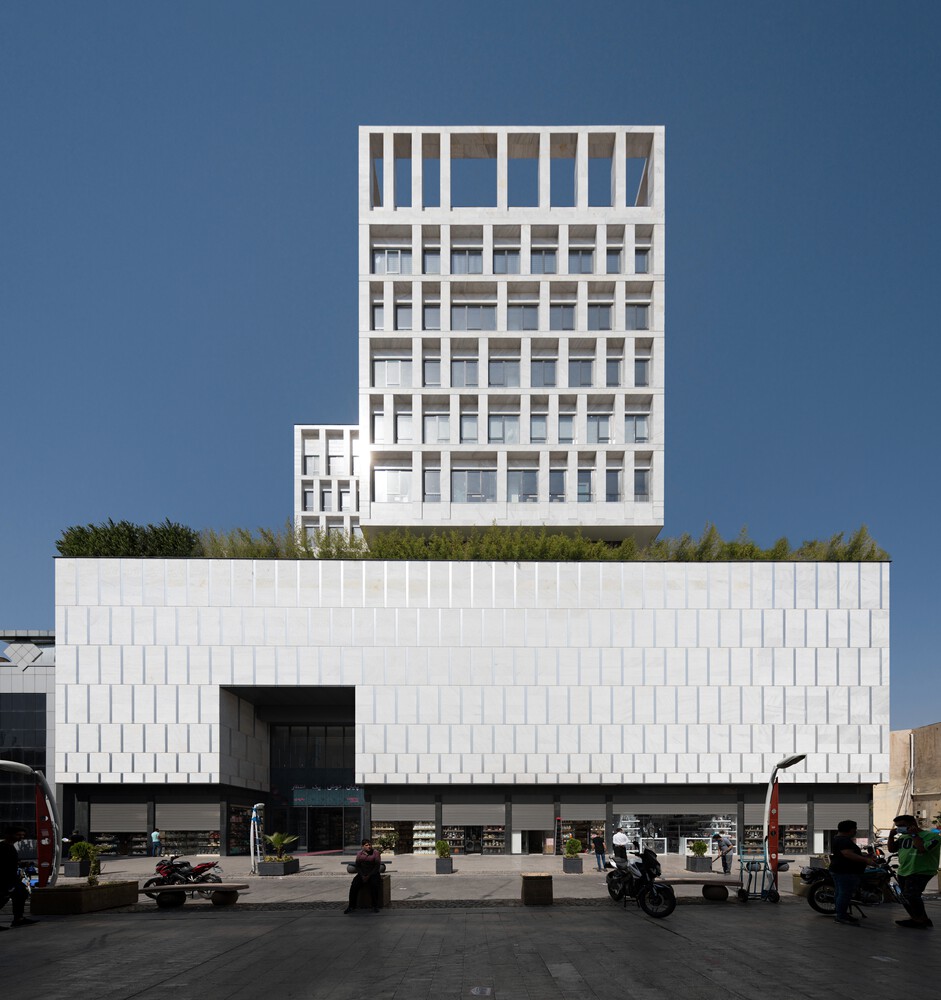

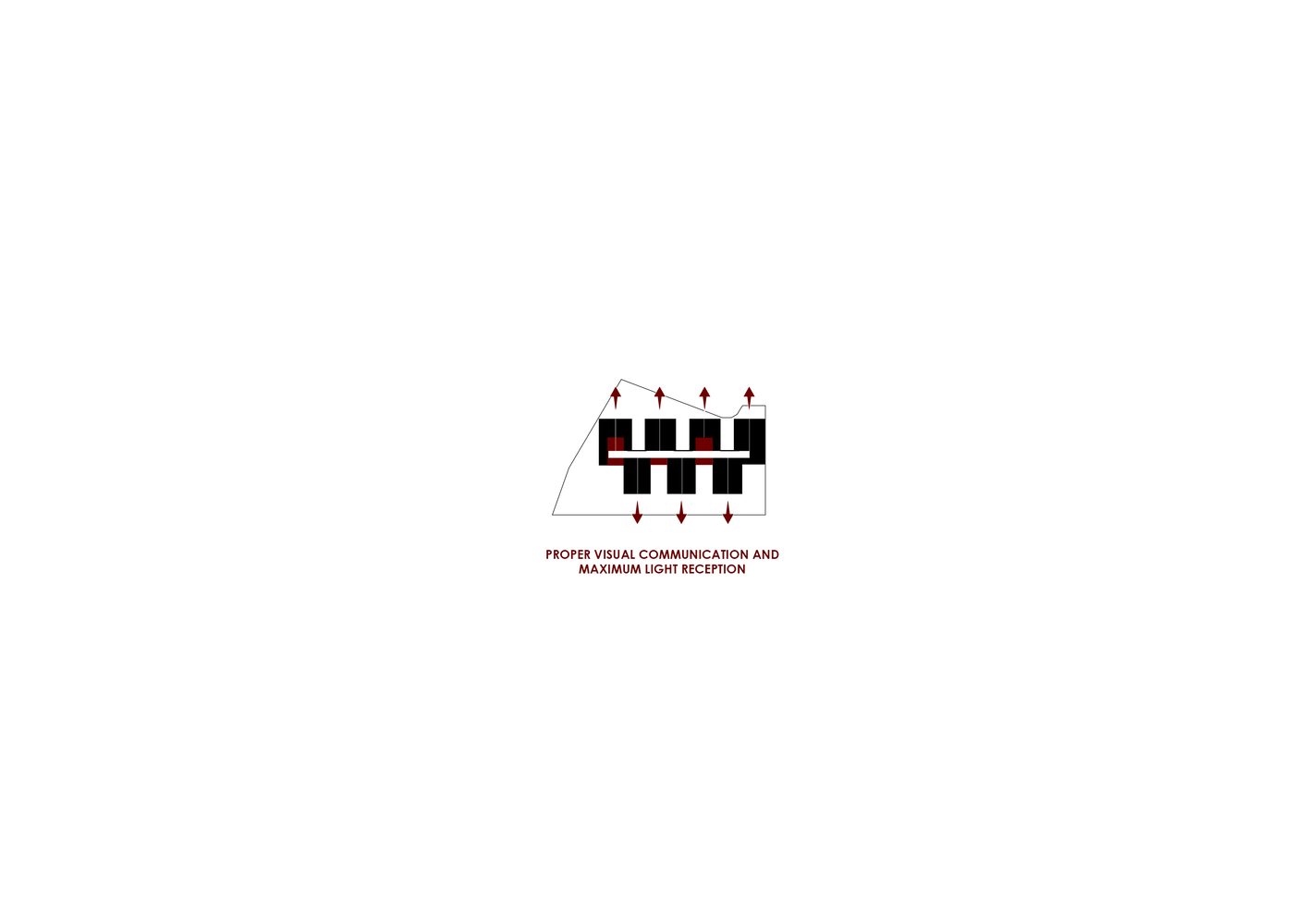

Office spaces rise above the commercial unit in separate blocks which are connected via a perpendicular bridge. Their geometry and orientation strike a balance between natural light penetration and provision of urban views from inside the units.

Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio
Pransa Commercial and Office Complex
© Mohammad Hassan Etefagh, Deed Studio

Due to the lack of public space and social amenities, open spaces between the blocks have been designated to public and semi-public social spaces. These raised platforms provide panoramic urban views for general public and the building residents. Pransa complex consists of:

- 4 levels of underground parking with the capacity of more than 500 parking lots

- 280 commercial units, spread over three floors across lower ground to the second floor level

- Variety of restaurant on the third level

- 70 office units between level fourth to the eighth

- Building services have been concealed behind the building parapet on the roofscape.

Pransa complex, inspired from the history of the region, is a precedents of the regeneration of the decayed urban fabric that aims to revitalise the local economy and improve safety and quality of its surrounding vicinity.


Pransa Commercial and Office Complex

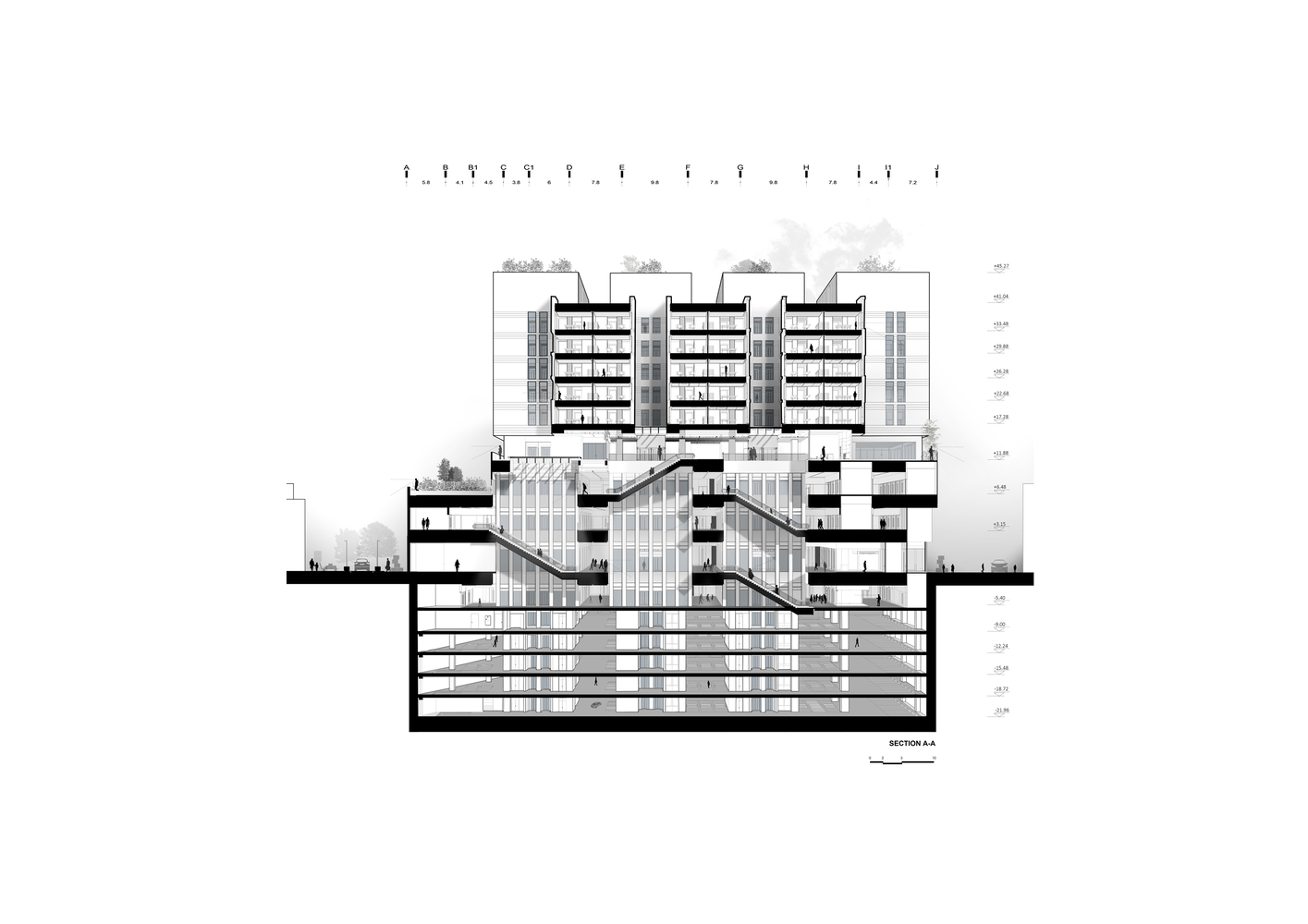

Section AA
Pransa Commercial and Office Complex

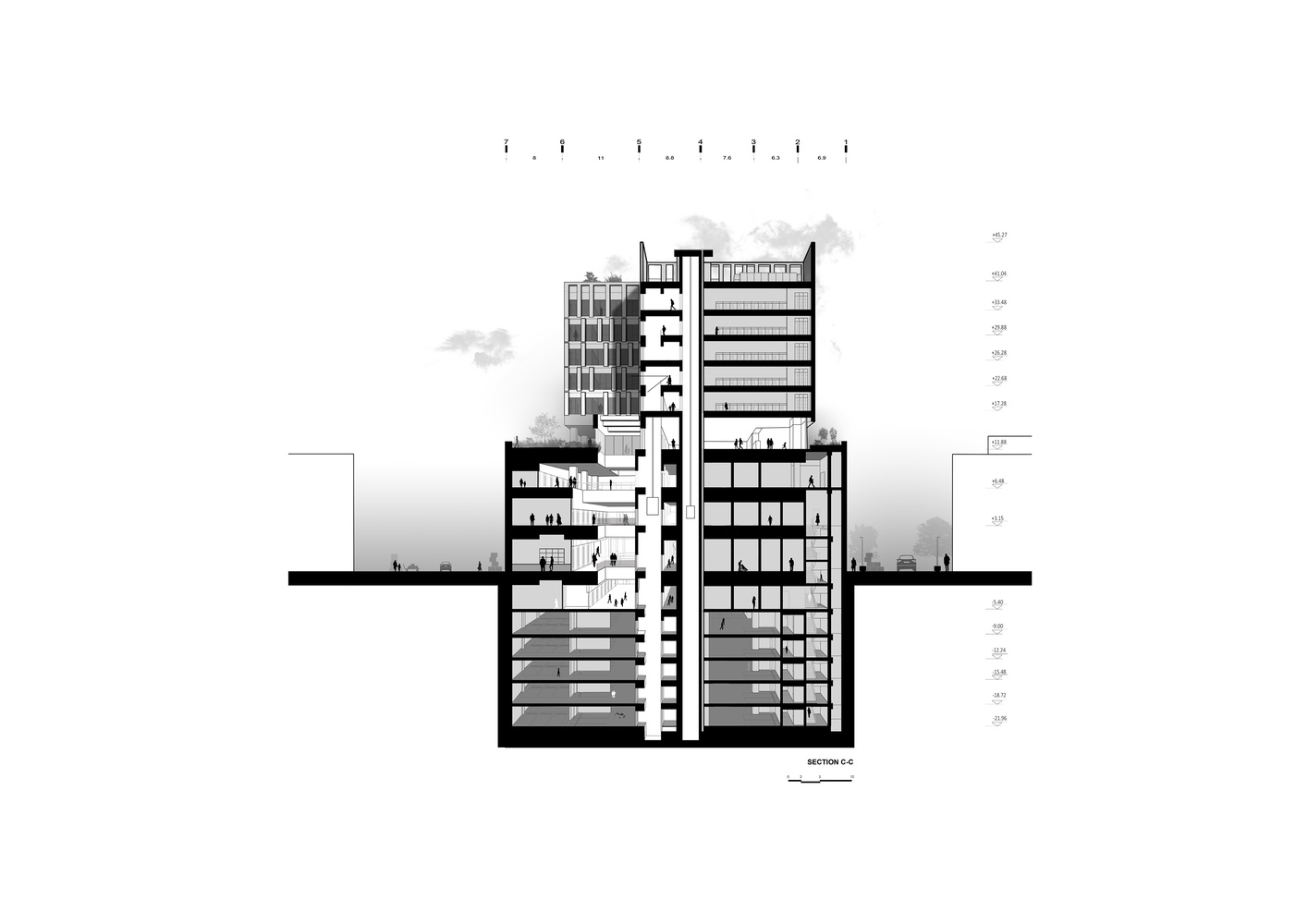

Section CC


Pransa Commercial and Office Complex

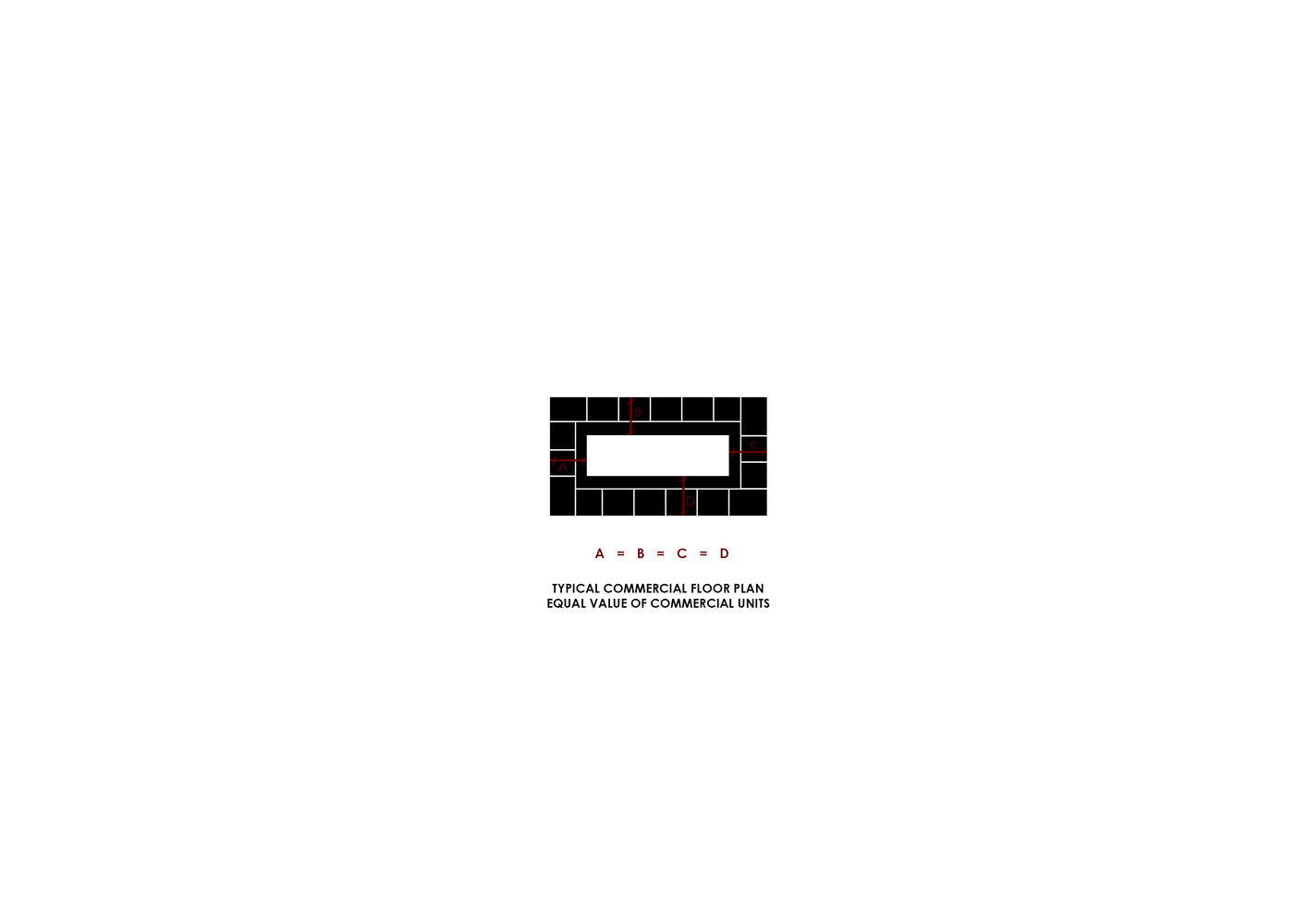

Diagram 01
Pransa Commercial and Office Complex
Diagram 02
Pransa Commercial and Office Complex
Diagram 03
Pransa Commercial and Office Complex
Diagram 04


Pransa Commercial and Office Complex

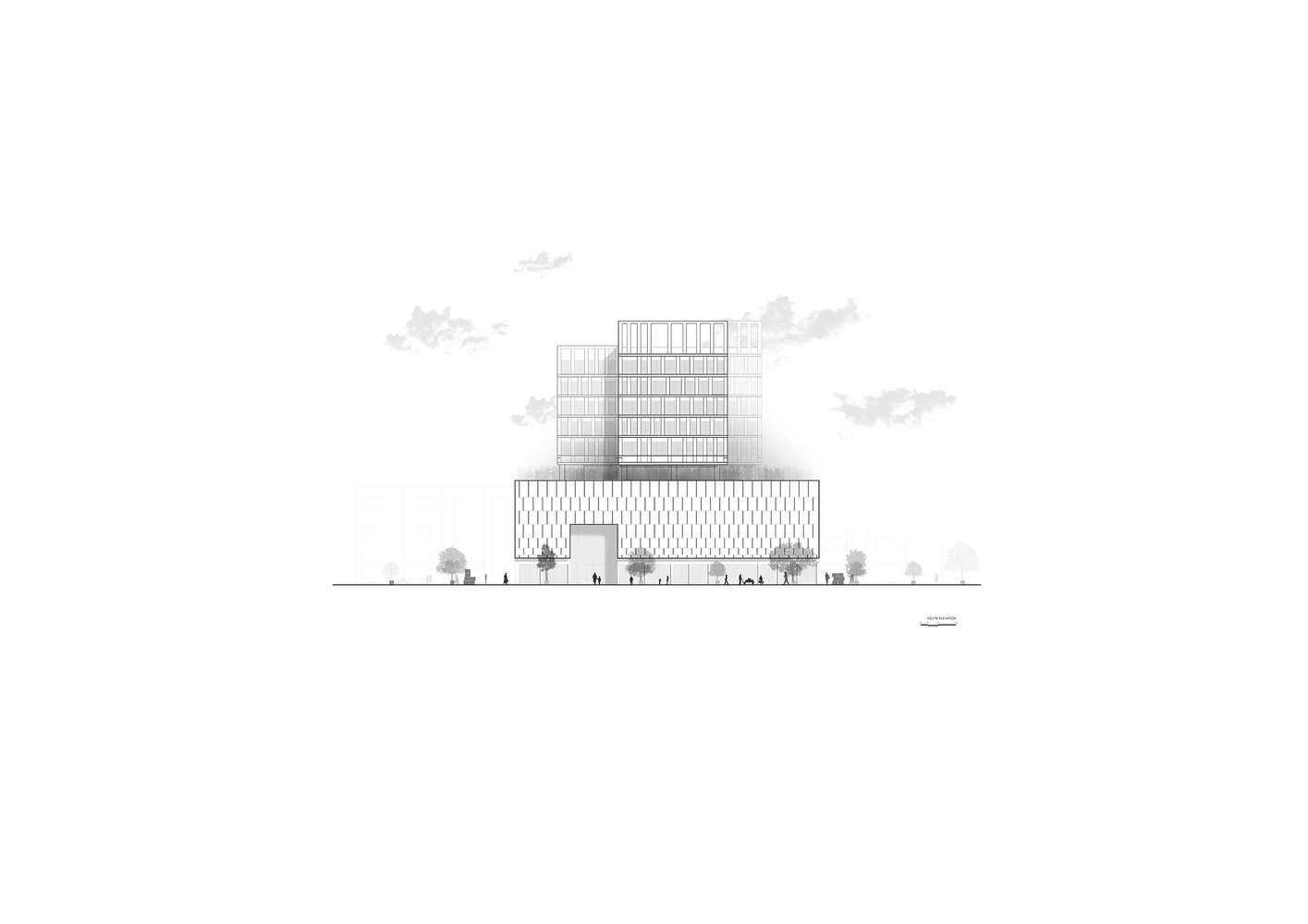

South Elevation
Pransa Commercial and Office Complex

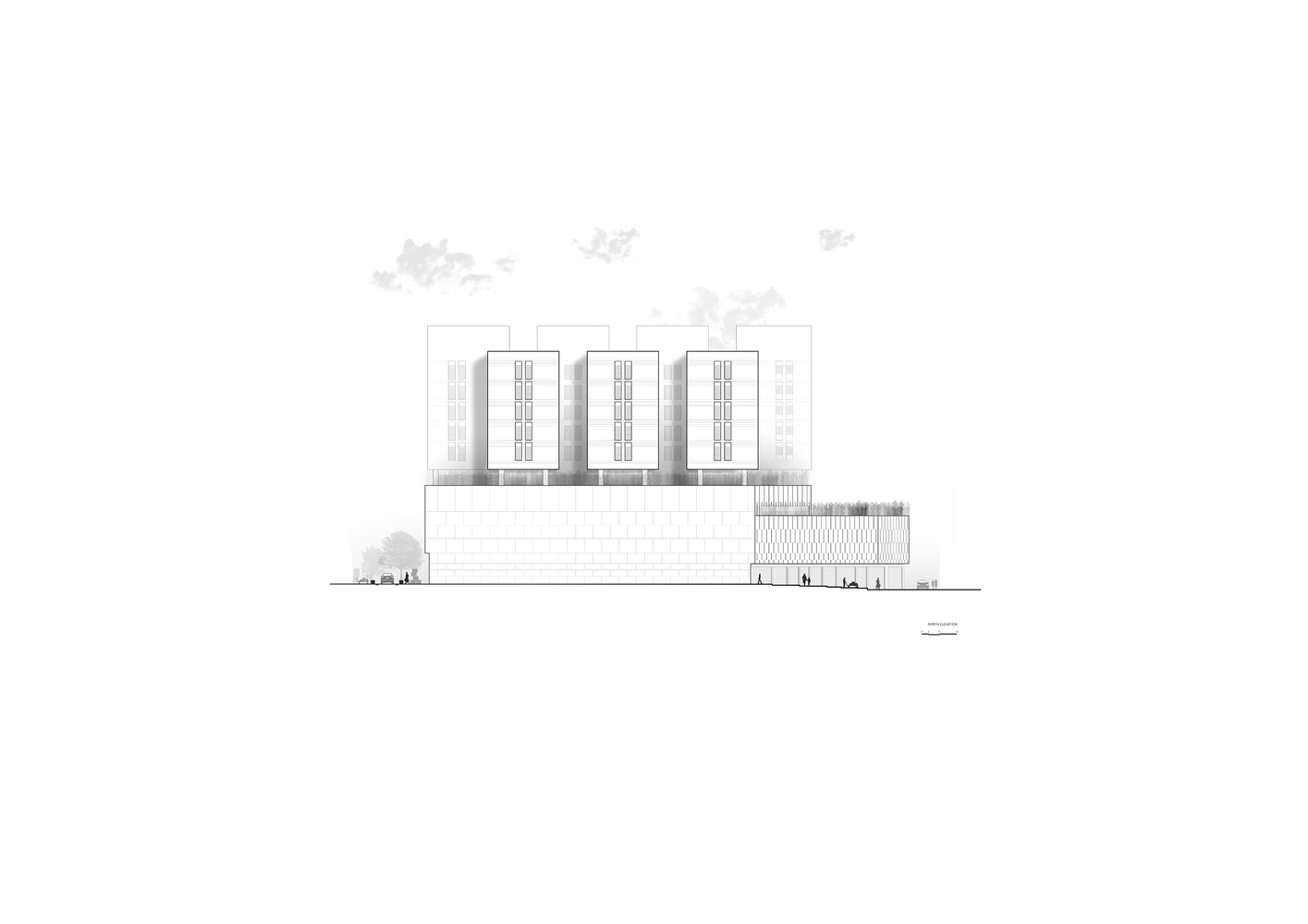

North Elevation


Pransa Commercial and Office Complex

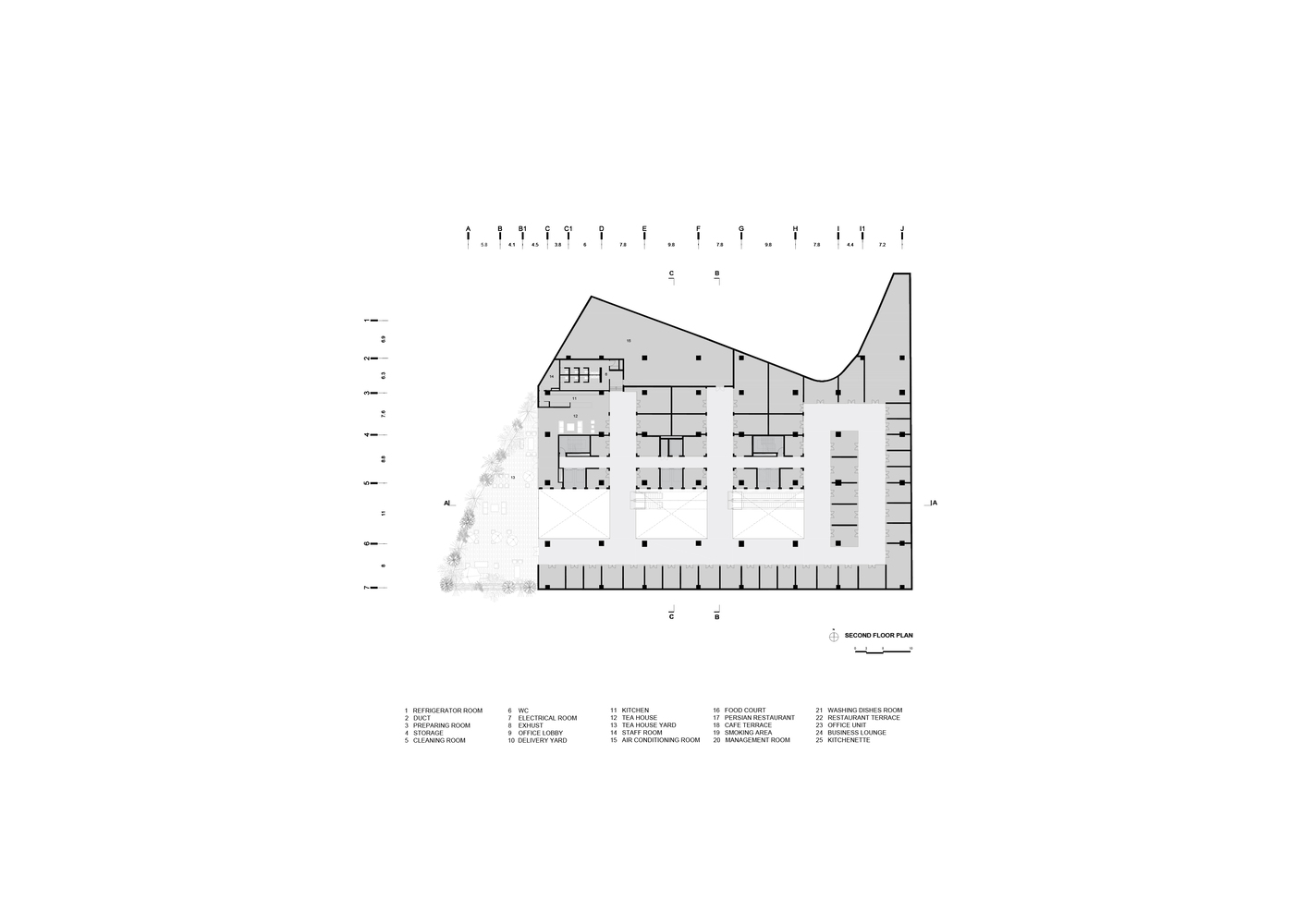

Second Floor Plan
Pransa Commercial and Office Complex

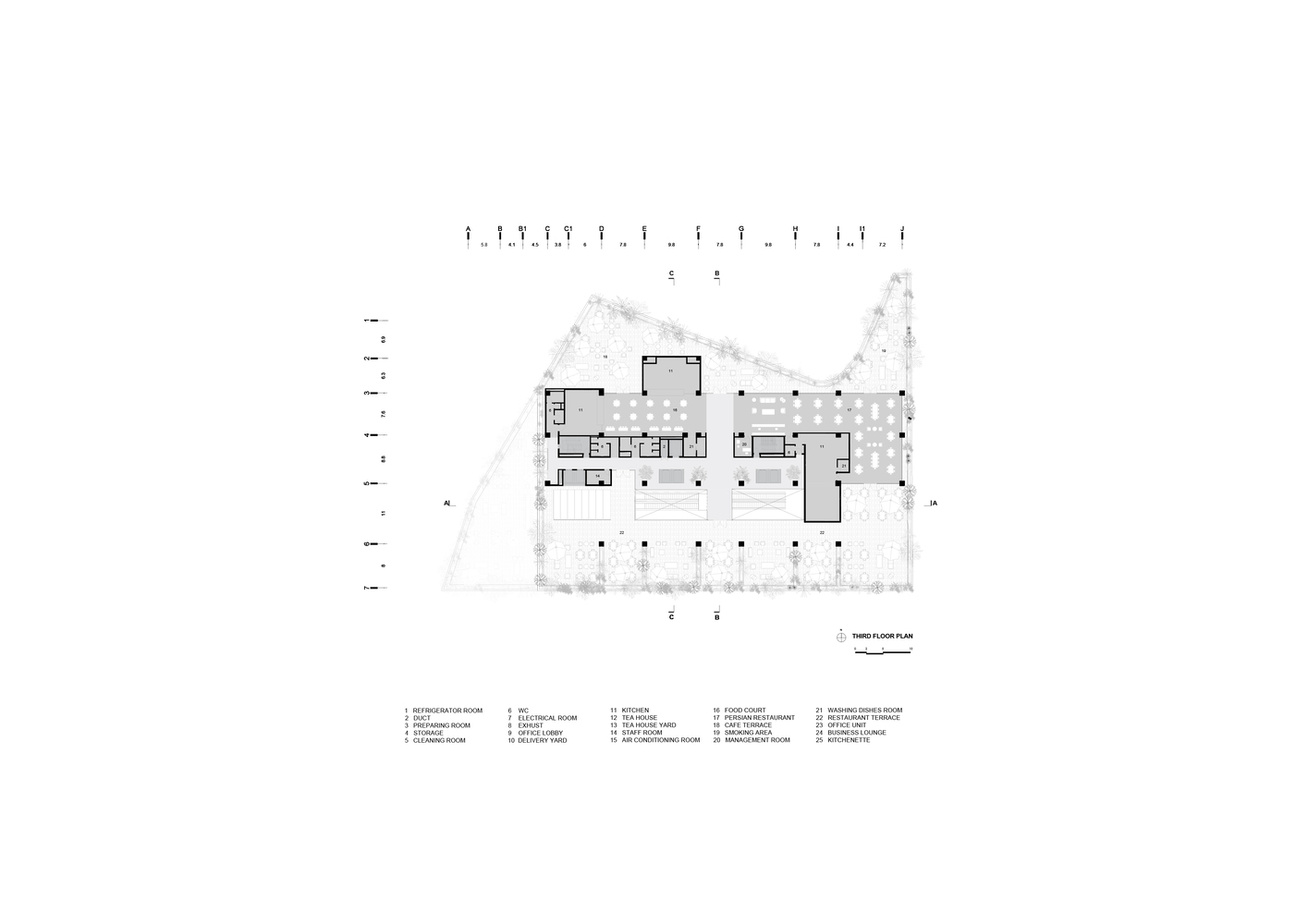

Third Floor Plan
Pransa Commercial and Office Complex

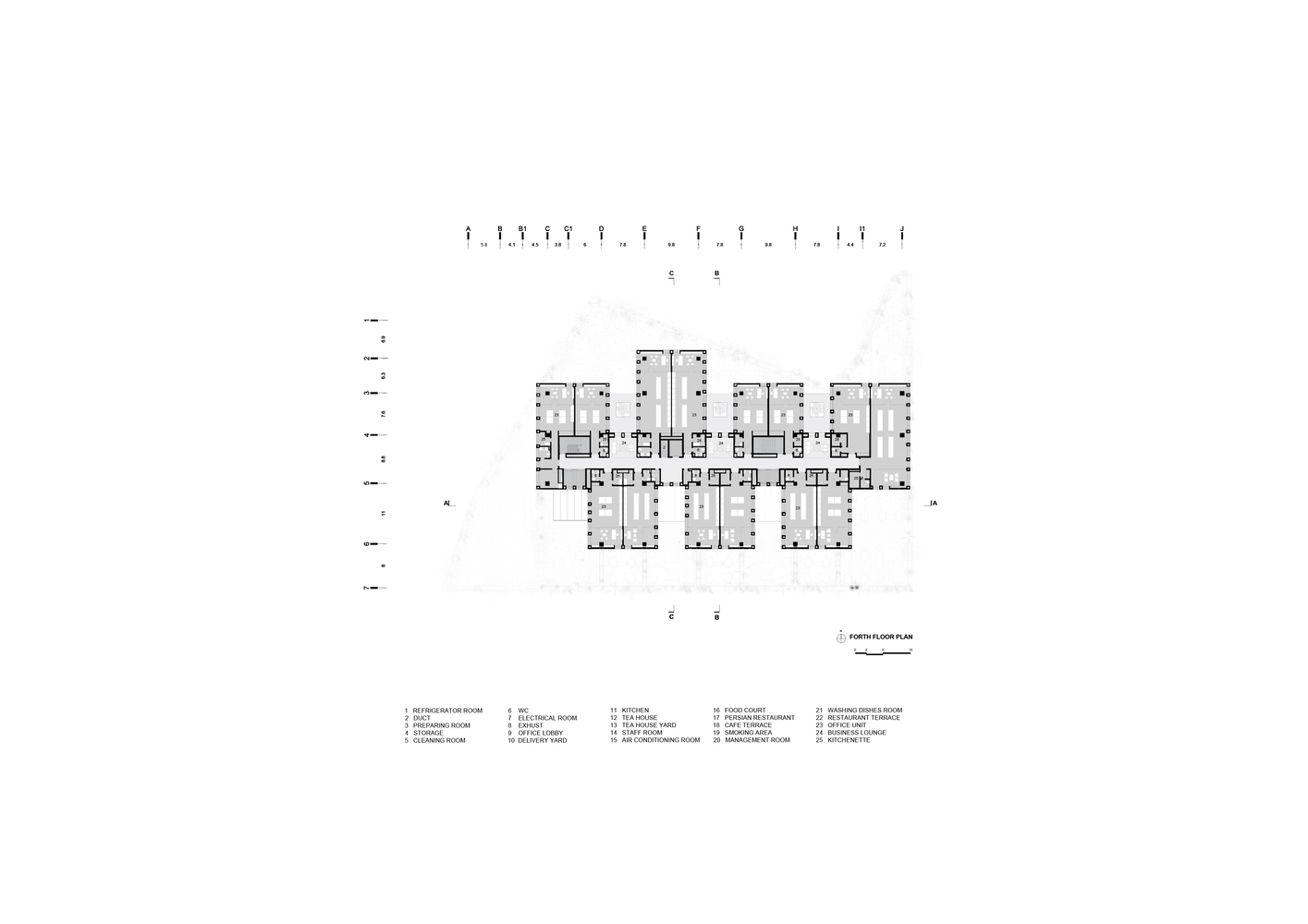

Fourth Floor Plan
Pransa Commercial and Office Complex

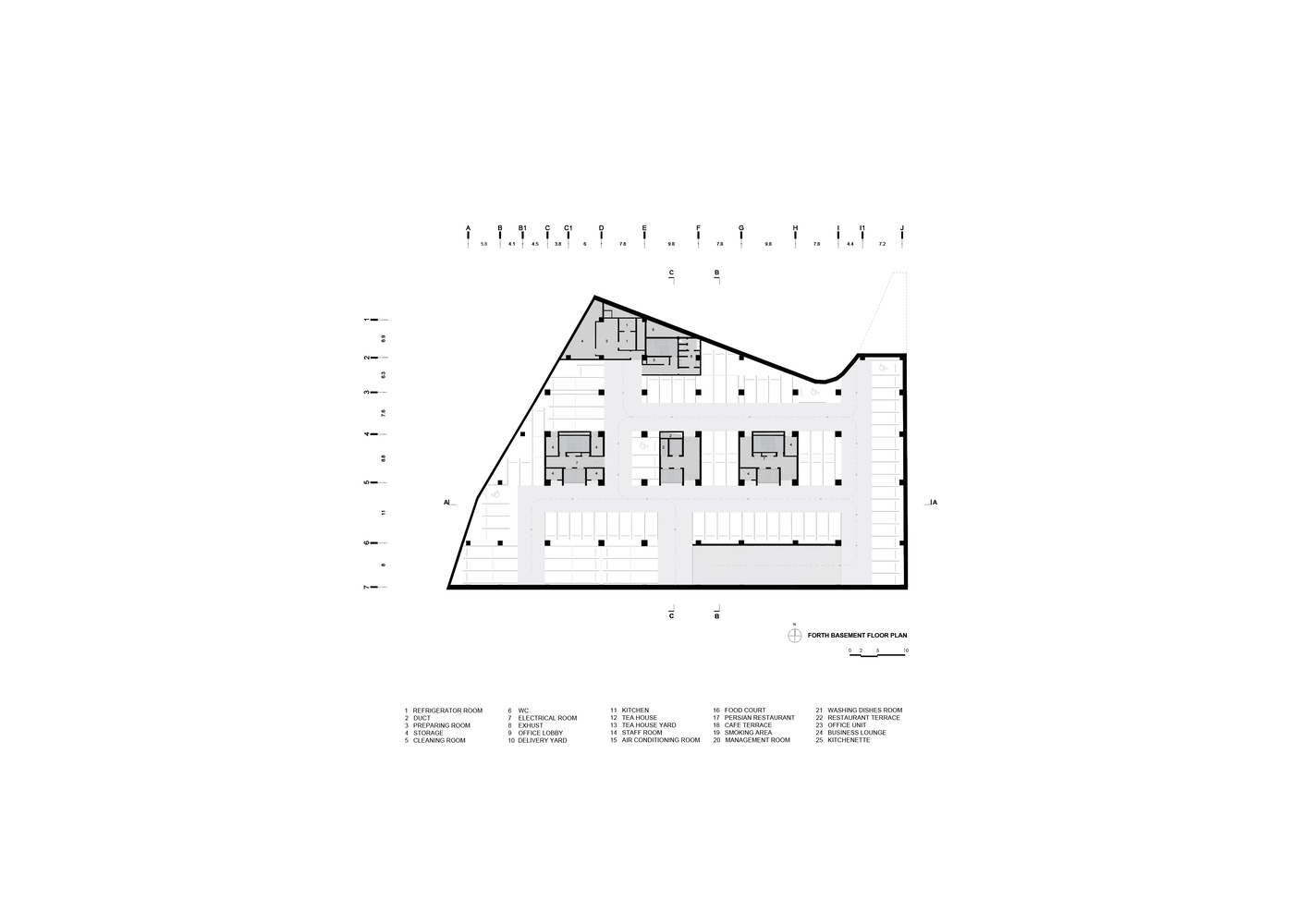

Fourth Basement Plan
Pransa Commercial and Office Complex

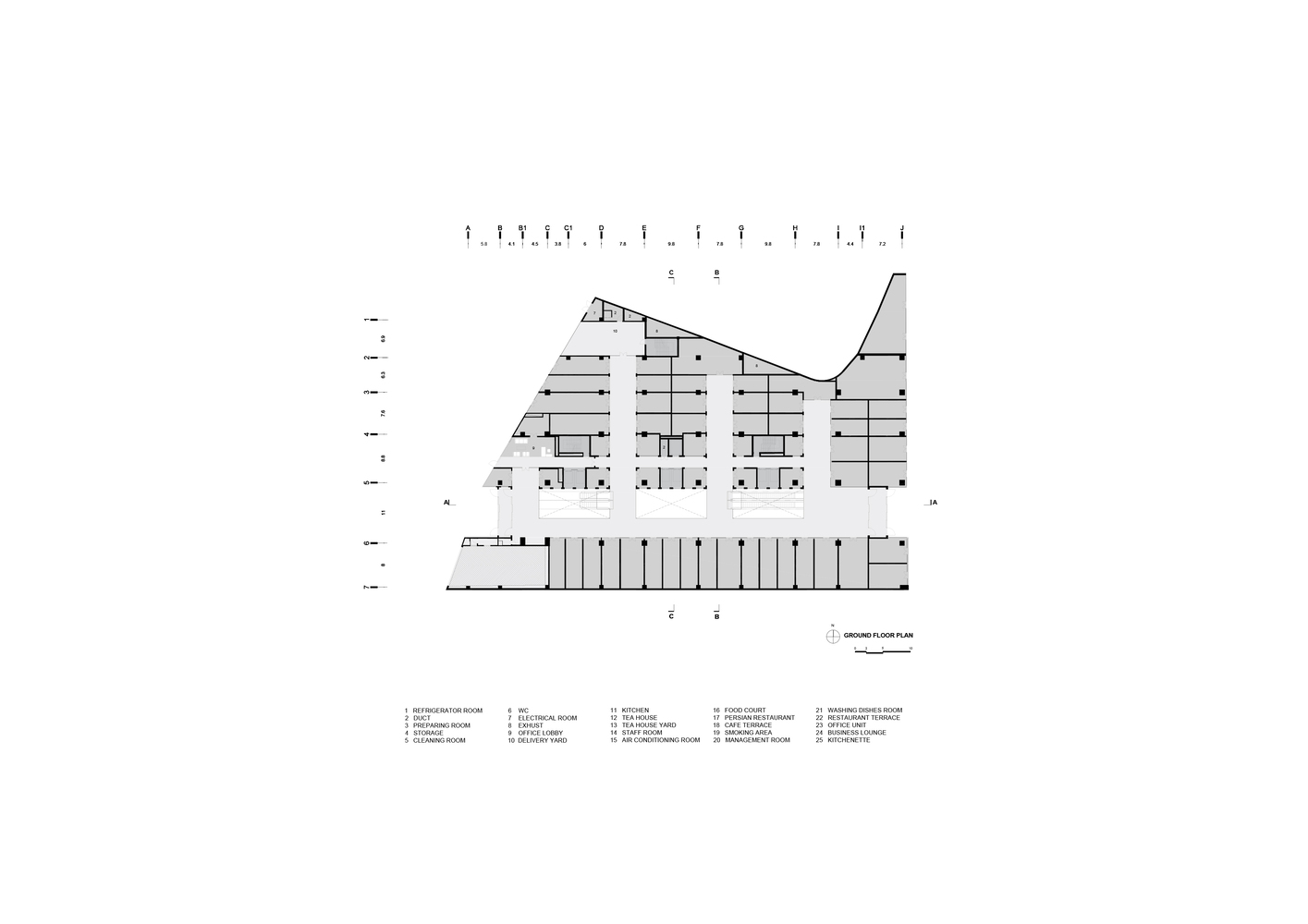

Ground Floor Plan
Pransa Commercial and Office Complex

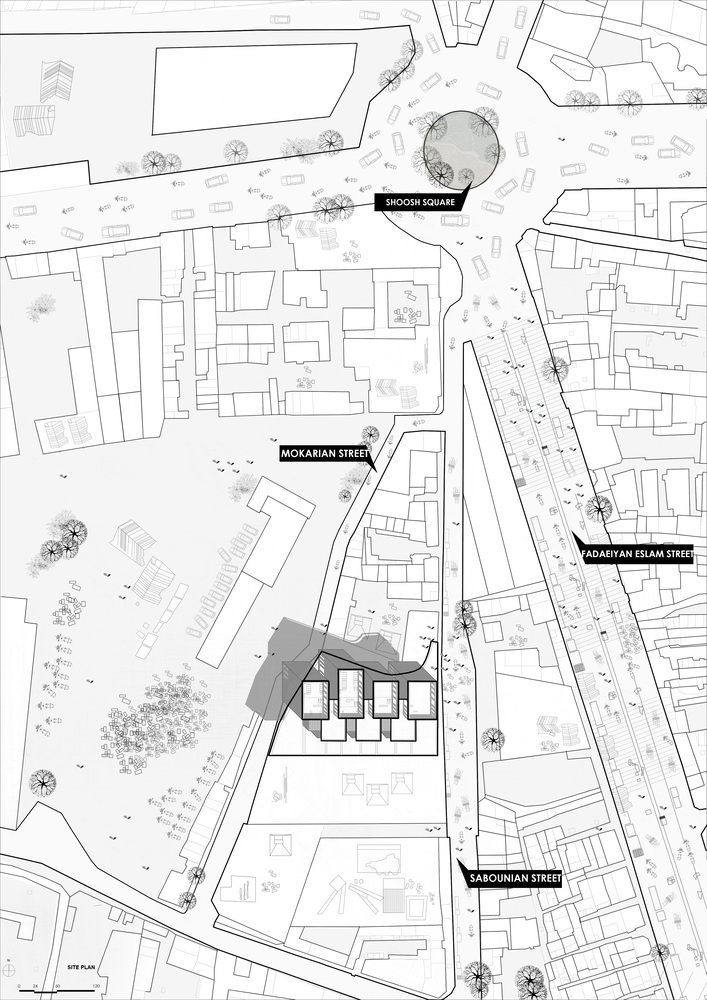

Site Plan


Pransa Commercial and Office Complex
Diagram
