Jon Danielsen Aarhus MNAL

Cabin Son

Cabin Son
© Øystein Aspelund

CABIN SON

Jon Danielsen Aarhus

LOCATION
Son, Norway

CATEGORY
Houses

AREA
70 m²

YEAR
2020

MANUFACTURERS
Velfac

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

Text description provided by architect.

A cabin for use all year, overlooking Jeløya island in the Oslo fjord. The client wanted a vacation and weekend home, more suited for herself and her two young daughters, about an hour away from bustling Oslo where they live.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The plot has been in the family for generations, situated between Moss and Son, in an area with many vacation homes as well as permanent residents - most definitely also the case for this area in particular.

The size and topography of the plot made it possible to create a building with much privacy, given the suburban character of the area.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The building is carefully placed on naturally occurring ledges in steep terrain. This makes it lay low and hidden, seen from the arriving side (towards the nearest neighbors), and open up towards the view and the sea.

The idea was then to make a low and closed facade on one side, and more exposed on the other. It was important to not change the landscape with dynamite and leveling of the bedrock(mostly visible or just beneath a thin layer of vegetation), which, unfortunately, is the most common strategy for new buildings in this area.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The natural terrain here is beautiful, and it would be a shame to blow it all away. Inspiration was drawn from a minuscule, existing cabin on the plot - both on how to relate to the landscape and orientation of the building, but also color scheme, roof angle, and special building elements such as the «bridge» in front of the building.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The existing cabin will function as an annex to the new building, and they should relate to each other in a good way, visually and spatially.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The cabin is quite small, and it was a goal, architecturally, to make many different spaces and experiences within this limited area.

Important in this was to let the different levels in the terrain be expressed in different levels inside the building. Together with a variation in ceiling form and height many different spaces could indeed be experienced.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The cabin has a large kitchen/living room area, plus a smaller, additional living room, 3 bedrooms, 1 bathroom, and a large loft for extra sleep.

In addition to the sheltered outside space between the new and existing building, there is a new terrace facing the south-west.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

The long bridge on the west facade, stretching the full length of the building, connects the two outside spaces. The cabin is clad in spruce, inside and out.

This particular type of outside cladding is called barn cladding(låvekledning) in Norway: vertical wooden boards with a rectangular cross-section, and more importantly - generous spacing between the boards.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund

This would allow air to flow through the barn and dry the stored hay.

But for this building it allowed all the vents for natural ventilation to be hidden behind the cladding, making a more uninterrupted exterior, visually.

Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund
Cabin Son
© Øystein Aspelund


Cabin Son
Cross section A
Cabin Son
Cross section B


Cabin Son

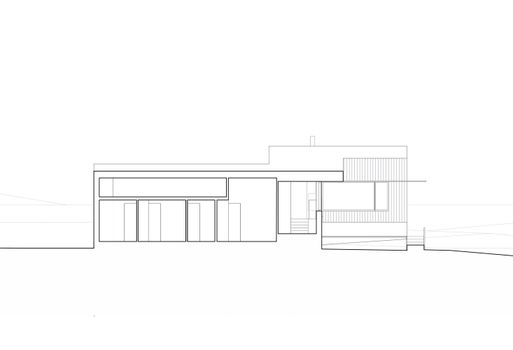

Longitudinal section
Cabin Son
Plan
