HOUSE 905
Harquitectes
LEAD ARCHITECTS
David Lorente, Josep Ricart, Xavier Ros, Roger Tudó
QUANTITY SURVEYOR
Carles Bou
COLLABORATORS
Blai Cabrero, Jordi Mitjans, Montse Fornés
LOCATION
SPAIN
YEAR
2020
CATEGORY
Houses
Text description provided by architect.
No context is irrelevant to a new building. And often the site itself generates conditions affecting the project in almost every decision. This is not the case with this house.
The sun, the geometry of the plot -almost square with a chamfer-, a neighbor too close to the south, and a tower of houses to the north, are more typical of a residential area of the sixties than of this piece of the garden city where the plot is located. Four badly counted inputs.
The owners (a couple with two children) wanted a house without maintenance, with a lot of privacy and a good relationship with the garden -more like a courtyard- all year round, a well-placed studio, and a few other usual requirements. And a desire to live in a modern house -without a capital letter-. And a certain interest in contemporary Japanese domestic architecture.
With these determining factors, it was clear to us that history had to be written almost from scratch, or rather from within, with the building itself. A new site had to be created. The plot was flat, slightly below street level. No trees.
The first step was to build an opaque fence as high as possible, about two meters, and place the house off-centered to the east, filling the 120m2 of maximum occupation and filling all the building limits except the west, where the sun comes in all year.
There is where the perimeter garden becomes wider (7.6m), the rest has variable widths adapted to the regulations (3m to neighbors and between 5 and 6 to the streets) -the regulations force things that do not always make much sense-.
To the north, we planted some evergreen trees that, with time, will deprive the view of the neighboring tower of houses.

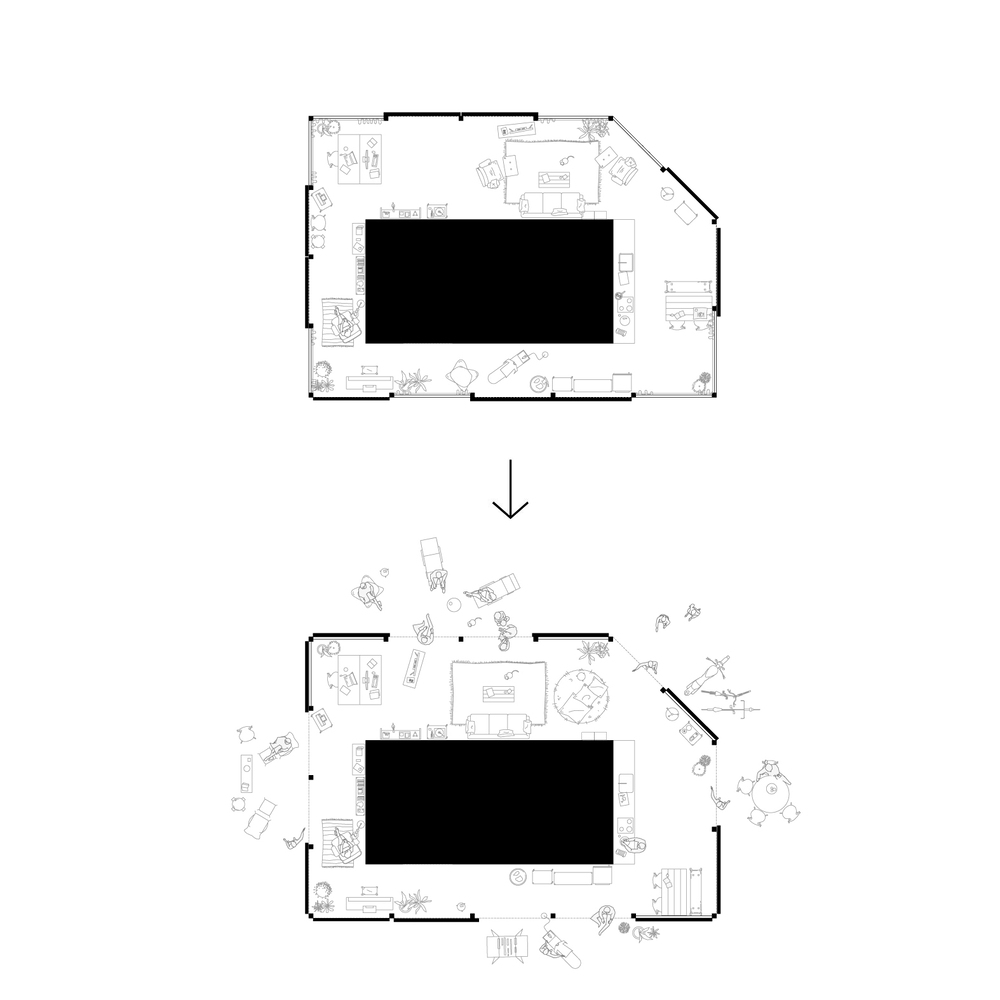

The new house is structured in four concentric layers parallel to the limits of the plot, like an onion. From outside to inside: the building fence, the perimeter courtyard, and a continuous gallery that surrounds the central body, a two-story concrete block box.
In the initial phases of the project, when the house was bigger, the perimeter gallery was an intermediate space, bio climatized, with complementary uses, and all the main pieces were housed in the core of the house.
Later, due to budgetary adaptation, the surface was reduced and only the rooms, the bathrooms, and the stairs were left in the central body. The common areas were moved to the gallery.
Almost everything happens in the gallery.
It is a veranda, with certain resonances to Charles Moore's Orinda house, which proposes intense and variable relations (seasonally) with the patio; in summer, through the large sliding walls it becomes a porch; in winter, large windows in the corners offer framed views of the garden and capture solar radiation to the west.
Contrary to what is usual, in this house, the windows are fixed, and the mobile doors are opaque, a condition that constantly transforms the facade and the gallery, depending on what is open and what is closed.
As in the chapel of Santa María dos Anjos by Lina Bo Bardi, the veranda, with its sloping roof, is built with light and dry systems: wooden structure (pillars, beams, and roof) and glass, aluminum, wood and corrugated galvanized sheet enclosures.
In contrast to the lightness of the gallery, the central core is massive and compact, with more thermal inertia.
The block walls and slabs are left visible in the gallery and painted white in the rooms.
In winter, the veranda shelters and heats the entire central body (bathrooms and bedrooms), which does not have its own climate system (on the ground floor); the concrete floor, with a lot of inertia, apart from receiving direct solar radiation on time, is heated via underfloor heating, as are the rooms on the second floor; generation is by an aerothermal heat pump.
In summer, when the sliding doors are closed, the windows are protected from the sun by the overhang of the roof and by reflective exterior curtains. At the same time, the inclination of the roof favors, by stratification, a passive ventilation system that evacuates the hot air through four ducts hidden in the facades that work as small solar chimneys, favoring the natural renovation and facilitating the cooling of the veranda.
Ten years after the first meeting with the clients, and with a long and intense history in between, house 905 was completed. The long time was another determining tool in the process of the project.
Architecture sometimes takes advantage of (its) slowness.
