SMG CHURCH COMPLEX

Ramón Fernández-Alonso

PROJECT MANAGER
Francisco Javier Marín León

PHOTOGRAPHS
Jesús Granada

ARQUITECTO Y DIRECCIÓN FACULTATIVA
Horacio Fernández del Castillo

AREA
31635 ft²

MANUFACTURERS
AutoDesk, Ascensores FAIN, Reiter, Saint-Gobain, iGuzzini, Alugom, Cerámicos Torres, Cetosa, Gresmanc Internacional

MANUFACTURERS
Hitecsa, Philips, Riello, Viher Centro

ARQUITECTA TÉCNICA
Carmen González Martin

LOCATION
San Sebastián De Los Reyes, Spain

CATEGORY
Churches

YEAR
2020

Text description provided by architect.

The compact building for hybrid use of the SMG Church Complex is located on the edge of the urban fabric of the northern expansion of San Sebastián de los Reyes, in Madrid, responding to two very different realities, on the one hand, the park of the valley, where It shows the physiognomy of the parish temple, generating a volume that is measured by neighboring commercial facilities, large commercial and leisure containers; and on the other hand, the urban fabric of the residential city to which it exposes its program of classrooms and houses with a rhythm and proportion of holes that resembles it with the collective housing buildings that it faces.

SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada

INSIDE, A VARIED PROGRAM IS DEVELOPED IN SIX DIFFERENT GENERIC AREAS


1. Church: Made up of the nave or narthex, the presbytery and the baptistery located on the ground floor, the choirs- lateral and upper front- and the adoration chapel located on the first floor.

2. Parish and Caritas offices: Located on the ground floor in number of six.

3. Classroom Areas: Located on levels 1 and 2, they are made up of 6 classrooms - two of them capable of being divided - and annexed units for an approximate number of 180 students.

SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada

4. Multiple Use Areas: Composed of two rooms of 66 m2 and 105 m2 located on the ground floor and basement.

5. Residential: Composed of 2 departmental studios and 2 dwellings located on the three upper levels of the building.

6. Garage, with capacity for 16 vehicles, facilities and warehouses area, in the basement.

SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada

Constructively, envelopes are provided with a materiality that combines these two concepts previously exposed, which characterize the place where the building is embedded and that, with the use of a warm material such as the ceramic plate, makes it related to the residential expansion to the west composed of buildings built in exposed brick.


Likewise, we designed for the construction of the envelopes light dry laying systems, with a ventilated façade, based on aluminum anchoring elements similar to that used in the lightened prefabricated systems of the commercial containers with which it is aligned on the front East.

SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada

Inclined roofs and vertical or inclined façades are solved with –U- profile belts supported by the corresponding metal beams. On these straps all the special profiles of the building envelope are fastened.

The façade solution adopted by using a sandwich panel roof as an intermediate element between this interior substructure and the support of the ceramic pieces make up the entire ventilated envelope that unifies the material image of the building.

SMG Church Complex
© Jesús Granada
SMG Church Complex
© Jesús Granada

A large part of the metal structure is solved with a framework of pillars and beams, being the religious worship room and the large cantilever that makes up the inclined stands, a structure based on large lattice beams that give great structural stability to the entire set, in turn bracing all the structural elements and solving this large overhang very favorably.

The braces that are designed give the set great structural stability, solving very favorably the wind stresses and the stresses produced by thermal loads of temperature, because the building exceeds 40 m in length in its longitudinal direction.

SMG Church Complex
© Jesús Granada


SMG Church Complex
Plan - level -0.68 y +0.85
SMG Church Complex
Plan - level +2.04
SMG Church Complex
Plan - level +4.76 y 6.63
SMG Church Complex
Plan - level +8.16
SMG Church Complex
Plan - level +11.56
SMG Church Complex
Plan - level +14.62
SMG Church Complex

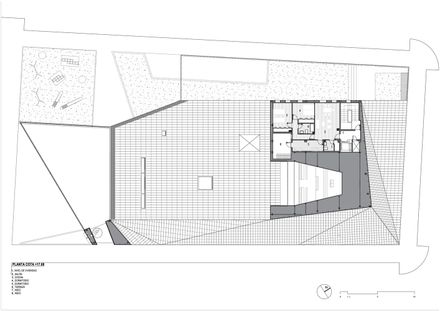

Plan - level +17.68
SMG Church Complex
Plan - Basement level -3,4
SMG Church Complex
Plan - Roof
SMG Church Complex
Plan - Situation


SMG Church Complex
Section 01
SMG Church Complex
Section 02


SMG Church Complex

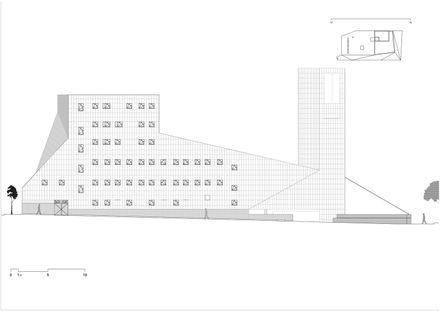

Elevation 01
SMG Church Complex
Elevation 02


SMG Church Complex
Axonometric detail 01
SMG Church Complex

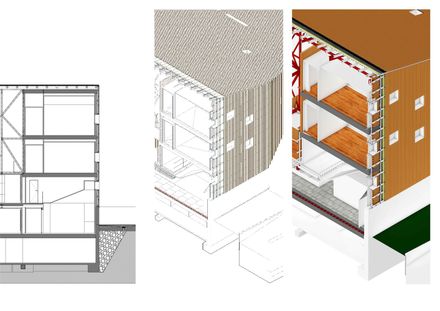

Axonometric detail 02
