Stilt House

STILT HOUSE

B.houssais Architecture

Stilt House
© Pascal Léopold

LOCATION
Pleumeur-bodou, France

PHOTOGRAPHS
Pascal Léopold

ENVIRONMENTAL CONSULTANT
B3E

CONCEPTION
Blandine HOUSSAIS, Nicolas LE GLAS

YEAR
2020

CATEGORY
Houses

AREA
144 m²

MANUFACTURERS
Grohe, Internorm, Raico, Eksol One

Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold

CONCEPT:

The house volumetry, its position raised off the ground, its simplicity, its transparency, the choice of materials (grey aluminium joinery, vertical glazing and wood siding, natural wood screen wall), are a drive to create elegance and a light feeling.

The house is a well-glazed belvedere facing the sea; Furthermore, its position in relation to the limits of the lot and neighbouring houses, and its implantation in the background of the street rue des Plages and behind, the mound of ferns protect the house from the vis-à-vis / building opposite and let the house blends discreetly into the landscape while enabling residents to fully see the sea.

Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold

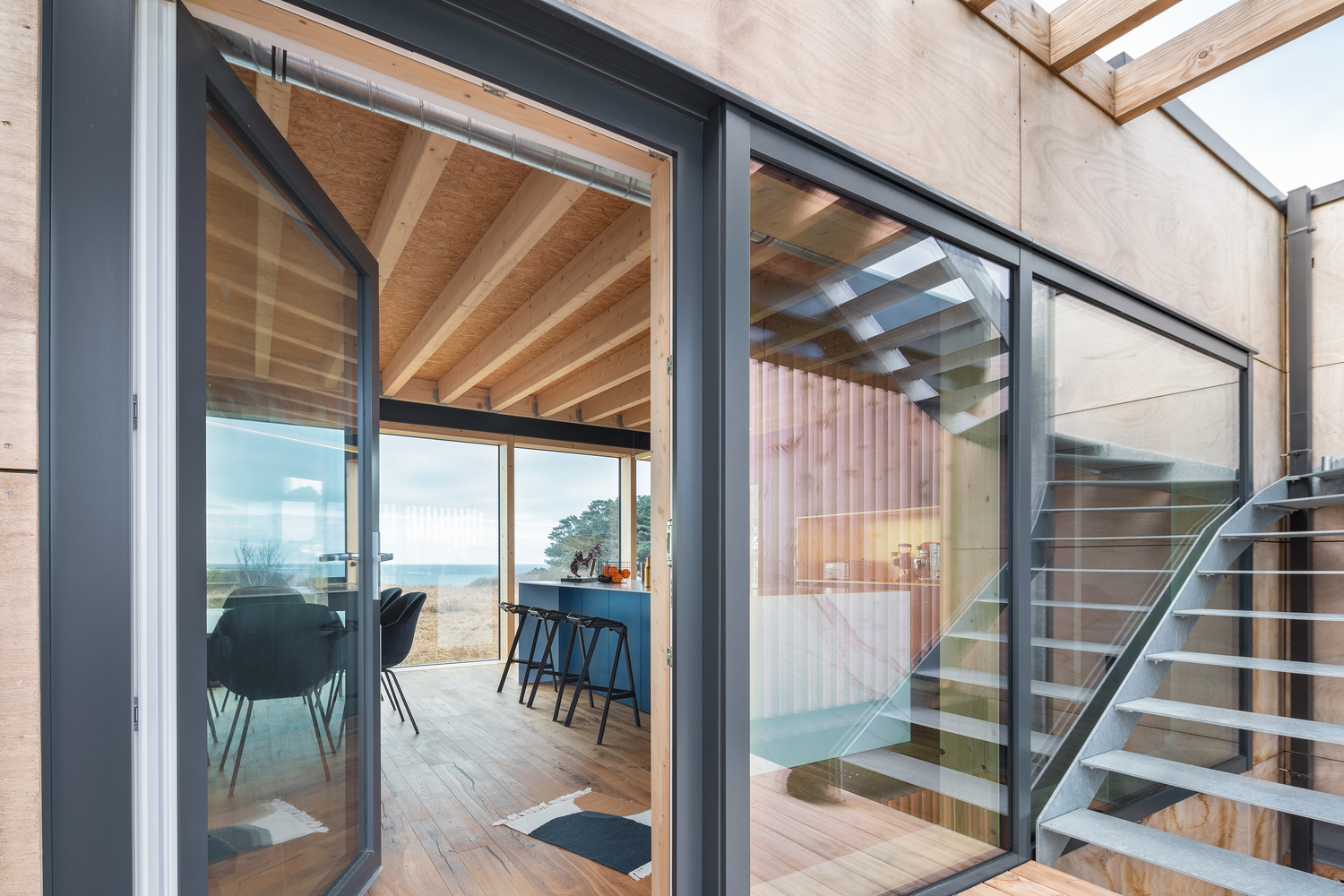

The housing is located on the first floor, above a small office, and is accessible via a galvanized steel staircase.

Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold

ENVIRONMENT:

The foundations are laid using 12 piles screwed in the sand; the ground stays completely permeable to water; a soak pit reprocesses rainwater; framing and siding are in untreated Douglas or raw okoumé panels downstairs, external insulation in wood fibreboards; tiles are in wood and oak parquet flooring cover the floors; triple-glazed wood and aluminium fittings.

Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold

Solar panels preheat domestic hot water and there is a double-flow ventilation system; only towel rails occasionally heat the bathrooms.

TECHNIQUE:

The primary structure is in galvanised steel, for savings on raw materials and optimal resistance reasons.

The secondary structure is built using wood frames, and includes the tiles of the ground floor, of the second floor, and of the panoramic terrace; a large curtain wall facade with wooden thorns and aluminium shell faces the sea and turns as gables.

Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold

The external carpentry is triple-glazed.

A galvanised steel staircase leads upstairs to the inhabited floor and the terrace; Balanced ventilation and solar boiler.

Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold


Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold
Stilt House
© Pascal Léopold


Stilt House
East and West Facade
Stilt House

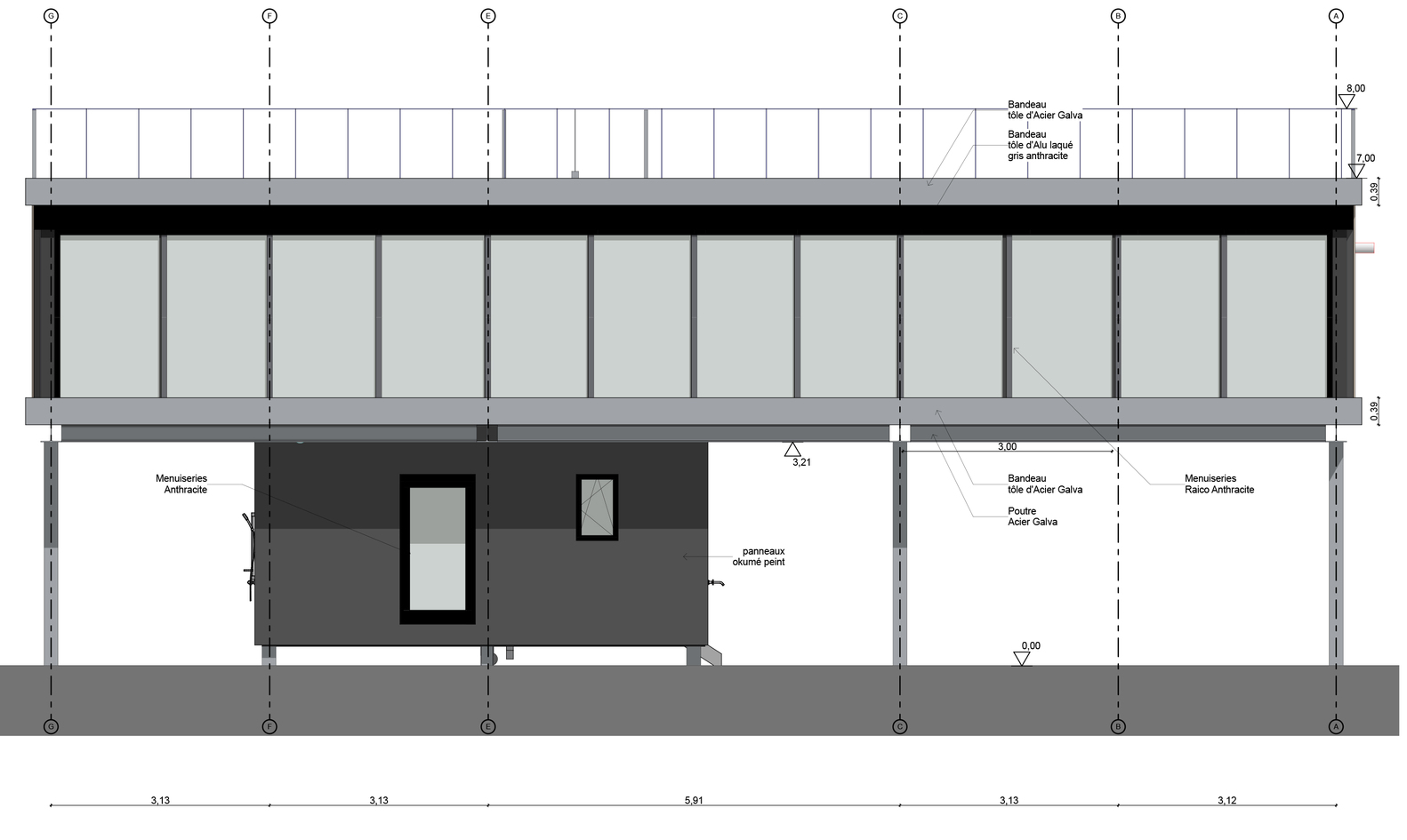

Northwest Facade
Stilt House
South Facade
Stilt House
Deetails Façade


Stilt House
1st Floor Plan
Stilt House
Situation
Stilt House
Site Plan
