LAKESIDE HOTEL, SPA & CONFERENCE

Arbër Shala Architects

ARCHITECTS
Arbër Shala Architects

CATEGORY
Hotels

LOCATION
Vërmica, Kosovo

ON SITE ARCHITECT
Ruzhdi Dakaj

YEAR
2020

STRUCTURAL ENGINEER
Ruzhdi Morina

ELECTRICAL ENGINEER
Besim Canaj

AREA
22000 m²

ARCHITECTURE & DESIGN
Fatlum Berdynaj

PHOTOGRAPHS
Dren Shala, Fatlum Berdynaj

GENERAL CONTRACTOR
Blueplan Kosovo AG

MANUFACTURERS
Sika, Eglo, Knauf, Climaguard, Dardania Commerc, Glazing Profiles, NIKA Enterier, Siniat, Trocal

ELECTRICAL CONTRACTOR
Nazim Dedaj

ARCHITECTURE DRAWINGS
Leonita Krasniqi

PLUMBING ENGINEER
Pajtim V. Gashi

MECHANICAL ENGINEERS
Heset Hajdini, Gazmend Shala

KITCHEN TECHNOLOGY CONSULTANT
Durim Gashi

X INTERIOR & LANDSCAPE DESIGN
Erisa Berisha

PLUMBING CONTRACTOR
Festim Dedaj

MEP & HVAC CONTRACTOR
MeritaTerm

Text description provided by the architects.

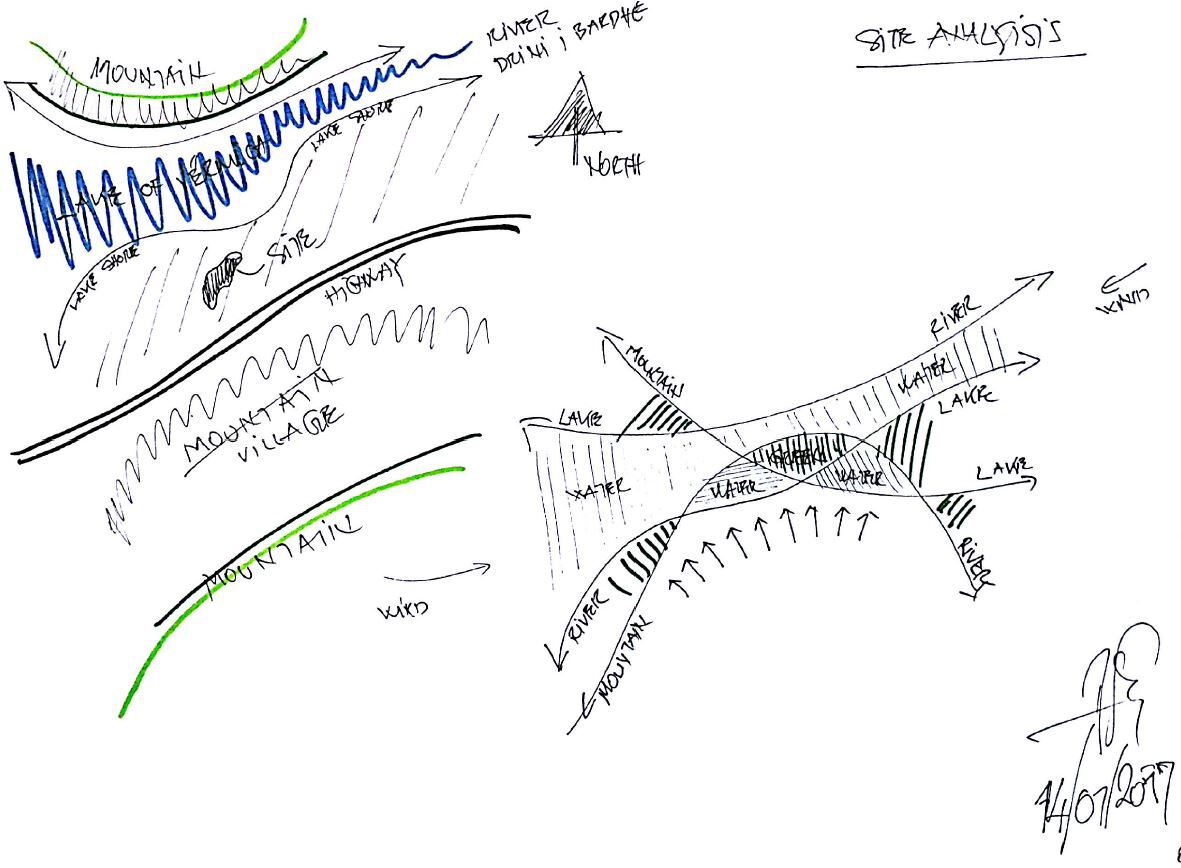

Site analysis and landscape, where the surrounding mountains stand out, the Drini i Bardhë river with the artificial Lake of Vërmicë and the dense greenery, were the key elements in the sketches, where overlapping and interweaving of the three brings us the architectural composition and shaping of the concept which was conceived and brought to life.

Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj
Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj

The building itself is closely connected to the surroundings through the usual language of architecture, creating a common dialogue between the landscape and the building, a perfect symbiosis of both, including the surroundings within the building itself which flow through the central atrium void.

The project fully adheres to the program requirements and standards for this type of facility, where the first three levels are housed as: lobby, main restaurant, banquet hall, conference rooms, spa & wellness, garage, bars and other accompanying rooms, while the other five levels have 60 rooms of varying standards and ala carte restaurant at the top level.

The orientation of the hotel gives a wonderful view of all the rooms but also the spaces and other accompanying facilities. The area around the hotel is rich with greenery and various recreation areas.

Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj
Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj

The view from the water is given priority, so all the accompanying spaces including the rooms are given the view and openness to the Lake.

From the first stage of designing the “LAKESIDE Hotel”, we always intended to make it as very important “LANDMARK” destination in the south-western part of Kosovo and the city of Prizren, in the Vermica Lake area, an area that is impressive with its landscape and with such projects aims to attract as many visitors and vacationers.

Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj
Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj

With this project we have aspired to create something new and innovative for the surrounding but also with the hope to transform it.

The pure geometric shape, where white predominates as a whole, makes the building an integral part of the surroundings, as if emerging from the ground and following the gentle contours of the surrounding mountains and at the same time increases the visitor's emotions while observing the building, space and surrounding landscape.

Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj
Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj

Placing the structure at the edge of the parcel, apart of being structural and financial challenge it was necessity in order to express the building predominance but also the relationship between the surrounding landscape and the architect vision as a whole.

The concept of the structural system is based on the skeletal system of construction with reinforced concrete columns supported on the slab of reinforced concrete foundations as primary as well as reinforced concrete beams as secondary structural elements.

Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj
Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj

The outer walls and inner walls are mainly from brick and plastered with ecological use of materials up to final paint. The outer shell of the hotel main building is 16cm Stucco façade with Low-e triple glazing windows, while the banquet hall and top flor outer shell is made from 15cm insulated drywalls.

The top floor is made entirely from steel construction including roof construction, where 10cm sandwich panels are used as roof cover.

The glazing is semi structural with aluminum profiles.The atrium has 12mx12 sky glass composed of structural glazing and aluminum profiles.

Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj
Lakeside Hotel, Spa & Conference
© Dren Shala, Fatlum Berdynaj

The HVAC system is comprised of water pumps, solar panels, air coolers and water chillers, and sanitary water are provided by 3 water wells, 100000l water tank and public water system, while this as a whole contributes on the improvement of the environment and surroundings, but also in reducing the operational costs.


Lakeside Hotel, Spa & Conference

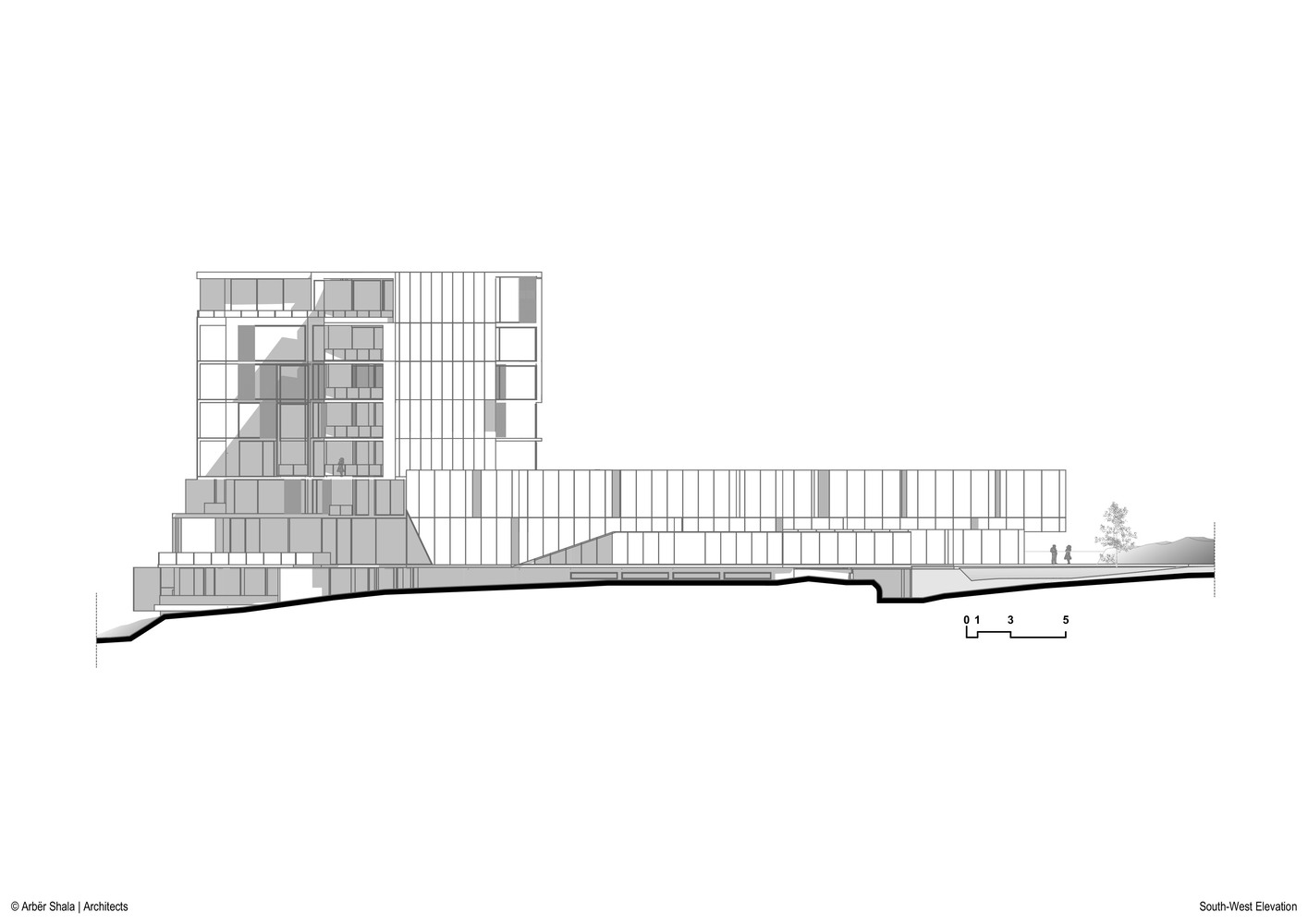

Elevation - Southwest
Lakeside Hotel, Spa & Conference

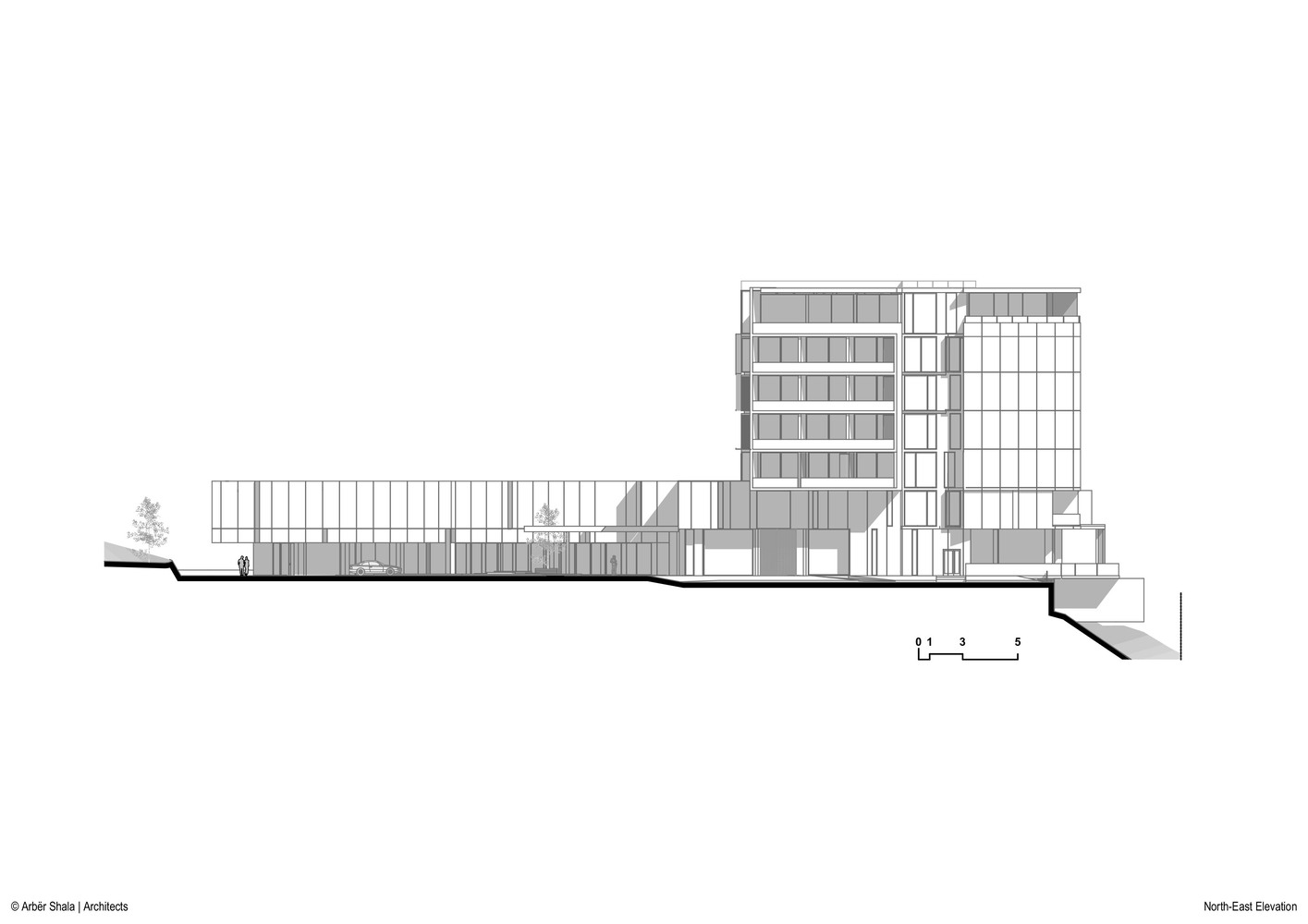

Elevation - Northeast
Lakeside Hotel, Spa & Conference

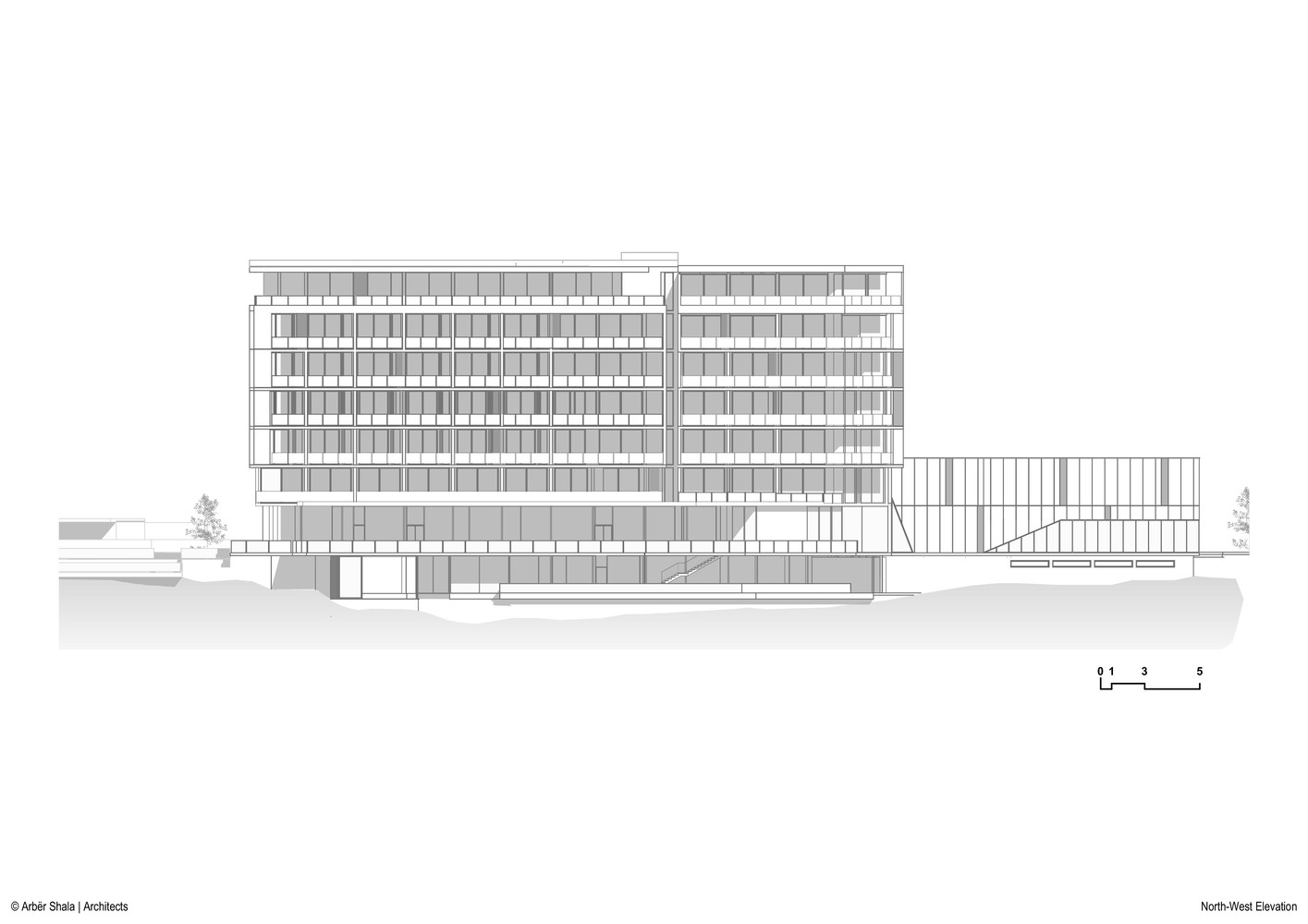

Elevation - Northwest
Lakeside Hotel, Spa & Conference

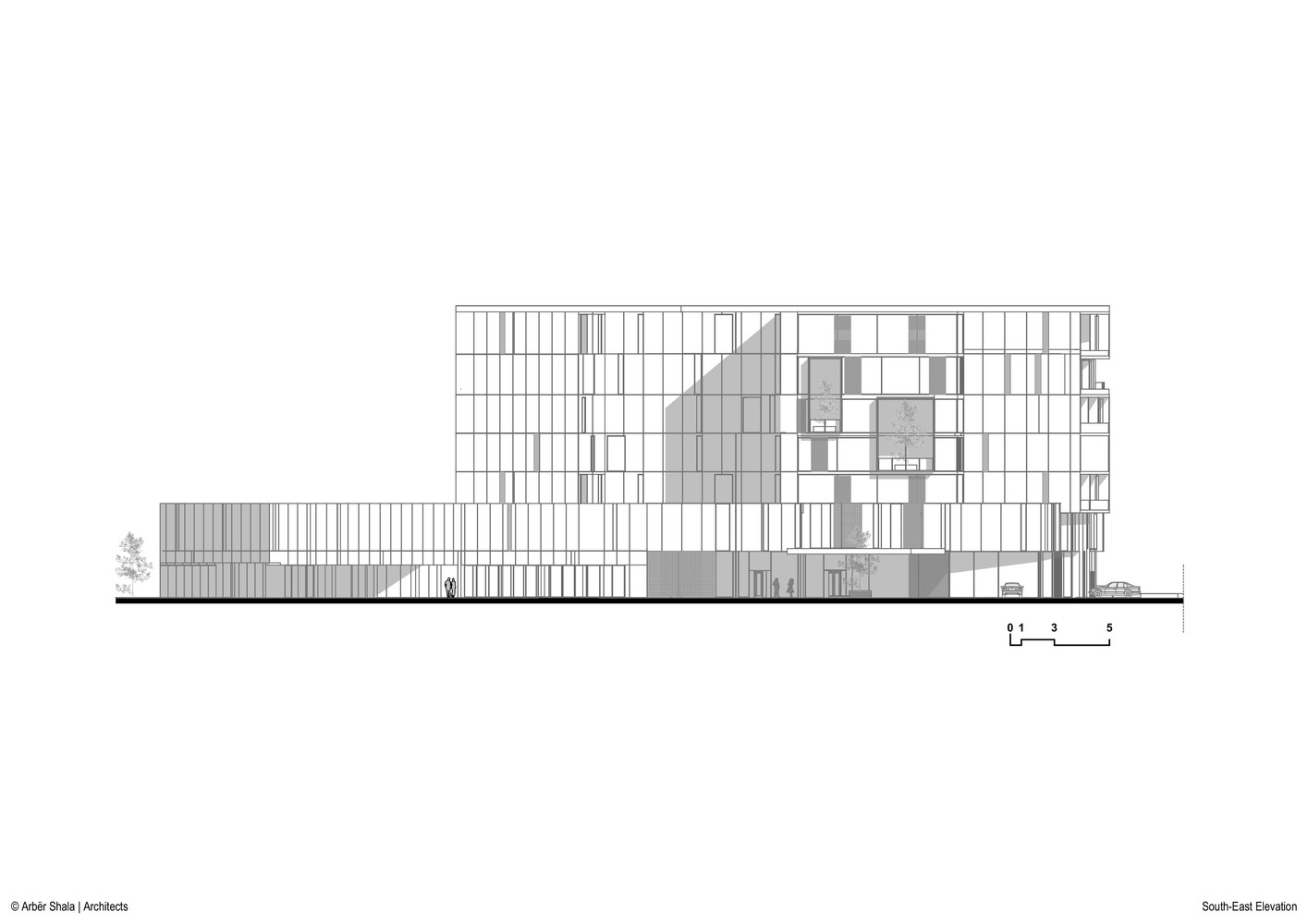

Elevation - Southeast


Lakeside Hotel, Spa & Conference

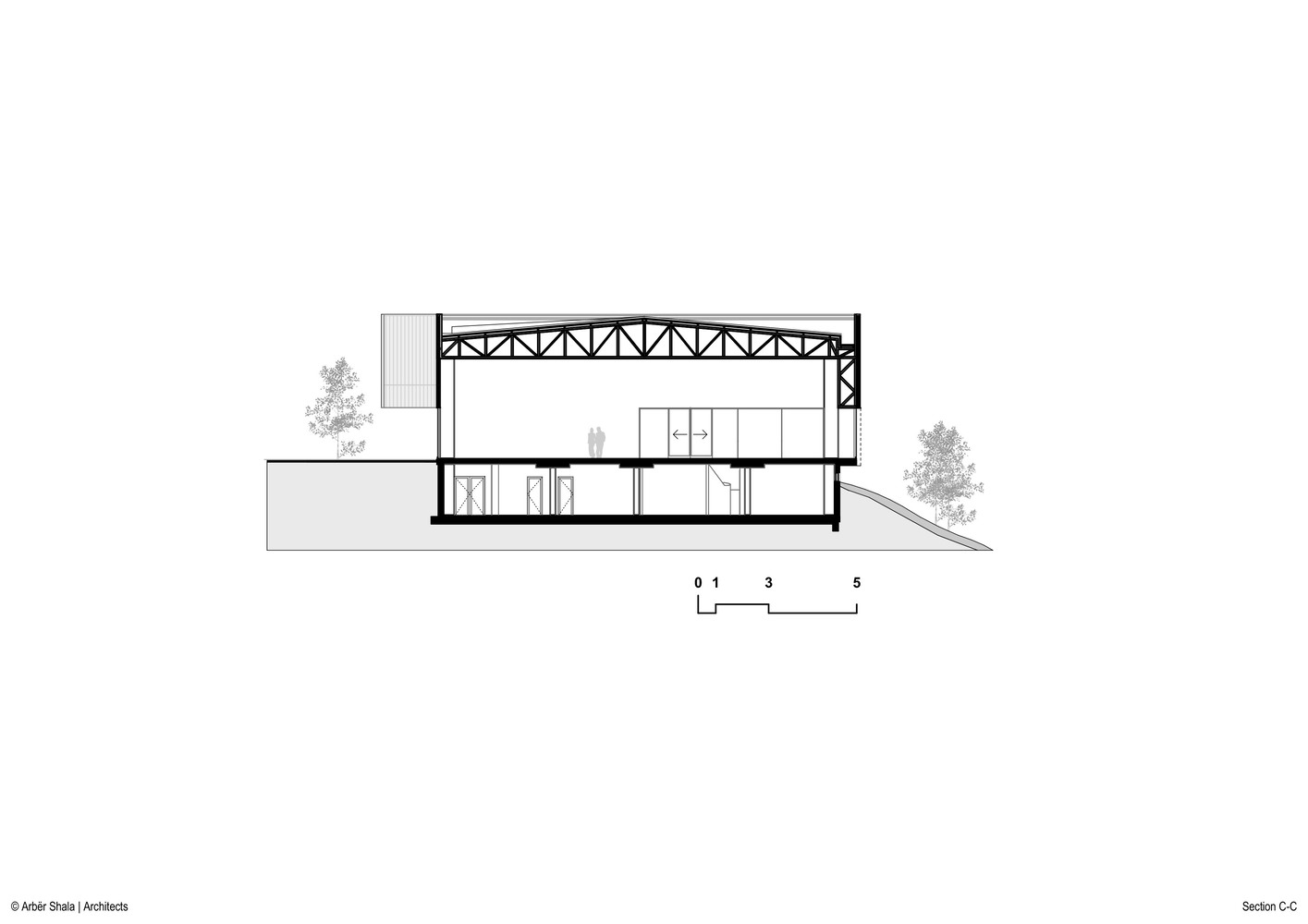

Section - CC
Lakeside Hotel, Spa & Conference

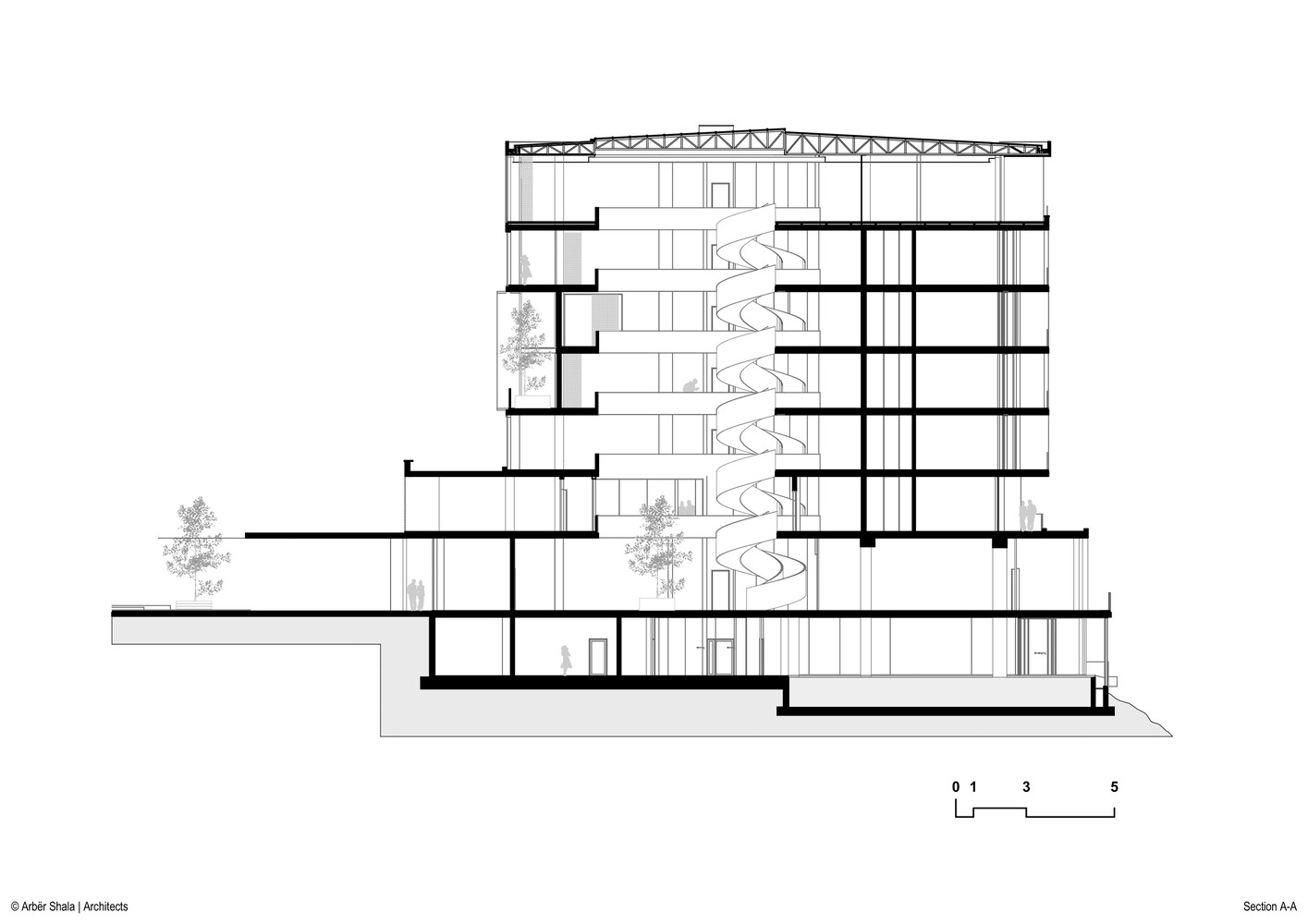

Section - AA
Lakeside Hotel, Spa & Conference

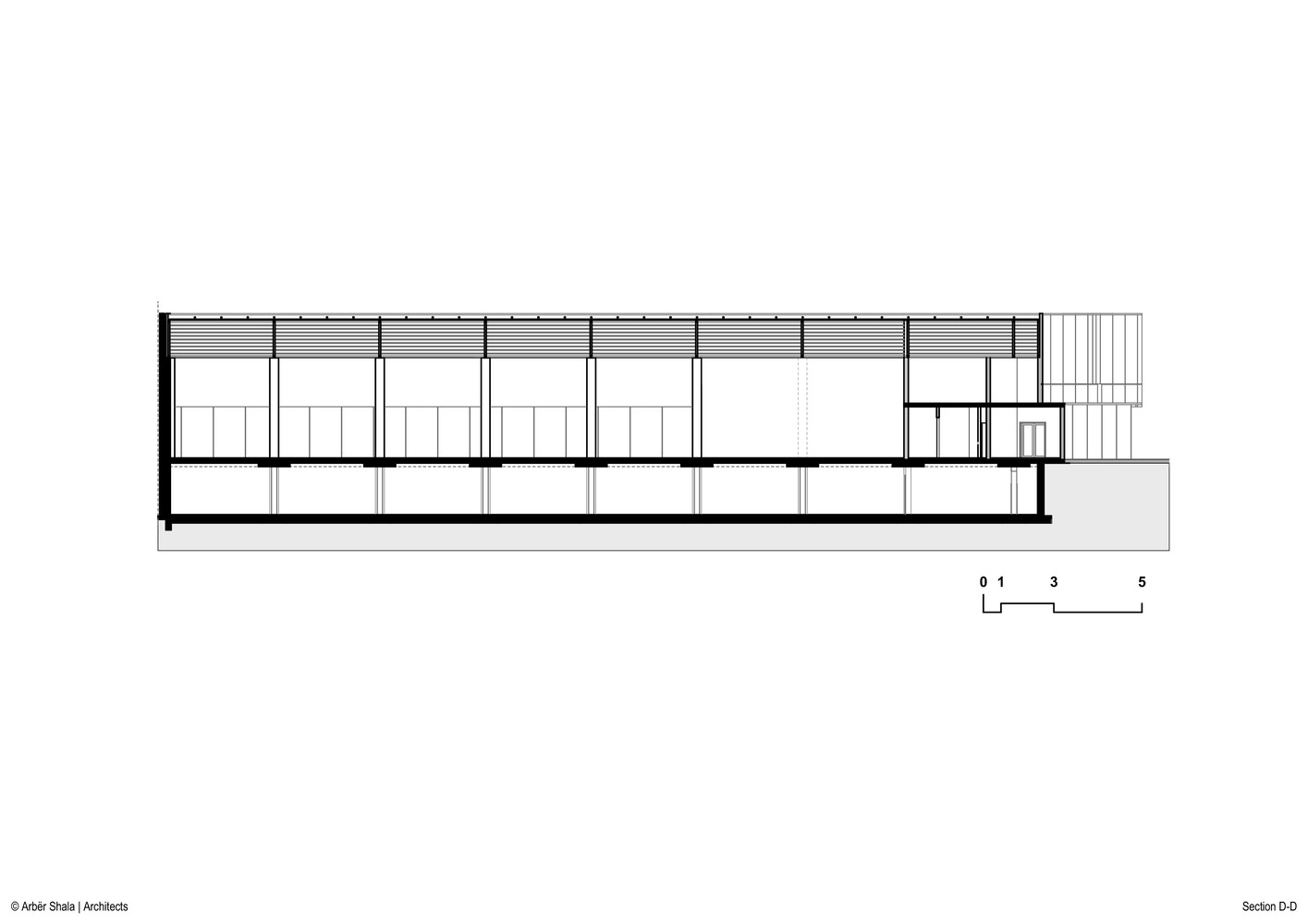

Section - DD
Lakeside Hotel, Spa & Conference

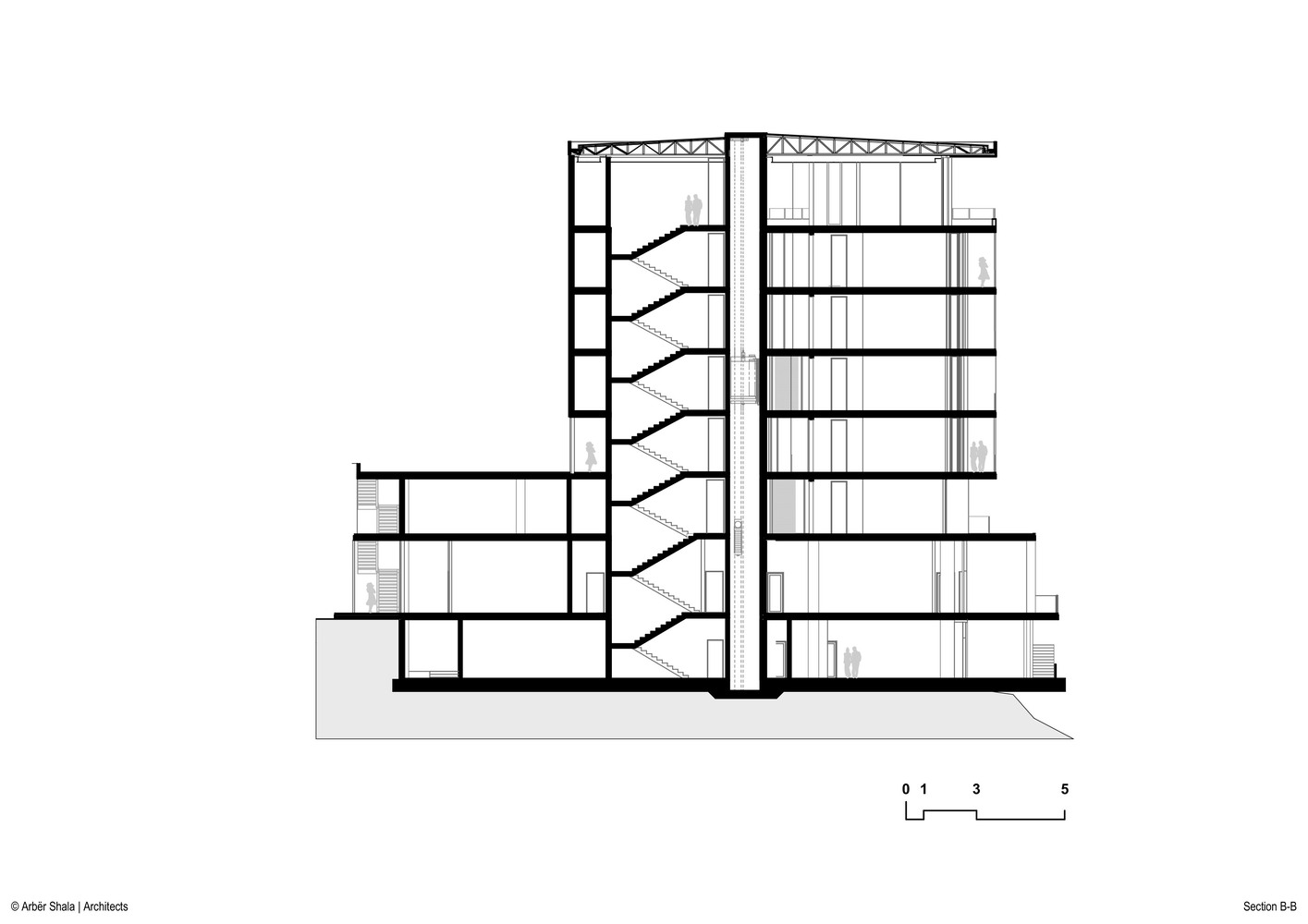

Section - BB


Lakeside Hotel, Spa & Conference

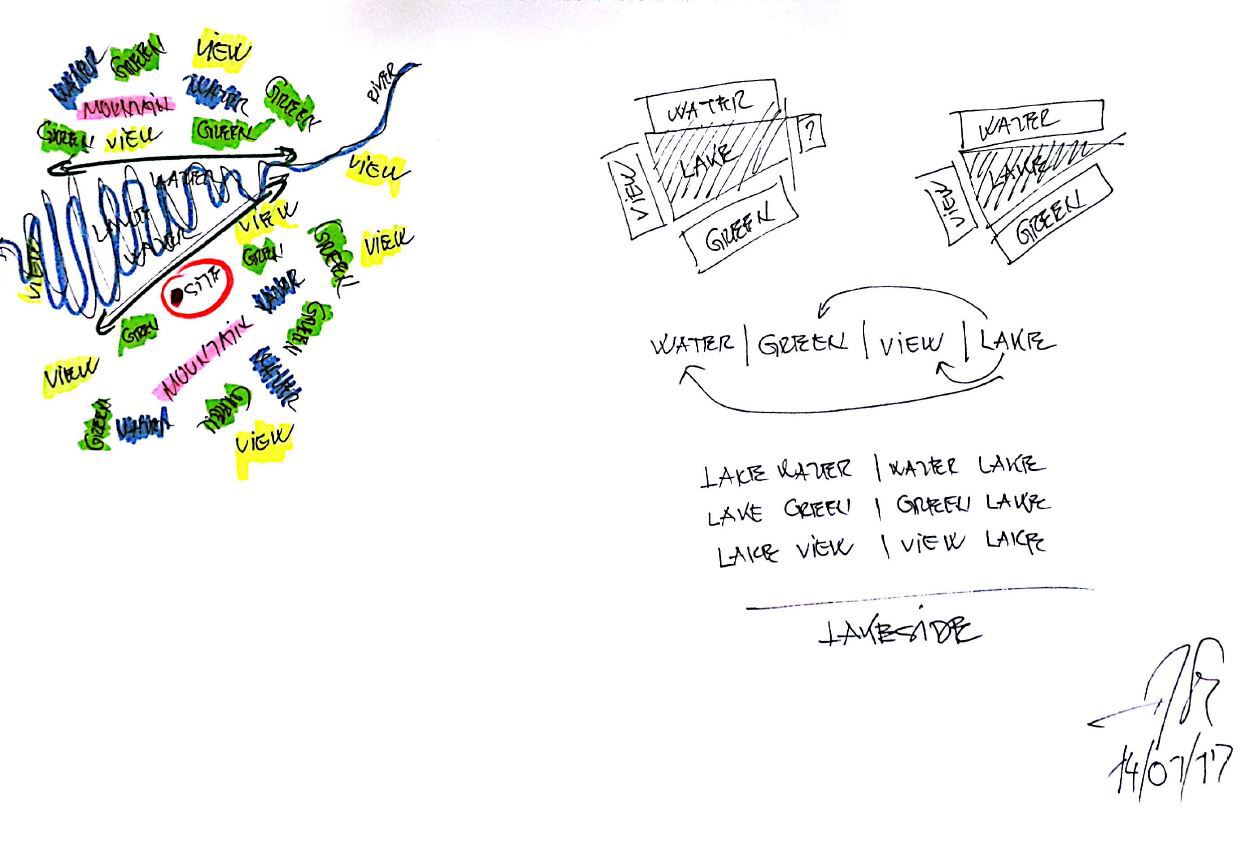

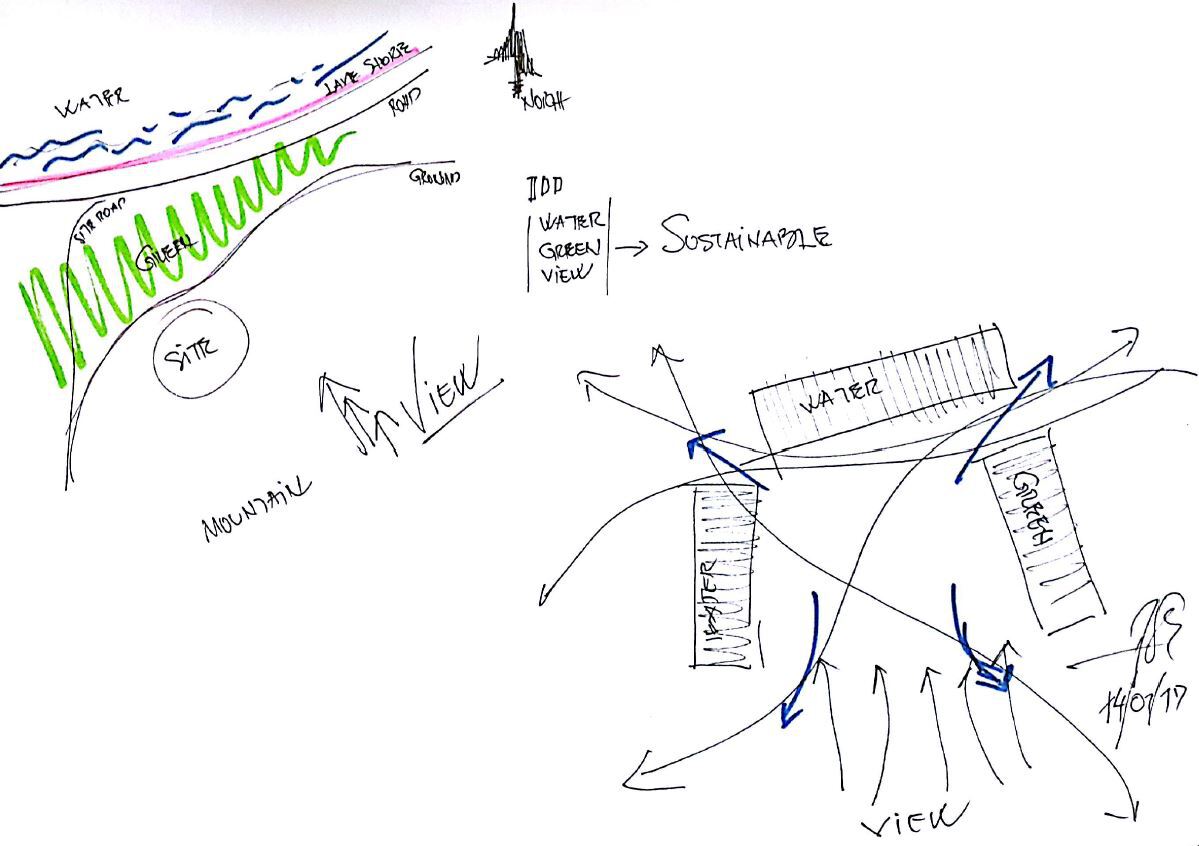

Diagrama
Lakeside Hotel, Spa & Conference

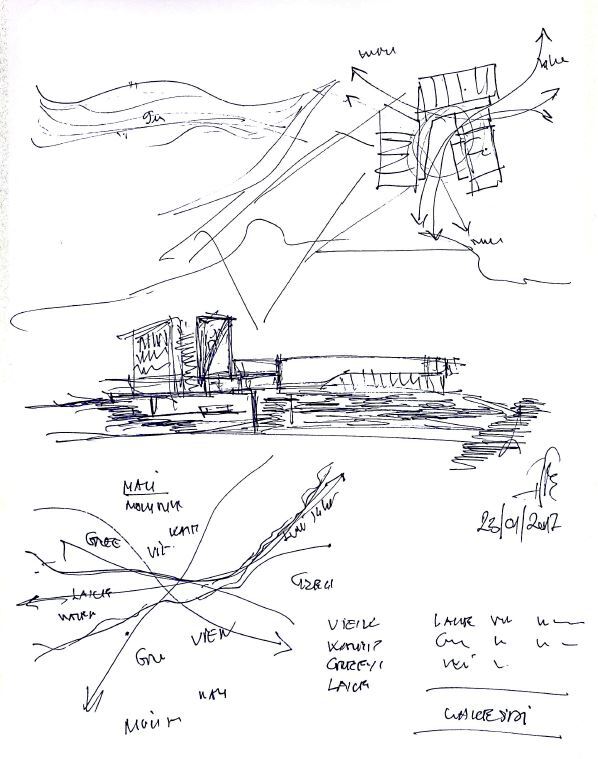

Diagrama
Lakeside Hotel, Spa & Conference
Diagram

Lakeside Hotel, Spa & Conference
Diagram


Lakeside Hotel, Spa & Conference

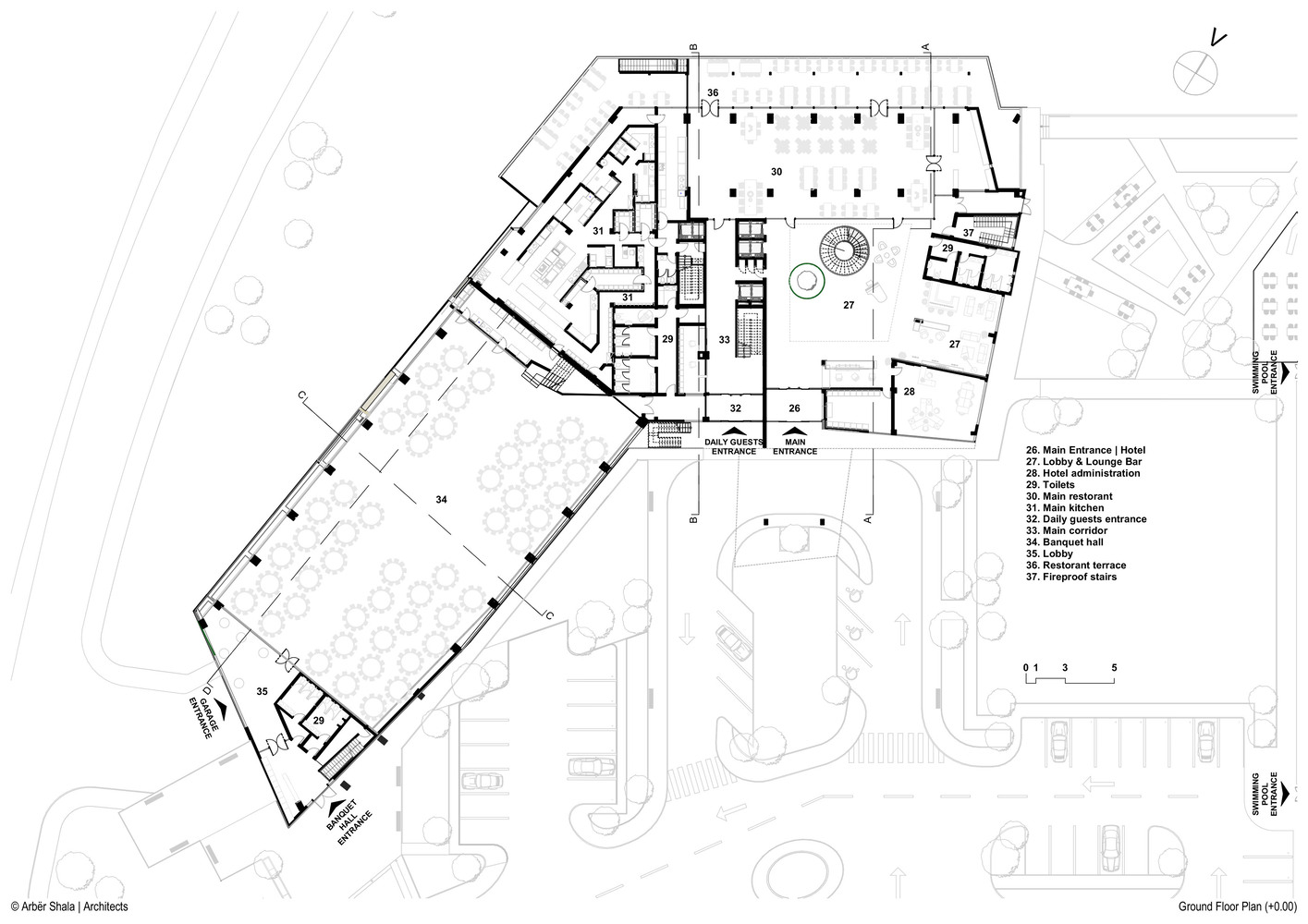

Plan - Ground floor
Lakeside Hotel, Spa & Conference

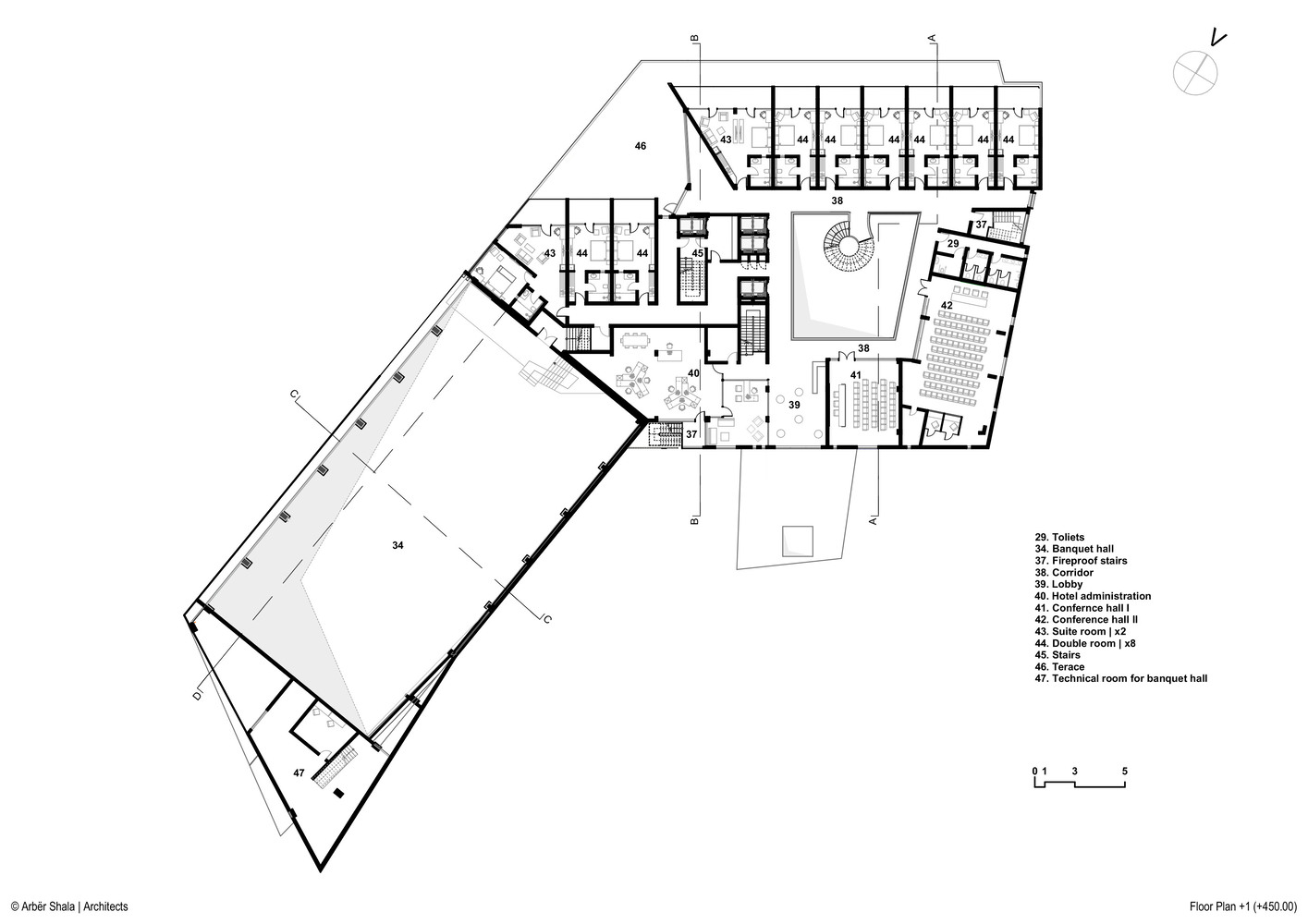

Plan - First floor
Lakeside Hotel, Spa & Conference

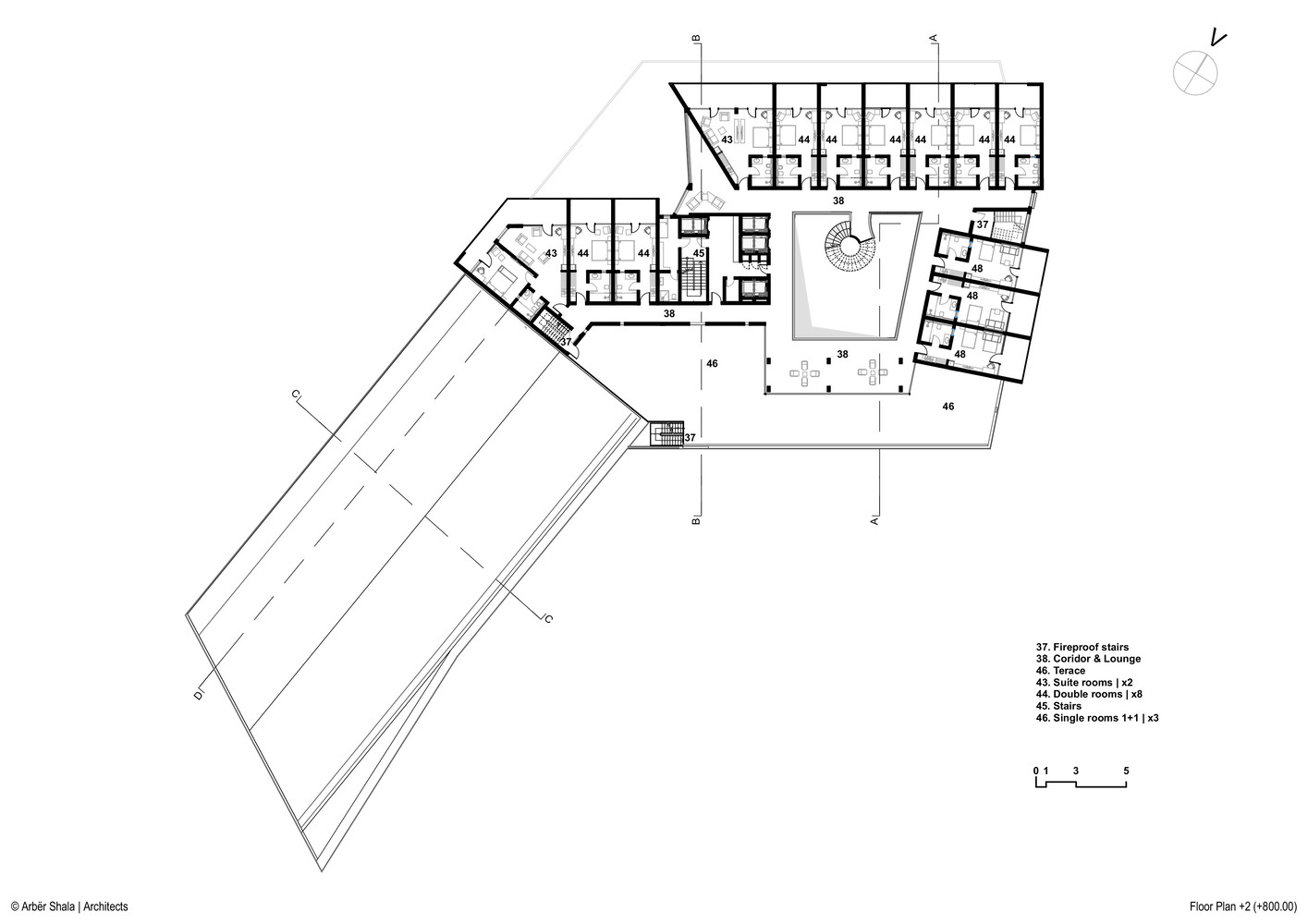

Plan - Second floor
Lakeside Hotel, Spa & Conference

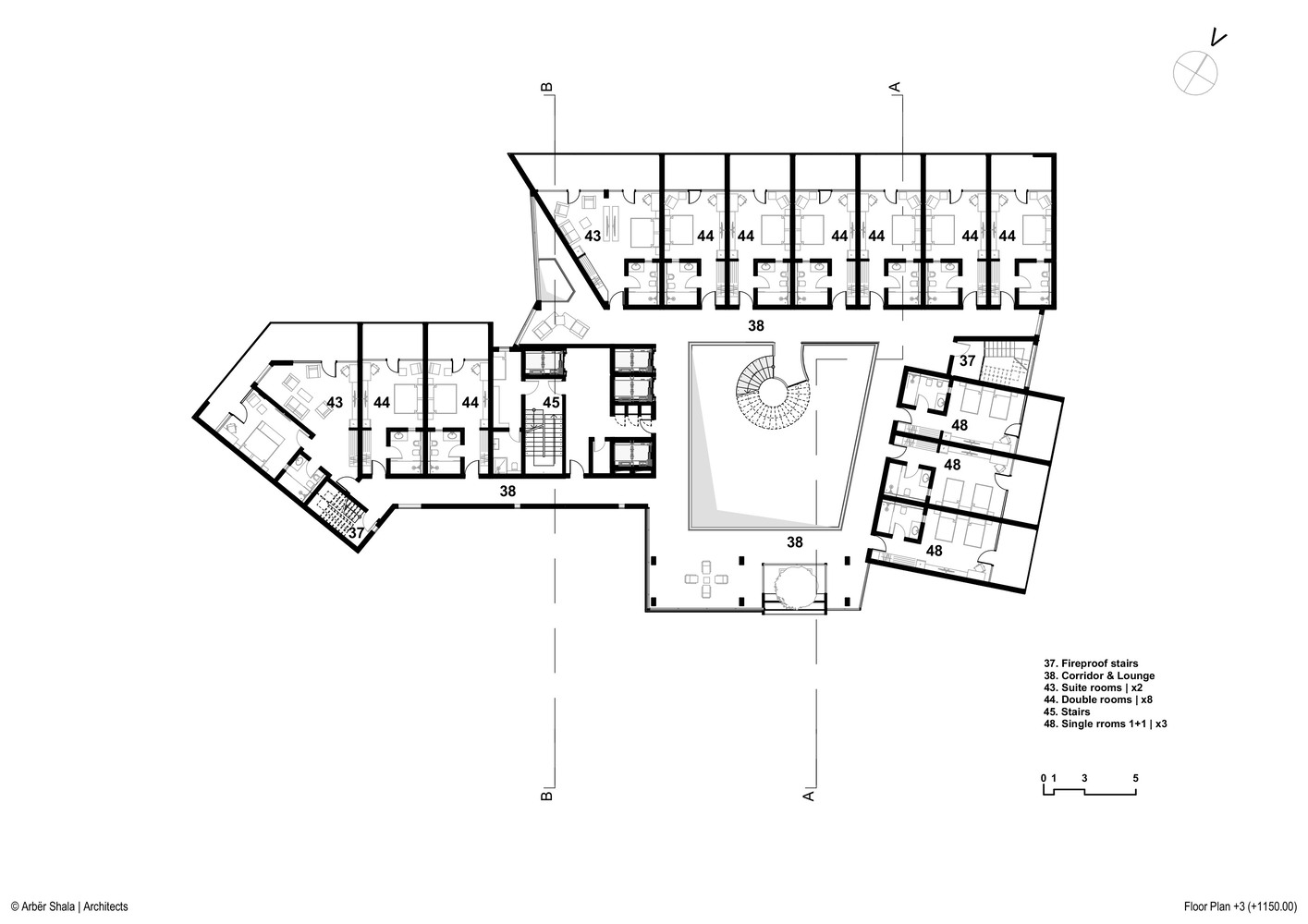

Plan - Third floor
Lakeside Hotel, Spa & Conference
Plan - Fourth floor
Lakeside Hotel, Spa & Conference

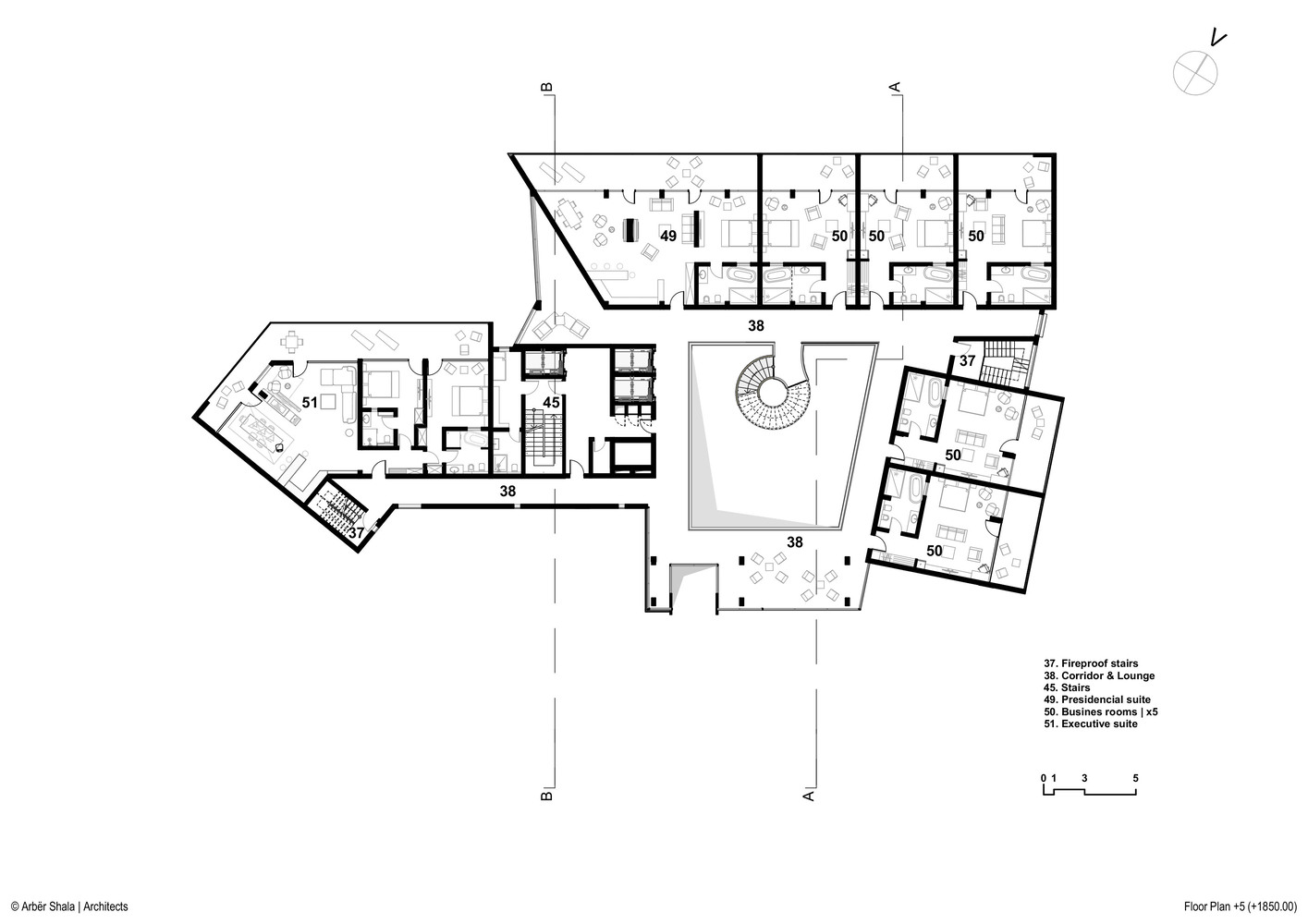

Plan - Fifth floor
Lakeside Hotel, Spa & Conference

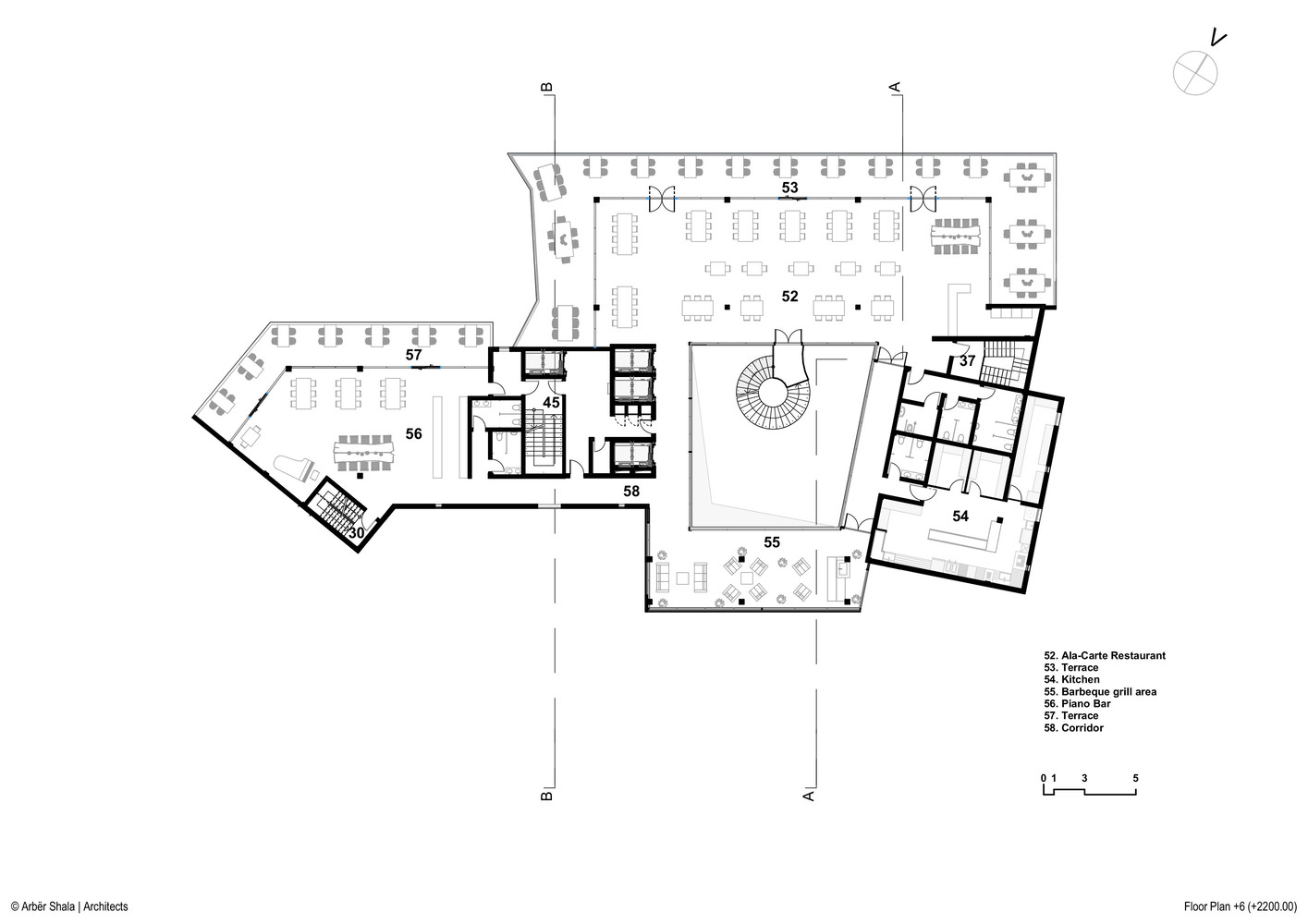

Plan - Sixth floor
Lakeside Hotel, Spa & Conference

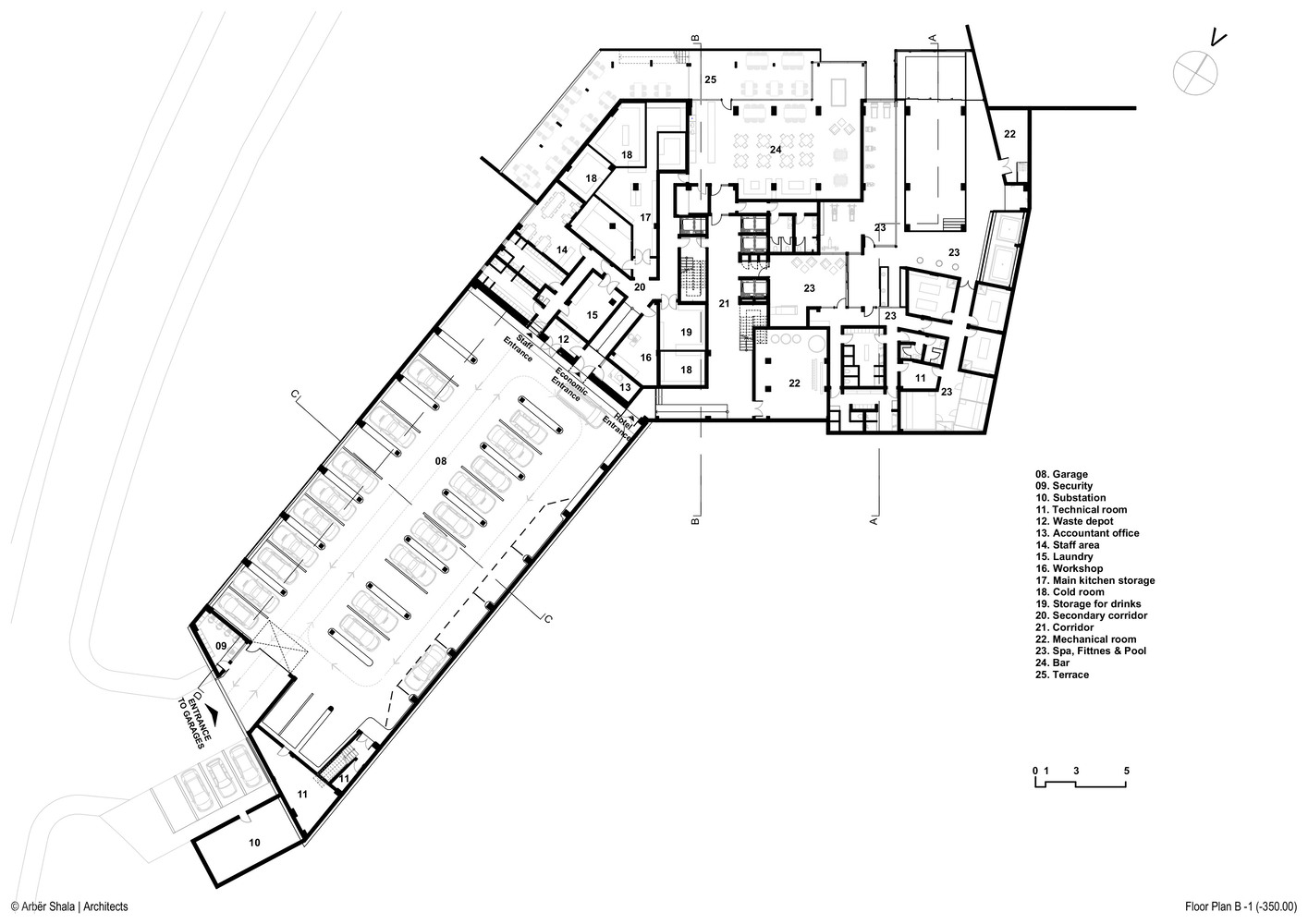

Plan - First basement
Lakeside Hotel, Spa & Conference

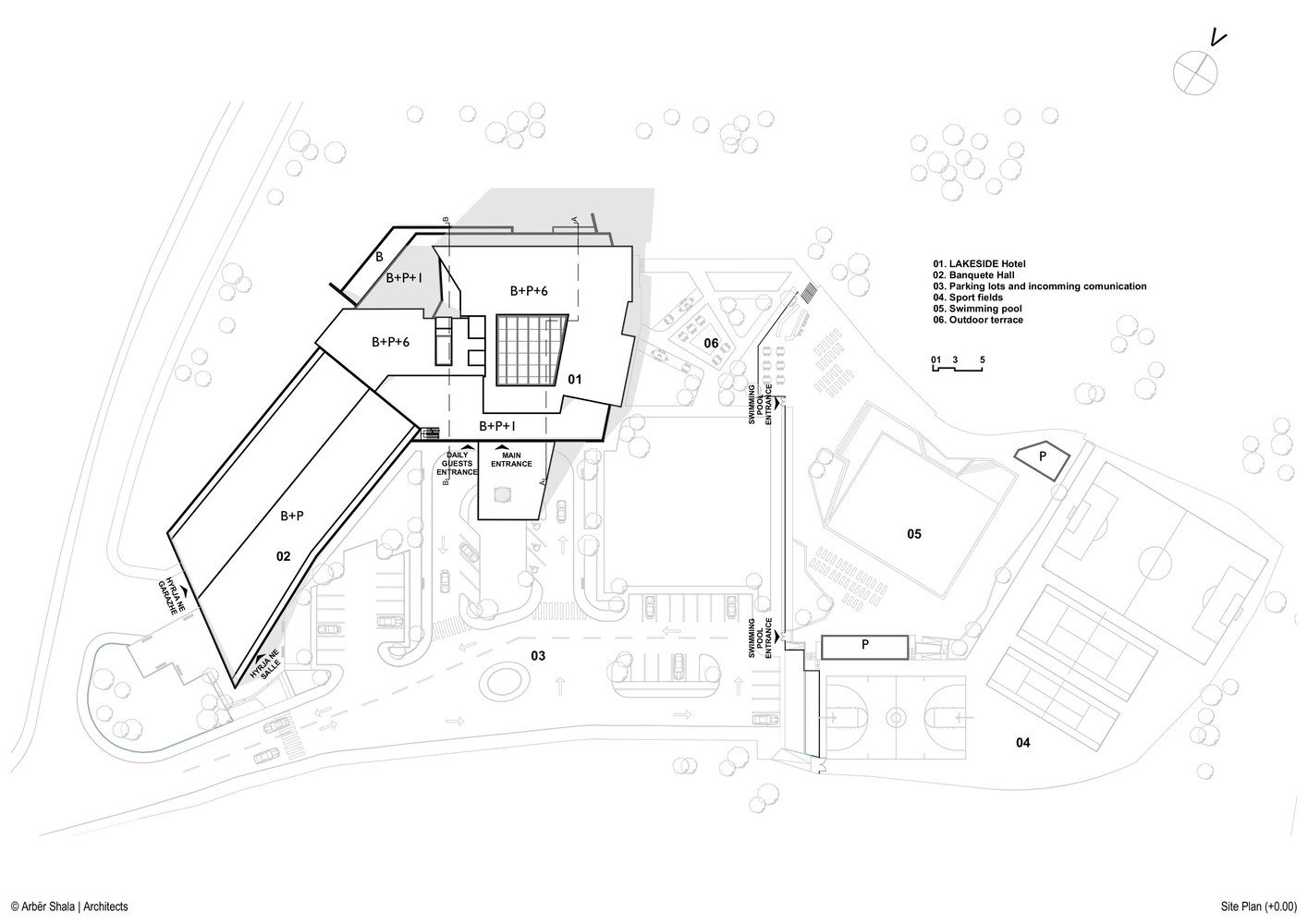

Plan - Site
