Spasm Design Architects

Shri Khimji Ramdas Kanya Vidhyalay Science Lab

Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah

SHRI KHIMJI RAMDAS KANYA VIDHYALAY SCIENCE LAB

SPASM Design Architects

PAINTING AND POLISHING
Chandra Shekhar Nishad

YEAR
2020

CARPENTRY
Crafters

AREA
9450 ft²

CATEGORY
Educational Architecture, Other Facilities

STRUCTURAL CONSULTANT
Rajeev Shah, Deepak Soni

DESIGN TEAM
Sangeeta Merchant, Sanjeev Panjabi, Divyesh Kargathra, Mansoor Kudalkar, Nafees Ansari, Tanvi Joshi.

PHOTOGRAPHS
Umang Shah

CONTRACTOR
Mohammad Chaki

LOCATION
Mandvi, India

Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah

Text description provided by architect.

Our patrons, for whom we have designed and built two homes, come from Mandvi.

Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah

The family has excelled in their business ventures and has been carrying out many philanthropic activities in and around the region.

This particular project is the construction of laboratory facilities for girl students of 12th grade.

The idea was, to save the one tree which stands on the very tight, difficult to access site.

Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah

We saw this as a tremendous opportunity, a project where some scientific principles can be integrated into the build itself.

The method of construction chosen was steel box sections as unit members all to a 1200mm grid, cut welded and assembled after delivery to site as a kit of parts.

Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah

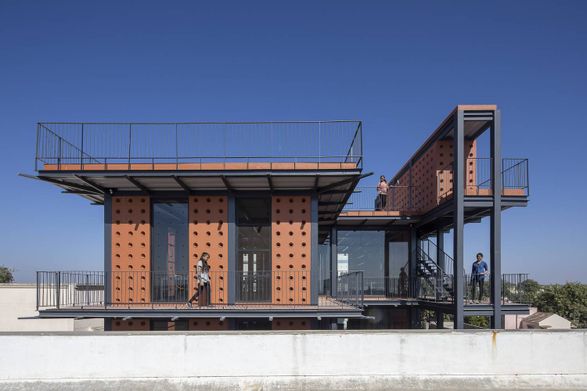

The labs will be column free and the entire outer shell is thin steel framing and walls with terracotta cones, made by a local potter community.

The idea is to make the labs well lit, yet comfortable in terms of temperature, through evaporative cooling by suspending wet Khus reed Matts and green climber screens.

Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
© Umang Shah

The Venturi effect of the breezes flowing through the terracotta cone walls, will add to the natural cooling of all levels. Solar panels will produce supplemental power and hot water power for evening lighting and lab needs.


Shri Khimji Ramdas Kanya Vidhyalay Science Lab
Plan - Ground floor
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
Plan - First floor


Shri Khimji Ramdas Kanya Vidhyalay Science Lab
Plan - Terrace floor
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
Section - AA


Shri Khimji Ramdas Kanya Vidhyalay Science Lab

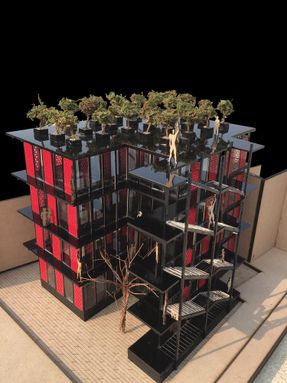

Model
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
Model
Shri Khimji Ramdas Kanya Vidhyalay Science Lab
Sketch
