Shanghai Xuhui District Public Opening Space Building No. C

Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian

SHANGHAI XUHUI DISTRICT PUBLIC OPENING SPACE BUILDING NO. C

TM Studio

ARCHITECTS
TM Studio

LEAD ARCHITECTS
Ming Tong

CONSTRUCTION CONTRACTOR
Shanghai Yongyi Architectural Decoration Engineering Co. Ltd.

PROJECT ARCHITECTS
Xiaoying Huang, Guang Ren

PROJECT TEAM
Liuxin Yang, Chao Xie

STRUCTURAL DESIGN
Ding Li

ELECTRONIC DESIGN
Xiaoxue Wang

HVAC DESIGN
Huai Wang

PLUMBING DESIGN
Jinqiu Zhou

COLLABORATORS
SDDG

EDITORS
Yao Jiang, Lianhan Huang, Xiaoying Huang (managing editor)

THE CLIENT
Shanghai Xuhui Binjiang Development Investment Construction Co.,Ltd.

PHOTOGRAPHS
Fangfang Tian

AREA
332 m²

YEAR
2020

LOCATION
Shanghai, China

CATEGORY
Public Space, Landscape Architecture

Text description provided by architect.

The project is located at 2900 Longteng Avenue, Xuhui District, Shanghai, as part of the Xuhui District public opening space developments and the Shui’an Hui public services. Our project aims to modify and soften the current site, as well as to emphasize the connections between the building and open spaces, creating one more public space for the Xuhui riverside area in terms of ordinary everyday life.

Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian
Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian

The client wants to maintain the original building area and the three differentiated spaces in terms of this regeneration project, energizing existing forgotten spaces and developing more associated functions, as well as the surroundings, to better the site’s accessibility and citizens’ everyday life.

According to the site investigation and our observations and understandings of ordinary everyday life, we conclude three major issues for this project: 1) Based on the flood-control standards, the original site is enclosed by glass barriers, being separated from the riverside trail.

Shanghai Xuhui District Public Opening Space Building No. C
Aerial view of the project.. Image © Fangfang Tian
Shanghai Xuhui District Public Opening Space Building No. C

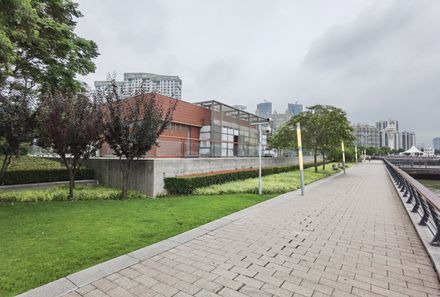

Previous look of the eastern side before regeneration.. Image © Fangfang Tian

The only entrance, also the exit, is on the western side of the site with a considerable height difference, making the site and associated building inaccessible. 2) The two corridors on the western and eastern sides of the public restroom are too narrow to use.

Also, the current spaces make smells and flow two negative elements for the adjacent public service areas. 3) There are three different functional spaces enveloped in the original building – a 142-square-meter public service space on the north, a public restroom in the middle together with a southern substation for about 190 square meters. Thus, the building was in a hybrid form and even messed before this project.

Combining the client’s demands and the aforementioned three major issues, we have developed three associated design approaches for this project to adjust the negative influences of the current site upon the dynamic riverside area, making it closer to the public everyday life and creating positive impacts for following usages of the site.

SOFTEN THE SITE AND MODIFY THE CIRCULATIONS.

Paired with the management requirements of municipal facilities, the project opens part of the eastern enclosed barriers with the maintenance of original flood-control elevation, especially those right to the northern public service space, re-connecting the two separated circulations at two different levels.

Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian
Shanghai Xuhui District Public Opening Space Building No. C

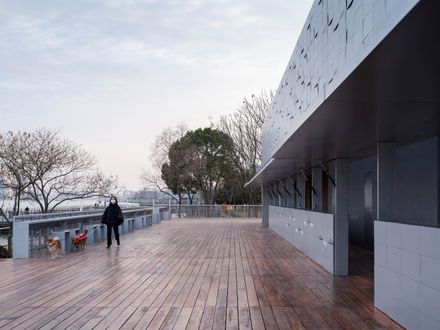

The semi-public corridor, movable panels, public stools and mesa side tables.. Image © Fangfang Tian

Also, the project lifts the whole site to make it more accessible in terms of its original western entrance/exit. Therefore, the previously stuck public circulations can flow throughout both the site itself and its surroundings. Citizens have more flexibility, and more site-based functional demands could be satisfied, as well as the northern public service space. From this point of view, the regenerated site is able to meet a variety of public socio-cultural scenes.

RE-ORGANIZE THE BUILDING AND DEVELOP MORE PUBLICITY.

The project re-organizes the existing two narrowed corridors, moving the western one to the east for a combined wider semi-public corridor without changing the original building area to facing the Huangpu River, but solving the two negative spaces.

Shanghai Xuhui District Public Opening Space Building No. C
A close look of the eastern facade.. Image © Fangfang Tian
Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian

Accordingly, the wider corridor could not only make the circulation more efficient but also meet the needs of more ordinary everyday life. Noting more and more people will be visiting this site, the project also re-organizes the middle public restroom.

The semi-corridor is equipped with movable panels to weaken the boundary between interiors and exteriors, and also to provide the public with sightseeing frames to enjoy the great landscape of the Huangpu River. Additionally, the project replaces the glass barriers with metal-perforated mesh panels and adjacent stools and mesa side tables for the public to rest, chat, and enjoy the cool wind and fantastic sceneries.

Shanghai Xuhui District Public Opening Space Building No. C
The public sightseeing frame within the semi-public corridor.. Image © Fangfang Tian

ABSTRACT EXPRESSIONS AND THE LONG-LOST VITALITY.

The project redesigns the facade of the existing building to bring the three distinctive languages into one. With the existing outer structures and the development consideration of the Xuhui Riverside Area in general, the project envelops the three volumes with an abstract and de-symbolized facade to make the building more recognizable, thus, bringing back more visitors and the associated long-lost vitality.

In addition, the abstract pattern language and the reasonable curve make the building a breath one and the site a vital public space. At night, the particular lighting design distinguishes the building with the help of its facade patterns.

Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian

For this project, in addition to the physical architectural spaces, we pay more attention to the spatial-related activities and associated ordinary everyday life in terms of the abstract and de-symbolic context of the Xuhui Riverside Area. The key principle that we hold for this project is how to soften the existing negative site to make it serve the public’s ordinary everyday life.

In conclusion, the regenerated project has developed a continuous sense of publicity, starting from the more accessible western entrance/exit, to the semi-public corridor, to the partially opened metal-perforated mesh panels, finally to the wooden steps which connect with the riverside trail.

Shanghai Xuhui District Public Opening Space Building No. C
© Fangfang Tian
Shanghai Xuhui District Public Opening Space Building No. C
Night view of the project.. Image © Fangfang Tian

Accordingly, our design eliminates the negative influences that the existing site made upon the dynamic riverside space, bringing diverse ordinary everyday life back to the public and providing the Xuhui riverside public opening space developments and the Shui’an Hui public services with vigor and vitality.


Shanghai Xuhui District Public Opening Space Building No. C
Comparisons before and after regeneration. Image Courtesy of TM Studio
Shanghai Xuhui District Public Opening Space Building No. C
Process analytical. Image Courtesy of TM Studio


Shanghai Xuhui District Public Opening Space Building No. C

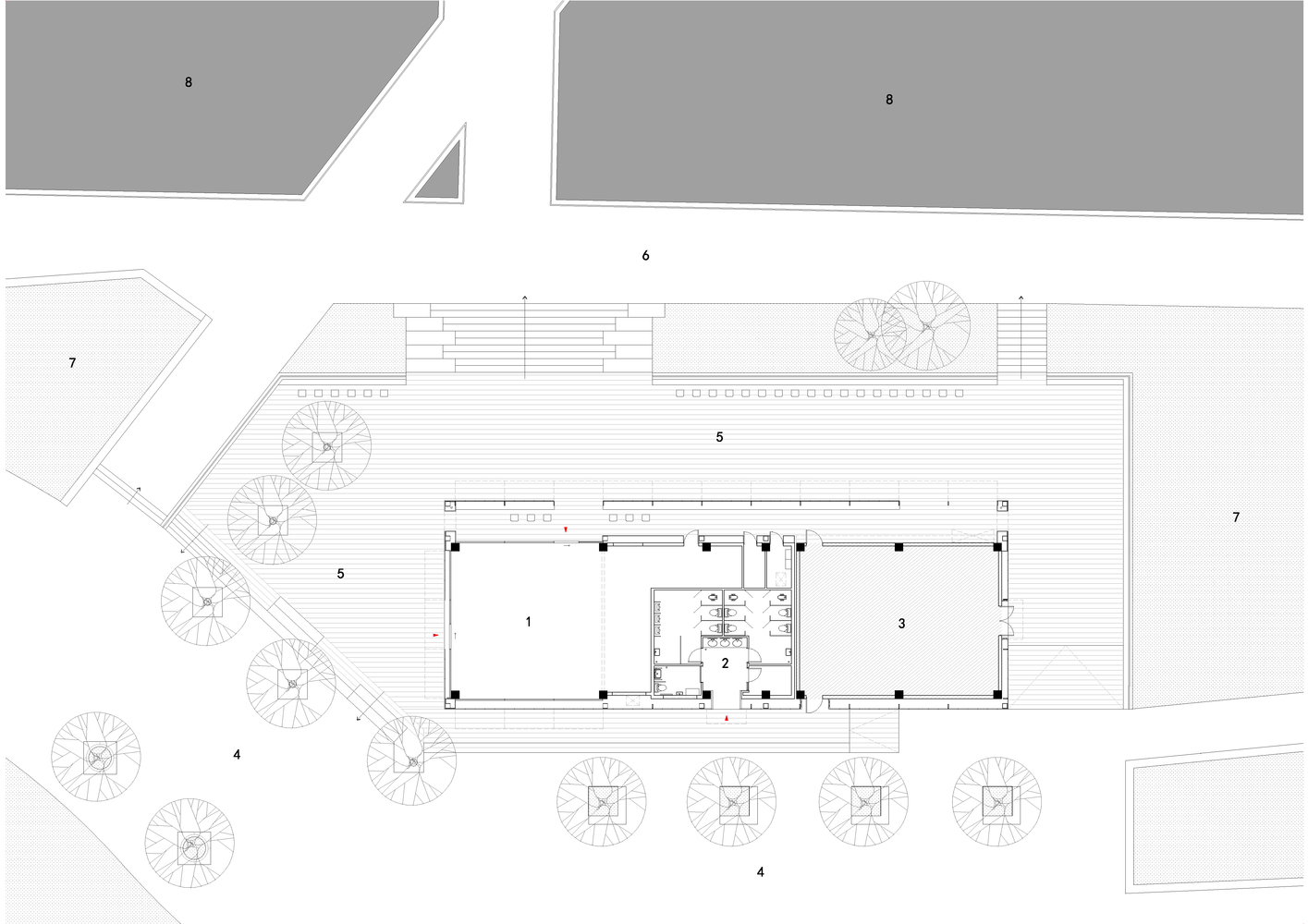

Plan
Shanghai Xuhui District Public Opening Space Building No. C
Plan


Shanghai Xuhui District Public Opening Space Building No. C

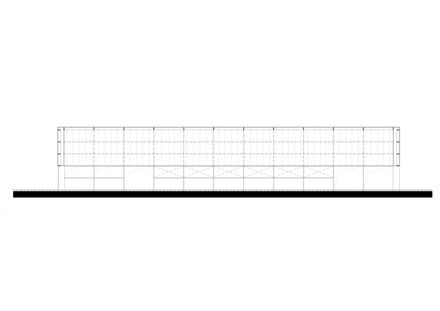

Elevation
Shanghai Xuhui District Public Opening Space Building No. C
Elevation


Shanghai Xuhui District Public Opening Space Building No. C

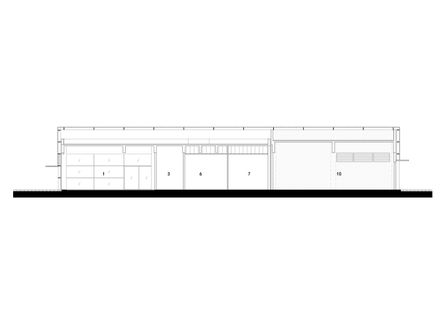

Section
Shanghai Xuhui District Public Opening Space Building No. C
Section
Shanghai Xuhui District Public Opening Space Building No. C
Section
