MINIMAL HOUSES

 APS/ Pablo Senmartin arquitectos

LEAD ARCHITECTS
Pablo Senmartin

CLIENTS
Marcos, PAIRONE

COLLABORATORS
Barioglo Celina, Abdala Valeria, Molla Abril, Simón Martinez Ludmila, Rosales Florencia Victoria

AREA
320 m2

ENGINEERING
Enrique Senmartin

MANUFACTURERS
AutoDesk, Adobe, Comercial, FV, Geotecnia, Hormigones Terra, Palmar, Quimex, Terralon, ferrum

YEAR
2020

CATEGORY
Houses

LOCATION
Córdoba, Argentina

Text description provided by architect.

The western periphery of the city of Córdoba is witness to new neighborhoods, preferably chosen by young families or single people, who seek to get away from the complexity of urban concentration, amidst growing areas and canals still in operation.

Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte

In this context of economic and social difficulties, the minimum house with a patio emerges as a valid alternative for those who leave their homes at a height due to the need to access their own outdoor space.

4 minimum homes were developed, with a contractive cost of 290USS per m2.

Each one has its own area of 82m2, and a land area of 150m2. The challenge was to find environmental qualities and spatial qualities in the use of traditional materials that were offered by the owners for the construction of the project.

Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte

The main façade is exposed to the West, which is why it receives very intense solar radiation in the afternoon during most of the year, for this reason, a retreat of 8 m with respect to the sidewalk allows generating a common interaction and parking space for 2 vehicles that is protected by a metallic structure that stretches a translucent membrane.

A double concrete block screening wall protects the façade and a bed between both walls will allow vegetation to reinforce climate control.

Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte

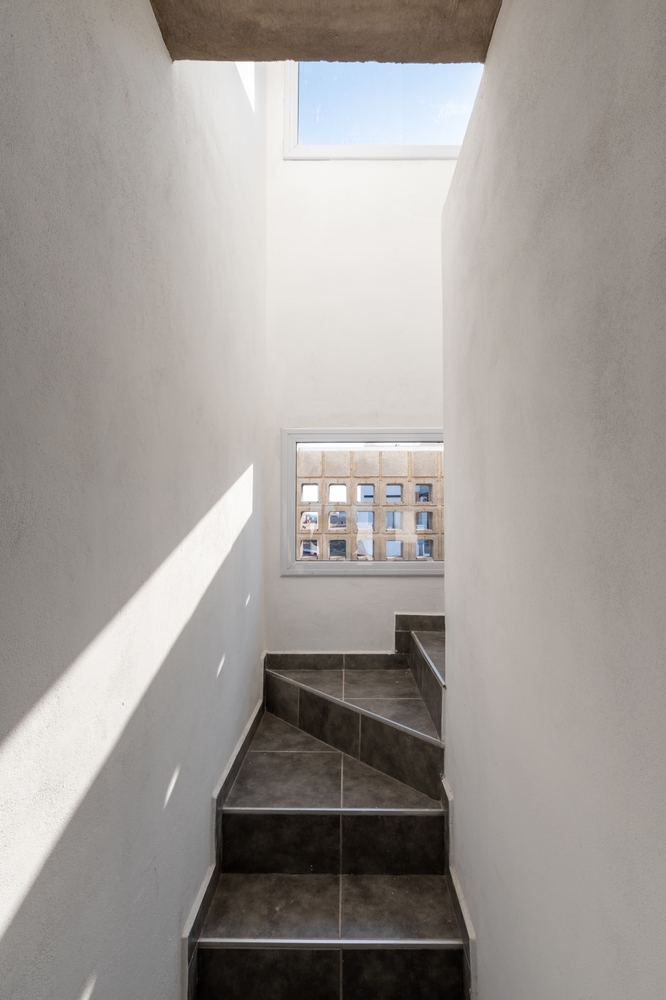

The entrance doors are deep. The interior spaces are very simple, and integrated into the ground floor with a strong connection to the patio. The upper floor is adaptable to 1-2-3 rest or work spaces according to occasional use.

The pure white of the volumes reflects the sun and gives the minimal dwellings an identity and changing image through the lights and leftovers.

Minimal Houses
© Gonzalo Viramonte


Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte


Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte
Minimal Houses
© Gonzalo Viramonte


Minimal Houses

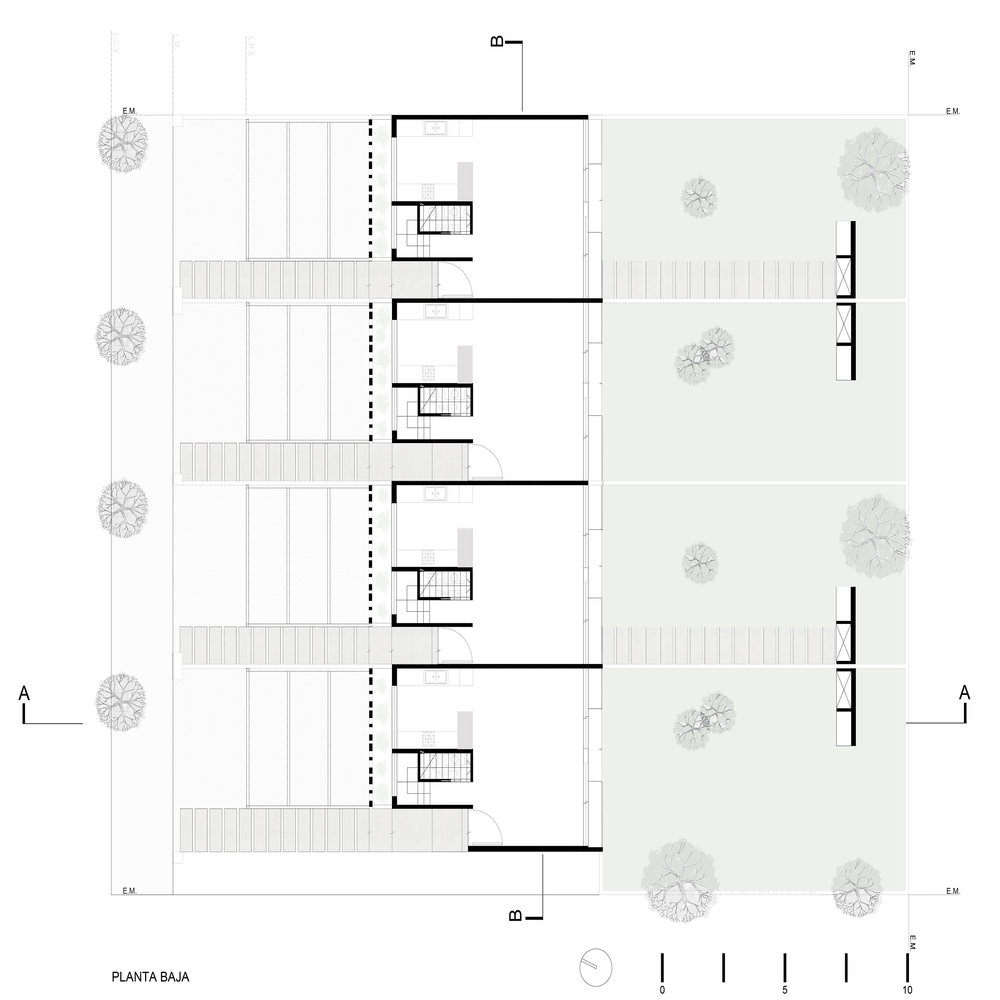

Ground floor plan
Minimal Houses
Upper floor plan


Minimal Houses

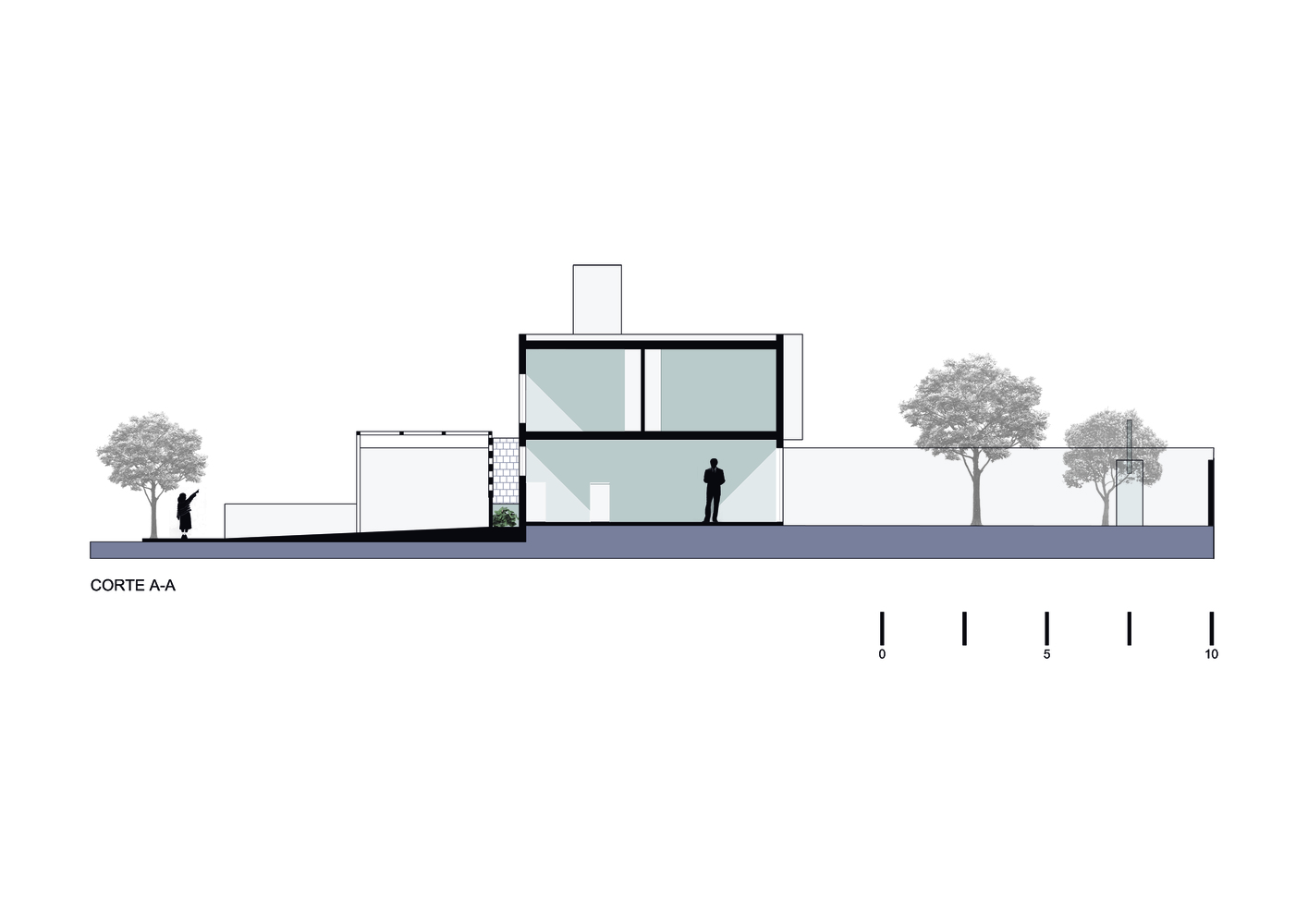

Section AA
Minimal Houses
Section BB
Minimal Houses

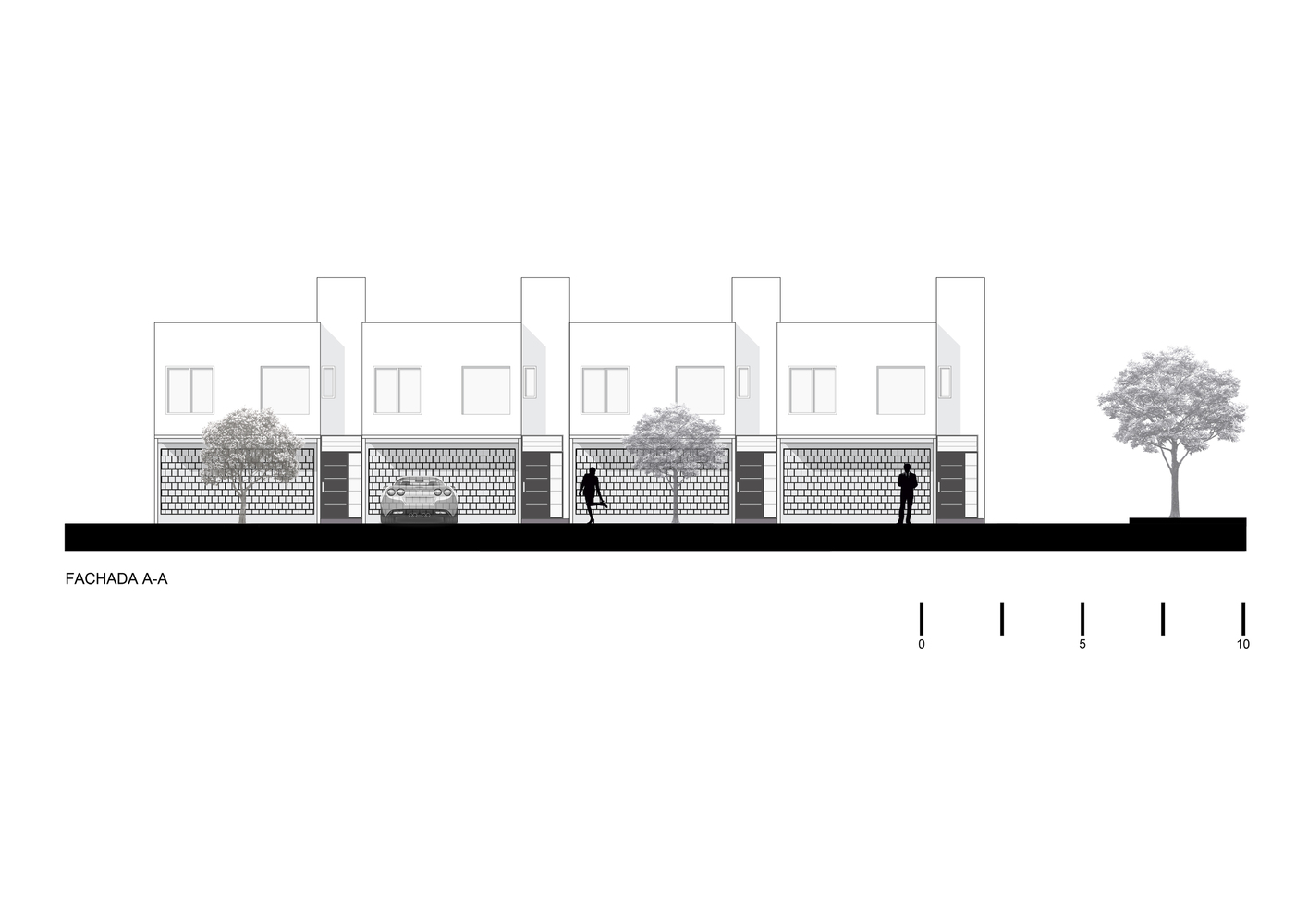

Elevation AA
Minimal Houses

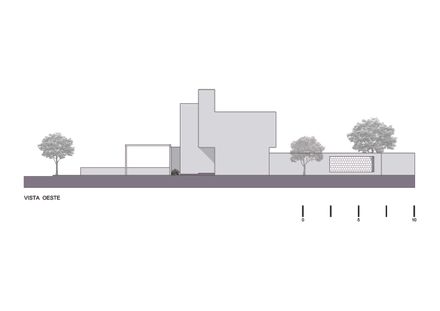

West elevation


Minimal Houses
Sketch
Minimal Houses
Cosntructive detail
