Steven Holl Architects

Winter Visual Arts Building

Winter Visual Arts Building
© Paul Warchol

WINTER VISUAL ARTS BUILDING

Steven Holl Architects

CATEGORY
Gallery, University

LOCATION
Lancaster, United States

AREA
33000 ft²

YEAR
2020

PHOTOGRAPHS
Paul Warchol

PROJECT MANAGER
Casali Group, Thomas Murray and Franklin, Marshall College, Sheldon Wenger, Inc

LIGHTING CONSULTANTS
L'Observatoire International

CLIMATE ENGINEERS
Transsolar

MANUFACTURERS
WACOTECH

CIVIL ENGINEERS
David Miller Associates

ACOUSTICAL CONSULTANTS
Harvey Marshall Berling Associates

LANDSCAPE ARCHITECTS
Hollander Design

MEP ENGINEERS
ICOR Associates

STRUCTURAL ENGINEERS
Silman

POOL CONSULTANTS
Aqua Design International

PARTNER IN CHARGE
Chris McVoy

FAÇADE CONSULTANTS
Knippers Helbig

PROJECT ARCHITECT, SENIOR ASSOCIATE
Garrick Ambrose

ASSISTANT PROJECT ARCHITECT
Carolina Cohen Freue

DESIGN ARCHITECT PRINCIPAL
Steven Holl

PROJECT TEAM
Dominik Sigg, Marcus Carter, Elise Riley, Michael Haddy, Hannah LaSota

Text description provided by architect.

On the historic campus of Franklin & Marshall College, the new Winter Visual Arts Building takes shape as a raised pavilion formed by the site’s 200-year old trees, the oldest elements of the campus.

Winter Visual Arts Building
© Paul Warchol
Winter Visual Arts Building
© Paul Warchol

A new campus destination for all students, the building’s spaces aim to evoke the creative energy involved in teaching and making art.

CREATING A SENSE OF PLACE.

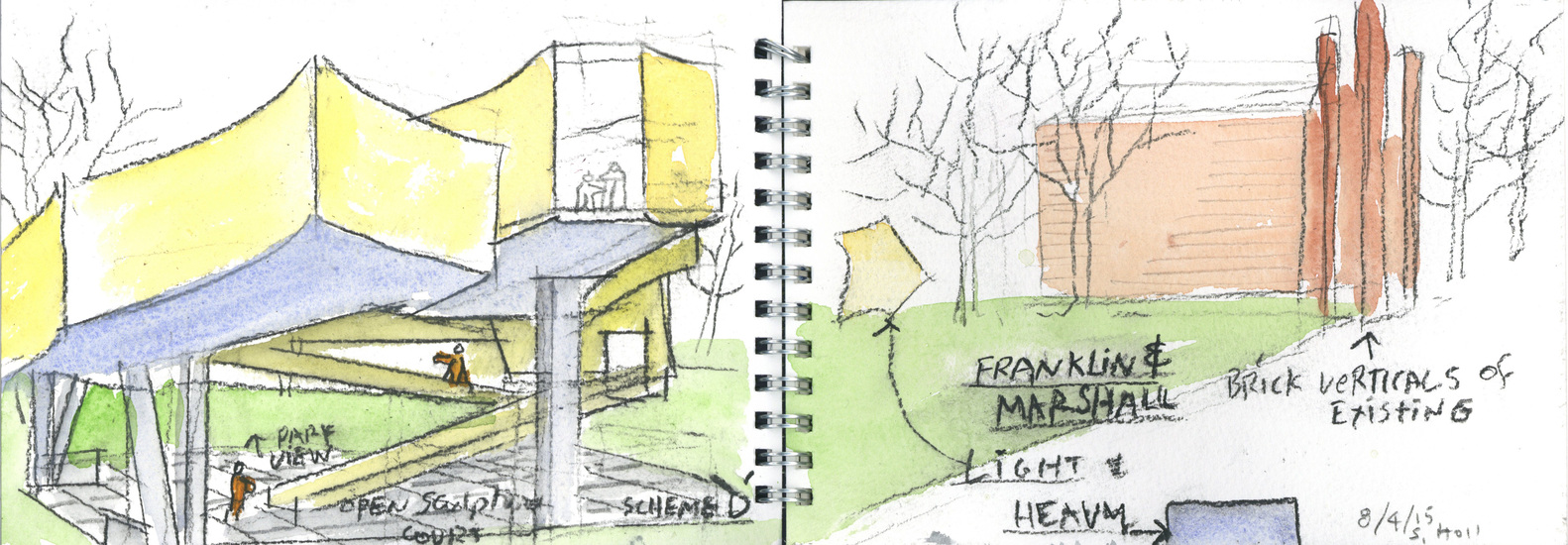

Drawing on Franklin & Marshall College’s motto Lux et Lex the new building for the Art, Art History, and Film Department is conceived as ‘light’ in complementary/contrast to the ‘heavy’ exemplary brick architecture of the 1856 ‘Old Main’ original campus building.

A gradual exterior ramp connects from Old Main’s axis to a second-floor entrance of our new building, just above a ground floor entrance facing the newly formed 'Arts Quad'. The building activates the southern end of the campus as a new campus destination.

The large diameter trees, the oldest elements of the Franklin & Marshall’s 52-acre arboretum campus, were the conceptual generator of the building’s geometry. As a lightweight building, its main floor is lifted into the trees on a porous ground level open to the campus and the adjacent Buchanan Park. The reflections of the hovering building at night glowing in the water of a large reflecting pool add to the special articulation of this place.

INSPIRING SPACE FOR MAKING AND TEACHING ART.

The 33,000 sqf Winter Visual Arts Building is the center of creative life on campus. The universal language of art enabled by the building’s spaces brings together students from diverse cultures to collaborate on art projects.

On the Ground Floor, a Forum and suite of galleries draw in the surrounding community of Lancaster to engage with the College around art events and exhibitions. Sculpture studios, involving heavy objects, are adjacent to ground floor loading and an open-air sculpture yard. Digital Labs are located below grade due to their need for minimal light and receive a daylight glow from around skylights.

Winter Visual Arts Building
© Paul Warchol
Winter Visual Arts Building
© Paul Warchol

The second-floor studios – for drawing, design, printmaking, painting, woodworking, and cinema - are efficiently organized around a ‘Commons’ gathering space for students which doubles as an informal presentation space.

All studios receive natural light through the translucent façade and have an operable viewing window and skylights. Faculty studios and Art History seminar rooms are set on a Mezzanine overlooking the teaching studios, filling the building’s volume while allowing double-height studios of inspiring space.

Winter Visual Arts Building
© Paul Warchol

PRACTICAL AND INNOVATIVE.

The lightweight, two-story ‘box-kite’ steel frame sits on two ground floor concrete rectangles to create the dramatic cantilevers and arced geometry with precision and economy.

Thin truss frames sit within the 2nd-floor studio walls and support bent steel tubes spanning between them. SHA used 3D modelling to develop and coordinate the construction documents with the team, allowing contractors to build complex geometry efficiently and precisely.

Winter Visual Arts Building
© Paul Warchol

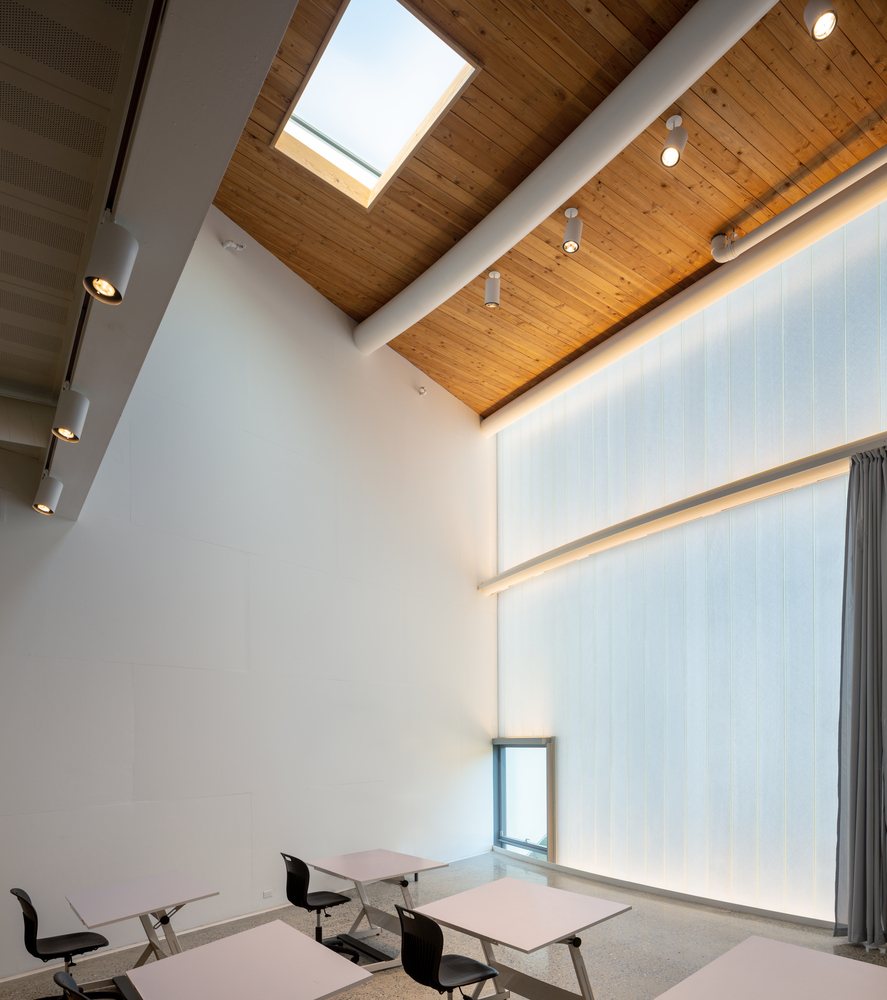

The entire roof structure is exposed, and the steel tubes are rolled at one radius and then tilted in place to create the curved roof geometry. The three-inch-deep, tongue, and groove fir planks that rest on the bent tubes create a billowing ceiling.

They are simply fastened to the top of the bent steel and, given the tolerance of wood, they create this softly curved ceiling for inspiring learning space.

ECOLOGICAL EXCELLENCE.

Curved translucent glass walls are formed by a double-layer U-plank structural glass system filled with translucent insulation for high thermal performance and 19% light transmission, ideal for studio light.

Natural light and ventilation along with active slab heating and cooling contribute to LEED Gold status.

Winter Visual Arts Building
© Paul Warchol

All the trees on site were maintained and their roots were protected during the entire construction process. The importance of preserving the trees is evident in the building’s curved form, preserving its drip line.

Maintaining the indigenous plants on-site provide minimum maintenance and minimum disturbance to the existing ecology.

Winter Visual Arts Building
© Paul Warchol

AIR/LIGHT/GREENSPACE: POST COVID.

The Winter Visual Arts Building is currently in use by students as the Franklin & Marshall campus has opened for the academic year.

The building, embodying SHA’s design philosophy, naturally adapts to COVID necessities such as social distancing and fresh air.

It offers generous social/circulation space, with two main entries on different levels that enable one-way flow when needed, abundant daylight to all rooms, natural ventilation, and outdoor terraces. The architecture is deeply connected to its verdant, park-like campus setting, a restorative place within nature.


Winter Visual Arts Building
Site plan
Winter Visual Arts Building

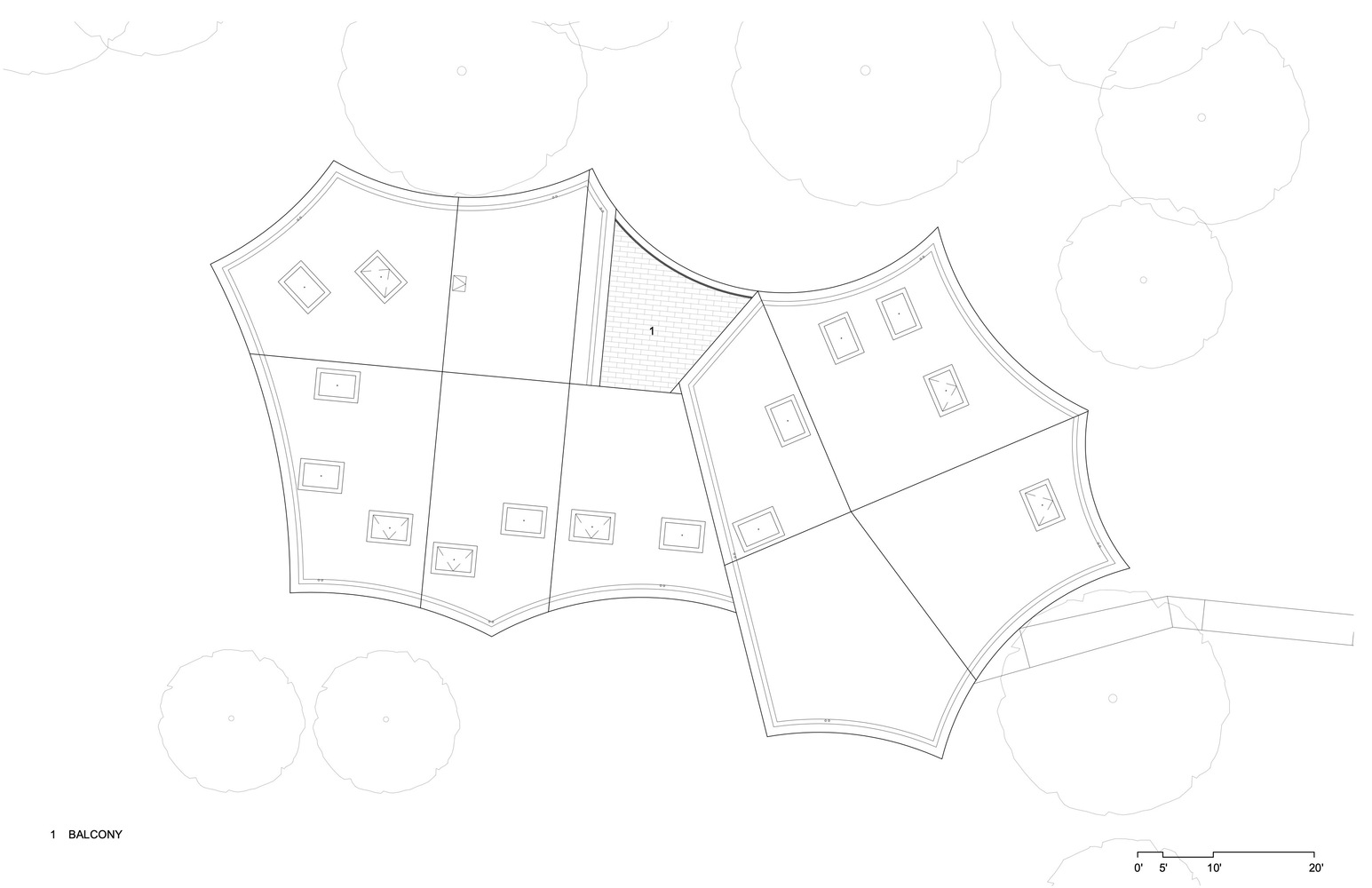

Roof plan
Winter Visual Arts Building
Basement level floor plan
Winter Visual Arts Building
Ground floor plan
Winter Visual Arts Building

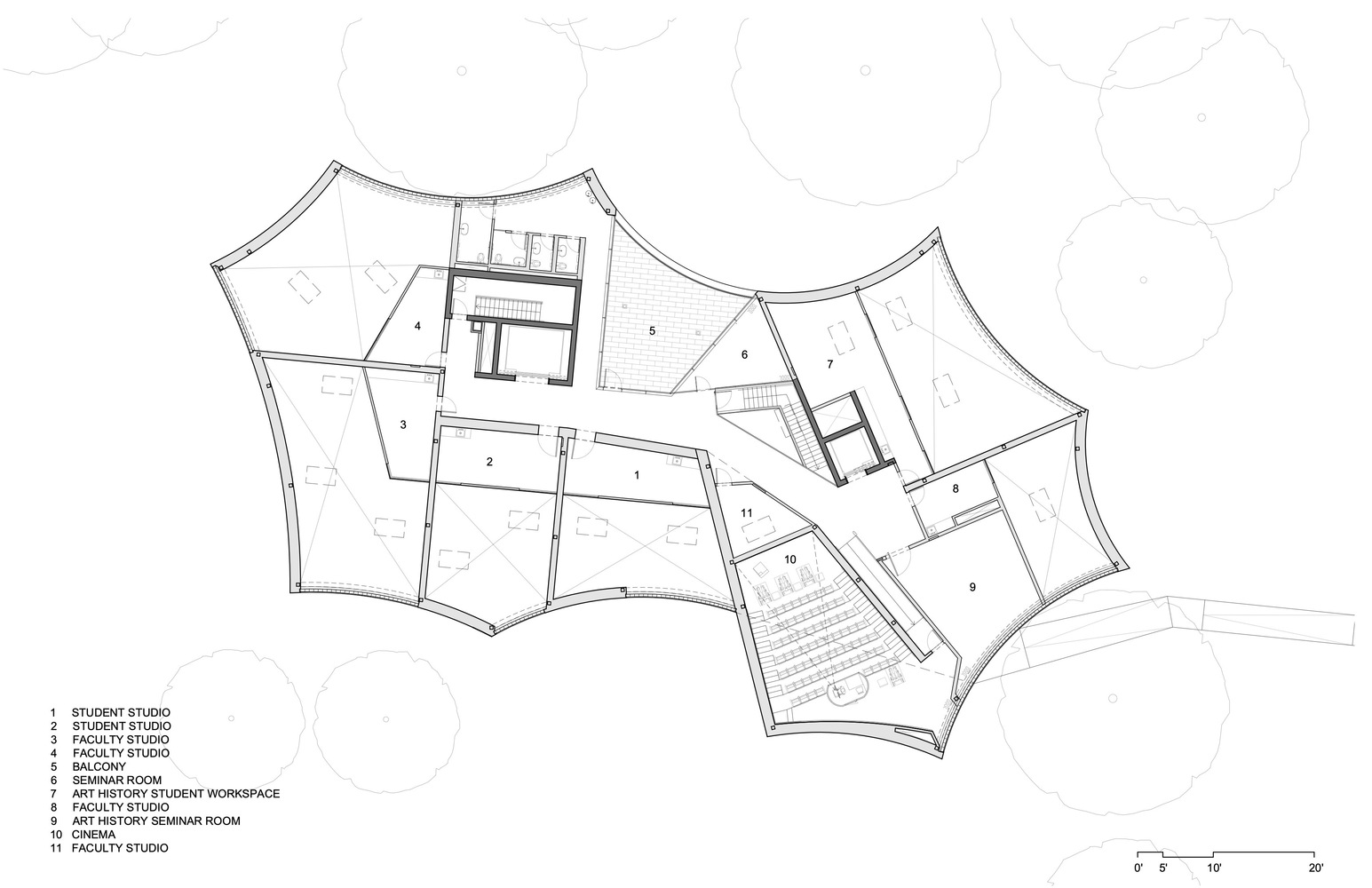

Mezzanine floor plan
Winter Visual Arts Building
Second level floor plan


Winter Visual Arts Building
North elevation
Winter Visual Arts Building
East elevation
Winter Visual Arts Building

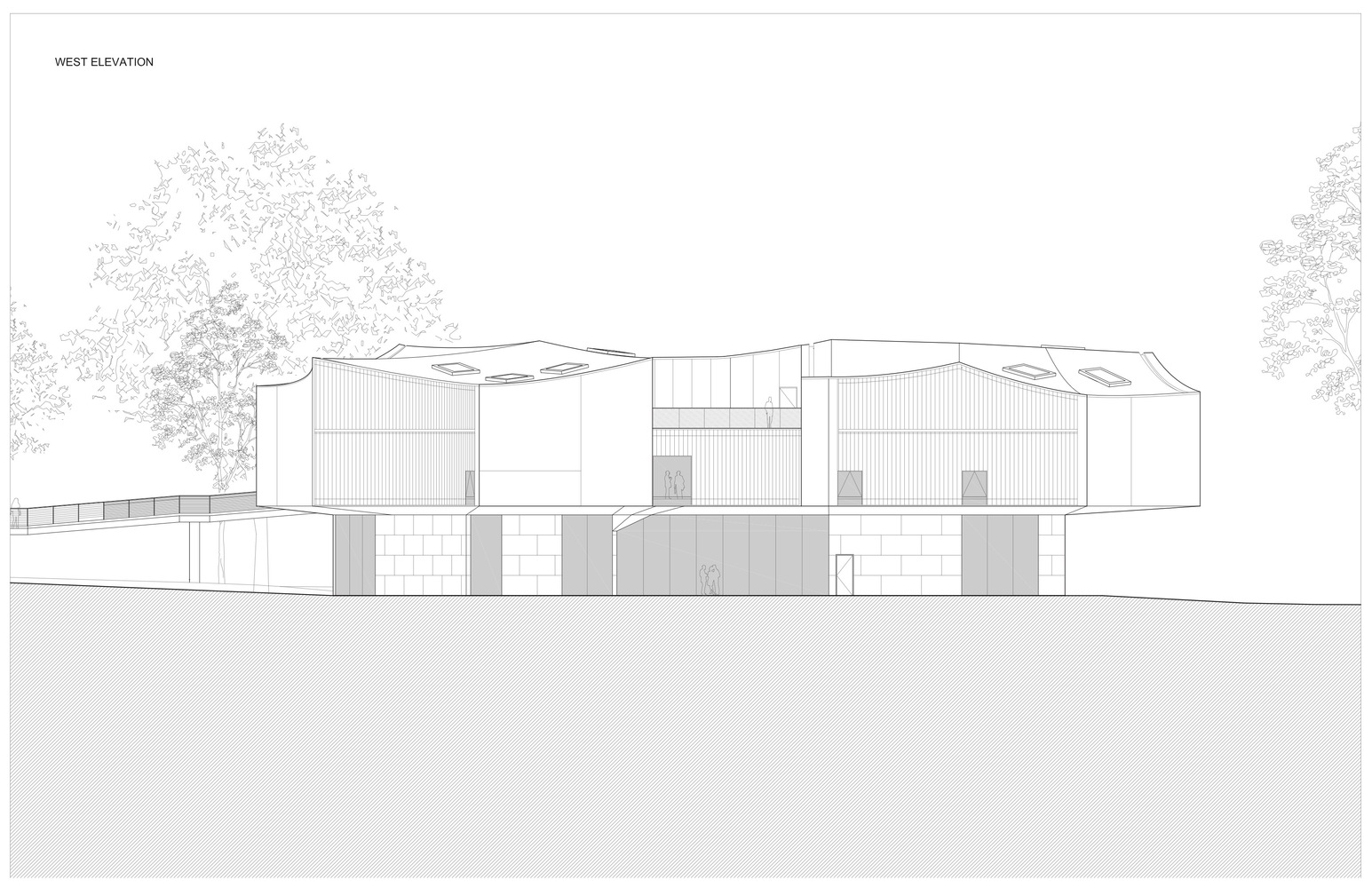

West elevation
Winter Visual Arts Building
South elevation


Winter Visual Arts Building
Long section
Winter Visual Arts Building

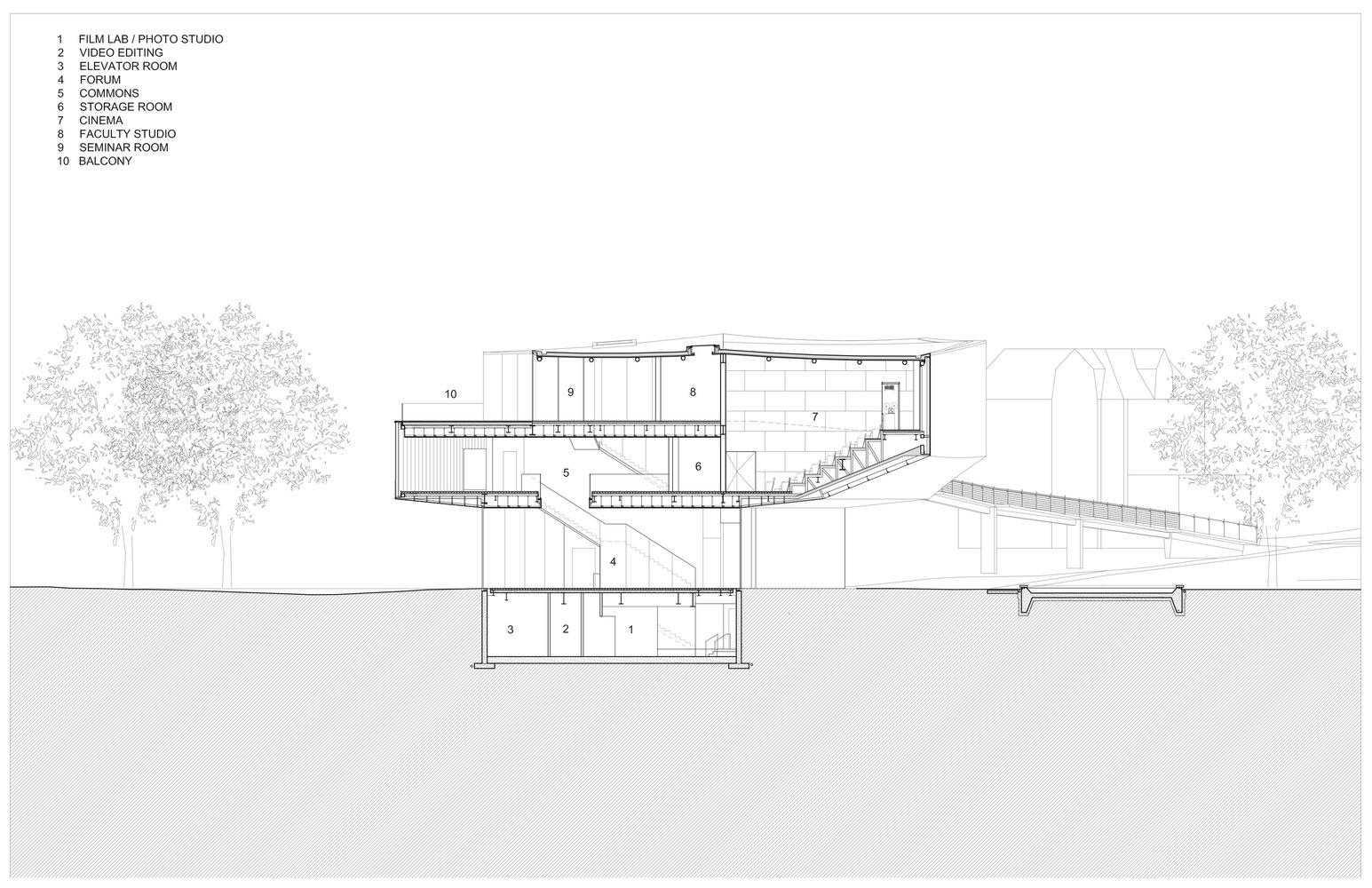

Cross section
Winter Visual Arts Building
Cross section
