Tourist Office of Blaye
TOURIST OFFICE OF BLAYE
Gayet-Roger Architects
MANUFACTURERS
Alki, Artemide, Sapa Building System International NV, Wicona, elZinc, Iguzzinni
CATEGORY
Visitor Center
MEP & HVAC CONSULTANTS
MATH Ingenierie
STRUCTURAL ENGINEER
AIA Ingenierie
AREA
524 m²
ACOUSTIC CONSULTANT
Emacoustic
LOCATION
Blaye, France
Text description provided by architect.
The new Blaye Tourist Office faces the Vauban Citadel, a UNESCO World Heritage Site. The use of local stone was an obvious choice for the architects, who wanted an architecture that would dialogue with the history of its region thanks to material and the knowledge of its use.
The project fits with finesse and conviction into a rich heritage context, without making any concessions to its contemporary design.

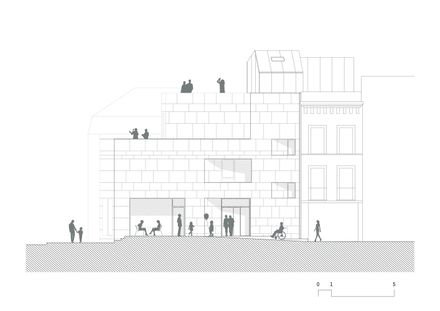

The simplicity and sobriety of the building contrast with the historic facade and give the Tourist Office high visibility in the town.
Its volumetry dialogues with the surrounding old buildings, while the openings and terraces offer different views of the Vauban Citadel.

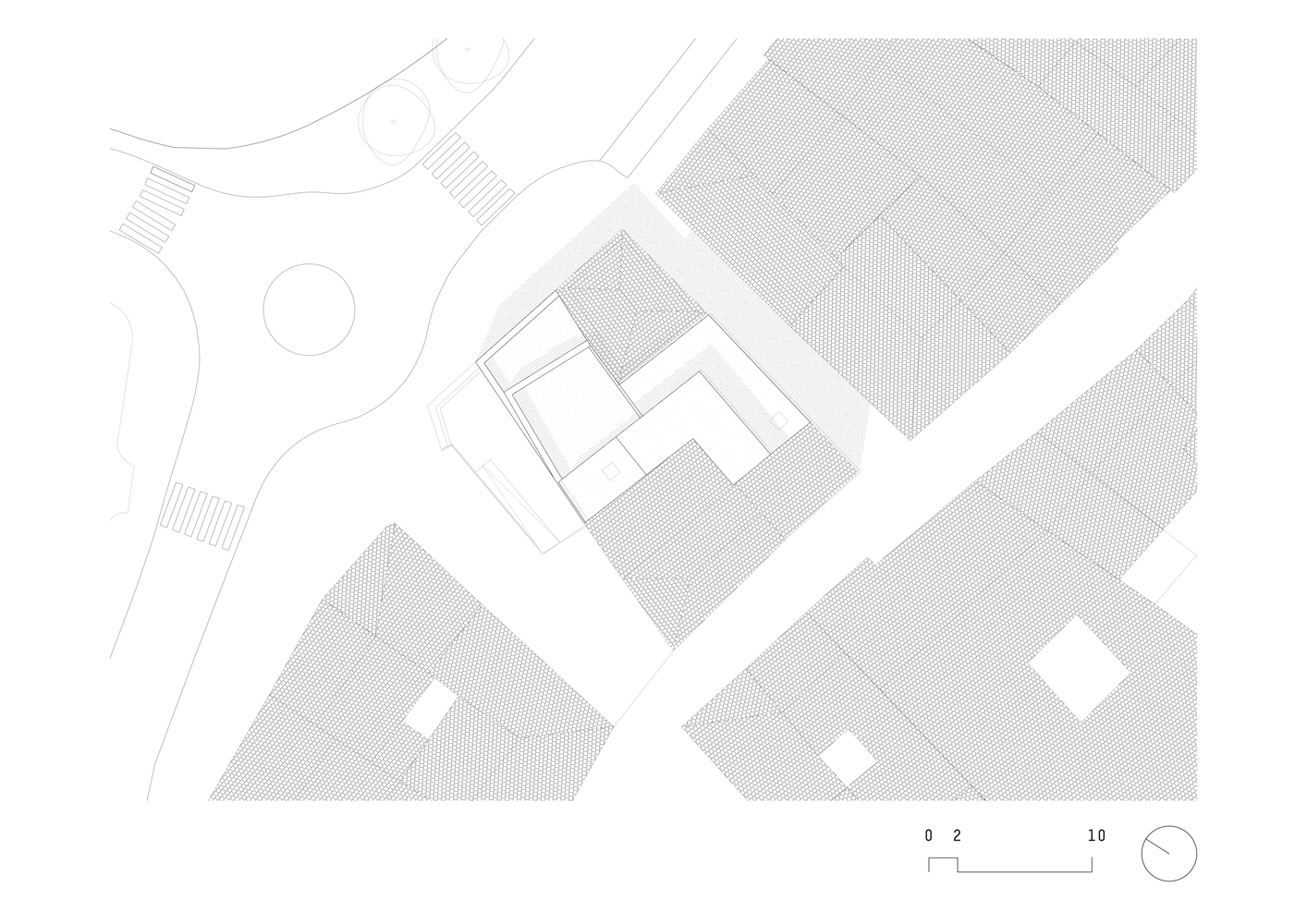

The atypical form of the parcel gives multiple orientations and organized the different spaces. The building has four levels offering two terraces with privileged landscape views.
On the ground floor, the wide reception area invites tourists to enter. On the upper floors, the offices are bathed in natural light and a large terrace extends the meeting room. The top floor offers a public viewing area that allows tourists to contemplate the Vauban Citadel.

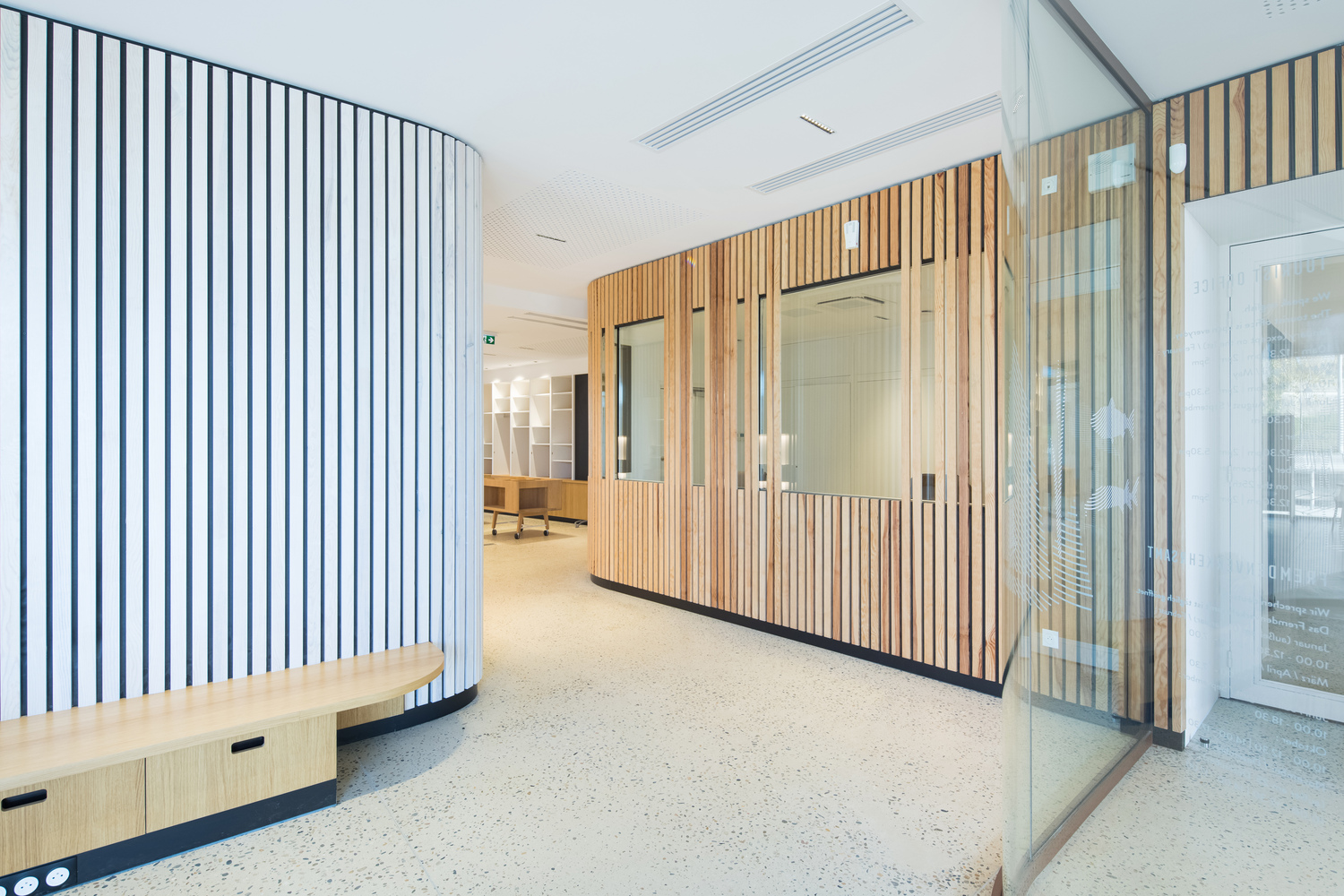

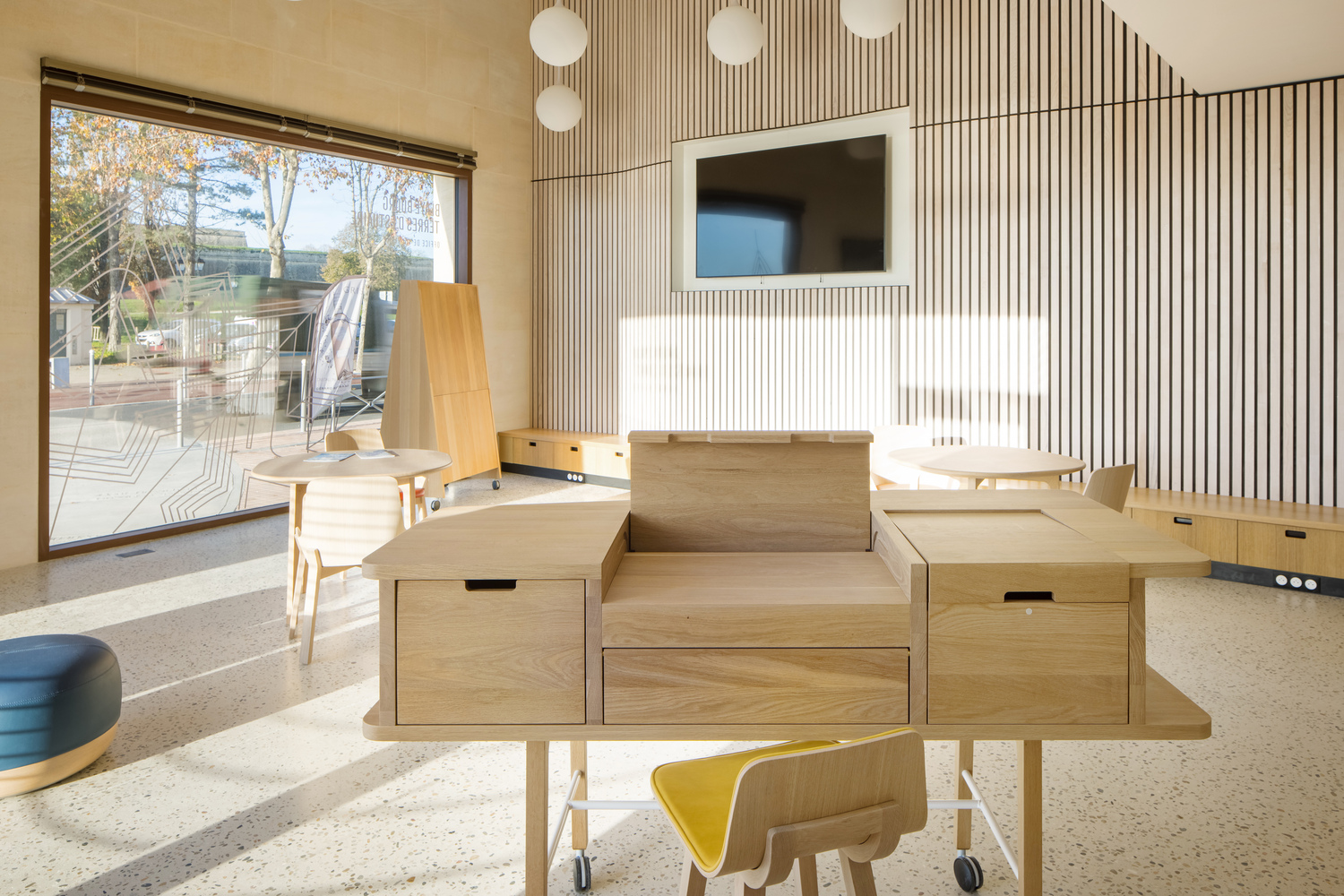

The volumes make it possible to host different events such as exhibitions and tasting sessions. The interior has been designed to offer a wide variety of spatial arrangements: the mobile furniture made of oak can be modulated according to different events.
Local limestone was used to build the walls on the citadel side. The use of stone as an ecological solution goes hand in hand with a local resource.
In this way, limestone from Sireuil and Frontenac quarried less than 80km from the site were chosen. Their specific qualities allow them to be used at different points of building: the tender stone from Sireuil for the assembly of walls and the semi-hard stone from Frontenac for window sills and acroterions.
Visiting the quarries enabled the architects to observe the extraction techniques and enabled them to design the facade based on the dimensions of the extracted blocks.
In order to build with massive stone, architects and engineers developed a «dual wall» to meet thermal standards. The wall is composed of three parts: a 10- centimeter stone exterior, a layer of insulation, and a 25-centimeter interior layer of stone, offering the benefit of thermal inertia.
An air gap and vent opening at the top and bottom of the wall provide air circulation and allow the stone to breathe. Structurally, the walls of the Tourist Office are built from stone, and concrete is used for coupling the large wall opening and the floor.
The stone blocks are delivered to the site ready to be laid. As this material, the installation technique is traditional: the stones are laid with a lift strap and a traditional mortar of lime and sand is applied between two blocks.
With this project, the architects wanted to demonstrate that it is possible to build while taking account of the social, environmental, and heritage dimensions of a place.
