SAFEZONE SHELTER

Shma Company Limited

PHOTOGRAPHS
Napon Jaturapuchapornpong

LOCATION
Khet Bang Rak, Thailand

AREA
150 m²

SOUND DESIGN
VWW

ENGINEERING
D63

YEAR
2020

LANDSCAPE
Shma Company Limited

CLIENTS
Creative Economy Agency (CEA)

CATEGORY
Installations & Structures, Temporary Installations, Sustainability & Green Design

PLANTING
M.J. Gardens Company Limited

LIGHTING SUPPORT
Lighting & Equipment

PLANTING SUPPORT
Public Park Division, Department of Environment, BMA

MANUFACTURERS
Autodesk, Benetech Product Co.,ltd, D63, L&e, Mj Gardens, Sapaengineer Company Limited

CONSULTANTS
Asst. Prof. Dr.Prapat Pongkiatkul, Head of the Department of Environmental Engineering, Faculty of Engineering, King Mongkut’s University of Technology Thonburi

DESIGN TEAM
Yossapon Boonsom, Katavet Sittikit, Phat Chapanon, Thita Cherdkiadtikul, Rattapong Luangpiansamut, Chisanucha Ravinantapreecha, Nattapreeya Worawicharwong, Montrakarn Poonsang, Suphannipha Khamma, Montree Sommut, Onkamon Nilanon

Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong

Situated in front of the Grand Postal Building during Bangkok Design Week 2020, Safezone Shelter is an ephemeral intervention, aiming to purify the air and provide comfort for people, while also raising awareness about “air pollution,” which becomes a critical concern for many societies.

Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong

Looking at Bangkok, according to the World Air Quality Index of 2019, it has 54% of total days in a year in which particulate matter (PM) was measured over WHO’s the standard level, threatening over one-third of inhabitants.

The city has also constantly been facing the “Urban Heat Island Effect” from a large number of hardscapes and skyscrapers with inadequate green space. Nonetheless, as Bangkok was selected by UNESCO Creative Cities Network as “Creative City of Design,” it’s a good opportunity to create an experimental space in order to achieve a better city and United Nations (UN)’s Sustainable Development Goal No.11.

Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong

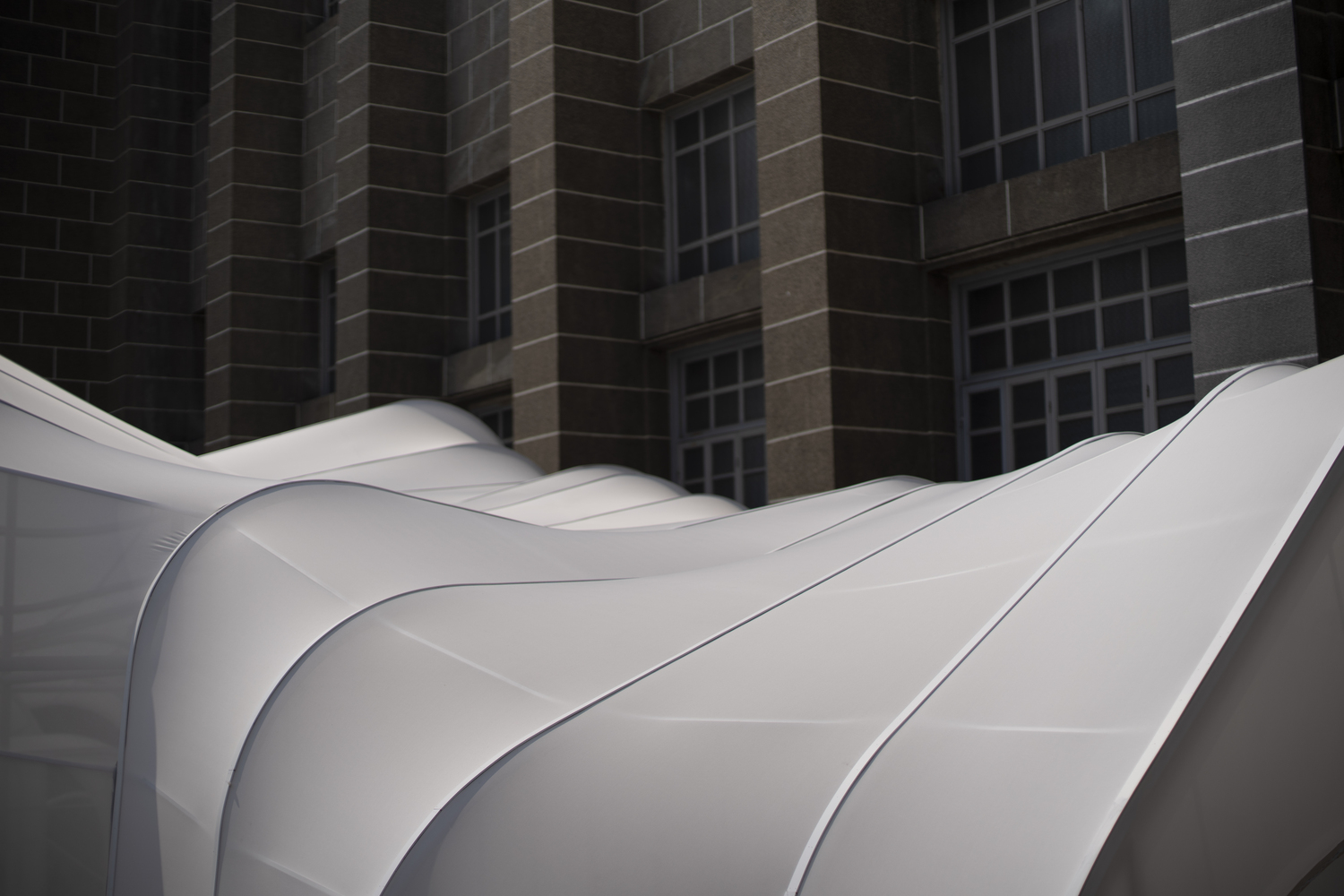

Inspired by “cloud,” the pavilion was designed in a futuristic organic form, depicting a clean refreshing atmosphere, while also forming a pleasant Microclimate by equipping vegetation and engineering technology together.

Air quality is a factor needed to be carefully controlled to keep good air inside. First, hot dirty air is pulled inside by a fan, passes through rows of trees and shrubs which capture dusty particles, as well as ground-covering plants which absorb toxic substances.

After that, the pre-filtered wind will flow through the dust filter plate and the cooling plate consequently, and come out as a purified breeze at the end.

Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong

As providing comfort is also another important circumstance, various techniques are adopted to keep the shelter’s interior temperature at around 22-29 degrees Celsius, suitable for Thailand’s tropical climate.

They include using fans to release heat and create airflow, wrapping Nylon clothes around the structure to get an interior light with a diffused blurry effect - friendly for our eyes, and operating the humidifier to maintain 50-70% humidity level.

Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong

In addition, natural scents from plants, and experimental music - made up of nature-like sounds (breeze, water, birds) are employed to provide a soothing experience while walking inside the pavilion. All of these inventive methods could further be applied to solve air pollution in other kinds of design.

At an individual level, a personal mobile suit equipped with a portable air filter could be manufactured, allowing users to move around refreshed.

Safezone Shelter
© Napon Jaturapuchapornpong
Safezone Shelter
© Napon Jaturapuchapornpong

Looking wider at an urban scale, bus stops, recreational space under expressways, and skywalks also have the potential to be revitalized with such purification systems.

In the end, even high-rise buildings might become old-fashioned when a better choice like an air purifier tower could be constructed. In conclusion, Safezone Shelter might be seen as a starting point on gaining such benefits from natural species and technological advancement, in order to revitalize Bangkok into a sustainable city that every inhabitant can take a deep breath.

Safezone Shelter
© Napon Jaturapuchapornpong


Safezone Shelter
Section 01
Safezone Shelter
Section 02


Safezone Shelter
Diagram 01
Safezone Shelter
Diagram 02
Safezone Shelter
Diagram 03
Safezone Shelter
Diagram 04


Safezone Shelter
Air Filtration Diagram
Safezone Shelter
Plan
