Empilhado [snj] Building Renovation

3dF desarrollos

CATEGORY
Residential

LOCATION
Rosario, Argentina

ARCHITECTS
3dF desarrollos

AREA
2500 m²

ENGINEERING
Ing. Civil Gustavo Bordachar

LEAD ARCHITECTS
Matías Imbern, Marcelo Mirani

PROJECT MANAGER
Agustín Ramonda

MANUFACTURERS
AutoDesk, 3dmax, AL-Construcciones, Aluar, Bunker, Byograting, CG, Junelec, La Luna SRL, La Porteña, Marcelo Trento SRL, Micelli Maderas, Nordic Hygge Flooring, Osram, Pavitec

YEAR
2020

WORK COORDINATION
Fernando Imbern, Manuel Bianchi, Eduardo Dipré, Julián Del Bianco, Rocio Figuera

The project is located in the First Perimeter Ring of the Downtown, characterized by strong building renovation. Therefore, buildings of different heights coexist in the area.

The plot to be intervened is significantly wider (12.5m.) than traditional plots of the local urban fabric (8.66m.).

This wider dimension, combined with the presence of consolidated low-rise buildings towards the East orientation, in coincidence with the views towards Avenue France, are the factors that predetermined the recess of the building from the lateral dividing wall.

This operation adds a third ventilation facade, ideal to locate the premium apartments there.

Additionally, the depth of the plot (45m.) determines the distribution of the building mass in 2 towers, separated by a 9m yard.

As a main tactic, all units have cross-ventilation typologies. An exempt vertical circulation is placed in the yard, able to serve both towers.

The majority of the local residential buildings, in which one plan is defined and the building is the result of a vertical extrusion of that plan, is inhabited by families with similar configurations.

In contrast to this, SnJ appeals to generate a true community, made up of the interaction of people who respond to families with different configurations, according to the differentiated demands of contemporary society.

This typological diversity defines the image of the building and it is translated into a formal/programmatic stacking strategy.

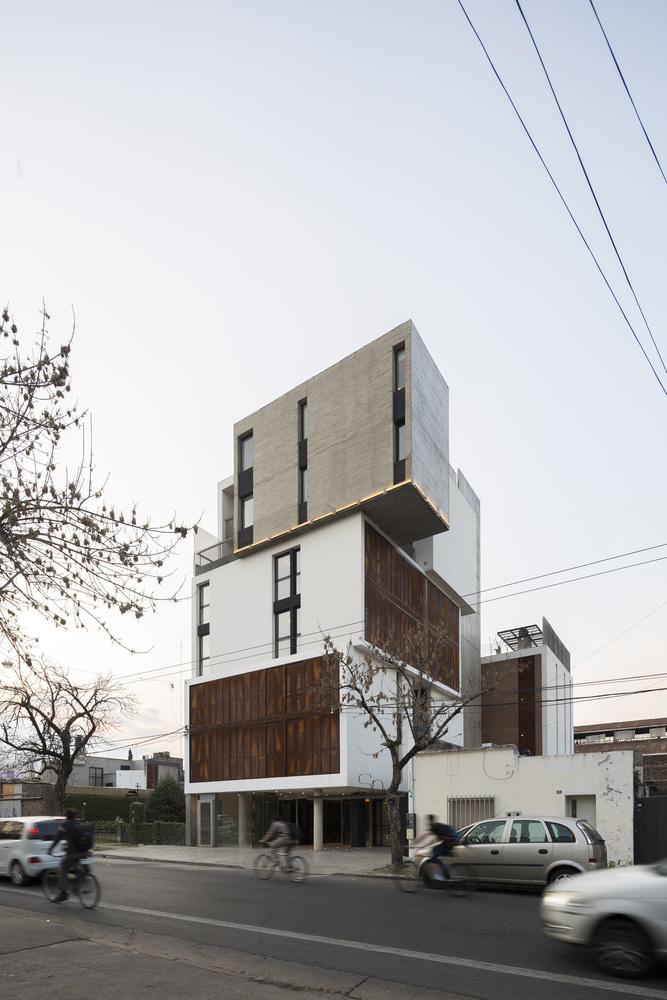

As a last step, and to emphasize the retraction of the eastern dividing wall, there is a displacement of one of the pieces, in order to inhabit the generated vacuum space.

Concrete solves the cantilevering structure of the shifted volume and in turn produces a heavy feeling that emphasizes the condition of apparent (im)balance.
