TOUCH Architect Co.,Ltd.

Stack-cube House

STACK-CUBE HOUSE

TOUCH Architect

Stack-cube House
© Chalermwat Wongchompoo

ARCHITECTS
TOUCH Architect

AREA
340 m²

YEAR
2020

CATEGORY
Houses, House Interiors

LOCATION
Thailand

LEAD ARCHITECTS
Setthakarn Yangderm, Parpis Leelaniramol

MANUFACTURERS
Chaos Group, Alumet, Lamitak, Adobe Systems Incorporated, Chaw Cher, GstarSoft, Oggi, PDM Brand, ROMAN,

CLIENTS
Ketkwan Tuksina

ENGINEERING
Chittinat Wongmaneeprateep

CONTRACTOR
Jitr Construction

DESIGN TEAM
Pitchaya Tiyapitsanupaisan, Tutchakorn Jumreiang, Supanan Tangsajjanuraksa

INTERIOR CONTRACTOR
TRIGON design con

MANUFACTURERS
Trimble Navigation, VC Fabric

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

Limitation of this house size, which is located in an owner's existing hen farm, to fit in 340 square meters with plenty of functions requirement, was the first move to create this house.

In order to reduce the size, it has to be stacked a level on top of the other into a cube space to provide a square floor plan.

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

Not only the square-shape plans, but also pulling out and eliminate an unnecessary space would help creating a compact function together with the best utilizing all the circulation.

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

There are three bedrooms, a living room, a dining, a kitchen, and a common room for multi-purpose activities for serving all family’s members, which is a young couple with three kids.

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

Creating a house with all functions needed, together with an outdoor area which is mainly used by the children, has to be both practical and safety.

The pulled-out space on the first level, provide a main entrance area with an outdoor terrace which is surrounded by the L-shape of the lower floor.

Living, dining, kitchen, and activity room are opened large voids with all glass to connect through the center terrace which consist of a middle tree at a middle of the terrace space.

However, on the outer sides of each rooms contain minimal glass void because of security.

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

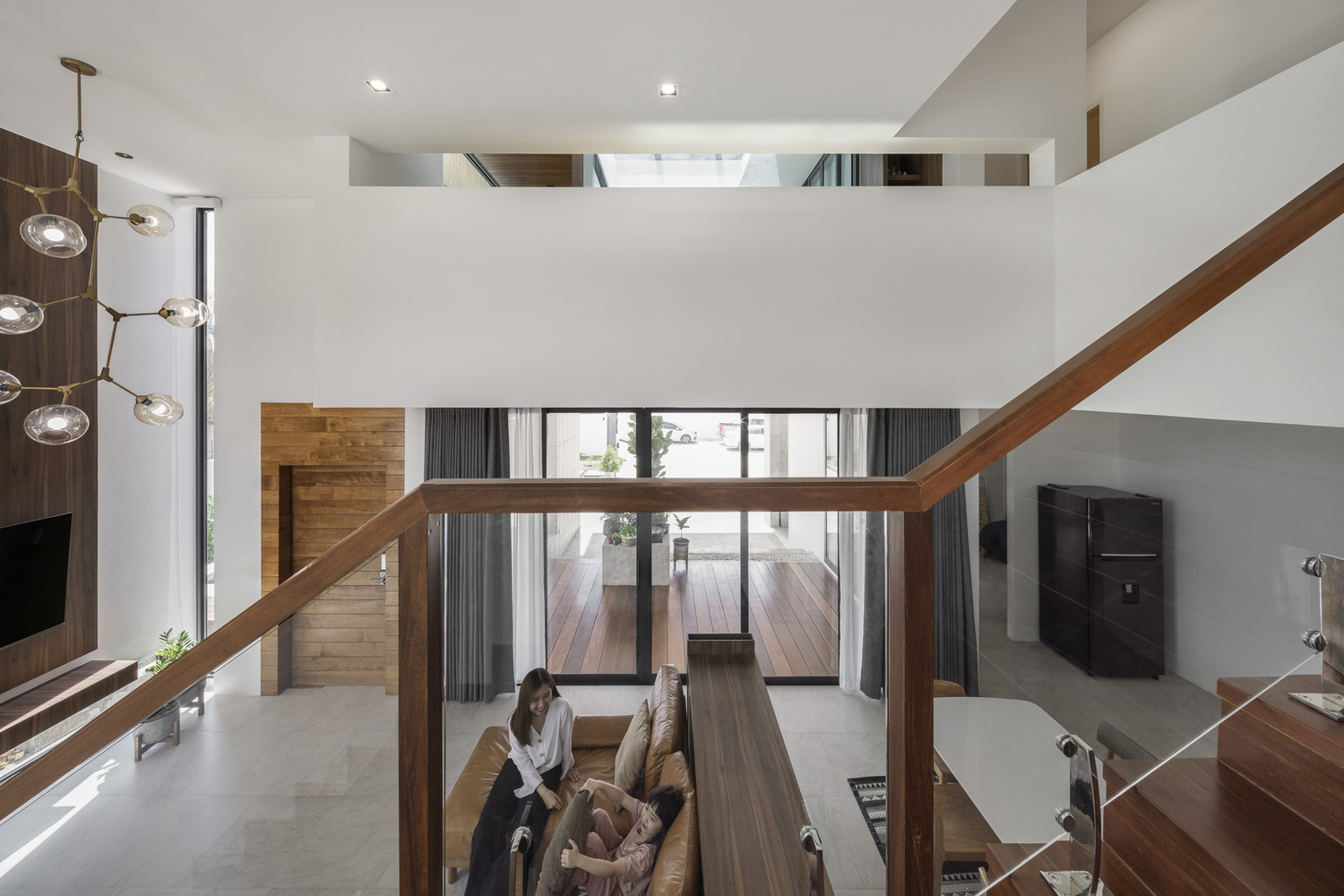

A linear staircase with concealed built-in storage underneath which is designed to utilize the space, leads the circulation to the upper floor which comprise of all three bedrooms; two for kids, and one for master bedroom.

The interlocking L-shape corridor with an encircle-walking, not only for accessing the master bedroom in the opposite side, but also allows every bedroom to open the void in order to touch the middle tree, while still have privacy and safety inside, since all the rooms are blinded from outside by this interlocked corridor.

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

Material finishing of this house is mainly white walls with glass voids. Ornament boundaries are created by wooden-like aluminum trellis, with durability to conceal an inside space.

Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo
Stack-cube House
© Chalermwat Wongchompoo

Wood planks from an old barn are re-used for outdoor decks, ceiling, main entrance door, and staircase.

Stack-cube House
© Chalermwat Wongchompoo


Stack-cube House
First Floor Plan
Stack-cube House
Second Floor Plan


Stack-cube House

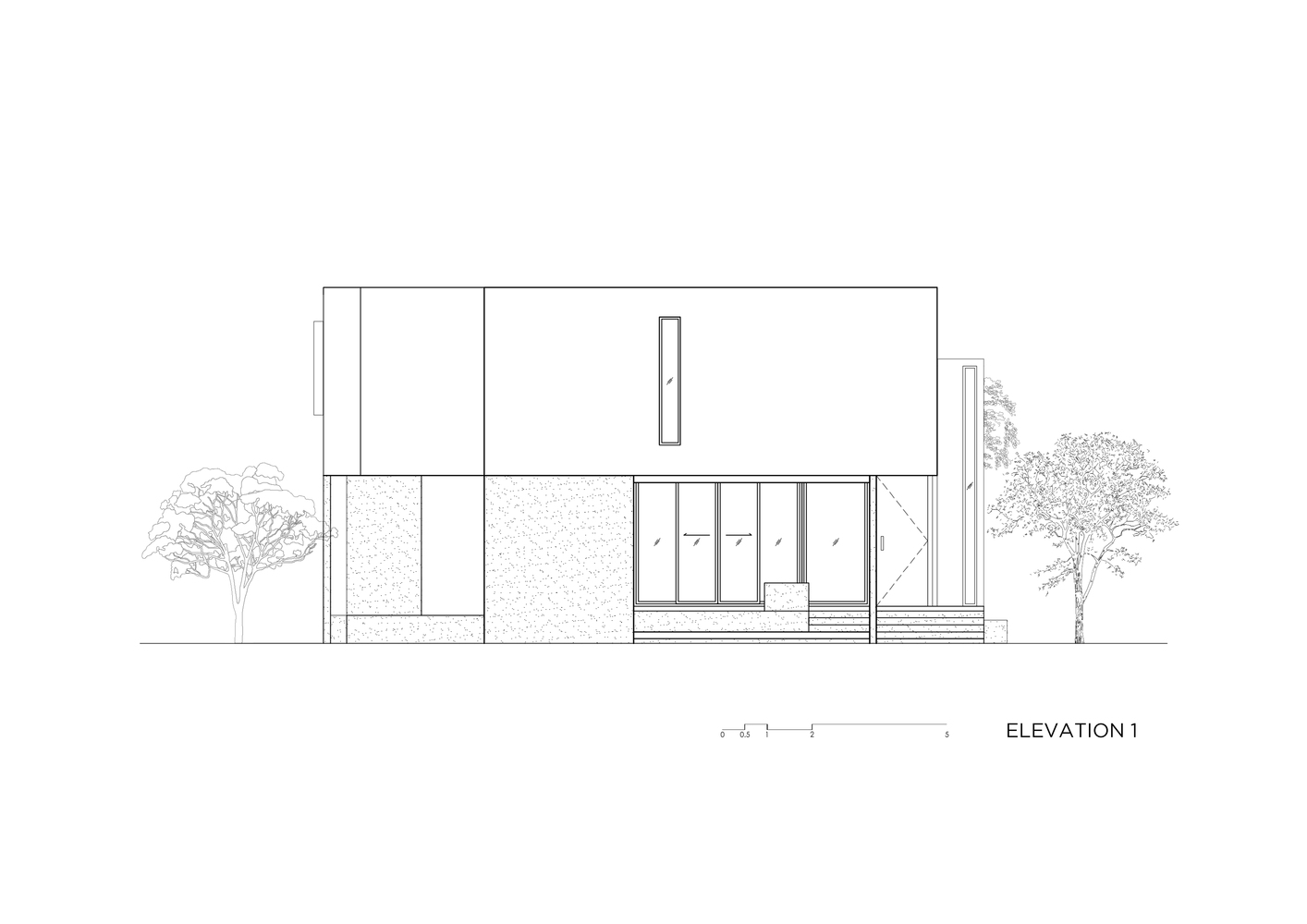

Elevation 01
Stack-cube House
Elevation 02


Stack-cube House
Section A-A
Stack-cube House

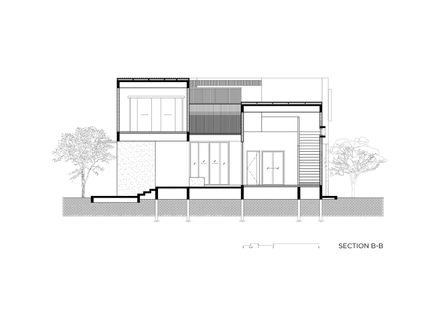

Section B-B
Stack-cube House

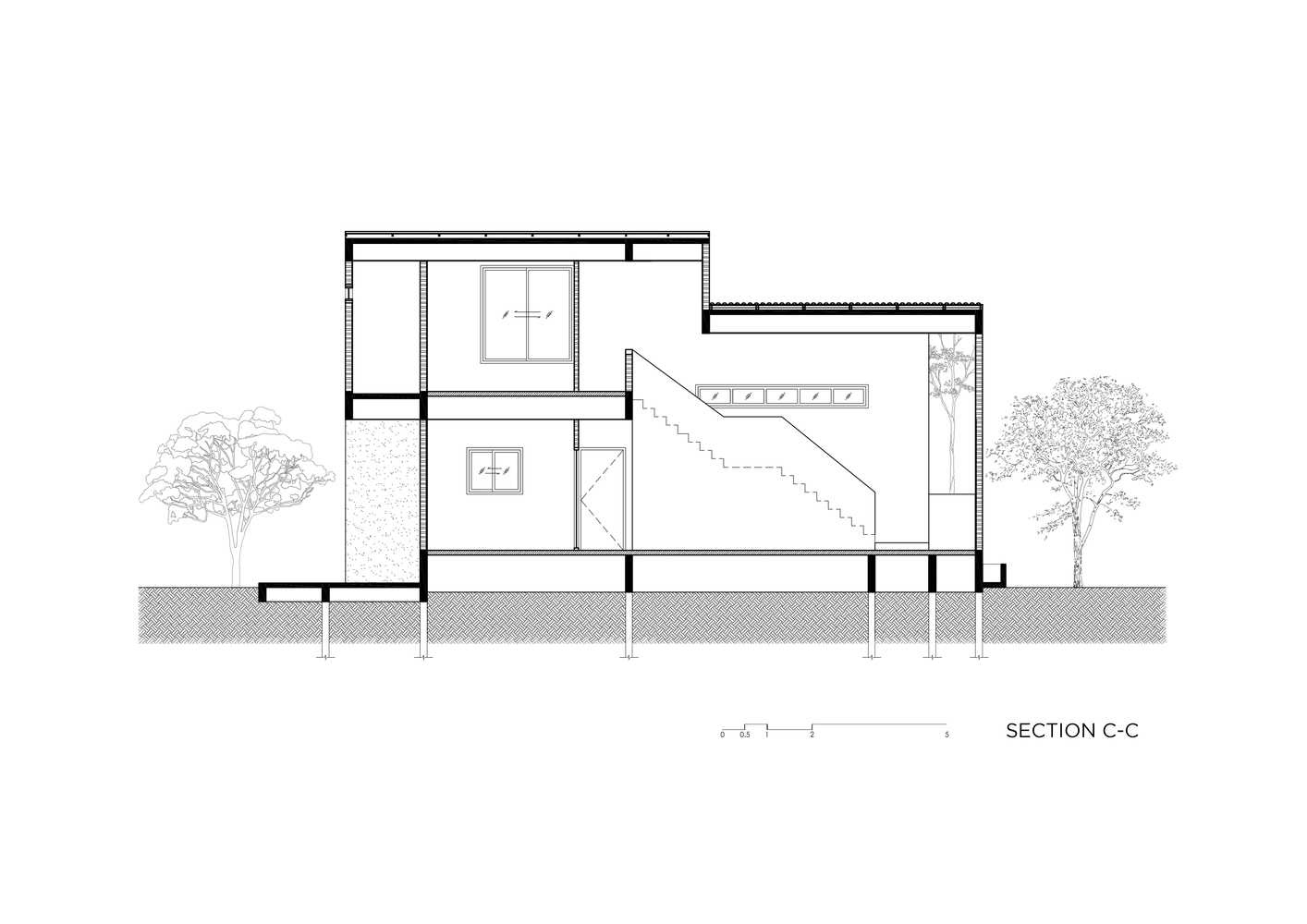

Section C-C
Stack-cube House
Diagram
