SPUTNIK YOUTH CENTER

OBO Estudi

ARCHITECTS
OBO Estudi

AREA
5350 ft²

YEAR
2020

CATEGORY
Youth Center, Sustainability

PHOTOGRAPHER
Sara Adroer Martínez

MANUFACTURERS
Isopan

LOCATION
Montornès Del Vallès, Spain

LEAD ARCHITECT
Joan Artés Perez

Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez

The town hall of Montornès del Vallès proposes the creation of a youth centre to house and direct the activities for young people of the municipality.

Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez

To this end, a public land is taken to build a rectangular building with a landscaped environment to be conquered and enjoyed by the users of the centre.

Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez

The access is from the ground floor, where the set of staff offices and meeting spaces are located, as well as a bar willing to host public activities, and oriented towards the exterior garden.

Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez

The first floor, however, houses three large spaces and a bathroom to hold a wide variety of activities. On this floor, a large terrace opens allowing the combination of indoor and outdoor activities.

The building is erected using a constructive system typical of the industries in the area. Above a concrete slab there is a modular metal structure, with composite slabs and prefabricated panels for the façade.

Sputnik Youth Center
Gif 01
Sputnik Youth Center
Gif 01

The projectproposes a completely dry construction and mostly executed from a workshop, assembling the modules in situ and only connecting the facilities.

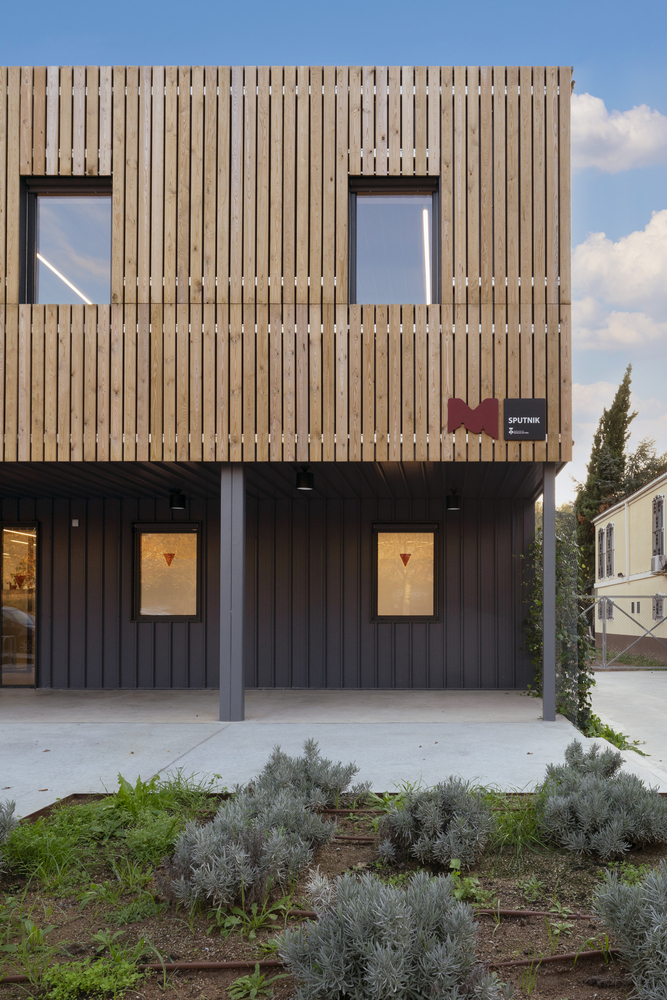

There are no superfluous coatings in the building, leaving the constructive elements seen. On the long façades, there’s a slatted wood cladding as a solar protection and a torsion mesh is placed on the shorter sides where a newly planted ivy will grow.

The building assumes the variability of uses of its interior and proposes a low thermal inertia system capable of bearing considerable loads during summer and low-use periods during winter.

For this reason, a high-tightness and low-transmittance envelope is projected, with good solar protection and high-efficiency air exchanger.

Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez

A photovoltaic capture system is also available to hold the energy consumption as well as a monitoring of all of the rooms with different CO2 detectors that optimise air renovations or a light control depending on the solar incidence of each space.

Sputnik Youth Center
© Sara Adroer Martínez
Sputnik Youth Center
© Sara Adroer Martínez

All of this, controlled by a BMS system and connected to the provincial monitoring network, contribute to the achievement of the 5 Green Building Council Green Leaves Greens.

Sputnik Youth Center
© Sara Adroer Martínez


Sputnik Youth Center
Elevation 01
Sputnik Youth Center
Elevation 02
Sputnik Youth Center
Elevation 03
Sputnik Youth Center
Elevation 04


Sputnik Youth Center
Section 01
Sputnik Youth Center
Section 02


Sputnik Youth Center
Temperature Graphic 01
Sputnik Youth Center
Temperature Graphic 02


Sputnik Youth Center
1st Floor Plan
Sputnik Youth Center
2nd Floor Plan
Sputnik Youth Center
Roof Plan
Sputnik Youth Center
Details


Sputnik Youth Center
Location
