ECOCASA ATELIER

Encaixe Soluções Alternativas

CATEGORY
Houses, Sustainability & Green Design

YEAR
2020

AREA
285 m²

LOCATION
Sao Roque, Brazil

CONSULTANTS
Terra Compacta

LEAD ARCHITECT
Brianna Bussinger

MANUFACTURERS
AutoDesk, Marcenaria JF, NJG Tudo Para Construção, Shiguenao Bambu, TTK, Tijolaje, Tijoleco, Vidraçaria Alvorada, polimix

PROJECT TEAM
Rafael Alves

CLIENTS
Ana Paula Barros e Jotappe Manjaro

CONSULTANTS
Altair Cabral, Filipe Bisof, Iolanda Guilherme, Lucas Ota, Suzane Cunha

Ecocasa Atelier is a social residential design-build project in Brazil. It serves as proof that it is possible to build sustainable contemporary houses at an accessible price thanks to the most precious tool in architecture - design.

Ecocasa Atelier
© Marcos Bacon
Ecocasa Atelier
© Marcos Bacon

The clients, whose main income is from art, music and event management, consented that the process be driven by environmental, material and human constraints. The available resources were used to their maximum potential with the least ecological impact.

The scope was ambitious and at the same time very limited by the low budget. On a 1.800 m² plot of land in São Roque (1h from São Paulo’s city center), the optimal program was: a two-bedroom house functioning both as - housing and a party venue that would guarantee the family's livelihood.

Ecocasa Atelier
© Marcos Bacon
Ecocasa Atelier
© Marcos Bacon

Due to strong collaboration of all stakeholders involved, it was possible to build a 285 m² ecohouse.

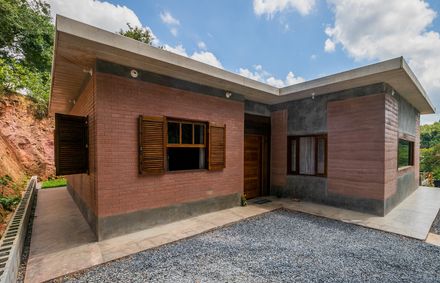

Function defined form, that defined materials: the walls of the house are built partly with earth and partly with cement, placed in between precast reinforced concrete slabs.

Ecocasa Atelier
© Marcos Bacon
Ecocasa Atelier
© Marcos Bacon

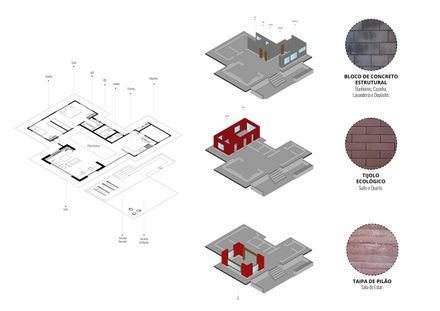

There are three main volumes: a rammed earth living room, two CEB bedrooms and a wet area (kitchen, bathrooms, laundry and storage) made from exposed structural concrete blocks.

The dimensions of the spaces were determined by use, and the implementation by bioclimatic impositions.

The intermediate residual space became the central courtyard of the house covered by a 3x7 m glass skylight allowing the indiscriminate entry of the entourage inside.

The hilly terrain forms a natural lookout facing the sunset. Therefore, the west façade was enhanced with an 85 m² external area that followed the same logic as the main house, concrete blocks define the outdoor cooking area designed with remaining precast elements from the slabs, and where the land drop is sharp, a 6m-high balcony was built structured by locally sourced and treated Mossô and Hatiku bamboo. The 40 m² flooring was built from repurposed wood.

Ecocasa Atelier
© Marcos Bacon
Ecocasa Atelier
© Marcos Bacon

The resilience of Ecocasa Atelier is multifaceted, it can be seen as the ecohouse fulfills its scope whilst seasonal rental serves as the primary source of income for its residents until hosting events is allowed again.

It is also demonstrated through the ecological construction site that had a temporary bamboo structure to store materials and the implantation of a composting toilet for the workers. Another example is the complete water cycle inside the property (semi-artesian well, bio sewage treatment and infiltration basin).

Ecocasa Atelier
© Marcos Bacon
Ecocasa Atelier
© Marcos Bacon

And in addition to using earth from site to build the rammed earth walls, all wood is refurbished. Plus, during the construction phase, a training course was hosted to the general public on building with bamboo.

By integrating conventional construction techniques with natural building ones, it was possible, in just one year, to transform an empty plot with a small forest reserve into a dream ecohome.

Ecocasa Atelier
© Marcos Bacon


Ecocasa Atelier
Section
Ecocasa Atelier
Section


Ecocasa Atelier
Facade
Ecocasa Atelier
Facade


Ecocasa Atelier

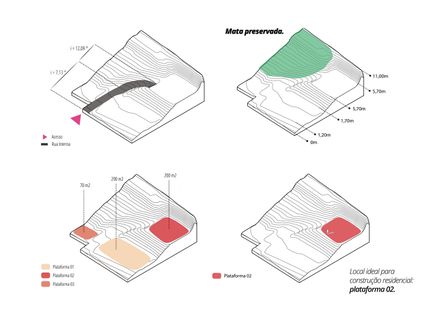

Topography
Ecocasa Atelier
Uses
Ecocasa Atelier
Tipology
Ecocasa Atelier
Concept


Ecocasa Atelier
Axonometry
Ecocasa Atelier
Ground Floor Plan
Ecocasa Atelier
Site Plan
