CASA GEORGINA

Departamento del Distrito

AREA
238 m²

YEAR
2020

MANUFACTURERS
AutoDesk, Adobe, Helvex, Robert McNeel & Associates

PHOTOGRAPHS
Adriana Hamui

CLIENTS
Georgina Landa

LOCATION
Real De Catorce, Mexico

LEAD ARCHITECTS
Francisco Quiñones, Nathan Friedman

COLLABORATORS
Rafael Ibarra

CATEGORY
Houses, Historic Preservation

Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui

Casa Georgina, completed in the fall of 2020, is composed of two apartment units built into the steep slope of the Sierra de Catorce mountains in the northern Mexican state of San Luis Potosí. The project sits within a walled garden that contains an existing house and builds upon a series of stone ruins, engaging them through a play of addition and subtraction.

Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui

Three stepped walls organize the design scheme: wall one contains exterior circulation; wall two frames the interior living spaces; and wall three divides the project from the neighboring property. These walls protect interior spaces from intense direct sunlight from the east and west and structure a collection of terraced volumes.

Roof patios open to the south and provide expansive views of the surrounding landscape.

Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui

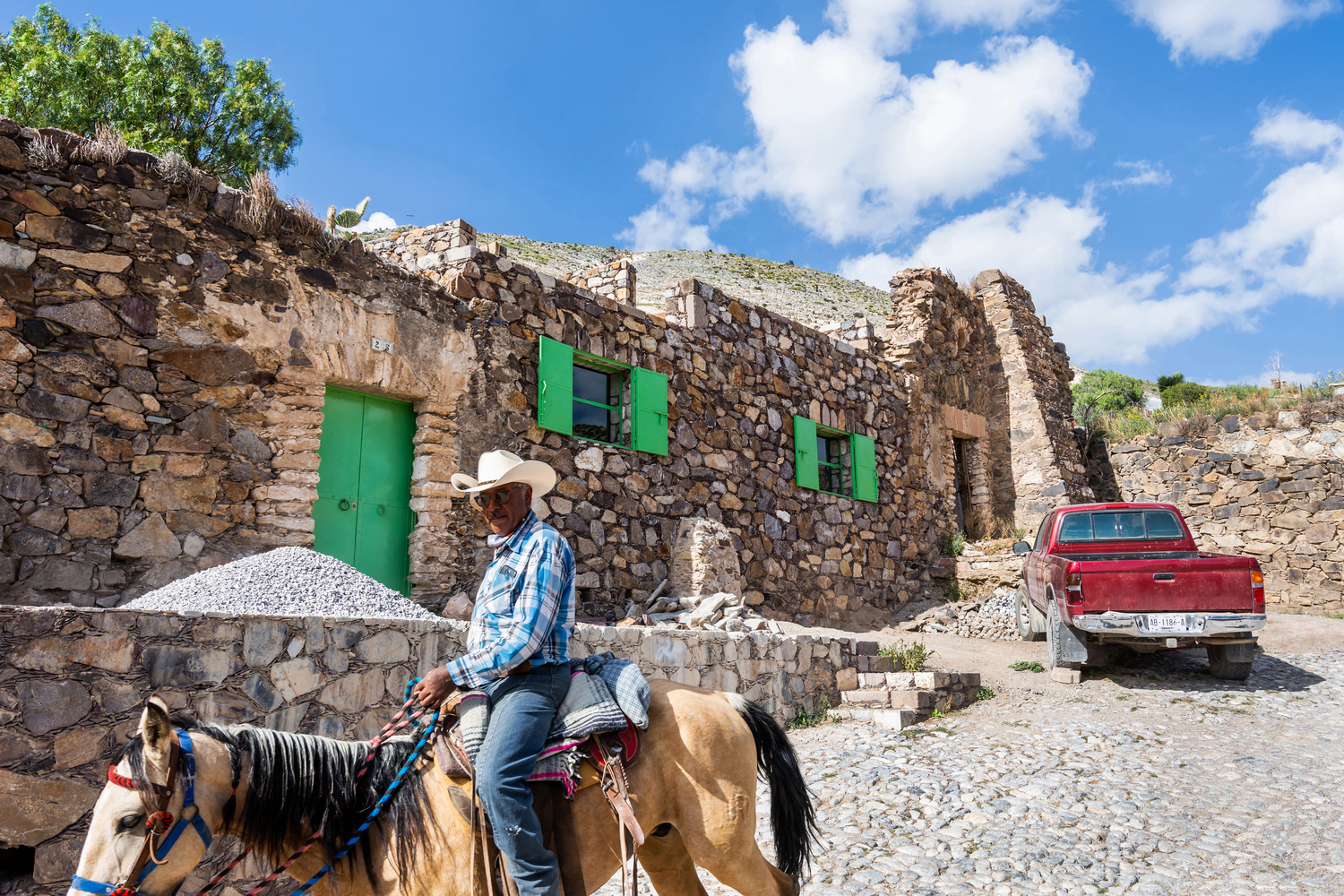

Located in Real de Catorce, a historic silver mining town established in the late 1700s, Casa Georgina complies with strict building regulations that aim to maintain the site’s unique aesthetic character and architectural identity.

Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui

In addition to height and sight-line restrictions, building mandates specify that all exterior walls be constructed with local stone, through a traditional building technique that is representative of the town.

Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui

In tandem with the schematic development of the project, these building regulations initiated immediate design considerations at the scale of the detail.

This included the repair, reinforcement, and extension of existing, solid stone walls on site, as well as the construction of new walls using a modified and more economical construction method involving stone, cast concrete, and CMU blocks.

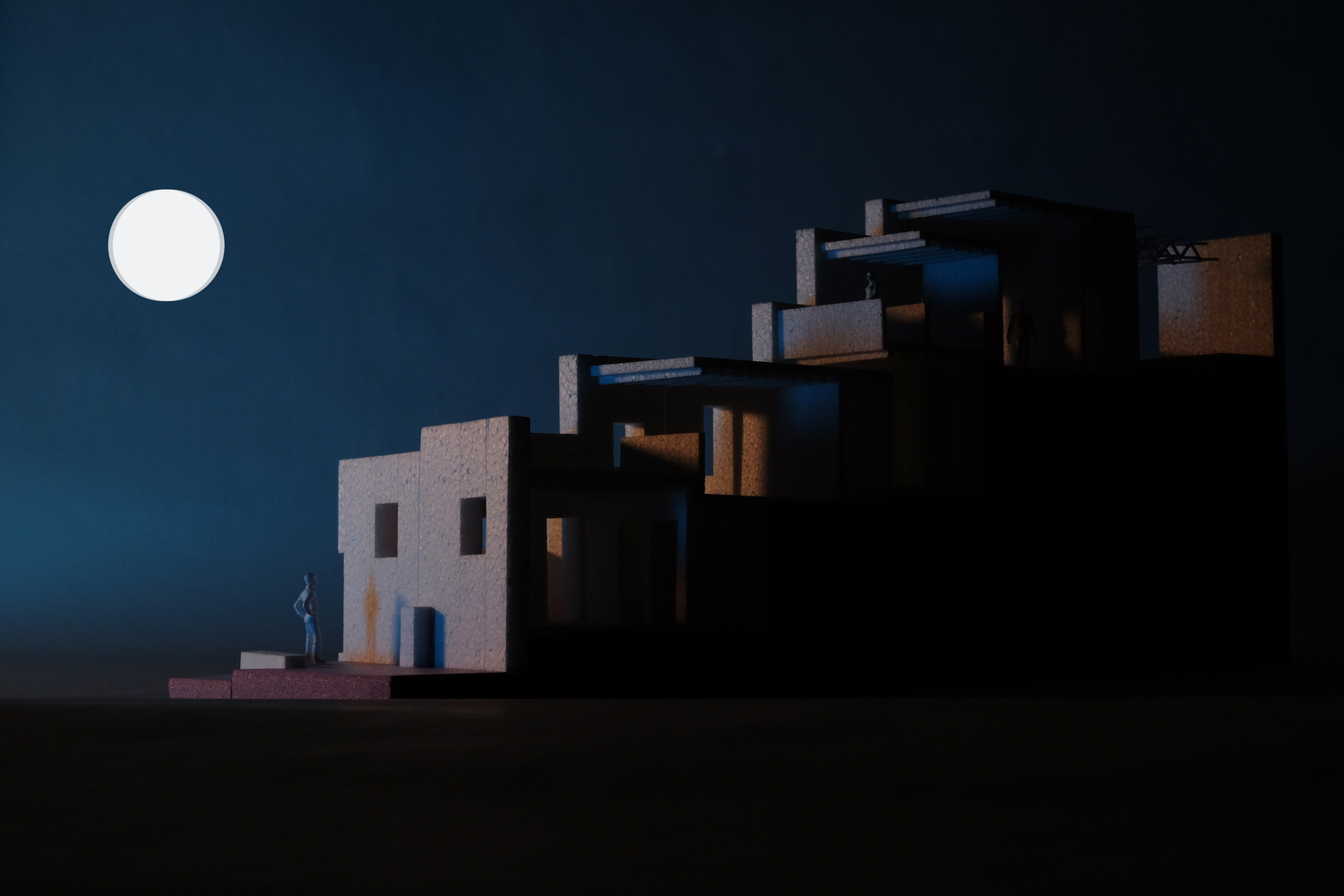

Casa Georgina
Cortesía de Departamento del Distrito
Casa Georgina
© Adriana Hamui
Casa Georgina
Cortesía de Departamento del Distrito

The resulting project is one of mediation: between human agents (client, architect, government officials, and local population), form and landscape, existing site elements and future project, traditional building techniques, and contemporary construction methods.

Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui
Casa Georgina
© Adriana Hamui


Casa Georgina
Section
Casa Georgina
Section
Casa Georgina
Section
Casa Georgina
Section


Casa Georgina
Level 1 Plan
Casa Georgina
Level 2 Plan
Casa Georgina
Level 3 Plan
Casa Georgina
Site Plan

Casa Georgina
Facade
