LÉONARD DE VINCI TECHNICAL COLLEGE

COSA Colboc Sachet Architectures, TANK Architectes

ENVIRONMENTAL APPROACH
Solener

ACOUSTICS
Jean-paul Lamoureux

MANUFACTURERS
Axalta, Bega, Tarkett, Durcisseurs Français, Shüco

STRUCTURAL ENGINEERING
Bollinger + Grohmann

LANDSCAPE ARCHITECT
Sébastien Sosson

ECONOMICS
Cabinet Becquart

PHOTOGRAPHS
Camille Gharbi

OUTDOOR AREA
11600 m²

AREA
14880 m²

YEAR
2020

LOCATION
Saint-germain-en-laye, France

CATEGORY
University, Sustainability

Text description provided by architect.

Carried by two agencies, four heads, and even more hands, « the universe of the Léonard de Vinci high school project resonates with our research, our respective ways of writing a project. »

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi

The architecture of a technical college needs to express construction. It must offer the flexibility essential to a continuously evolving programme. It must be simple and strong, able to serve students and staff over time.

The project goes straight to the point. Shape and constructional traits arise from the rational imperatives of the programme:

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi

doubling the surface area of the college, with the creation of a new building that will accommodate 1200 students, while maintaining the facility’s activities.

The new building is distributed on three levels. On the ground floor are areas for technical instruction with workshops, cloakrooms and stores, forming a U around the courtyard and opening onto the forecourt.

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi

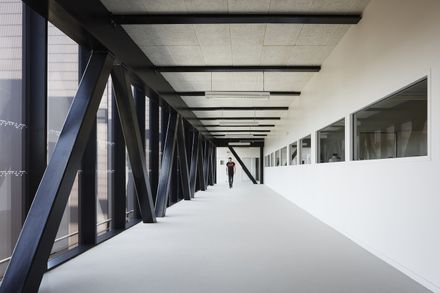

Movement is distributed via two interior streets which, as well as providing natural light, facilitate orientation within the complex.

The ground floor is built into the slope, so that the first floor, where the college’s student and administrative life takes place, is on the same level as the park that will eventually run through the building.

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi

These functions are connected by large covered patios, creating a selective dialogue between themselves and the world outside.

On the second floor, classrooms provide exclusive views over the park and the central garden.

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi

A 3.6-meter load-bearing skeleton divided into 1.2-meter units structures the building. The joinery and facade cladding, lights, radiators and electrical terminals maintain this same regular pattern.

The uniform distribution of the utility networks, the repetitive design of the openings and the absence of internal bearing walls make for genuine modular flexibility.

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi

The solar screens are fixed in such a way as to leave the views open.

They are adapted to the orientation of each facade and play a structural role by providing rigidity for the high glass walls on the ground floor and support for the service passage on the second floor.

Through this economy of resources and simplicity of construction, through the rejection of arbitrary design of all kinds, the architecture remains free of any formal presumption and pared down to its simplest constructional truth.

Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi


Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi
Léonard de Vinci Technical College
© Camille Gharbi


Léonard de Vinci Technical College
Site plan
Léonard de Vinci Technical College
Plan - Ground floor
Léonard de Vinci Technical College
Plan - 1st floor
Léonard de Vinci Technical College
Plan - 2nd floor


Léonard de Vinci Technical College
Exploded axonometric
Léonard de Vinci Technical College
Axonometric


Léonard de Vinci Technical College

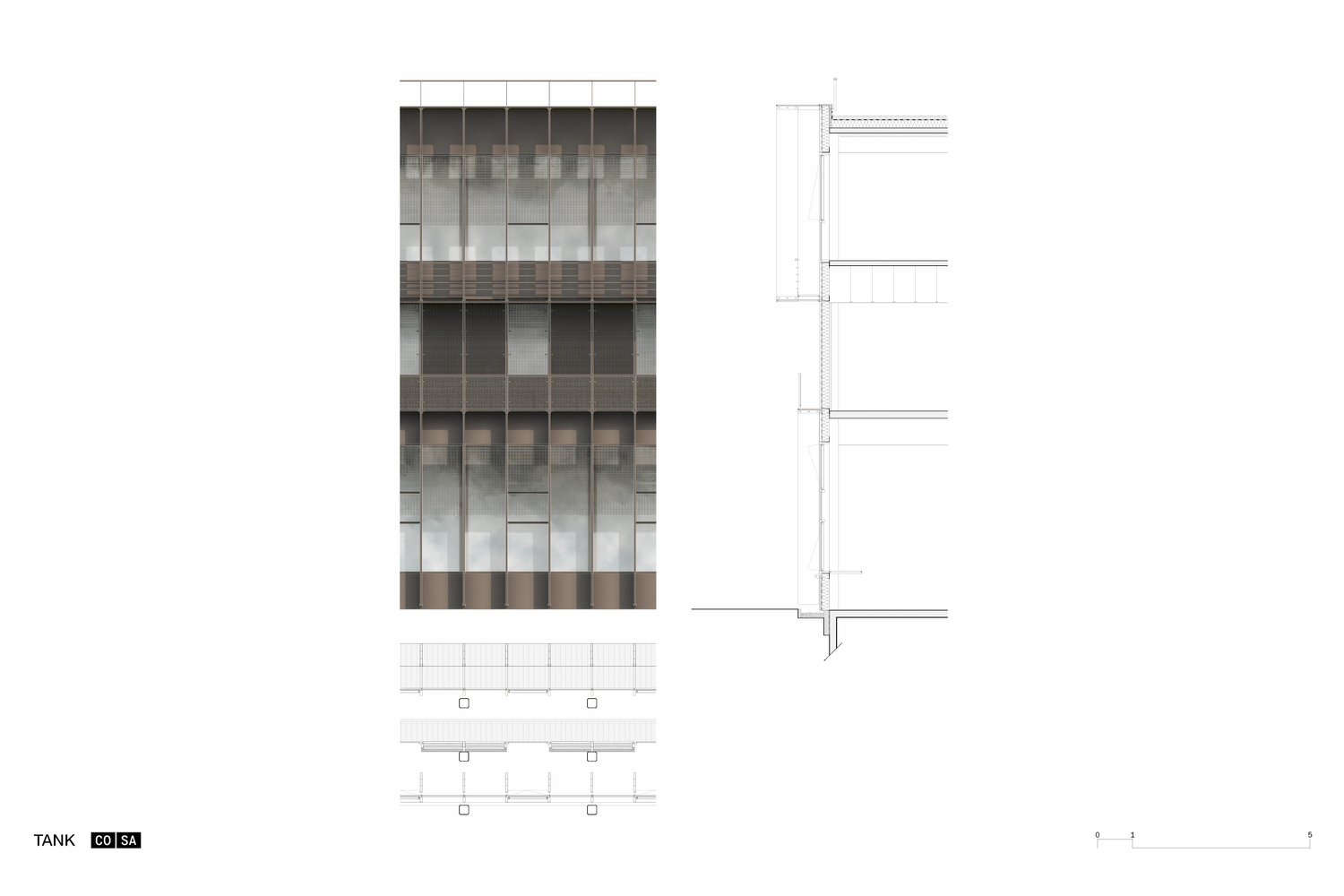

Composition facade
Léonard de Vinci Technical College
Model
