CODE BOTHY BRICK SHELTER

Piercy&Company + Material Architecture Lab

CATEGORY
Other Structures

LOCATION
Lacey Green, United Kingdom

AREA
9 m²

ARCHITECTS
Material Architecture Lab, Piercy&Company

YEAR
2020

PHOTOGRAPHS
Naaro

MANUFACTURERS
Petersen Tegl

DESIGN TEAM
Guan Lee, Daniel Widrig, Adam Holloway

STRUCTURAL ENGINEER
Tim Lucas

MAIN CONTRACTOR
David Hussey

LANDSCAPE
Andy Grant

SITE MANAGER
Nigel Tucker

CHIEF BRICKLAYER
David Hussey

BRICKS
Petersen Tegl

BRICKLAYING TEAM
Kevin Rouff, Paco Bockelmann, Jianbin Sun

Code-Bothy is an experimental digitally designed brick shelter, hand-built using an AR headset at Grymsdyke Farm in Buckinghamshire.

The product of collaborative research by Material Architecture Lab (The Bartlett) and architects Piercy&Company, Code-Bothy merges digital technologies with traditional bricklaying, offering a future vision of opportunity rather than obsolescence for this age-old craft.

Code Bothy Brick Shelter
© Naaro
Code Bothy Brick Shelter
© Naaro

The structure itself is based on a bothy - a basic shelter in remote areas left open for anyone to use. Whereas a traditional bothy has very simple geometries, the Code-Bothy team used parametric modelling to generate a highly complex structure.

Wearing an AR (augmented reality) headset displaying information from the 3D model, the bricklayer, often working against intuition, was able to successfully construct the complex form.

Code Bothy Brick Shelter
© Naaro
Code Bothy Brick Shelter
© Naaro

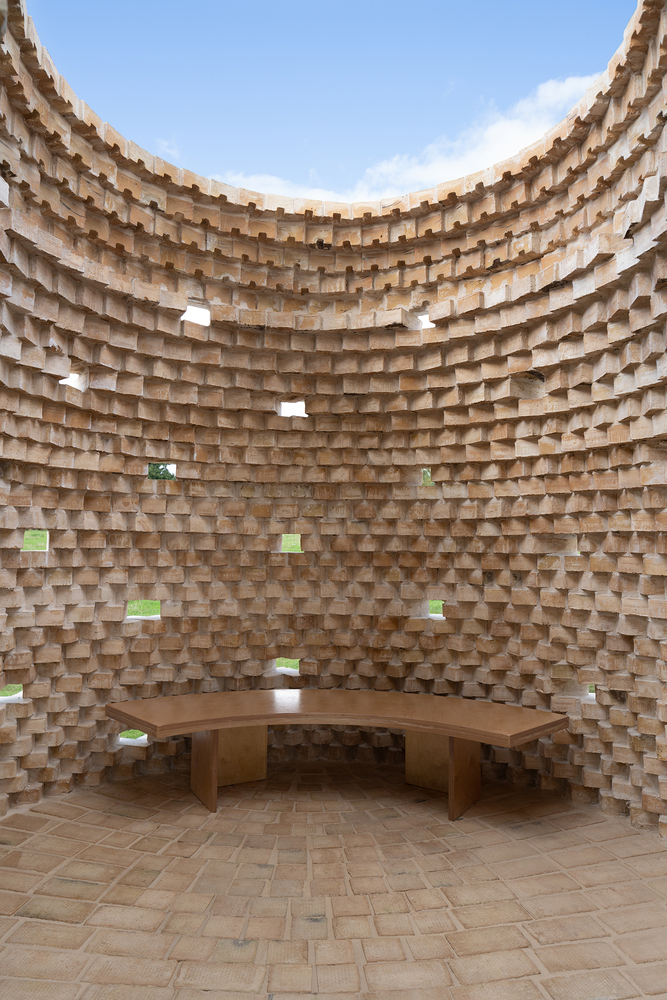

The project oscillated between the digital and manual throughout design and construction. Early concepts were hand sketched, capturing a sense of enclosure within the landscape and aligning the orientation of the openings for maximum sun penetration through the overhead oculus.

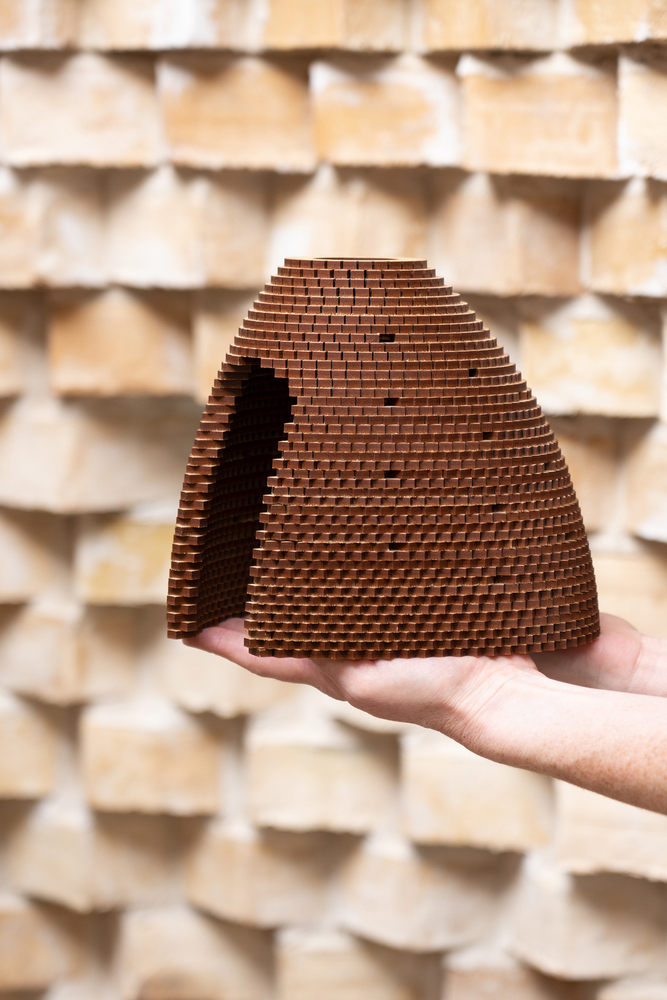

The concept was then parametrically modelled. Each brick was set at a unique angle, without repetition. The rotation of the bricks was parametrically differentiated with code, to allow for the overall sculpting of the form.

Code Bothy Brick Shelter
© Naaro
Code Bothy Brick Shelter
© Naaro
Code Bothy Brick Shelter
© Naaro
Code Bothy Brick Shelter
© Naaro

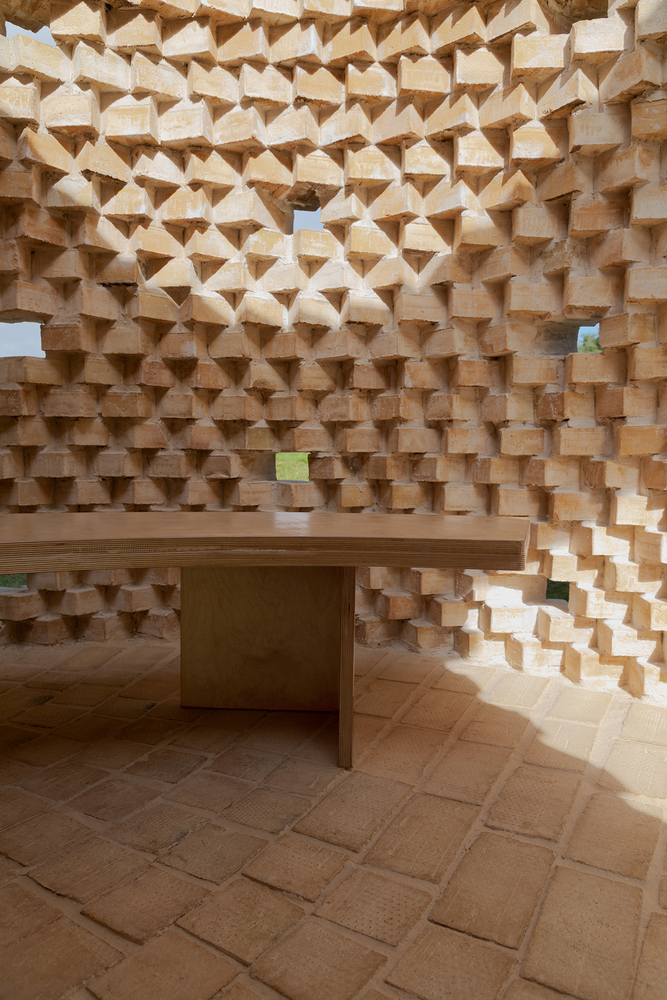

On the bottom layer, the bricks are set at 45 degrees to one another; that geometrical relationship gradually shifts so that the bricks are parallel to one another at the top.

During construction, the bricklayers wore the AR headset and progressively ‘turned on’ each layer of bricks, placing real bricks where the Hololens display showed virtual ones. The space for mortar is accounted for in the model simply as a gap between the bricks, one of many aspects where the skills of the bricklayer are indispensable.

This project acknowledges the social and economic implications of technological change, but proposes that this human-computer interface can offer both a new language for brick architecture but also a future for the bricklaying trade.

Code Bothy Brick Shelter
© Naaro


Code Bothy Brick Shelter
Plan
Code Bothy Brick Shelter
Section
Code Bothy Brick Shelter
Axo
