PINA CERÂMICA STUDIO

Alvorada Arquitetos

STRUCTURE AND FOUNDATIONS
Tholos Engenharia

LEAD ARCHITECTS
Elenice Teixeira, Fábio Guzzo

CATEGORY
Workshop

AREA
150 m²

YEAR
2021

AIR CONDITIONING
Eternamente Ar, Sertec

MANUFACTURERS
AutoDesk, 3M, Bloco Campos, Concreserv Usina, Constrauss, Deca, Fórmica, Ipel Iluminação, Portal Prime, Santa Clara, Shimpo, Skutt, Skymar, Suvinil, Tigre, Tomodatys, Uemura Plantas, Vedra Mármores

LIGHTING DESIGN
Ipel Iuminação

CLIENTS
Pina Cerâmica

INSTALLATIONS
Engeplot Alpha

CONSTRUCTORS
Macmenge Engenharia

CIVIL ENGINEERING
Martins & Sequencial

STEEL STRUCTURE
Santa Clara

PHOTOGRAPHS
Pedro Kok

LOCATION
Pinheiros, Brazil

Located in the Pinheiros Neighborhood, this project has the challenge of accommodating in a lot of small dimensions, barely 4x30m, a complete installation of a ceramic’s atelier, from the fabrication of the pieces to a sales area.

The site chosen by the ceramist worked as a convenience store with a compromised structural state and several segmented spaces.

Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok

Thinking in the possibility of a better format for the requirements of an atelier and for the security of the building, the original building was demolished, and new construction was put in its place.

As a structural premise, lateral dividing walls in structural masonry and transversal metal W Type beams were applied.

Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok

The use of a precast slab system simplified the construction due to the limitations in space inside the building.

The idea of the project was to create a neutral and pale atmosphere so that the colors and expressions of the artist’s work of art could stand out in the middle of the architecture.

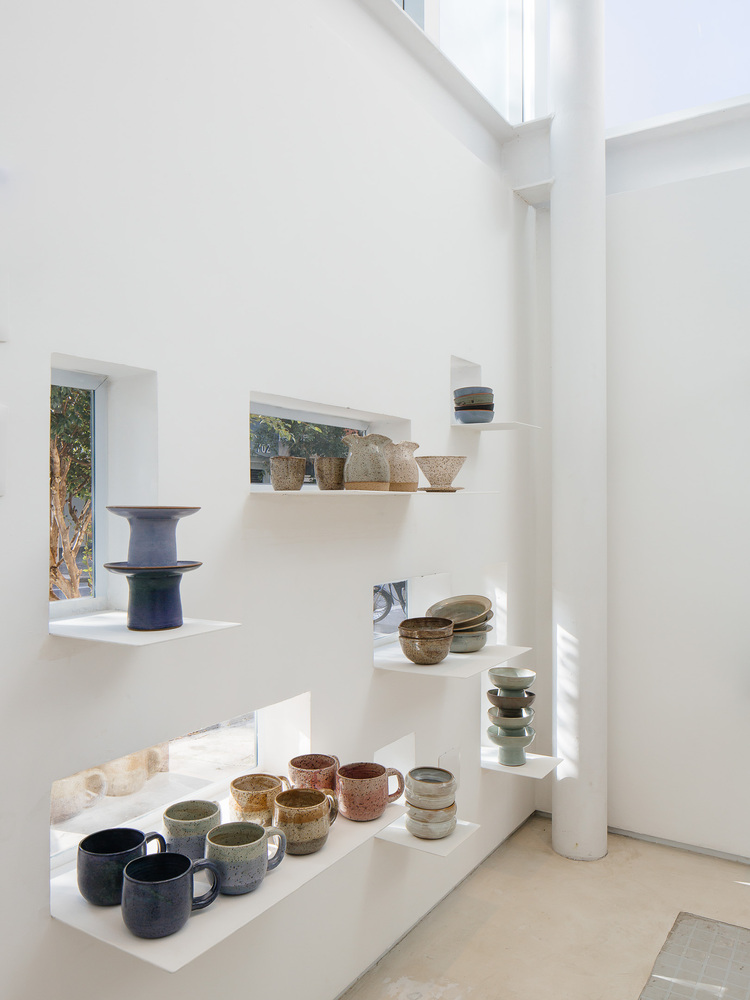

In the atelier’s entrance, the sales area is located with double-height space surrounded by opaque glass windows, providing a diffuse and pleasant light as to enjoy the artwork displayed on metallic shelves embedded in the walls and illuminated woodwork.

Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok

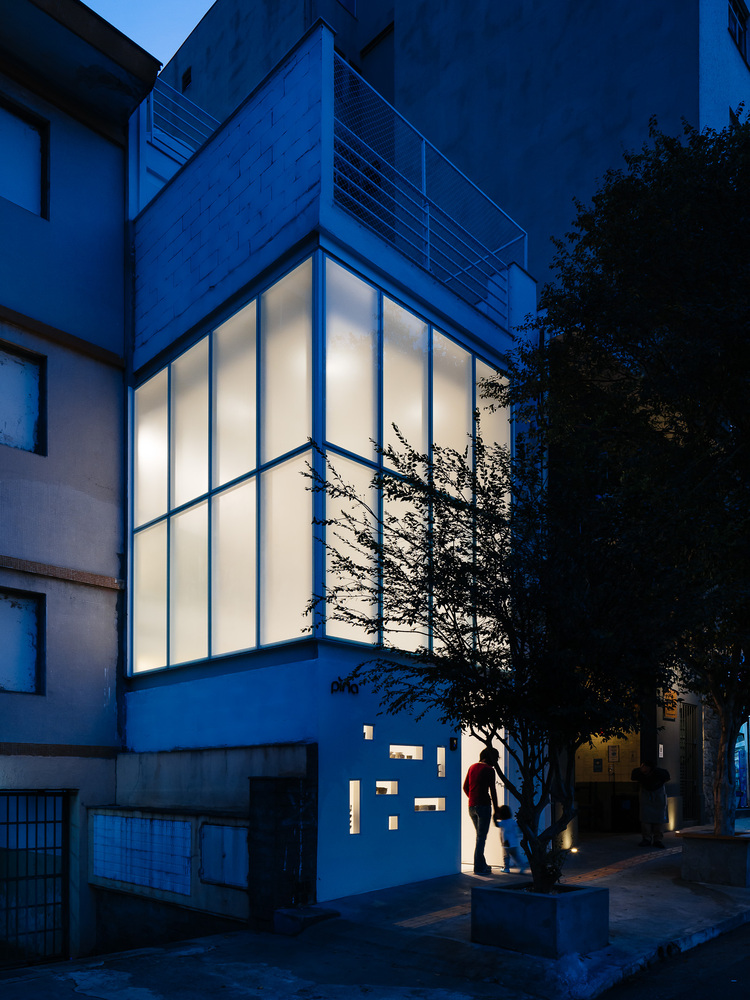

A group of small openings on the façade, serve as a showcase and generate curiosity for people that passing by.

At night, these openings combined with the translucent façade provide a delicate light effect.

Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok

The first floor is composed of the lobby, two trunk benches a meeting table, and a deposit under the staircase.

Following it there is a space to conduct workshops and the modeling of the artwork in which lathes were arranged under an overhead cover.

Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok

Further inside, with a direct visual from anyone entering the atelier one can find a cafeteria, restrooms, and an outside garden.

On the second floor, the ceramics are cooked inside electric furnaces which then follow towards the enameling room where it is possible to view who is in the sales area through the double-height space available.

Metallic carts built in iron function as dividers and help to transport the artwork on each floor.

Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok

On top, the third floor provides more space for additional lathes and works also as a recreational space, with terraces that look onto the street and towards the interior of the property.

The staggered format of the project was thought to favor the entrance of natural light and ventilation, minimizing the need for artificial illumination during the day.

With a different format of regular commercial stores, Pinheiros wins a new and cozy space oriented towards the art and beauty of everyday objects.

Pina Cerâmica Studio
© Pedro Kok


Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok
Pina Cerâmica Studio
© Pedro Kok


Pina Cerâmica Studio
Plan - Ground floor
Pina Cerâmica Studio
Plan - First floor
Pina Cerâmica Studio
Plan - Second floor


Pina Cerâmica Studio
Section
Pina Cerâmica Studio
Section
Pina Cerâmica Studio
Section


Pina Cerâmica Studio
Axo
Pina Cerâmica Studio
Structural
